10/100 Base-T POE rj45 port connector label down LED connector ethernet rj45 connector rj45 modular jack pcb jack

Supplier: Dongguan Xunwang Electronic Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms An na
Price: $0.30 / 2 - 299 pieces
$0.25 / 300 - 1999 pieces
$0.20 / >=2000 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Hold Strength:	Minimum 7.7KG.F between jack and plug	port:	Shenzhen
model:	XWRJ-1104E1027	Card:	XW-ETLINK
type:	RJ45	Packaging Details:	Vacuum packaging, pallet packaging, can be specified packaging
OEM/ODM:	Yes	Rated voltage:	125VAC
Pressure resistance:	AC 1000V RMS 50Hz or 60Hz for 1 minute	Current rating:	1.5 amps
Insulation resistance:	500 megohm min	Contact resistance:	30 megohm max
Bale:	tray	Supply capacity:	7500 pieces per day
Durability:	At least 750 mating cycles	describe:	RJ45 connector
place of origin; place of origin:	Guangdong, China	payment terms:	wire transfer
Packaging Preview:

Note: All certificates are real and valid. For certificate details, please contact customer service

Product Description

describe

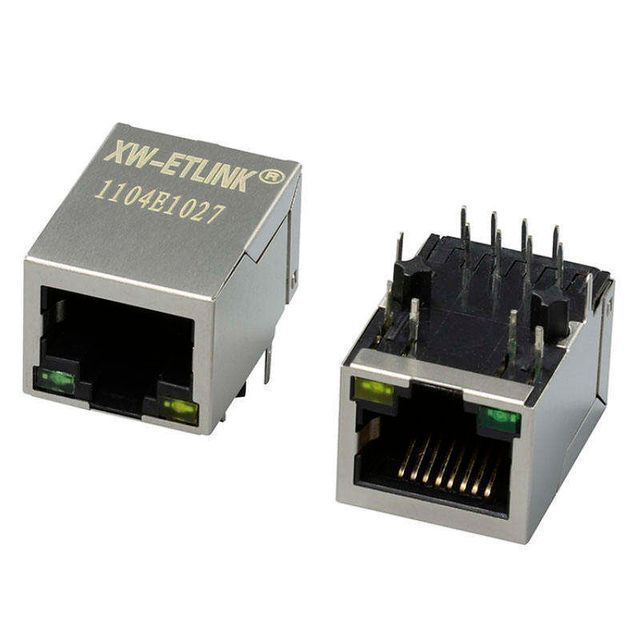

RJ45 with transformer (filter)
Dongguan Xunwang Electronics Co., Ltd. Our RJ45 integrated magnetic connectors are designed and manufactured in accordance with IEEE802.3 and ANSI X3.263 standards. They are widely used in PC card/notebook applications, switches, PCBAs, set-top boxes, medical equipment, communication equipment, etc.
electric
Internal magnetics are 100% electrically tested according to IEEE802.3 requirements
High performance with maximum EMI suppression
350uH Minimum OCL with 8mA Bias Current
current rating			1.5 amps
Rated voltage			125VAC
Insulation resistance			500 megohm min
Contact resistance			30 megohm max
Withstand voltage			AC 1500V
Insertion Loss:			-1.0dB max@100KHz-60MHz
Return Loss:			-18dB min@1MHz-30MHz
				-14dB min@30MHz-60MHz
				-12dB min@60MHz-80MHz
			-10dB min@80MHz-100MHz
Common Mode Rejection:			-30dB min@1MHz-100MHz
crosstalk:			-30dB min@1MHz-100MHz
Mechanical
maintain strength			Minimum 7.7KG.F between jack and plug
Durability			At least 800 mating cycles
Material
1. Housing			PBT(UL94V-0) PA46(UL94V-0) LCP(UL94V-0)
2. Contact wire			Phosphor bronze T=0.35, gold plated over nickel
3. Shield			0.20~0.25mm thick brass tinned
4. Gold plating			6u" 15u" 30u" 50u" .
5. LED Specifications	Standard LED Colors	LED wavelength	Forward (VMAX)	Typical (V TYP)
		green	560-580 nm	2.5V	2.1-2.2V
		yellow	580-610 nm	2.5V	2.1-2.2V
		1. Measure LED Intensity/Wavelength with Photo Research PR-650 Colorimeter 2. Forward current is 20 mA, absolute maximum rating (Ta=25℃)
6. RoHS peak wave soldering	RoHS Wave Soldering Peak Temperature Rating 260℃±5℃
Operating and storage temperature
Operating temperature			-40°C to 85°C
Storage temperature			-40°C to 85°C
application
Network products: NIC, HUB, SWITCH, ROUTER, BRIDGE, WORK, STATION: PC/SYSTEM, PRINTER, SERVER, NB, IACABLE MODEN, XDSL APPLICATION, SET-TOP-BOX, PCBA, etc.

Our advantage

1. Professional connector manufacturer, a variety of styles to choose from, offer the best EXW price! 100% Quality Control Shipping
Inspection, quality assurance!

2. We can provide free samples for you to test!

3. We support OEM/ODM. if the product is nothing
You need, please contact us directly, we will make the best solution for you free of charge!

4. Large production workshop, fast speed
Delivery, immediate delivery, guaranteed delivery.

5. One-to-one after-sales service, please feel free to contact us if necessary
any problem.
