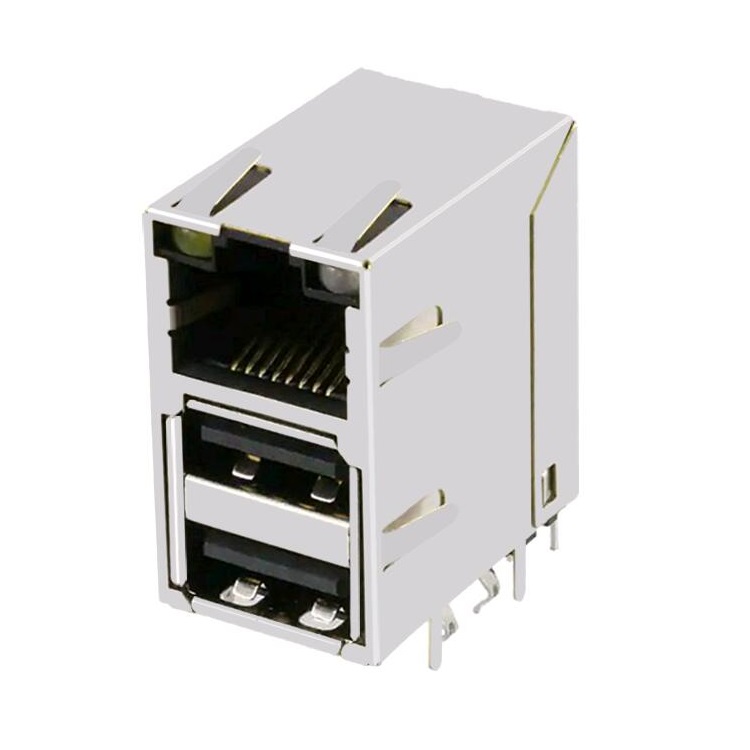

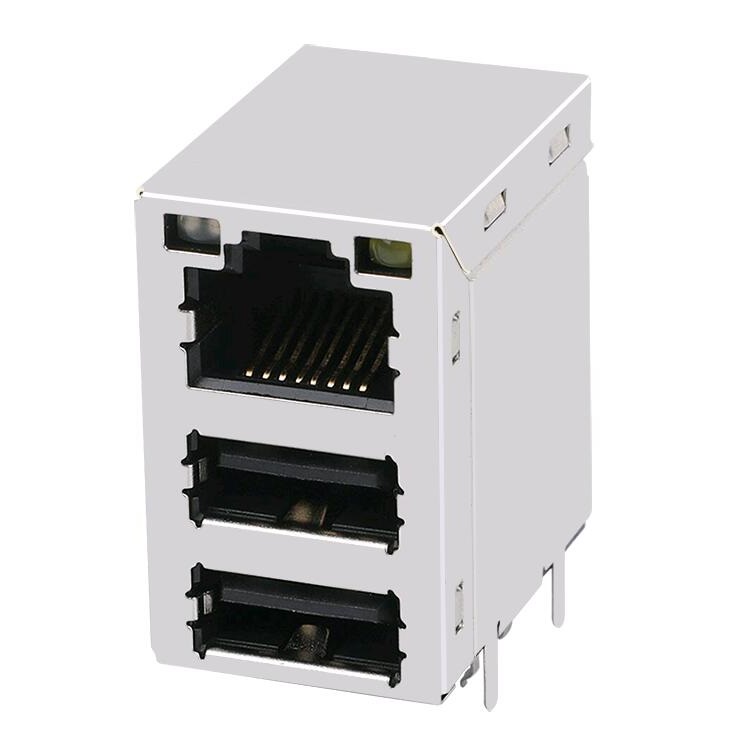

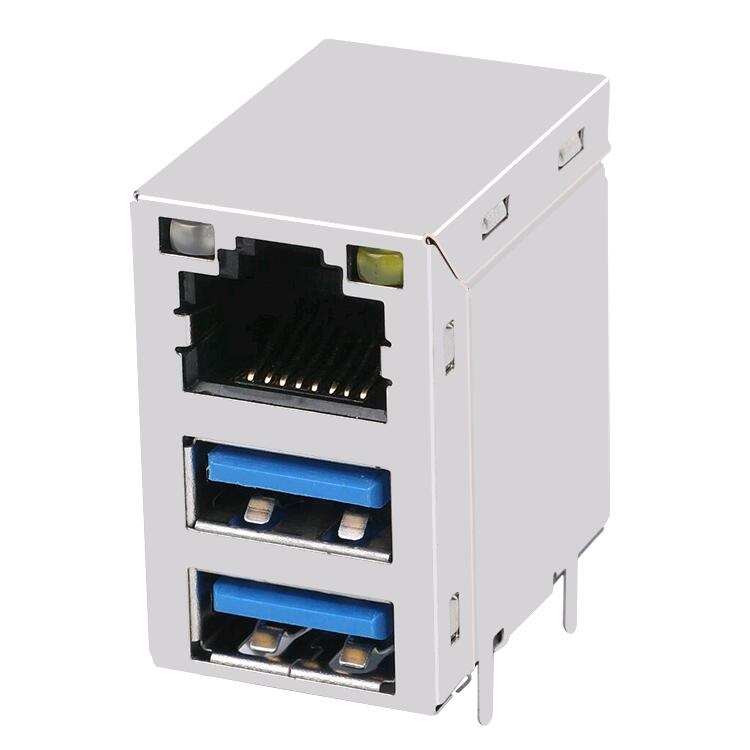

Magnetic RJ45 Dual USB 3.0 Combo Connector 2250576-1 2250555-1 2250125-1
- 0.10 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| brand: | Jack Zhu | Certificate: | ISO9001/ROHS/CE/FCC |
| Contact plating: | gold | Packaging details: | Packaging: 120 pcs in 1 tray, 9 trays in 1 box, size 33*33*21 cm, 8KGS per box (1080 pcs) |
| gender: | female | model: | 2250125-1 |
| describe: | RJ45 connector with USB | Package: | tray |
| shield: | shield | type: | USB Type A |
| Place of origin: | Zhejiang, China | Supply capacity: | 1,200,000 pieces per month |
| Number of ports: | 1 USB port | port: | Shanghai/Ningbo/Shenzhen/Hong Kong/Tianjin/Beihai/Nanjing/Guangzhou/Qingdao |
| LED color: | green/orange | Application speed: | 100/1000Base-T, AutoMDIX |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Tab orientation: | up |
| direction: | 90° angle (right) | letter of credit: | 23xx |
Product Description
category | Connectors, interconnects; Modular Connector - Magnetic Jack |
Application-LAN | Ethernet (non-POE) |
Connector type | RJ45 |
Number of positions/contacts | 8p10c |
Number of ports | Single port with USB |
Application speed | 10/100/1000 Base-T, AutoMDIX |
Installation type | Through hole |
direction | 90° angle (right) |
termination | welding |
board height | 1.2 inches (30.5 mm) |
LED color | Green/orange, can be customized |
Shield EMI tags | Shielded, no EMI chip |
feature | Board Guidelines |
tab orientation | up |
Contact materials | Phosphor bronze |
Package | tray |
Operating temperature | -40℃～85℃ |
Contact material plating thickness | Gold 6.00μin/15.00μin/30.00μin/50.00μin |
shielding material | brass |
building materials | thermoplastic |
RoHS compliant | YES-RoHS-5 Lead in solder exemption |
