MOREDAY factory wholesale 2.5mm2 solar power system solar cable DC renewable cable
- 0.41 1 - 500 pieces
- 0.40 501 - 4999 pieces
- 0.38 >=5000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Cable Specifications: | 2.5 square millimeters | short circuit: | 250°C |
| port: | Ningbo/Shanghai | brand: | Mindian |
| stable: | -45℃-120℃ | name: | Photovoltaic solar cable |
| Warranty: | other | payment terms: | Western Union, L/C, T/T |
| Art code: | PV1-F1 | Bending radius: | 12mm |
| brand: | tomorrow | place of origin; place of origin: | Zhejiang, China |
| Supply capacity: | 100000 meters per day | When laying: | -30℃-120℃ |
| Rated current: | 41A | model: | PV1-F1 |
Product Description
High quality 6mm2 solar power system solar cable
product name: | High Performance Outdoor Power Supply Electric PV 6 Mm2 DC Wire Solar DC Cable |
Art code: | PV1-F1 |
conductor | Stranded tinned copper |
primary insulation | XLPE |
brand: | tomorrow |
Rated current: | 70A |
diameter | 3 mm |
outer diameter | 5.4x11.1±0.3mm |
Cable Specifications: | 6mm2 |
ambient temperature. : | -45°C-90°C |
spark test | 10000VAC |
Withstand voltage: | 6500VAC |
Rated voltage: | AC0.6/1KV ; DC1.0/1.8KV |
product information

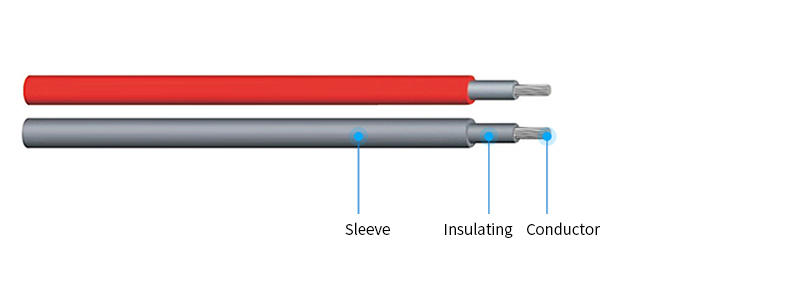

Solar cables for solar power generation systems use well-insulated protective sleeves and double protective conductors. Long service life, high temperature resistance, UV resistance.
detailed drawing
