Ground penetrating radar

ground penetrating radar

main feature

> Real antenna host integrated design

> Simple parameter setting, automatic gain setting, easy operation

> Unique WIFI technology, convenient for engineering site use, not affected by cable connection problems

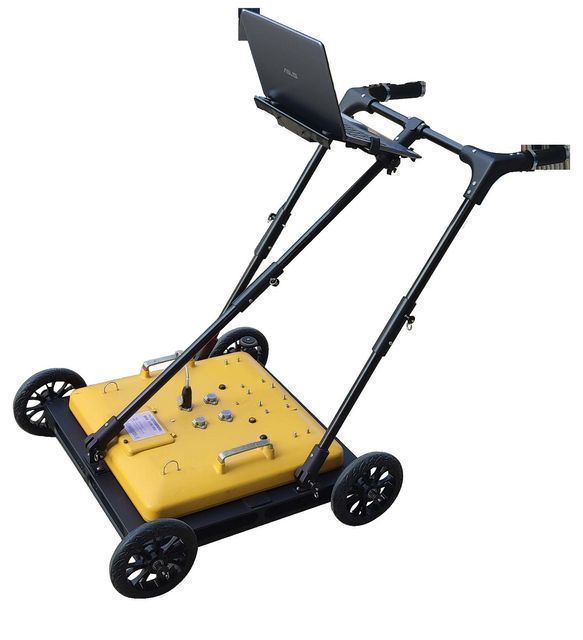

SL-GPR series wireless ground penetrating radar (GPR) is based on ultra-long pseudo-random code
The machine adopts ultra-wideband sampling technology and adopts a fully digital design controlled by software to realize all
Features of ground penetrating radar. It also adds over-the-air transmission, hardware and software filtering, time-varying, and more.
Gain, software delay, software adjustable sampling, standard IEEE80 2.11 communication protocol, parameters
Automatic setting and other functions. Simple to use, no adjustments required. At the same time, the ground
The penetrating radar (GPR) developed by our company is the first wireless transmission system in the industry. it can
Use any WLAN-enabled device as display and storage, such as laptops, tablets, etc.
on, and can work continuously for more than 14 hours

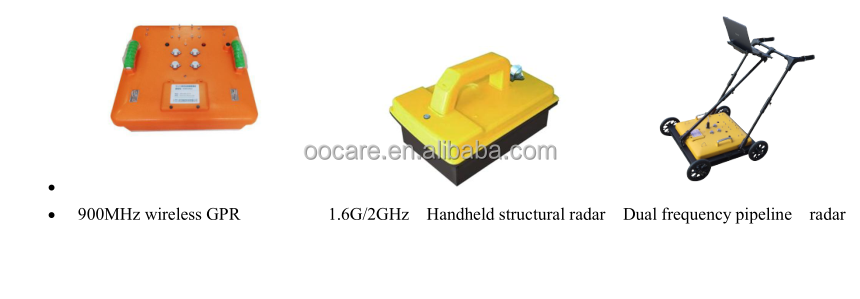

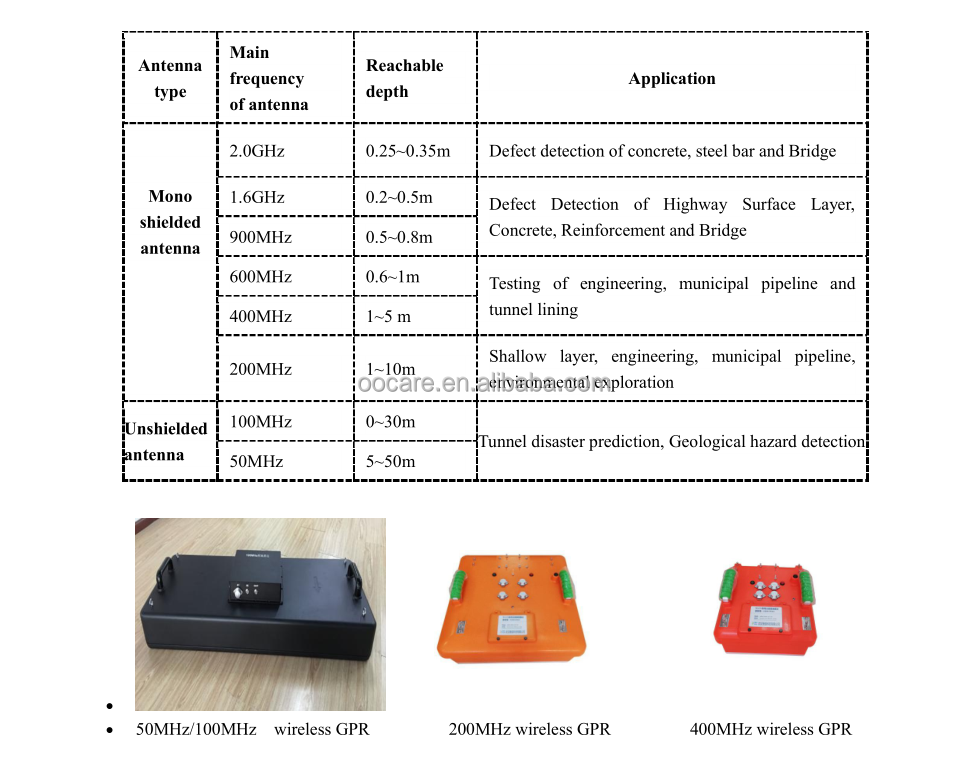

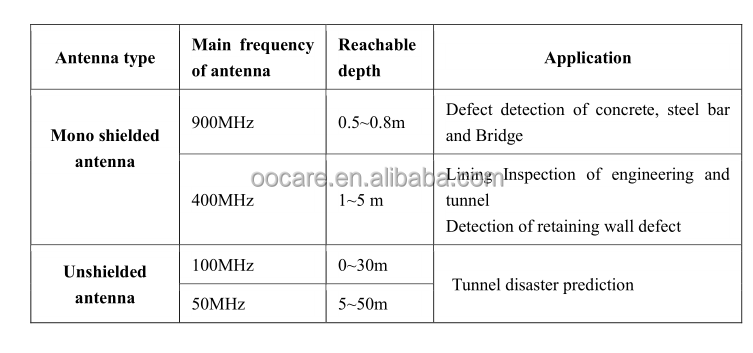

Main product series and antenna frequency

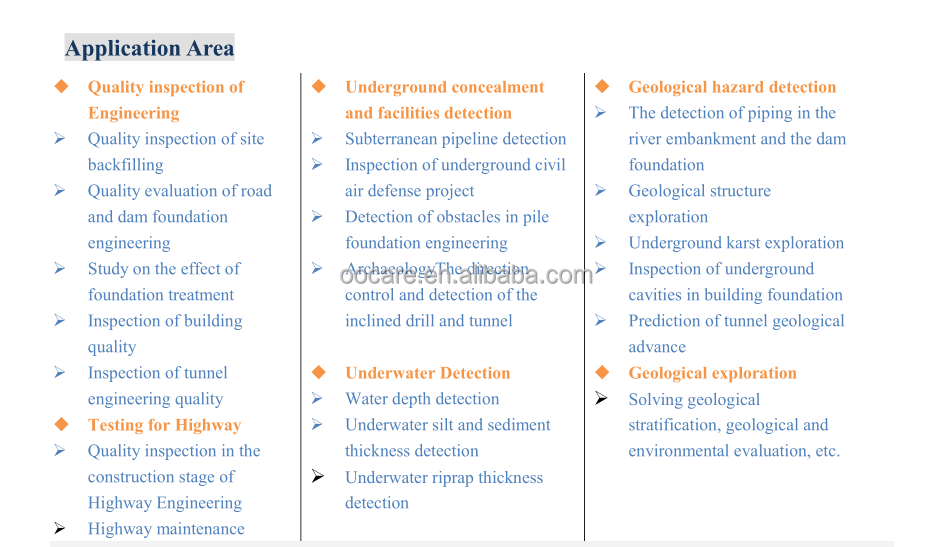

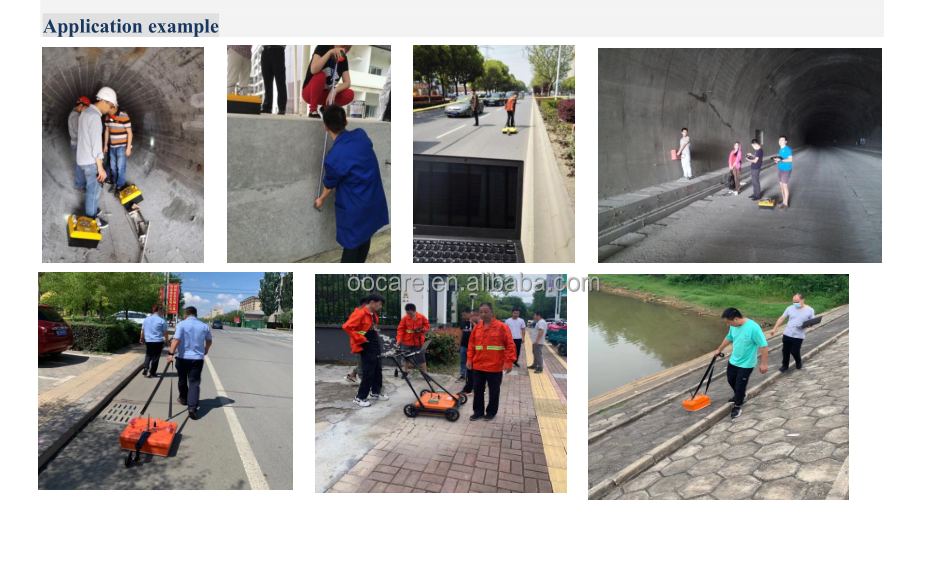

App recommendation

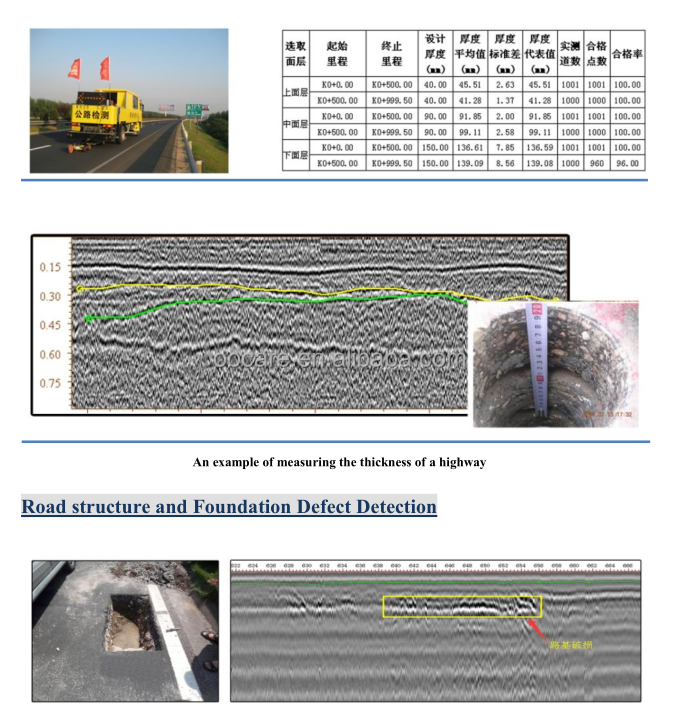

Highway surface/structural layer thickness detection
