UHV-135kVA/108kV High Voltage Variable Frequency Adjustable Series Resonance Test Set Series AC Resonant Test System

The complete set of frequency conversion series resonance test equipment is mainly used for ac withstand voltage test of cross-linked cable, hydraulic generator, main transformer, bus, GIS, etc. It has a wide range of application and is an ideal withstand voltage equipment for local, municipal and count-level high voltage test departments and electric power installation, repair and test engineering units.

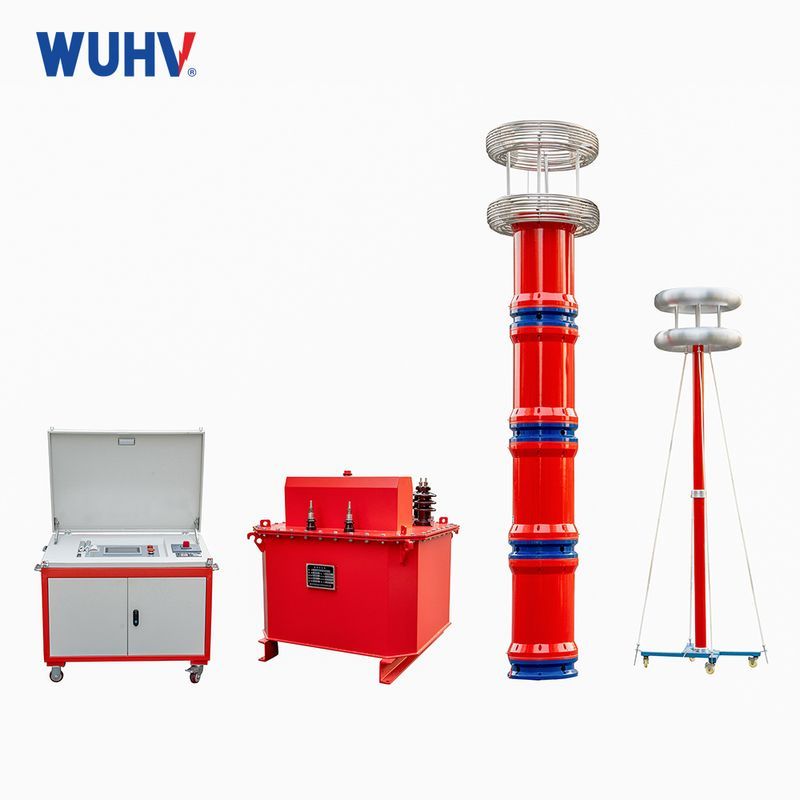

The complete set of frequency conversion series resonance test equipment is mainly composed of frequency conversion control power supply, excitation transformer, reactor, capacitor voltage divider and compensation capacitor (optional).

• 1、The reactor of the same voltage grade and capacity has smaller volume and lighter weight. Small temperature rise at rated load; Dry pouring, high mechanical strength, good electrical insulation, beautiful and reliable.

• 2、Large capacity margin of frequency conversion power control box; Strong protection function; Good output waveform; Good stability; With a variety of working modes, easy to operate; Single-phase 220V or three-phase 380V input power supply is common, which is convenient for on-site power collection.

• 3、Flexible configuration. Can choose different types of reactor, meet the requirements of different test products, achieve a multi-purpose, cost-effective.
