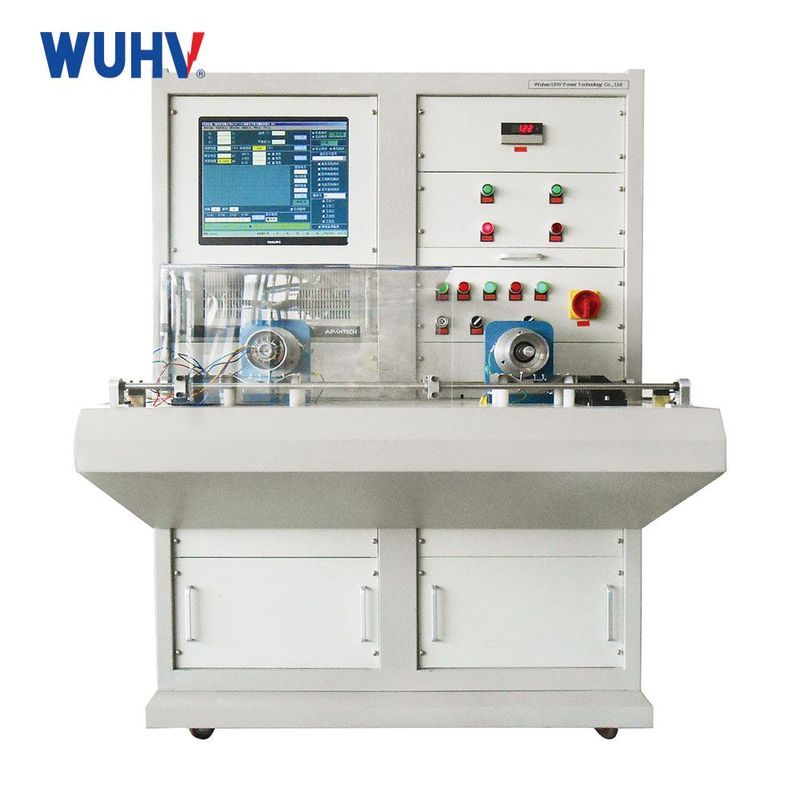

UHV-316D Standard Stator 3000V Single and Three Phase Stator Test Bench

The UHV-316D stator test system is mainly used for testing single-phase and three-phase generator stators, and can measure stators with 3-wire, 6-wire, 9-wire, and 12-wire windings. This test system adopts a 2-channel wiring method, suitable for testing 3-wire and 6-wire stators of new energy motors below H355 frame size.

Test items including DC resistance test, insulation resistance test, inter-turn insulation test, power frequency withstand voltage test, winding current balance test, and rotation direction test.

Optional test items including Inductance test, current balance test, magnetic field rotation direction test.

• 1. Displays all test results simultaneously for easy data viewing, with data storage and printout functions.

• 2. Equipped with a foot-operated safety switch for safe and reliable operation.

• 3. Standard medium and small stator tester with front-end test fixture, meeting test requirements for single-phase and three-phase stators.

• 4. Fast measurement speed, suitable for high-volume production such as home appliances and water pump motors.
