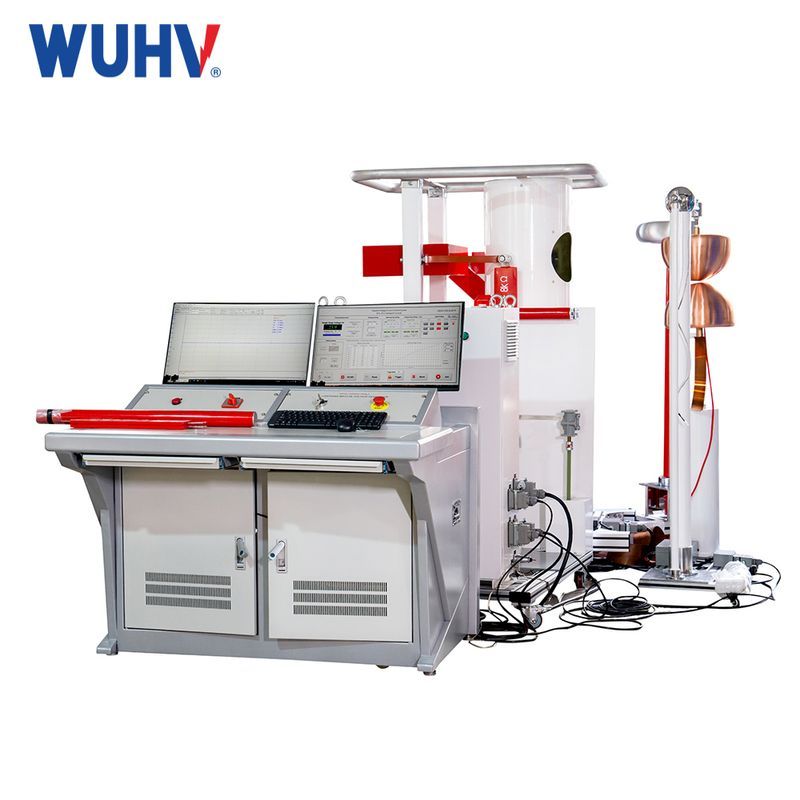

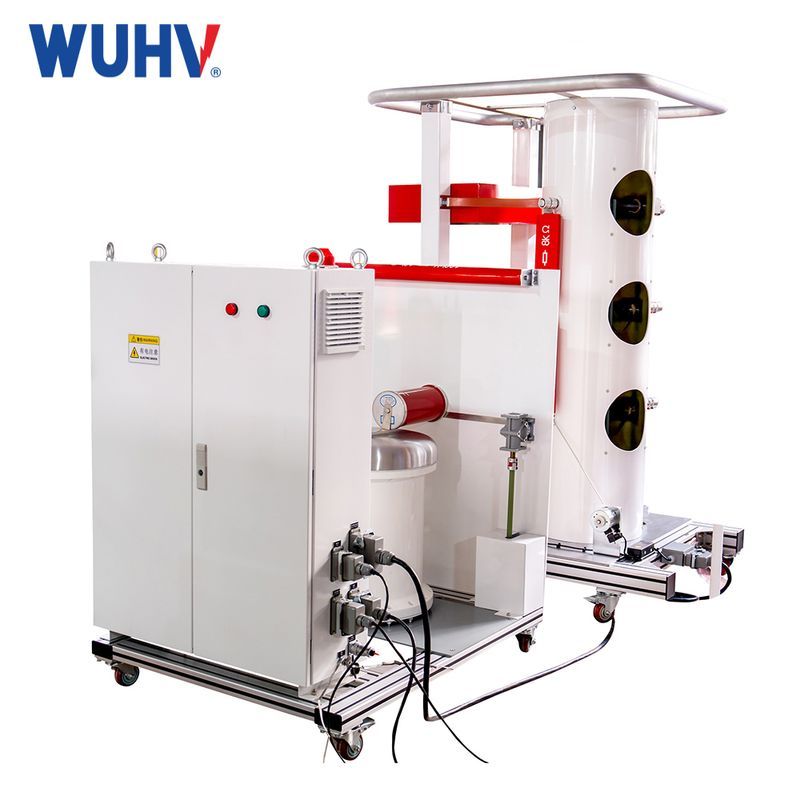

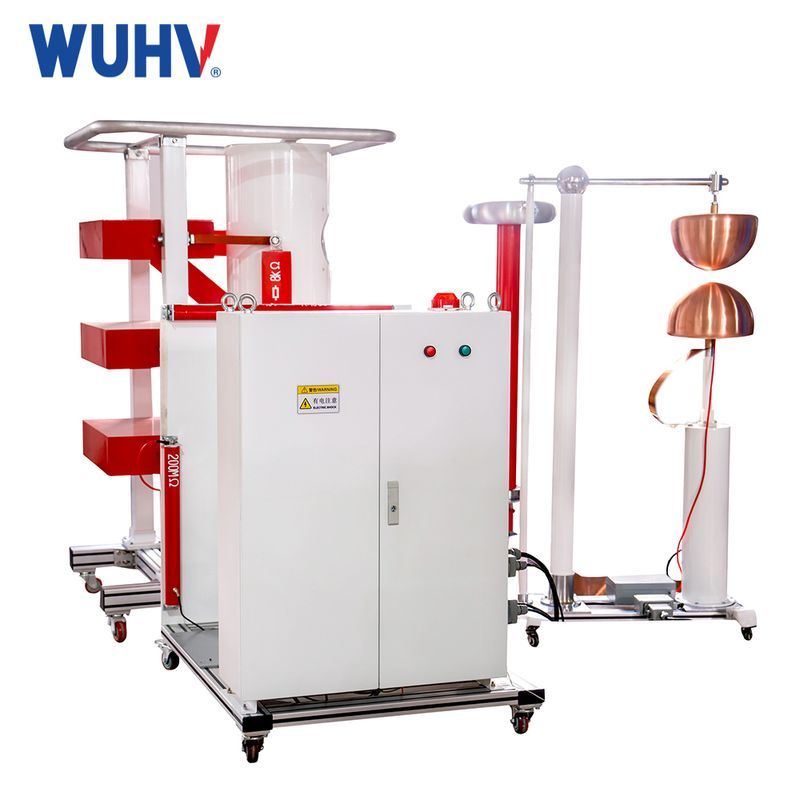

UHV-300kV/15kJ High Voltage Lightning Impulse Generator lightning Impulse Voltage test System

Impulse voltage generator is mainly used for impulse voltage test of power equipment, such as lightning impulse voltage full wave, lightning impulse voltage truncation wave and operating impulse voltage wave, to test insulation performance.Impulse voltage generator a power supply device that imitates impulse voltages such as lightning and operating overvoltages.It is mainly used in insulation shock withstand voltage and dielectric shock breakdown and discharge tests.

Scope of application: standard lightning shock, lightning cut-off wave for transformers, reactors, mutual transformers and other high voltage electrical appliances, high voltage thyristor valve SVC(HVDC), power cables, all kinds of high voltage insulators, bushing, operation shock and all kinds of non-standard shock wave impulse voltage test required by users.Various test waveforms (standard and non-standard waveforms, user-generated waveforms) can be generated by a single set of equipment.Field of application: lightning protection and lightning test for quality inspection, measurement, inspection and supervision organizations, power equipment manufacturers, railway communications, aerospace and aerospace vehicles, military research units, universities and meteorological departments.
