Tuya BLE Networking Module with Radar Sensor MoreSense MS58-3423D20M 5.8Ghz Microwave Radar Module for Lighting Control

Supplier: Shenzhen Moresense Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Jennifer Huang
Price: $1.30 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

describe:	radar sensor	Packaging Details:	Plastic boxes
color:	can choose colour	Material:	circuit board
place of origin; place of origin:	Guangdong, China	sensor type:	Support light sensor
brand:	feel more	usage:	Smart Home IoT Devices
output:	5V	model:	T-MS58-3423D20M4-W
Installation height:	3m recommended	payment terms:	wire transfer
Detection angle:	120 degrees	Supply capacity:	5,000,000 pieces per month
Package preview:		theory:	Doppler principle
Types of:	Motion and Position Sensors	port:	Shenzhen

Product Description

Radar sensor connected to Tuya BLE Mesh

Radar module supports OEM&ODM

Model: MS58-3423D20M4-Tuya Edition

5.8GHz highPerformanceSolution Module

Detect motion/fretting of objects

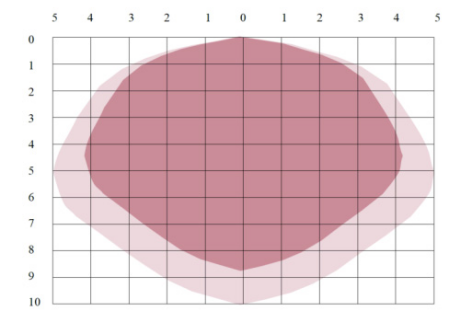

Induction direction: suspension 3M induction radius b. Linear sensing distance

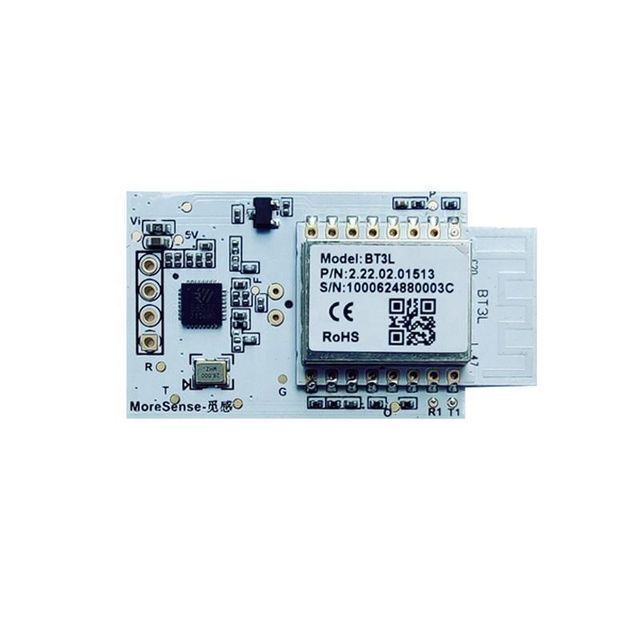

This module integrates radar chip and Tuya BT3L BLE module. The SENSE signal output by the BT3L BLE module is a PWM waveform (maximum voltage 3.3V), which is converted into a DC voltage (maximum voltage 2.8V) and RC filtered after being divided by a resistor, and then input to the radar module. The radar chip outputs PWM waveforms with different duty ratios, and then filters them into different DC voltage values. The radar chip adjusts the sensing distance according to different input voltage values. The radar chip outputs a sensing signal to the BT3L Bluetooth module through the OUT signal. When sensing, it outputs a high level for about 1 second. When not sensing, the OUT signal remains low.

module parameters

Parameter setting method:

smart phone app

APP motion detection control interfaceFunction description: a. Motion control switch: on: turn on the motion detection function, off: turn off the light b. Motion detection: three levels of sensing distance can be set: high, medium and low c. Lighting time, range: 00 minutes

05 seconds - 60 minutes

00 seconds D. Smart linkage: You can set the linkage between other Tuya smart products and preset scenes;

feature:

• Working frequency band: 5.8G ISM frequency band (radar) and 2.4G frequency band (BLE5.0); • Microwave radar sensor integrating Doppler effect and BLE5.0; • Sensing distance is adjustableFlexibilityAs required; •Using mature CMOS technology to achieve fully integrated ultra-high cost performance;• Built-in LDO on chip, support wide voltage power supply; • Self-calibration function, free from external interference, support dense distribution

•Meet some certification standards such as FCC, RED, CE, ETL;

Product packaging
