WiFi BLE Combo Module ESP32-C3 MoreSense Serial Port MSWB2213O Transparent Transmission IOT Solution Custom WiFi Module

Supplier: Shenzhen Moresense Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Jennifer Huang
Price: $1.68 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

model:	MSWB2213O	color:	Black
Material:	circuit board	brand:	feel more
antenna:	antenna	chipset:	ESP32-C3
Package preview:		Certification:	FCC/CE/SRRC/RoHS
application:	smart home	Types of:	WiFi module
Supply capacity:	5,000,000 pieces per month	Packaging Details:	scroll bag
port:	Shenzhen	payment terms:	wire transfer
country of origin:	China	Wireless standard:	802.11b/g/n

Product Description

Product model name: MSWB2213O
Provide secondary development SDK

WiFi & BLE Combo Module

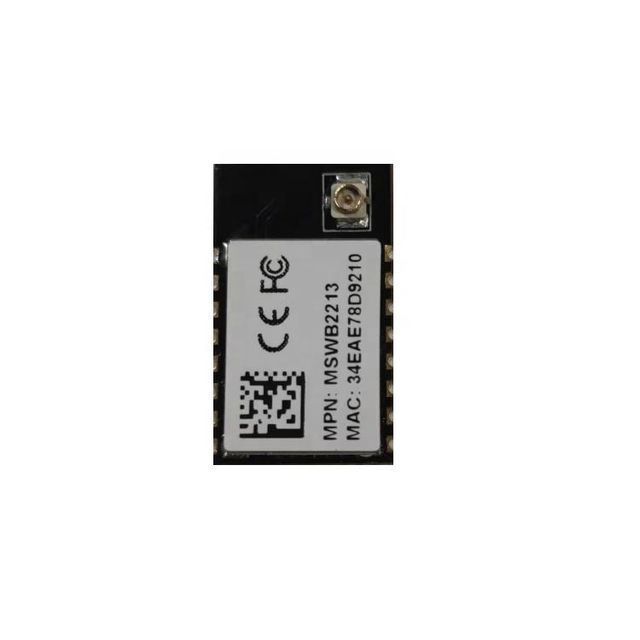

external antenna

MSMB2213 series modules are ultra-low power consumption and highly integrated modules,

Integrated 2.4GHz Wi-Fi and low-power BLE 5.0 dual-mode wireless communication.

external antenna

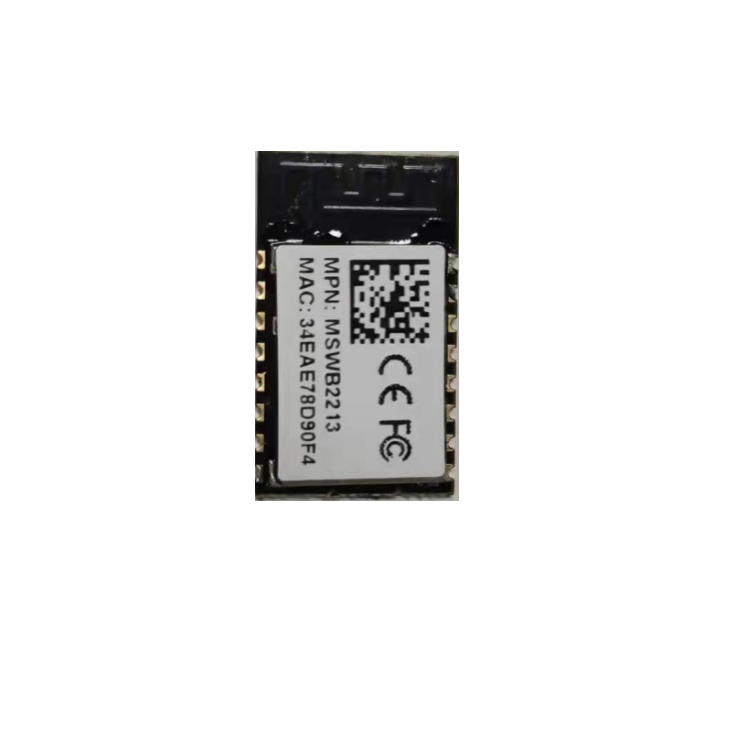

built-in antenna

module parameters

Types of	scope	value
WiFi&BLE parameters	Certification standards	FCC/CE/SRRC/RoHS
		Frequency Standards/Protocols	802.11 b/g/n (WiFi) & Bluetooth Low Energy 5.0
		Frequency Range	2.412Ghz-2.472Ghz(WiFi)&2.402Ghz-2.480Ghz(Bluetooth Low Energy)
		...	...

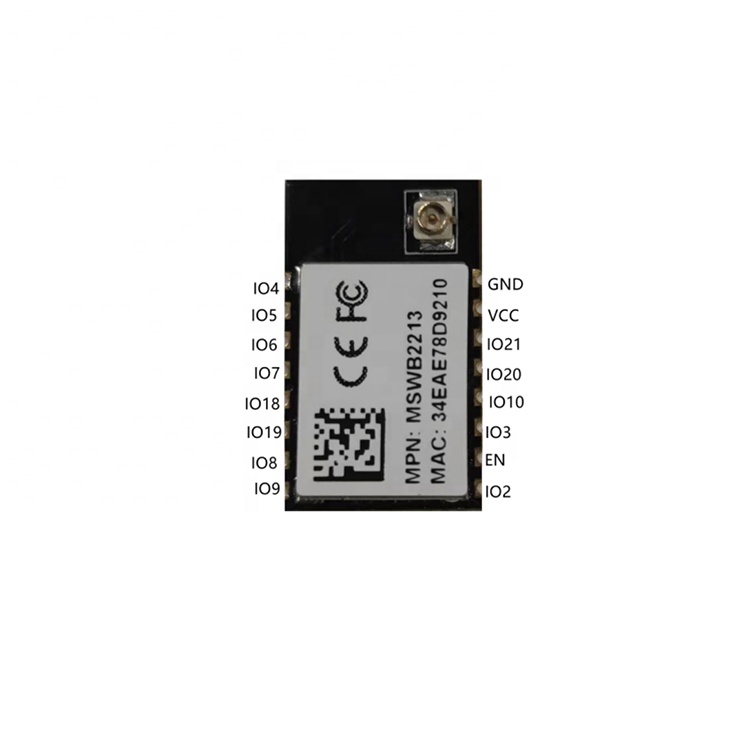

hardware parameters	Data interface	GPIO/SPI
	Data interface		Operating Voltage	serial port
		Operating Voltage	3.0-3.6V
		Operating temperature	-40°C- 85°C
		Storage temperature	-40℃- 125℃
		dim.	22mm*13mm
		...	...
software parameters	wireless network type	STA/AP/AP+STA/BLE5.0
		Security Mechanism	WEP/WPA-PSK/WPA2-PSK
		encryption type	WEP64/WEP128/TKIP/AES
		...		...
		...

feature:

* Support IEEE802.11b/g/n protocol;
* Support 20MHz and 40MHz bandwidth of 2.4GHz frequency band;
* Support 1T1R mode, data rate up to 150Mbps;
* 4 x Virtual Wi-Fi Interfaces • Support infrastructure network (Infrastructure BSS) Station mode, SoftAP mode, Station+SoftAP mode and promiscuous mode;
* Bluetooth Low Energy (BluetoothLE): Bluetooth5, Bluetoothmesh;
* The rate supports 125Kbps, 500Kbps, 1Mbps, 2Mbps;
* Ad extensions;
* Multiple ad sets;
* channel selection algorithm #2);
* 32-bit RISC-V single-core processor with a main frequency of up to 160MHz;
* 384KB;
* 400KBSRAM (of which 16KB is dedicated to cache);
* 8KBRTCSRAM;
* Embedded flash memory 4M.

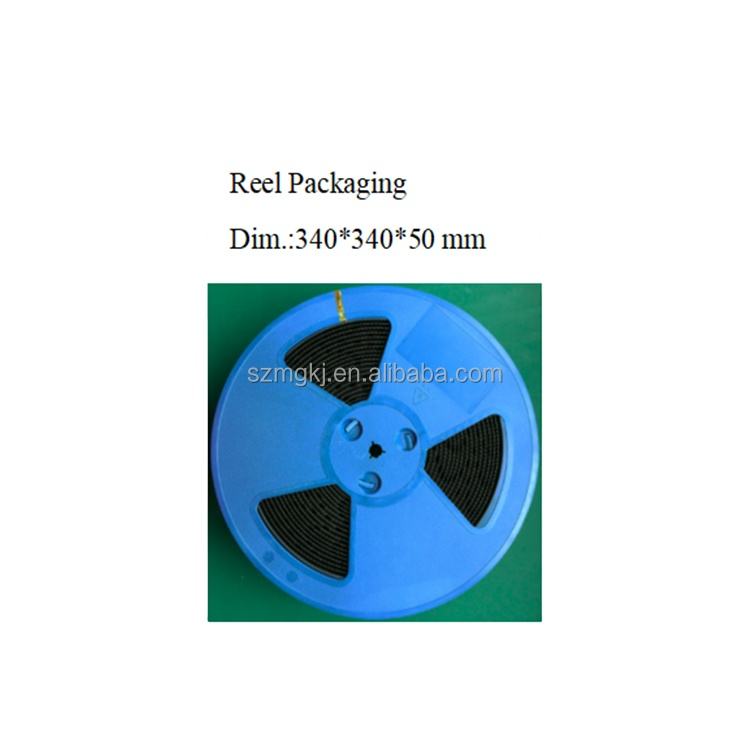

Product packaging
