RF shielding box 0.8-6Ghz Wifi bluetooth headset set-top box mobile phone smart watch test RF shielding box

Supplier: Shenzhen Osbay Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Silo Xu
Price: $6500.00 / 1 - 19 units
$6300.00 / 20 - 49 units
$6000.00 / >=50 units
Min. Order: 1 unit

Click here to contact

Product details

product name:	RF shielding box	Internal dimensions:	836(W)890(D)868(H)MM
isolation:	0.5GHz-2.4GHz≥80dB 3GHz-6GHz≥70dB	application:	Wifi Bluetooth LTE Wireless Test
type:	WiFi module	application:	Wifi Bluetooth LTE Wireless Test
port:	Shenzhen	model:	MS100100100-TES1
physical dimension:	1113(W)1160(D)1202(H)MM	Package preview:
Country of birth:	China	Material:	Stainless steel
Card:	Osby	net weight:	110KG
pack:	Wooden Packaging for 5g Gsm Phone Test Manual RF Shielding Box	chipset:	0.8-6GHz
Frequency Range:	500-6000MHz	payment terms:	wire transfer
Packaging Details:	Wooden Packaging Precision Custom Oem Mobile Audio Emi Wifi 5g Gsm Phone Test Manual RF Shielding Box For 0.5-6ghz Shielding Box	Standard interface:	SMA6;DC1;USB2;RS-2321;RJ45*1 or according to customer requirements

Office Address: 1st Floor, Sanwei, Baoan District, Shenzhen Factory: Sukeng, Changping, Dongguan Hq: RM14 29/F, Good View Commercial Hong Kong Kuala Lumpur Mong Kok Center www.rfshieldingbox.com	the silo Sales Manager Shenzhen OSB Technology Co., Ltd. Tel: +86 13670169390 sales@rfshieldingbox.com
What does Osbay do? Shielded room, shielded room, EMI room, power splitter, signal amplifier/attenuator, RF coupler and cable, etc. What services does Osbay provide? Strict quality; no MOQ; video technology and assembly training; customized chamber size and filtration module; contact us now If you are interested in any of our products.

brief introduction

This radio frequency Faraday cage It is an economical manual shielding box, suitable for building modules and terminal test & solution platforms in the fields of smart phones, WI-FI, wireless, smart grid equipment, automotive electronics, drones, and smart homes. The shielded RF test box adopts dozens of strict processes such as high-quality large plate laser CNC cutting, sheet metal forming, electroplating, electrostatic spray painting, assembly and debugging, aging, and testing.

Function

*This EMI/RFI shielded box reduces RF signals up to 6 GHz by up to 80 dB. This makes the shielded box ideal for testing cellular handsets, RFID, Bluetooth, Zigbee, WiMax, WLAN or similar wireless devices.

* Cases can be constructed to any desired size.
* This box is ideal for situations where it is necessary to freeze the current state of an electronic device by blocking all wireless contact with the outside world
*Many other shielded conduits available upon request. They can also optionally be added later.

feature:

* Wireless communication test system
* For BT, WiFi, 3G, wireless test, RFID
* High shielding attenuation, up to 80dB or more
* Flexible operation of laboratory and production line
* R&D, custom design and size
* The box can be equipped with a shielded power filter for the power connection inside the box while still blocking all wireless signals.

*By default it comes with 4 shielded SMA punch-throughs, 12 VDC, cable filter (RJ45), 2 USB and a VGA punch-through.

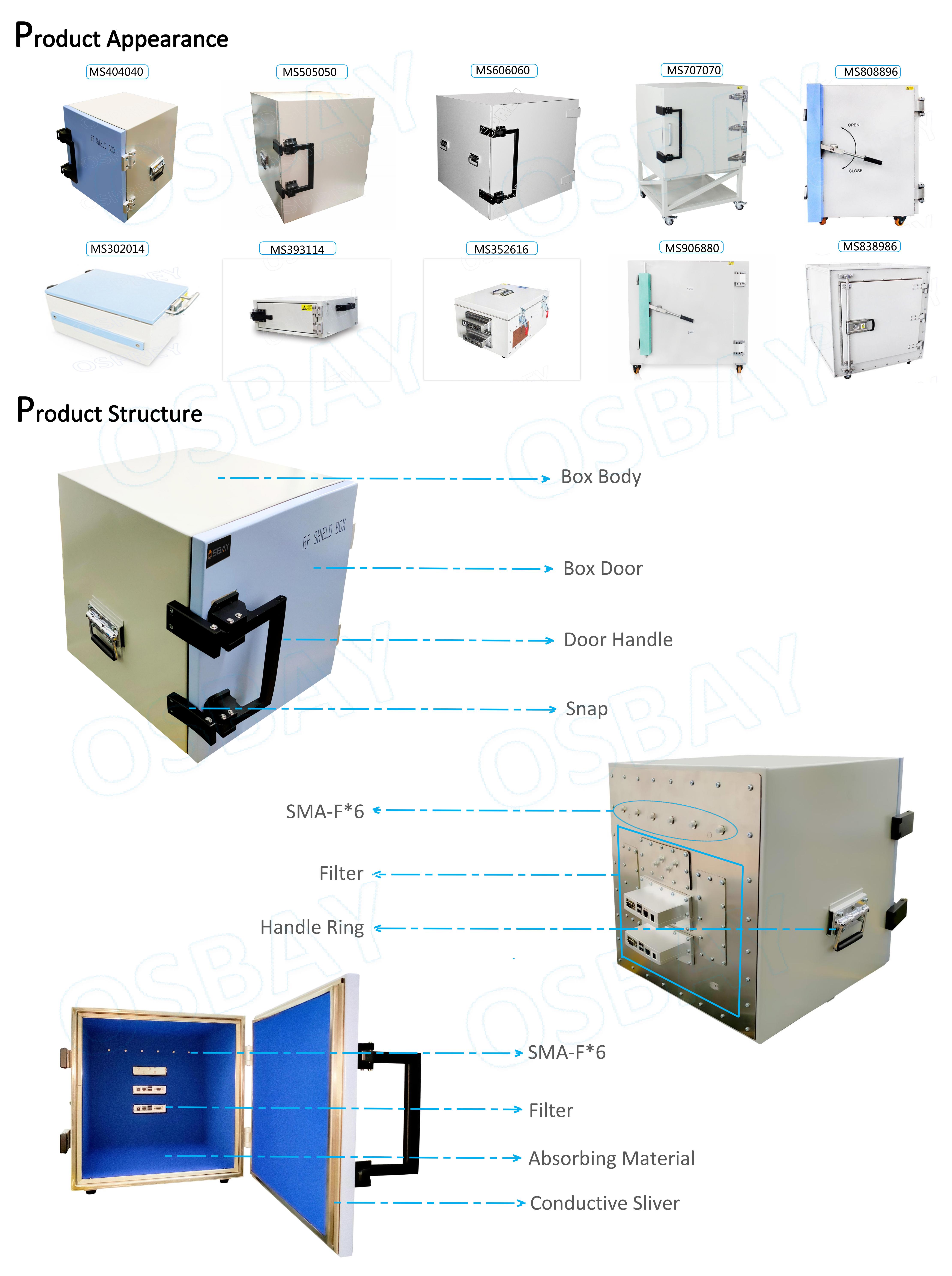

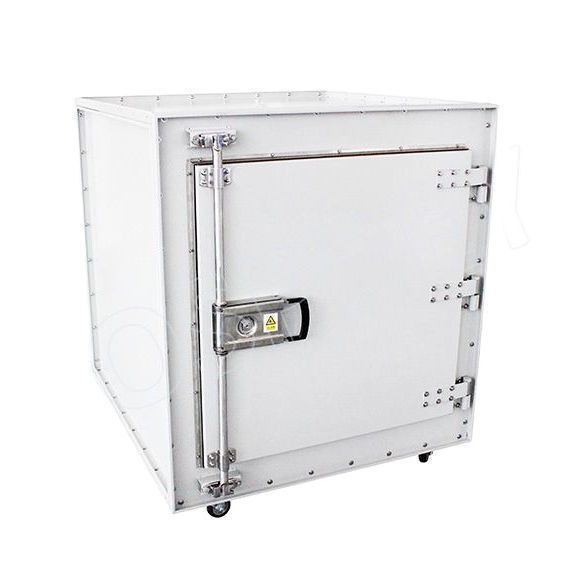

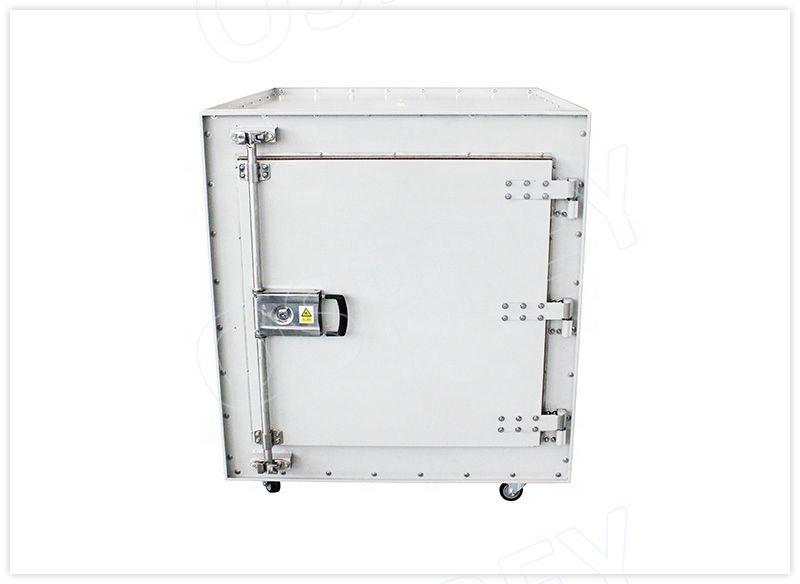

positive overview

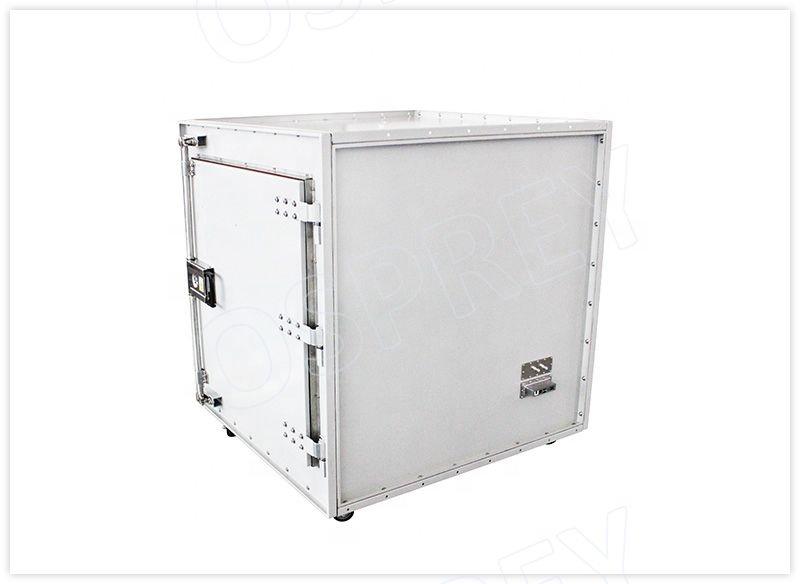

side view

Rear view

For details, refer to www.rfshieldingbox.com

Benchtop shielded box for testing. Measure the working size836(W)*890(D)*868(H)

High performance EMI/RFI shielding box	application	ODM option (on request)
* RF signals up to 6 GHz can be reduced by up to 80 dB. * Ideal for testing cellular handsets, RFID, wireless, Zigbee, WiMax, WLAN or similar wireless devices. * Can be constructed to any size.	* Digital Forensics * Wireless test * research and development * Electromagnetic Compatibility Test * Smart products * Internet of Things	This box can be equipped with any or all of the following options: * Shielded ventilation panels (fans) for heat transfer * Shield windows to maintain visual contact with internal equipment * Coaxial feedthrough/signal filter * Ethernet connection * Can be constructed to any size

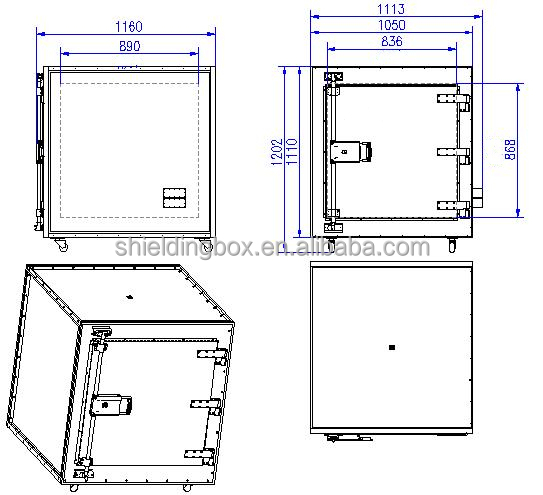

Technical drawing of this RF test box

Working frequency(GHz)	0.8～6GHz

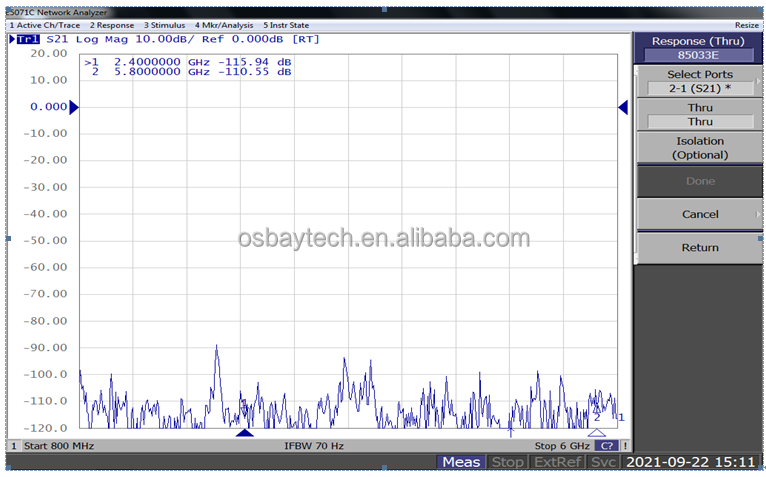

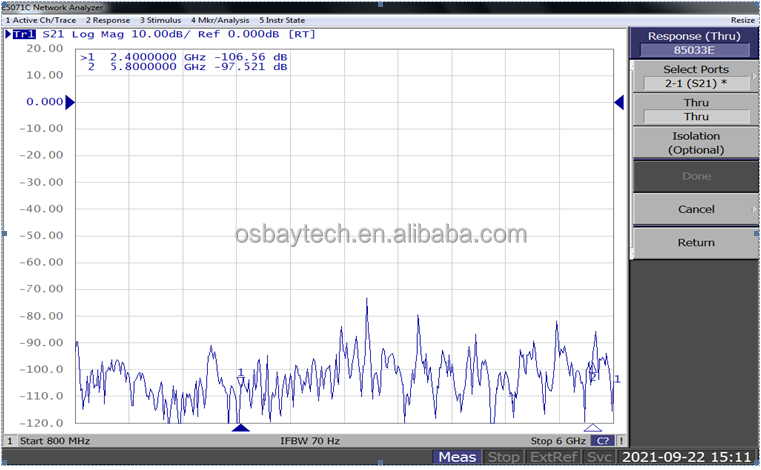

shielding effect	≥70dB@2.4GHz/5.8GHz
Interface Type (Please confirm which interface is required)	1) 1RS232 (or VGA)+2USB+1RJ45+1DC (included in the price) 2) 2RJ45+2USB+2DC 3) 4RJ45+2USB 4) 1RS232(or VGA)+2USB+2RJ45 5) 1RF232+1DB25 6) 1AC+2DC 6) 4* air holes (Φ6 or Φ4) 7) 4*MA 8) Others: HDMI; DC terminal, etc.;
number of filters	5, see the figure below for the specific model; (but the price only includes 1 filter)
control method	manual
security measures	Double protection of magnetic ring and light sensor to ensure safe operation
Working temperature (℃)	Working at room temperature
Working size(mm)	836(W)890(D)868(H)
Appearance size (mm)	1113(W)1160(D)1202(H)
Weight (kg)	about 100
Exterior color	light brown
Filter module options for shielded boxes Shielded boxes can be extended with different types of filters. All available filter types can be found below.

The manual shielding box filter interface is suitable for testing wireless terminals such as routers, set-top boxes, drones, wireless earphones, wireless water meters, and mobile phones. It has the following characteristics: Aluminum alloy material, durable, and excellent shielding performance; Modular design, more Humanized features, users can choose different interface combinations according to their needs

RF Box Other Sizes
