Industrial Automation Distance Sensor High Frequency Lidar 100Hz 100m TOF Accurate Distance Measurement Sensor

Supplier: Chengdu JRT Meter Technology Co., Ltd.
Region: Sichuan, China
Contact: Ms Amanda Cao
Price: $68.00 / 2 - 49 pieces
$62.80 / 50 - 99 pieces
$55.60 / >=100 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Warranty:	12 months	output:	digital sensor
Laser type:	905 nm	Origin:	Sichuan Province, China
Storage temperature:	-15℃~45℃	port:	Chengdu
Certificate:	CE, ISO9001, ROHS, FCC	Measuring range:	100m
size:	452512 mm	brand:	Joint RT
type:	distance sensor	Packaging Details:	Neutral package 100Hz, 100m lidar
weight:	20 grams	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
model:	PTFS-100	Package preview:
Laser class:	Level 1	frequency:	100 Hz
Installation type:	TTL	accuracy:	+/-1m
Supply capacity:	10000 pieces per week	describe:	100Hz high frequency laser radar distance sensor, laser radar distance sensor 100m
theory:	optical sensor	usage:	measuring sensor

Our advantage

1.JRT laser ranging sensorFast response, high precision, and long measurement distance.
2. We have been in the laser industry since thenyear 2004, China's leading supplier of laser rangefinder modules.
3.30m, 40m, 60m, 80m, 100m, 120m, 150m, each distance can be multifunctional.
4. The voltage can be changed by the power converter LDO.
5. Working temperature-10℃~50℃Can be customized.
6. Analog quantity is enoughcustom made.

Please contact JRT for customization.

Product Description

Industrial Automation 100Hz High Frequency LiDAR Distance Sensor 100m TOF Range Findar Accurate Distance Measurement Sensor

frequency	100 Hz
Measuring range	0.1~100m
Voltage	8~36V
accuracy	+/-1m
size	433521 mm
solve	1 cm
laser type	905nm, Class 1
weight	20 grams
Operating temperature	-15~50℃Click here for custom temperatures.
Storage temperature	-40~85℃
Communication Interface	serial port

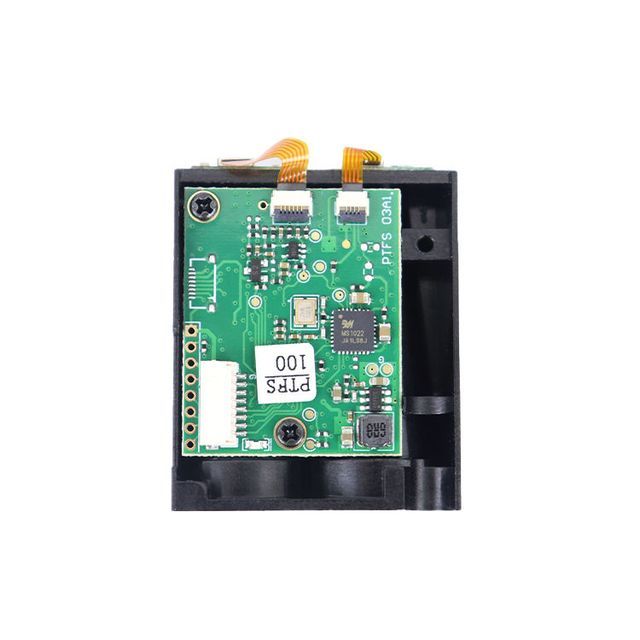

detailed picture

Based on the TOF high-frequency HSLD series, the newly launched cost-effective industrial high-precision laser ranging lidar has 100Hz high-frequency data output, a measurement range of 100m, and an accuracy of up to 1m. Using 905nm wavelength safe laser, normal operation will not hurt the eyes. The sensor has the characteristics of fast measurement speed, high measurement accuracy, and convenient installation and operation. It is suitable for robot obstacle avoidance such as drones/AGV vehicles, dynamic target positioning and monitoring, industrial control and measurement, etc.
