Hot Selling Plastic Polyethylene Container/Bottle Machinery: Injection Blow Molding Machine maquina inyectora de botellas

Supplier: Zhejiang Keli Plastic Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Ms huali mei
Price: $30000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Marketing Type:	New Products 2020	Video shipment inspection:	if
port:	Ningbo/Shanghai	Blow molding type:	injection blow molding
automation:	automatic	Power (kW):	25
Hollow part volume:	1500ML	Type of machine:	injection blow molding
Core component warranty:	1 year	year:	1999
Packaging Details:	International standard packaging	application:	bottle
place of origin; place of origin:	Zhejiang, China	After-sales service provided:	On-site maintenance and repair services
Mechanical test report:	if	Supply capacity:	20 sets per month
Showroom location:	not any	Weight (kg):	8500
State of health:	new	Core components:	Water pump, PLC
brand:	Keli	payment terms:	L/C, D/P, T/T
Applicable industries:	Machinery repair shop, manufacturing plant	Main selling points:	high precision
Key words:	Blow Molding Machine	Warranty:	1 year
Operating mode:	step	use:	Plastic pots, containers, bottles
Plastic processing:	ABS,PET,PE,PE/PP

Product Description

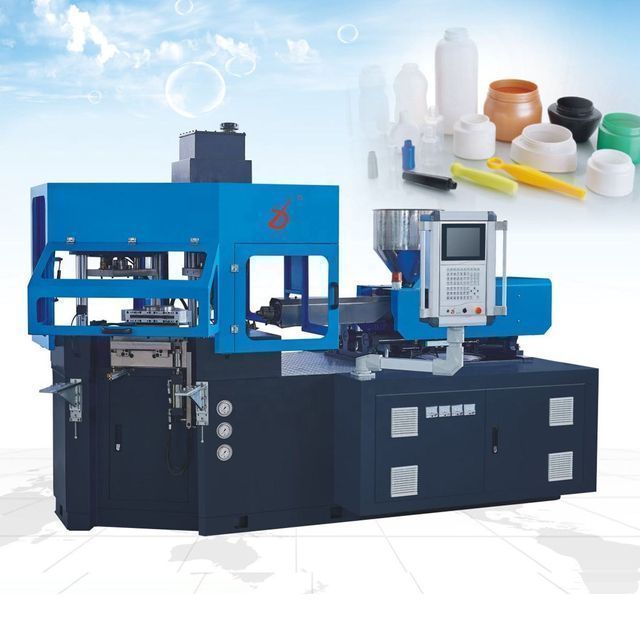

Plastic bottle automatic injection blow molding machine.

Suitable for PP.PE.PS.ABS and other plastics.
Production of plastic containers and bottles in various shapes.

Injection blow molding machine:

Fully automatic PP, PS, PE, ABS bottle injection blow molding machine.
Production of plastic containers and bottles in various shapes.

Specification

Keli injection blowing machine adopts famous brand hydraulic, electrical and pneumatic components:
Yuken---Atos---Rexroth
ABB---Omron---Schneider---Techmation---B&R
Festo--

injection system	unit	scope
Screw diameter	mm	45
Screw aspect ratio		22:1
Maximum theoretical injection volume	cubic centimeter	238
Injection weight	G	160
Plasticizing capacity approx.	g/s	40
Maximum screw stroke	mm	150
Maximum screw speed	Rotating speed	10-235
Total power of charging barrel	kilowatt	11.8
Number of heating zones	quantity	5
clamping system
Injection clamping force	kilogram	500
blow clamping force	96 knots	70
Template opening stroke	mm	120
Maximum turning radius	mm	480
Turntable lifting height	mm	60
Die maximum platen size (LXW)	mm	480X370
Minimum mold thickness	mm	240
Mold heating power	kilowatt	4.8
Stripping system		3.6
Stripping stroke	mm	215
dry cycle time	small	2.9
Drive System
Motor Power	kilowatt	29.1
Hydraulic working pressure	MPa	14
Product size range
Formable product range	ml	2-750
Molded product height	mm	≤210
Molded product diameter	mm	≤100
other
compressed air pressure	MPa	0.7-0.9
compressed air discharge rate	m3/min	0.6
cooling water pressure	MPa	0.3-0.4
total power	kilowatt	44.5
Operating power		34-48%
Dimensions (LXWXH)	mm	3850X1550X1950
Machine weight approx.	Ton	6

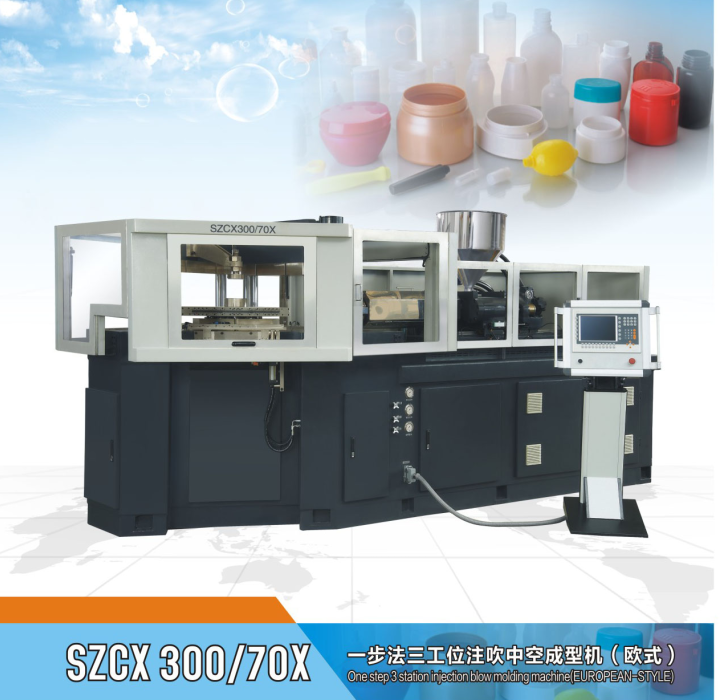

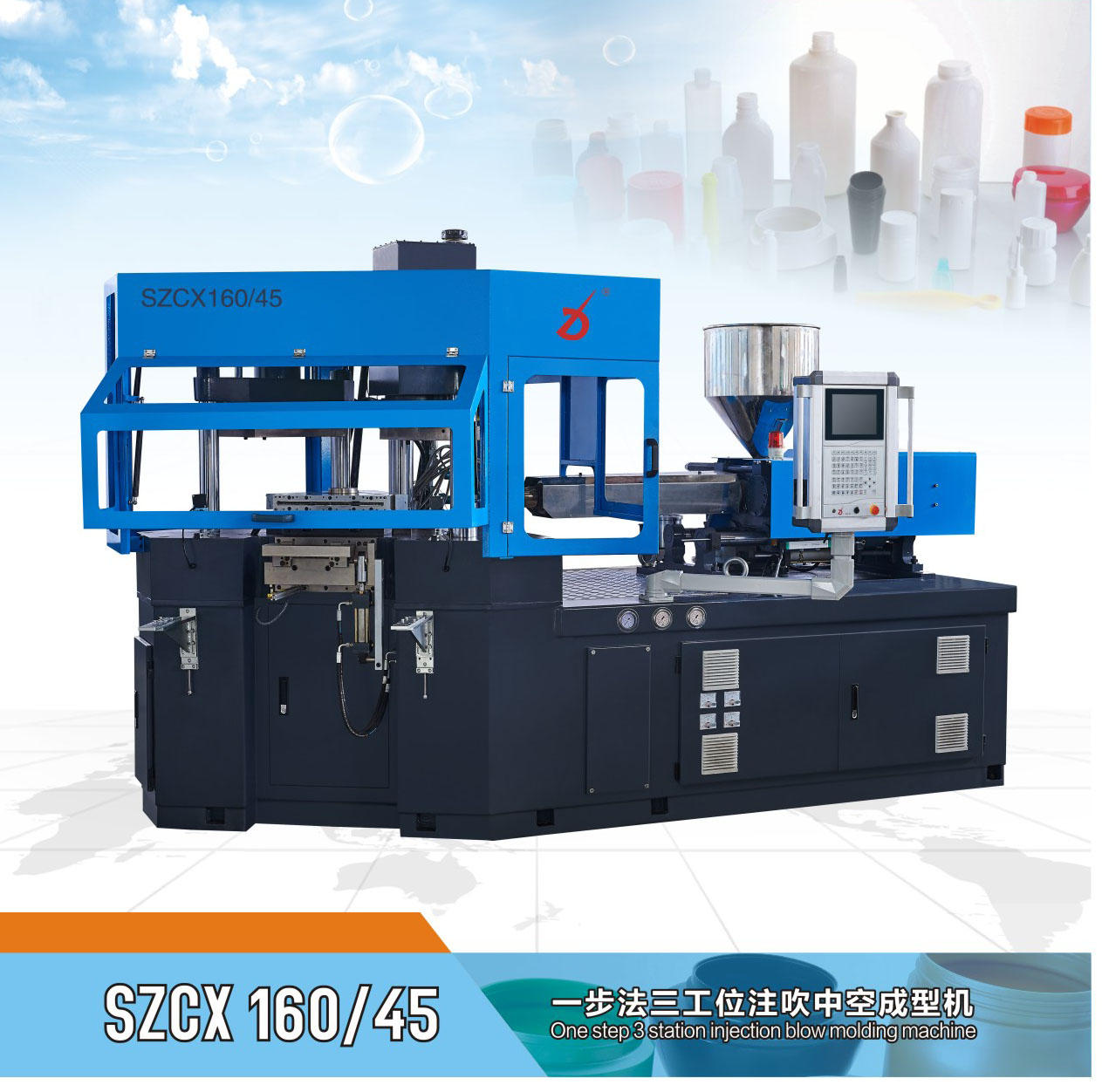

Keli product range:

One-step injection blow molding machine, one-step injection stretch blow molding machine, injection blow mold, injection blow mold, plastic cap mold for PP, PE, PS, ABS, PET cosmetic, medicine and food bottle, jar packaging.
