Desenders/Cyclone Slurry Separation/TBM and Bored Pile Desander Equipment

Supplier: Xi'an Kosun Machinery Co., Ltd.
Region: Shaanxi, China
Contact: Ms Lucy Zhang
Price: $5920.00 /set
Min. Order: 1 set

Click here to contact

Product details

Showroom location:	not any	Marketing Type:	2019 Hot Products
Applicable industries:	Energy and Mining	Supply capacity:	20 sets per year
After-sales service provided:	Engineers available to service machinery overseas	Core component warranty:	Not available
After warranty service:	online support	application:	mud separation
brand:	KOSUN	Video shipment inspection:	if
Warranty:	1 year, 1 year	Packaging Details:	Wooden box or according to customer requirements
Production capacity:	99%	Voltage:	380V/460V - 50Hz/60Hz
payment terms:	L/C, T/T, Western Union, MoneyGram	Certification:	ISO CE
Core components:	Pump	place of origin; place of origin:	Shaanxi, China
model:	KS	Local service location:	not any
Mechanical test report:	if	port:	Shanghai/Tianjin

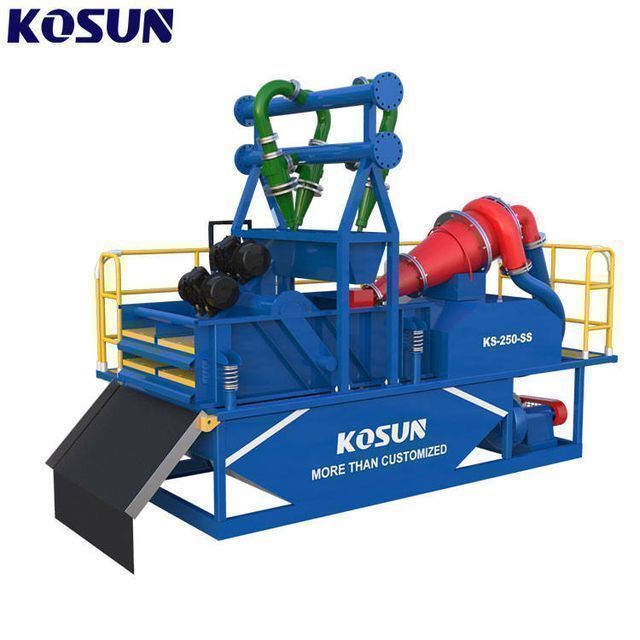

Desenders/Cyclone Slurry Separation/TBM and Bored Pile Desander Equipment

Product Description

environmentalSlurry Desanding EquipmentKOSUN develops the most advanced technical products in the world, which can be widely used in urban rail transit construction, water conservancy and hydropower construction, municipal engineering and other fields. In the next 20 years, domestic infrastructure construction will be the key investment area of the state. KOSUNmud treatment plantIt can meet the environmental protection requirements of urban construction and processing. Environmental protection market demandmud treatment plantThere will be more and more.

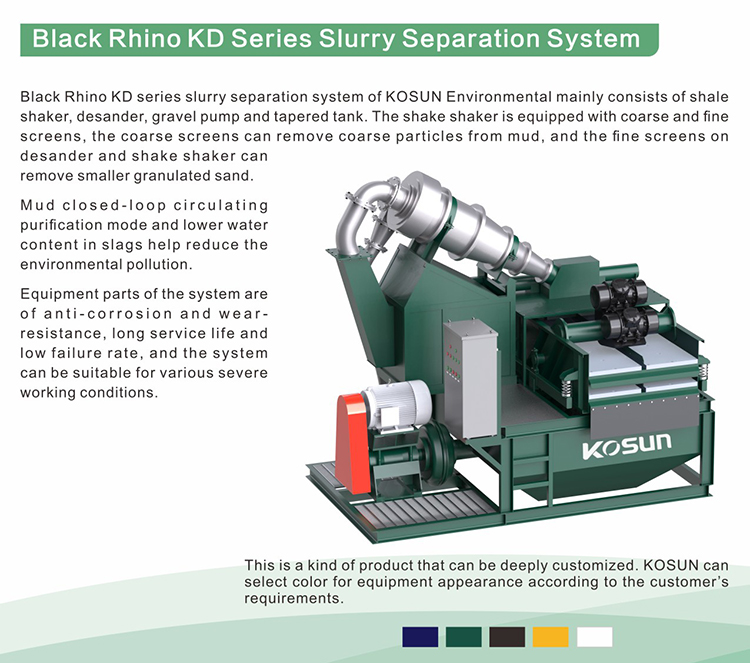

KD SERIES SLURRY D SYSTEM SPECIFICATIONS
Model	KD-50	KD-100	KD-200	KD-500	KDS-500
processing power	50 cubic meters / hour	100 cubic meters / hour	200 cubic meters / hour	500 cubic meters / hour	500 cubic meters / hour
separation size	40μm	45μm	60μm	60μm	20-60μm
Total installed power	21.98KW	25.44KW	48.44KW	192.44KW	288.04KW
total weight	2.1 tons	2.8 tons	2.8 tons	18 tons	32 tons
Dimensions	3m1.8m2.5m	3.5m1.62.5m	3.5m1.6m2.5m	6.9m2.2m6.0m	8.1m8.5m8.2m

Comprehensive advantage

The treatment process is simple and practical, and the installation, operation and maintenance are convenient;
Modular and integrated design, transport and installation according to standard container size, foldable operating platform, compact structure, small footprint, flexible on-site use;
The G force of the vibrating screen, the angle of the sieve plate, and the size of the sieve hole are adjustable. The whole machine system has strong adaptability and is easier to process various formation materials;
Meet the separation requirements of various materials, and customize the process according to the cut point of D 50; meet the requirements of different processing volumes, 100~3000m³/h;
Various power specifications to meet construction needs, and even use generators to run;
The whole system is a skid-mounted integrated system, which can also be converted into a vehicle-mounted mobile processing device.

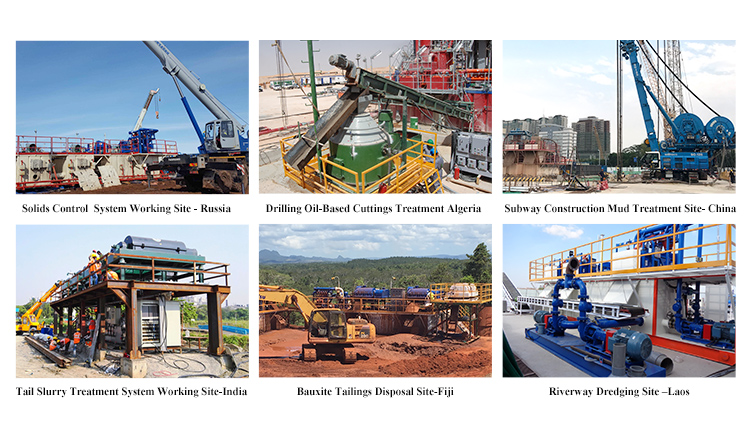

application
