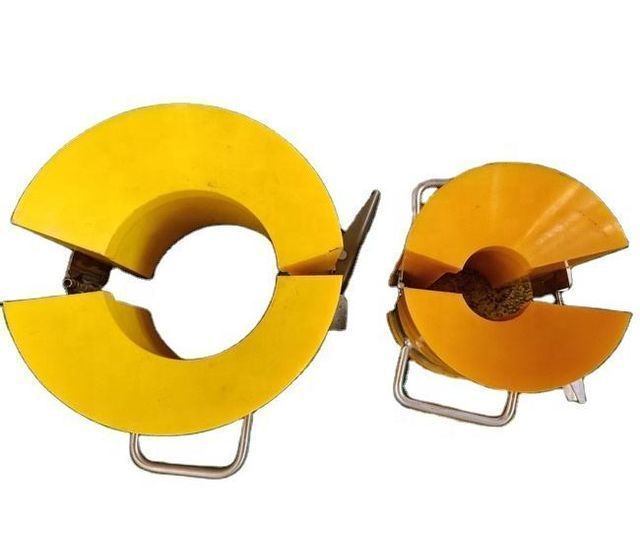

SG Type Casing Butt Guide

Designed to prevent damage during application, the piercing guide is constructed of high-grade steel and durable polyurethane material, then molded into a profile designed to function as a funnel guide. Available in models for tubing, casing and drill pipe, you can choose from heavy-duty, standard or maglock configurations.

Typically, stab guides are used when aligning a string of tubing to internal threads and preventing end face damage and connection failure. A piercing guide tool for facilitating the composition of pipe connections comprising diametrically split, hinged and rigid funnels of plastic material of high lubricating toughness and strength, adapted to receive and guide pin connectors, and having suitable engagement The positioning receptacle of a box connector. The tool is torsion spring loaded into the closed position and features a pair of handles for easy opening, placement and removal.
