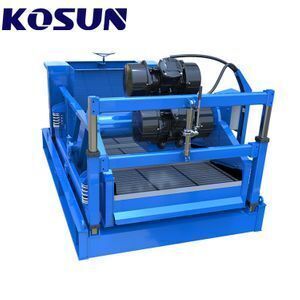

Drilling mud fluids solids control shale shaker

Supplier: Xi'an Kosun Machinery Co., Ltd.
Region: Shaanxi, China
Contact: Ms Lucy Zhang
Price: $12610.00 /set
Min. Order: 1 set

Click here to contact

Product details

Treating Capacity:	136-170 m3/h;	Packaging Detail:	Wooden case or according to customer's request;
Certification:	API, ISO, CE, QMS, IAF, IADC;	Weight:	1925Kgs;
Warranty:	1 year;	Shale Shaker Screen type:	Frame/Pre-tensioned;
Features:	Solid Control Shale Shaker;	Condition:	New;
Type:	Solid control equipment;	Application:	For drilling purification system;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union;	Brand Name:	KOSUN;
Production Capacity:	20 per month;	Shaker screen:	2.7㎡;

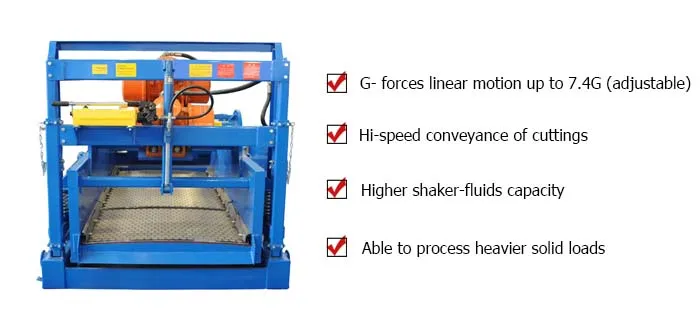

Feature:	G-forces linear motion up to 7.1G(adjustable);	Voltage:	380V, 460V or Customized;
Port:	Shanghai/ Tianjin;	Usage:	Remove drilling cuttings above 75μm from drilling fluid;
Dimension(LWH):	299818561522mm;	Application:	Solid control system;
Splash prevention:	Availible;	Name:	solid control shale shaker;
Model Number:	KOSUN 584 series;	Supply Ability:	20 Set/Sets per Month solid control shale shaker;
Place of Origin:	Shaanxi China;	Motor:	Import motor Martin;
After-sales Service Provided:	Online support,Video technical support,Field installation, commissioning and training,Field maintenance and repair service;

Drilling mud fluids solids control shale shaker

Product Description

________________________Product Description_________________________

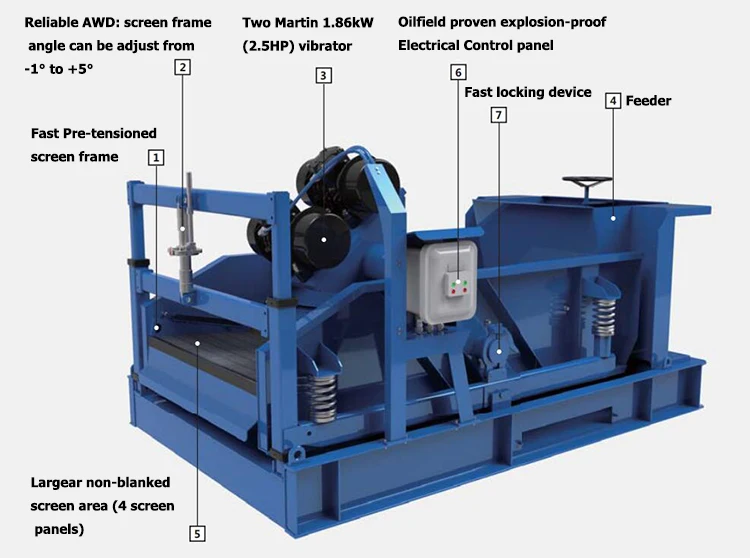

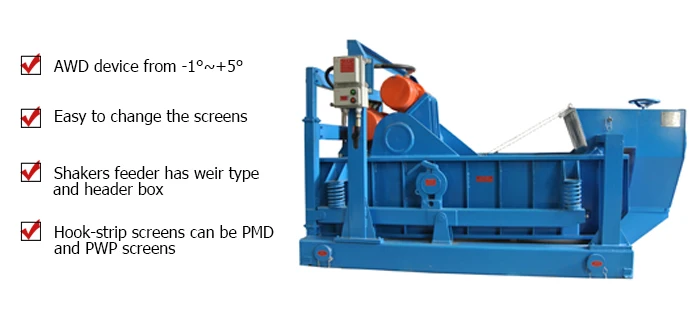

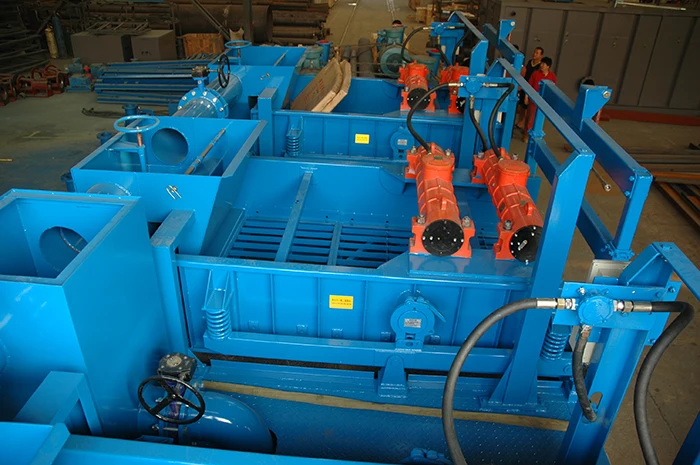

KOSUN 584 serise shale Shaker are an ideal and effective solid control equipment for high-capacity treating in the heavy loading and tough drilling conditions , its easy to maintain, the single side screens tension system make it easy to change the screens. The AWD system could change the angle of shaker deack from -1°~5°,it can remove cuttings above 75μm brought from the drilling.

SPECIFICATION FOR OIL FIELD MUD SHALE SHAKER

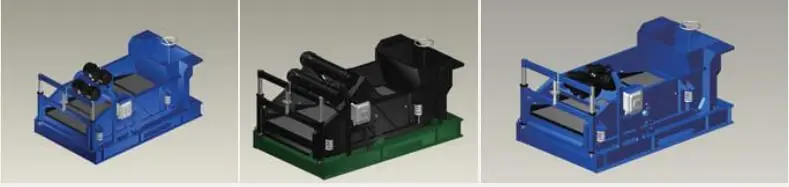

Specification	Model	KOSUN LS584	BLACK RHINO	KOSUN ES584
	Vibrating Motion	Linear motion	Linear motion	Balanced Elliptical Motion

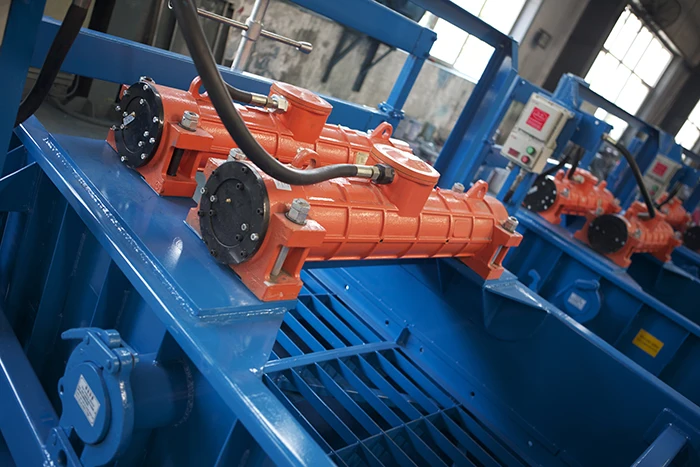

	Vibrator Mode (Martin)	Stander Design	Stander Design	Tubular Design
	Treating Capacity m3/h/GPM	136-170/600-750	136-170/600-750	136-170/600-750
	Motor Power kW/HP	*21.72kW(22.3hp)(Italy Oli)* *21.86kW(22.5hp)(Martin)*
	G-force G	7.1 (6.5-7.5 Adjustable)	7.1 (6.5-7.5 Adjustable)	6.3 (5-6.3 Adjustable)
	Deck Adjustment	-1° to +5°	-1° to +5°	-1° to +5°
	Power	380V/50HZ, 460V/60HZ, or Customized
	Shaker Screen m2/Ft2	2.7/29	2.7/29	2.7/29
	Screen Type	Frame/Pre-tensioned	Frame/Pre-tensioned	Frame/Pre-tensioned
	Screen No.	4	4	4
	Screen Dimension mm/in	5851165/2346	5851165/2346	5851165/2346
	Weir Height mm/in	780/30	780/30	780/30
	Dimension mm	299818561522	299818561515	299818561500
	Noise dB	<85	<85	<85
	Weight kg	1925	1935	1917
	Remarks	The color of shale shaker can be customized

Payment	Small Value: 30% T/T in advance, 70% balance payment before shippment
Payment	Large Order: Negotiation

After sales	1 Year guarantee period from machine shipment date
	Abundant spare parts in stock could offer quickly
	our technical engineer could be dispatched for overseas service
	7*24 hours technical support
	Your worker could get trained both in our factory and yours if needed
	Routine tracing till the machine work proerly will be done timely
	Your suggestions or any feedback would be treated in priority
