Cheap B5020 Metal Planner Vertical Slotting Machine price

Supplier: Tengzhou Hipow Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr James Wang
Price: $6000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Port:	any port in China;	Brand Name:	HIPOW;
Max Tool Shank Size:	25*40mm;	Max Workpiece Size:	485*200mm;
Certification:	ISO CE;	Place of Origin:	Shandong China (Mainland);
Power(W):	3000w;	Condition:	New;
Max Slotting length:	200mm;	Payment Terms:	L/C,T/T,Western Union;
Supply Ability:	100 Set/Sets per Month Cheap B5020 Metal Planner Vertical Slotting Machine price;	Voltage:	220/380/400/415V;
Dimension(LWH):	194013251980mm;	Product Name:	Cheap B5020 Metal Planner Vertical Slotting Machine price;
Max Load on Table:	400Kg;	Max Horizontal travel:	500mm;
Warranty:	1 Year;	Max Longintudinal travel:	500mm;
Longtudinal and horizontal power feed:	0.08---1.21;	Weight:	2200Kg;
Table Diameter:	500mm;	No of ram strokes per minute:	32,50,80,125;
Packaging Detail:	Cheap B5020 Metal Planner Vertical Slotting Machine price Package Type: Plywood Case;	After-sales Service Provided:	Online support,Video technical support,Free spare parts;

Product Description

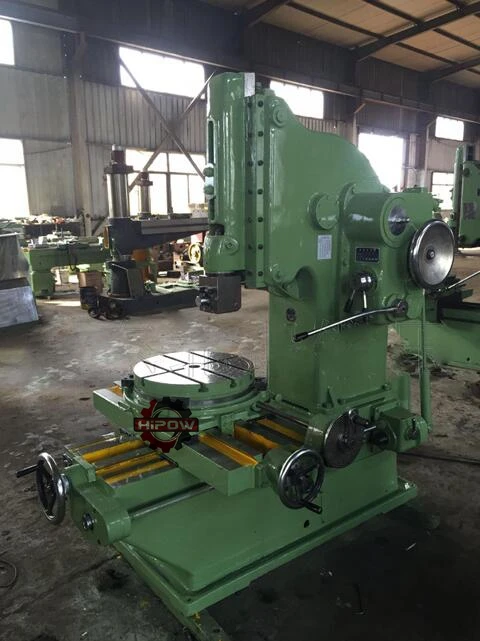

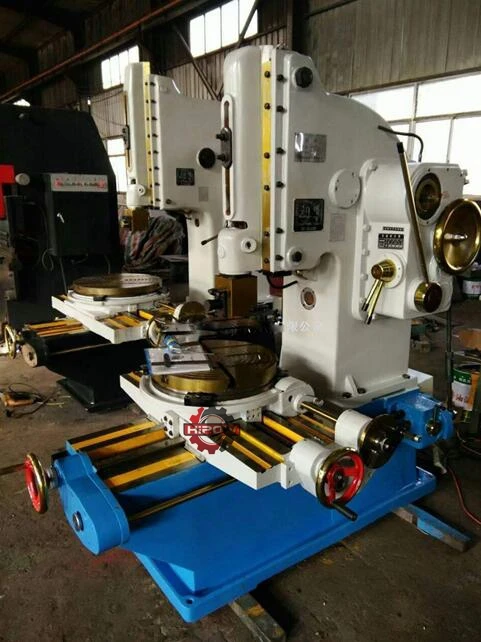

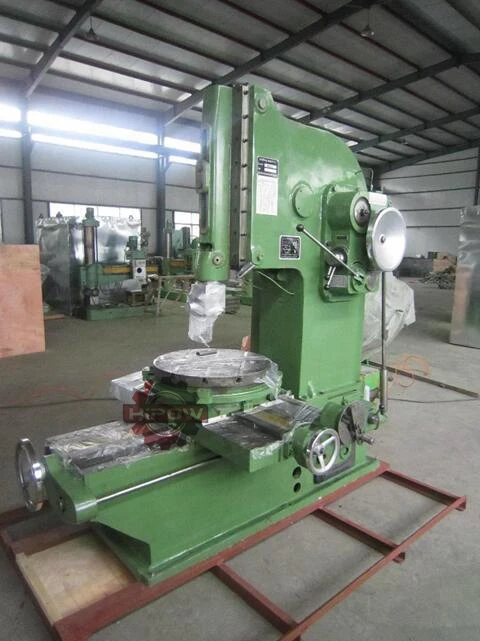

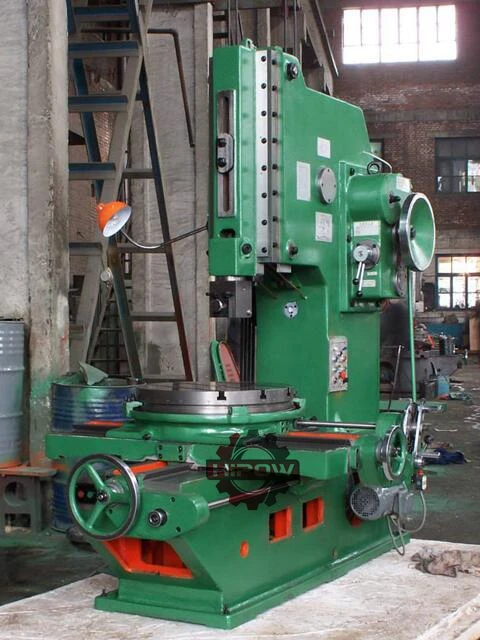

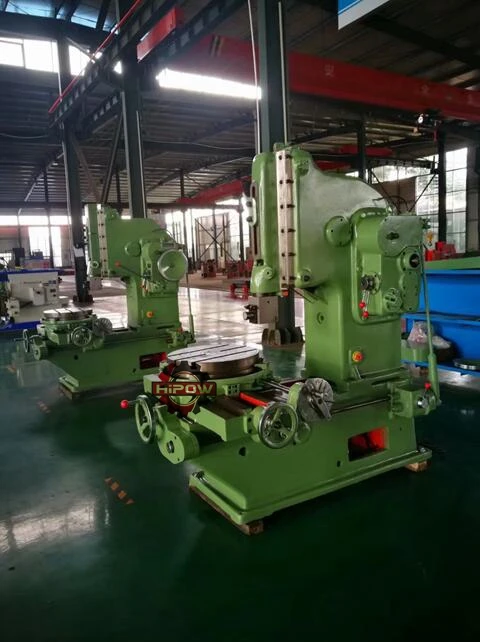

Cheap B5020 Metal Planner Vertical Slotting Machine price

Main Feature.

1. B5020 slotting machine is used for slotting the flat and formed surface keyways

2. B5020 slotting machine is suitable for either single piece of small batch production

3. B5020 slotting machine`s main transmission mechanism is used for converting the rotating motion of the crank gear into reciprocating motion of rain

4. B5020 slotting machine`s worktable Is designed for longitudinal, cross and rotary feeding both automatically (only for D type model) and manually

5. B5020 slotting machine is stopped automatically, when the worktable is in case of trouble

Model	B5020
Max Slotting length(260mm for internal slotting)	200mm
Max Workpiece Size	485*200mm
Max Load on Table	400KG
Max Cutting Force	5500N
No of ram strokes per minute	32,50,80,125
Vertical adjustment of ram	230mm
Inclination of Ram	0-8°
Max Tool Shank Size	25*40mm
Table Diameter	500mm
Max Longintudinal travel	500mm
Max Horizontal travel	500mm
Distance from table surface to low end of ram	320mm
Distance from tool holding surfect to column	485mm
Range of longtudinal and horizontal power feed	0.08---1.21
Range of table rotary power feed	0.052-0.783 deg
Main motor(Kw)	3KW
Main motor speed	1430rpm
Overall Size(mm)	194013251980
Net Weight(KG)	2200

Company Information

Packaging & Shipping

Packing of exported CNC machine is usually in wooden case. Small CNC machine can be packed in wooden case in whole.

FAQ


Q1.	How can I get a quotation?
A.	Leave us massage with your purchase requements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephone.
Q2.	Can you provide customized machine or SPM (Special purpose machine)?
A.	Yes, we provide smart CNC solutions for our customer, in order to increase efficiency.
Q3.	Can you provide training for operation CNC machines?
A.	Yes, free training in our factory is available.
Q4.	How about your price?
A.	Send me details about what you need, you will get the best price in China. The price is competitive over the world.
Q5.	What’s the delivery time, and what’s the package?
A.	Normally the delivery time is about 30-45 days. All our CNC machines are packed with sea worthy package.
