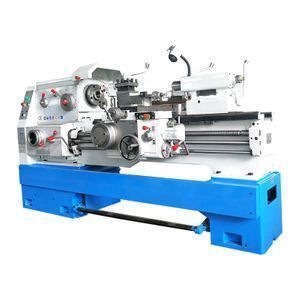

CA6140 Universal Horizontal Metal Lathe Machine for Sale

Click here to contact

Product details

After-sales Service Provided:	Online support,Video technical support,Free spare parts;	Tail Stock Sleeve Diameter:	75mm;
Range of Spindle Speed(r.p.m):	10-1400 rpm/min;	Year:	new;
Spindle nose:	NO.6(90 1:20);	Width of bed:	400mm;
Automatic Grade:	Semi-automatic;	Tail Stock Taper:	MT5;
Payment Terms:	L/C,T/T,Western Union;	Power(W):	7.5;
Certification:	CE/ISO;	Spindle speed steps:	24 steps;
Warranty:	2 Years;	Packaging Detail:	CA6140 Universal Horizontal Metal Lathe Machine for Sale Type of package: Plywood case;
Port:	Any port in china;	Weight:	2300Kg;
Voltage:	220/380/400/415V;	Dimension(LWH):	270x114x175CM;
Center Distance:	750/1000/1500/2000/2200/3000/4000mm;	CNC or Not:	Normal;
Max. Swing Diameter:	400MM;	Place of Origin:	Shandong China (Mainland);
Tail Stock Sleeve Travel:	150mm;	Brand Name:	HIPOW;
Condition:	New;	Supply Ability:	100 Set/Sets per Month CA6140 Universal Horizontal Metal Lathe Machine for Sale;
Model Number:	CA6140;	Key words:	Engine Lathe Universal Lathe Machine;
Spindle Bore:	52mm,80mm;	Tool holder Size:	25x25mm;
Name:	CA6140 Manual Metal Engine Lathe Machine for Sale;

Product Description

CA6140 Manual Metal Engine Lathe Machine for Sale

Main Feature

1.Bed guideway is harden and tempered by super audio quenching and precision grinding

2.Precision grinding of the main shaft box, low noise.
3.Many thread type can be choosen
4.Electrical safety performance is good, high reliability

1. Spindle Head Box

Strictly Processed Hardened-tempered casting gears make the spindle head box perform precisely.

2. Spindle Hole and Spindle Chuck

1)Standard spindle hole is 52 mm ,80mm spindle hole can be choosen

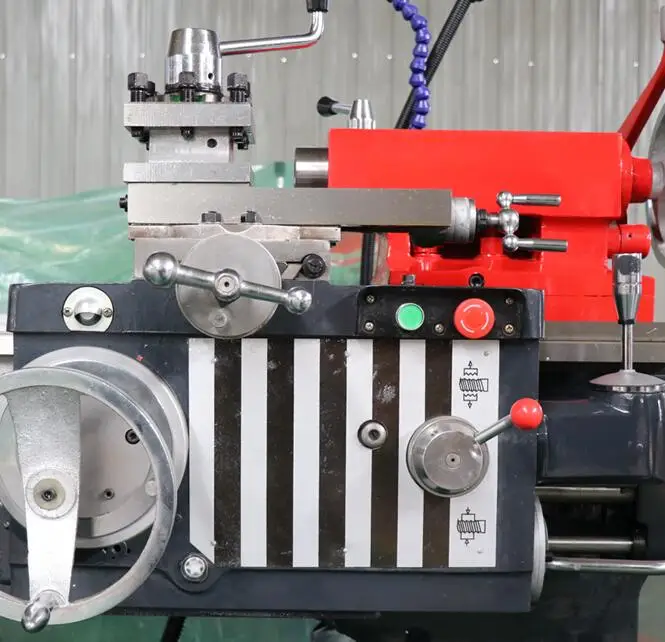

3. Tool Post , Steady Rest and Follow Rest

The machine`s Tool Post size is 25x25mm ,steady rest and follow rest are standard parts

4. Lathe Body

The machine`s bed width is 400mm,Hardened-tempered casting body makes high rigidity,high precision,long Life.

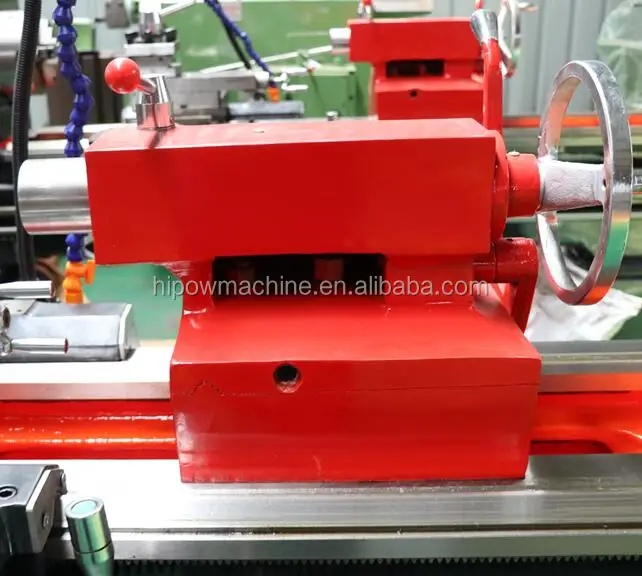

5. Tailstock

1)Tailstock`s sleeve diameter :75mm,Tailstock Taper: MT5
2) Drilling Chuck can be installed .

Specifications		CA6140 CA6140B	CA6240 CA6240B
Max. Swing over bed		400mm
Max. Swing over carriage		210mm
Max. swing in gap		--	630mm
Effective gap length		--	210mm
Max. length of work piece		750mm/1000mm/1500mm/2000mm/2200mm/3000mm/4000mm
Width of bed		400mm
Section of turning tool		25x25mm
Spindle	Spindle speeds	10-1400rpm/16-1400rpm(24steps)
	Hole through spindle	52mm. (80mm)
	Spindle taper	NO.6(Φ90 1:20)
Feed	Number of feeds	64 kinds(for each)
	Range of metric threads(kinds)	(1-192mm)44kinds
	Range of inch threads(kinds)	(2-24tpi)21kinds
	Range of module threads(kinds)	0.25-48 (Moduie39kinds)
	Range of pitch threads(kinds)	1-96DP(37kinds)
Tailstock	Max. tail stock spindle travel	150mm
	Tail stock spindle diameter	75mm
	Taper of tail stock spindle center hole	NO.5
Main motor		7.5KW(10HP)
Packing dimensions (LWHmm)	Overall dimensions for750mm	2550x1140x1750
	Overall dimensions for1000mm	2700x1140x1750
	Overall dimensions for1500mm	3200x1140x1750
	Overall dimensions for2000mm	3700x1140x1750
	Overall dimensions for2200mm	4030x1140x1750
	Overall dimensions for3000mm	4850x1140x1750
	Overall dimensions for4000mm	5800x1140x1750
Weight (kg)	Length	G.W N.W.
	Weight for 750mm	2100 1990
	Weight for 1000mm	2190 2070
	Weight for 1500mm	2350 2220
	Weight for 2000mm	2720 2570
	Weight for 2200mm	2800 2600
	Weight for 3000mm	3300 3200
	Weight for 4000mm	3500 3400


Q1.	How can I get a quotation?
A.	Leave us massage with your purchase requements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephone.
Q2.	Can you provide customized machine or SPM (Special purpose machine)?
A.	Yes, we provide smart CNC solutions for our customer, in order to increase efficiency.
Q3.	Can you provide training for operation CNC machines?
A.	Yes, free training in our factory is available.
Q4.	How about your price?
A.	Send me details about what you need, you will get the best price in China. The price is competitive over the world.
Q5.	What’s the delivery time, and what’s the package?
A.	Normally the delivery time is about 30-45 days. All our CNC machines are packed with sea worthy package.
