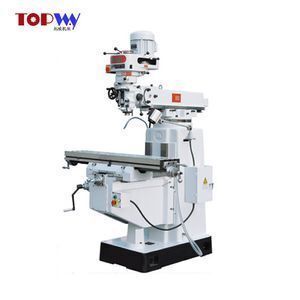

X6325 Manual 3 axis DRO Vertical Turret Milling Cutter Machine tools for sale
- 4000.00 set
| Condition: | New; | After-sales Service Provided: | Engineers available to service machinery overseas; |
| Table size: | 1370*254mm; | Name: | Turret Milling Machine; |
| Table Travel (mm): | 950x400x400mm; | Selling Units: | Single item; |
| Warranty: | 1 Year; | Dimension(L*W*H): | 1516x1550x2080; |
| Type: | Universal; | Single gross weight: | 1,500 KG; |
| Year: | -; | Model Number: | X6325; |
| CNC or Not: | Normal; | Single package size: | 150X160X225 cm; |
| Brand Name: | TOPWAY; | Color: | Opitional; |
| Spindle taper: | R8/ISO40; | Spindle Taper: | ISO40/R8; |
| Voltage: | Customer Requirement; | After-sales Service Provided: | Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support; |
| Place of Origin: | Shandong China (Mainland); | Power(W): | 3.75kw; |
| Range of Spindle Speed(r.p.m): | 50Hz 66-4540; 60Hz 80-5440; | Delivery Detail: | 0 days after payment; |
| Weight: | 1490kg; | Certification: | CE ISO; |
X6325 Turret Milling Machine
Feature:
1. Robust construction and heavy duty design.
2. The machine body is made of Meehanite cast iron
3. The milling head is made of SCM-21.Imported from Taiwan.
4. The milling head can swing 90° right and left side,45° front and back side.
5. The ram can swing 180° horizontally.
6. The working table and guide rail are heating treated and precision grinding.
7. DRO and dividing head are for option.
Specifications:

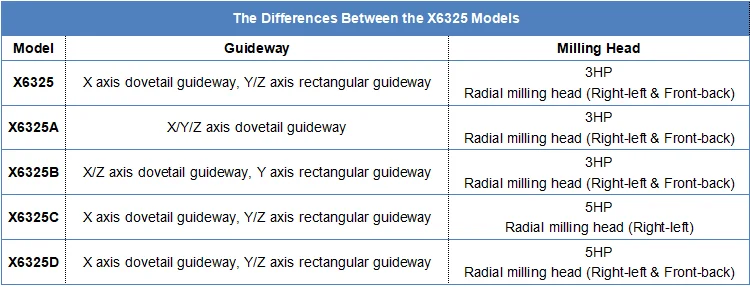

Item | Unit | X6325 | X6325A | X6325B | X6325C | X6325D | |
Table size | mm | 254x1270 (10"x50") / 254x1370 (10"x54") | |||||
Longitudinal travel | mm | 850 / 950 | |||||
Cross travel | mm | 380 | 380 | 400 | 400 | 400 | |
Vertical travel | mm | 400 | |||||
T-slot |
| 3x16 | |||||
Distance from spindle nose to table | mm | 0-400 | |||||
Ram Travel | mm | 470 | |||||
Spindle taper |
| Standard: R8; Optional: ISO30/ISO40 | ISO40 | ||||
Spindle travel | mm | 127 | |||||
Spindle speed | Rpm | Standard: 16-steps, 50Hz 66-4540; 60Hz 80-5440 | |||||
Optional: Variable 60-4200 | Variable 60-3600 | ||||||
Spindle feed |
| 3-steps: 0.04/0.08/0.15 mm/rev | |||||
Main motor | kw | 2.25/3HP | 2.25/3HP | 2.25/3HP | 3.75/5HP | 3.75/5HP | |
Head Swivel (Right-Left) |
| 90° | 90° | 90° | 90° | 90° | |
Head Swivel (Front-Back) |
| 45° | 45° | 45° | —— | 45° | |
Dimension | mm | 1516x1550x2080 | |||||
Weight | kg | 1450 | 1280 | 1320 | 1490 | 1490 | |
