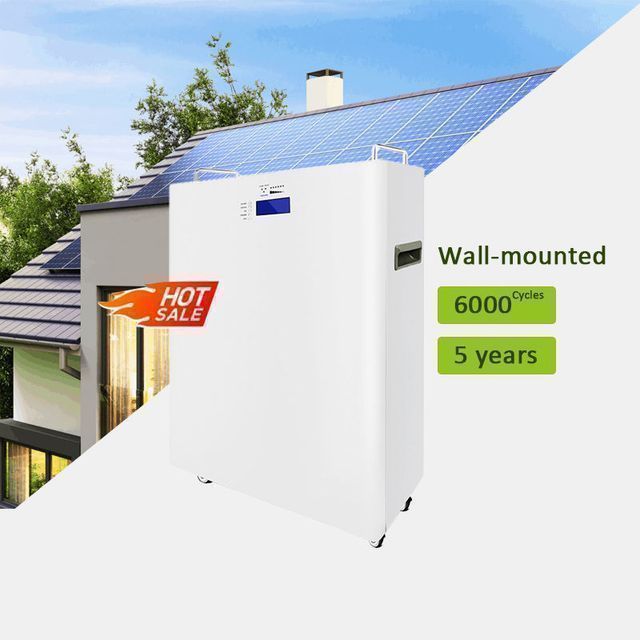

Deep Cycle AcFree Wall Mount Energy Storage Battery 48v 100ah lifepo4 battery energy storage system power wall home battery 5kwh

Supplier: Shenzhen Haiyue Energy Technology Co., Ltd.
Region: Guangdong, China
Price: $1024.00 / 1 - 49 pieces
$1012.00 / 50 - 99 pieces
$560.00 / 100 - 999 pieces
$215.00 / >=1000 pieces
Min. Order: 1 piece

Click here to contact

Product details

model:	AF-48100	type of battery:	lithium ion
Packaging Details:	48V long life solar battery	OEM/Design Manufacturer:	warm welcome
Package preview:		Discharge rate:	1C
Charging ratio:	1C	special function:	Wireless charging, Type C, flashlight, emergency power supply, RV port, cigarette lighter, external battery

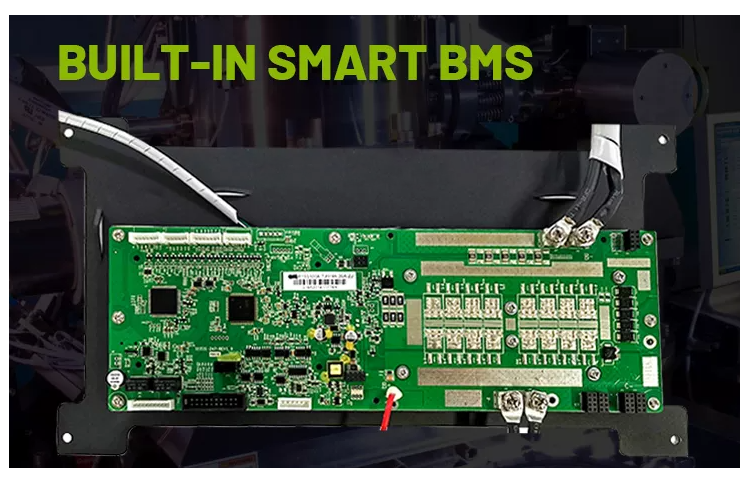

Battery management system:	Built-in BMS protection	Cycle life:	More than 6000 cycles
port:	Shenzhen	Batteries:	New high-quality A+ grade lithium iron phosphate battery
brand:	AcFree	Controller type:	MPPT
Supply capacity:	100000 pieces per week	Key words:	Power wall battery 48v 100ah
payment terms:	Western Union, T/T, 12V long life solar battery	Protect:	Built-in 100A BMS
product name:	Power wall battery 48v 100ah	place of origin; place of origin:	Guangdong, China
Warranty:	5 years	Energy source:	gas generator, car, other, solar panel

AcFree deep cycle 48v lifepo4 51.2v 100ah home lithium ion battery 5kw rechargeable power wall solar energy storage system

Product Description

Q	51.2V	51.2V
Nominal capacity	100Ah	200Ah
vitality	5120Wh	10240Wh
battery voltage	48V~52.8V	48V~52.8V
cycle life	3000 cycles	3000 cycles
Maximum charging current	50A	100A
Maximum discharge current	100Ah	100AH
Standard discharge method	0.2C constant current discharge to 37.6V	0.2C constant current discharge to 37.5V
Charging voltage	54.75V±0.05V	54.75V±0.05V
communication port	RS232,RS485	RS232,RS485
Working temperature/°C	Charging 0~45℃ 60±25%RH Discharge -20~60℃ 60±25%RH	Charging 0~45℃ 60±25%RH Discharge -20~60℃ 60±25%RH
Battery Type	Lithium iron phosphate	Lithium iron phosphate
Warranty	5 years	5 years
weight	45KG	92KG

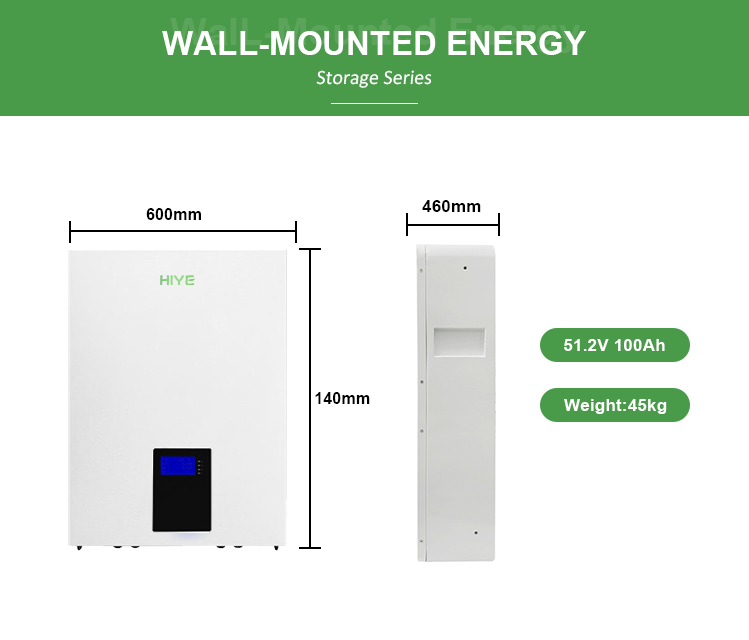

size	395212640mm	483442680mm

I guess you want to see more

Product Image

Install bottom and insulation sheets

Put the battery in the case

Install the battery lever

Welded Aluminum Strips

Install the BMS collection line

Install the BMS bracket and power cable

Install the positive, negative and communication, power button socket

Install the positive and negative terminals and connect

Install the positive and negative terminals and connect

Install insulating sheet on top

aging test

Seal the box and label it
