Acfree Alternative Energy Generator Ac Campers Rvs 5Kw Generator Part 220V Silent Power Inverter Solar Diesel Home Products from Shenzhen Haiyue Energy Technology Co., Ltd.

Product Details

EPS rated voltage:	220/230/240Vac	frequency:	50/60 Hz
product name:	Generator 5000W Battery	maximum. recharging current:	75A
capacity:	100AH	Certification:	CE certification
Warranty:	5 years, 5 years	brand:	AcFree
model:	AC-SG5000	EPS overload protection:	150%, 30 seconds
payment terms:	D/P, T/T	Origin:	Guangdong, China
maximum. Discharge current:	100A	Key words:	Generator 5000W Battery
Battery Type:	lithium iron battery	weight:	40 kg
Rated voltage:	220V	Battery rated voltage:	51.2V
Rated current:	100A

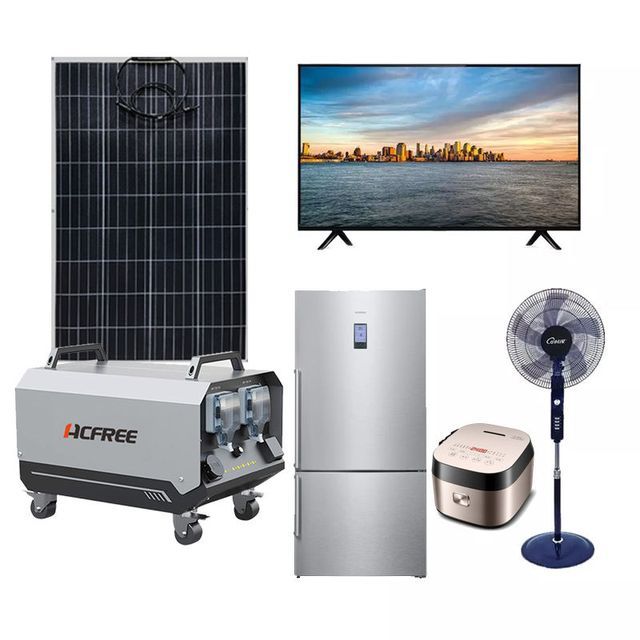

Acfree Alternative Energy Generator Ac Campers Rvs 5Kw Generator Part 220V Silent Power Inverter Solar Diesel Home

Related Products

Application field

Emergency power supply, field work, electric power repair, mobile auto repair, weak current area power supply system, monitoring power supply system.

The off-grid energy storage all-in-one machine design requires no installation and is easy to operate. Plug and play built-in lithium iron phosphate battery. MPPT controller, pure wave inverter, multiple charging mode options. UPS function.

Product Description

AcFree Diesel Generator

Product Features of Household 5KVA Ultra-quiet Diesel Generator

*One-button start; optional digital panel; customized socket

*Custom colors provide more options

*Quiet design can provide 69db of noise at a distance of 7 meters

*AcFree diesel engine on wheels provides 5KW ensuring easier transport

*Door design ensures easier lube and battery maintenance

Please note we provide you 01 Factory direct selling price. 02 High quality. 03 Fast shipping within 5 days. 04 Accept OEM. 05 Customized products 06 No MOQ, 1PC OK. Small orders are welcome.. 07 Online payment. 08 After-sales service 24/7

thing	Specification
Rated AC output power	5000KVA
Rated AC output current	21.7A
Rated grid voltage/grid voltage range	230Vac/176-270Vac
Rated grid frequency/grid frequency range	50Hz (45-54Hz)/60Hz (55-65Hz)
Grid connection type	AC charging interface
EPS rated voltage	220/230/240Vac
maximum. EPS power	5000VA
EPS overload protection	150%, 30S
Battery Type	lithium iron battery
Battery rated voltage	51.2V
capacity	100AH
maximum. recharging current	75A
maximum. Discharge current	100A
maximum. efficiency	95%
cooling method	fan
range of working temperature	-20℃~50℃
*Dimensions (WDH)*	600650400mm
Certificate	CE/TUV

Product advantages

The high-quality lithium battery with high rate, long life, high stability and maintenance-free is used as the main power source, and its performance is superior to other mainstream brands in the industry.

The built-in intelligent BMS battery management system can comprehensively monitor the battery pack system to ensure the reliable operation of the system with high quality requirements, and supports the industry's excellent high-power intelligent AC coupling machine to work together;

The system controls the charging and discharging mode, start and stop, output voltage and output voltage of the AC coupler system according to the real-time status of the battery pack system. With the output current and other parameters, the product runs efficiently and reliably.
