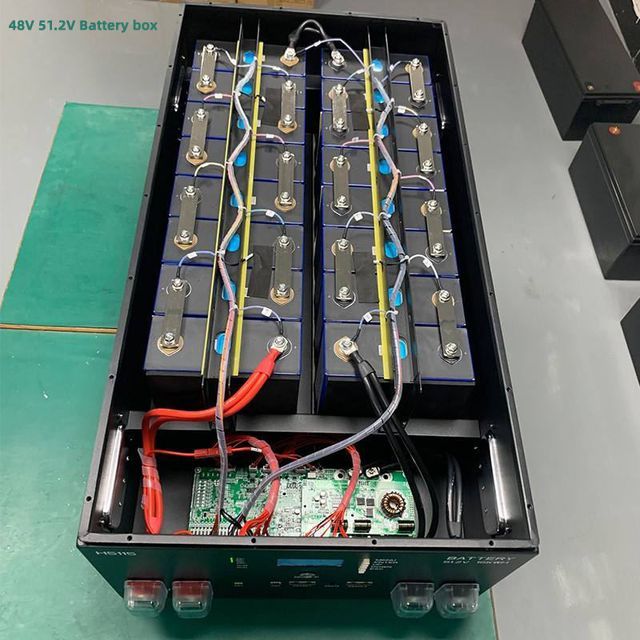

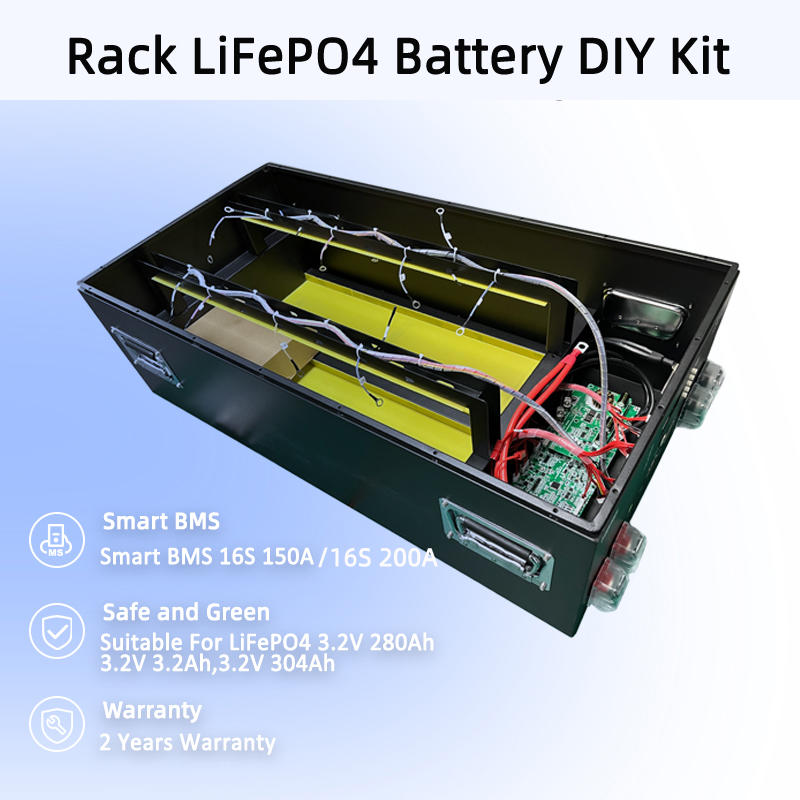

Battery box 100A 280Ah 304A BMS battery box 51.2V 48v diy lifepo4 battery pack 15kw

Click here to contact
Product details
Origin:Guangdong, ChinaService life:0.2C charge and discharge, 5000 times ≥ 80% of initial capacity
Protocol:CAN/RS485/RS232model:Keshe H5115
Recommended discharge current:140AMaximum discharge current:150A
Battery Type:Lithium iron phosphateaspect:810*428*258 mm
Battery management system:16S 150A/16S 200Apayment terms:Wire transfer, PayPal
Discharge cut-off voltage:40.0VRecommended charging current:56A
Applicable battery:16S1P 3.2V EVE 280Ah/304Ah, CATL 280Ah/302AhSupply capacity:10000 pieces per month
weight:23 kgbrand:Kathy
Specification
Product number
Keshe H5115
Applicable battery
15S1P 3.2V EVE 280AH/3.2V 304AH, CALT 280AH/3.2V 302AH
16S1P 3.2V EVE 280AH/3.2V 304AH, CALT 280AH/3.2V 302AH
battery management system
16S 150A /16S 200A
Building Management System Features

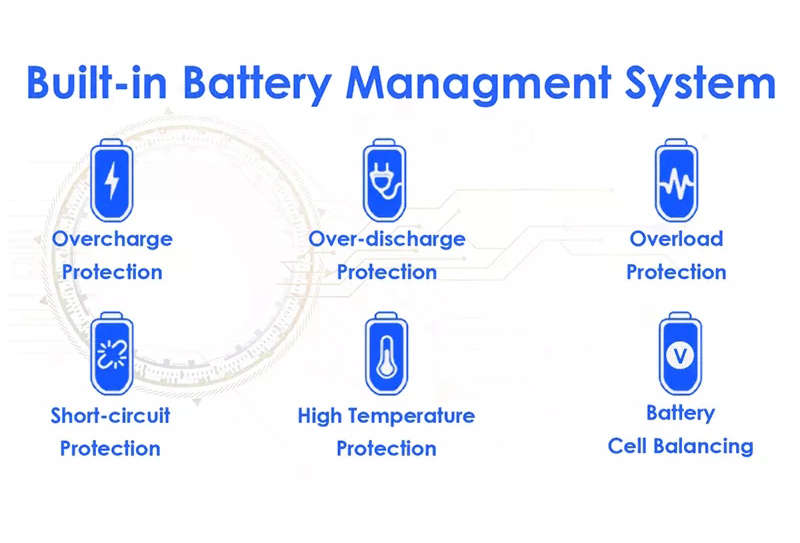

Overcharge protection, over discharge protection, overcurrent protection, battery balance, temperature protection CAN and RS485
communicate
Maximum discharge current
150A (-20℃~60℃; 65±20%RH)
Discharge cut-off voltage
40.0 V battery standard cut-off voltage
Protocol
CAN/RS485/RS232
Battery Management System Warranty
2 years
weight
23 kg
aspect
810*428*258mm
Package Size
890*508*338mm
Product Description
