Customized 2.56kwh solar lithium iron phosphate battery 24v 100Ah lithium ion battery wall energy storage battery

Supplier: Dongguan Beichuangli Electronic Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Wang
Price: $0.26 / 1000 - 1499 pieces
$0.25 / 1500 - 1999 pieces
$0.24 / 2000 - 2999 pieces
$0.23 / >=3000 pieces
Min. Order: 1000 pieces

Click here to contact

Product details

Controller type:	Maximum Power Point Tracking	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram

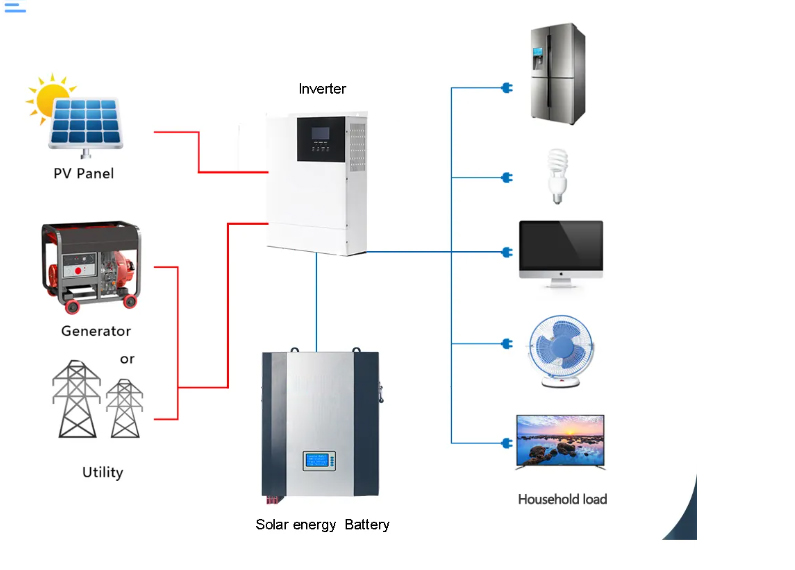

special function:	Household appliances, uninterruptible power supplies, solar energy storage systems	port:	Shenzhen
brand:	BCL	Energy source:	other
Nominal capacity:	100 Ah	Discharge current:	0.2C/20A (standard); 1C/100Ah (maximum)
recharging current:	0.2C/20A (standard); 1C/100Ah (maximum)	Q:	24V
Supply capacity:	100000 pieces per month	Origin:	Guangdong, China
model:	24V100Ah	Charging cut-off voltage:	28.8V
Packaging Details:	Carton/custom	Battery Type:	Lithium Ion Battery
Inverter type:	pure sine wave	Battery Type:	lithium ion
Nominal energy:	2400 Wh	cycle:	3000 (standard)
Warranty:	3 years (standard)	Discharge cut-off voltage:	20.8V

Product Description

feature

1. Advanced BMS with current limiting function;

2. Long cycle life and service life;
3. Compatible with most inverters and chargers;
4. Low self-discharge;
5. High energy intensity and conversion efficiency;

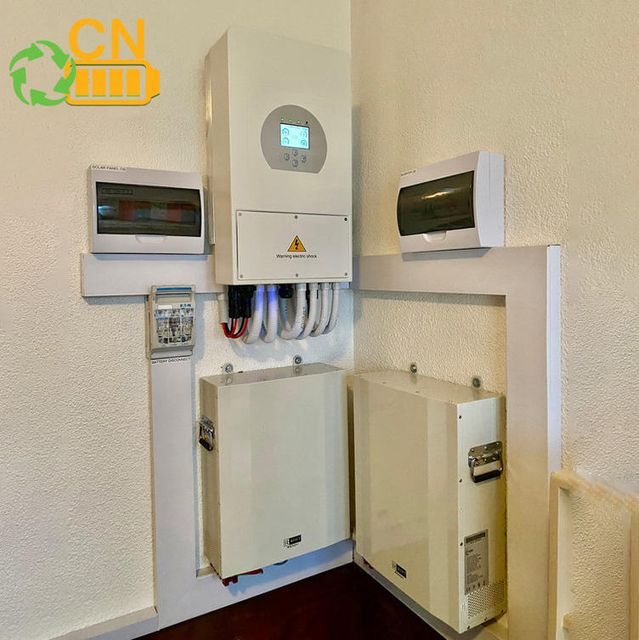

6. Wall-mounted installation is convenient;
7. Sturdy handles on both sides, easy to carry and move;
8. Excellent high temperature performance;
9. Overcharge, overdischarge, overtemperature protection;
10. More compact size and lighter weight;
11. Accept customization;

Basic parameters
Voltage:	24V	Internal resistance:	≤100mΩ
capacity:	100Ah (standard)	Standard cycle:	≥3000(@0.5C,80%DOD,25℃)
vitality:	2400 Wh	Self-discharge:	<5% (after 90 days of storage)
Standard Warranty: 3 years (extended warranty period according to customer requirements)

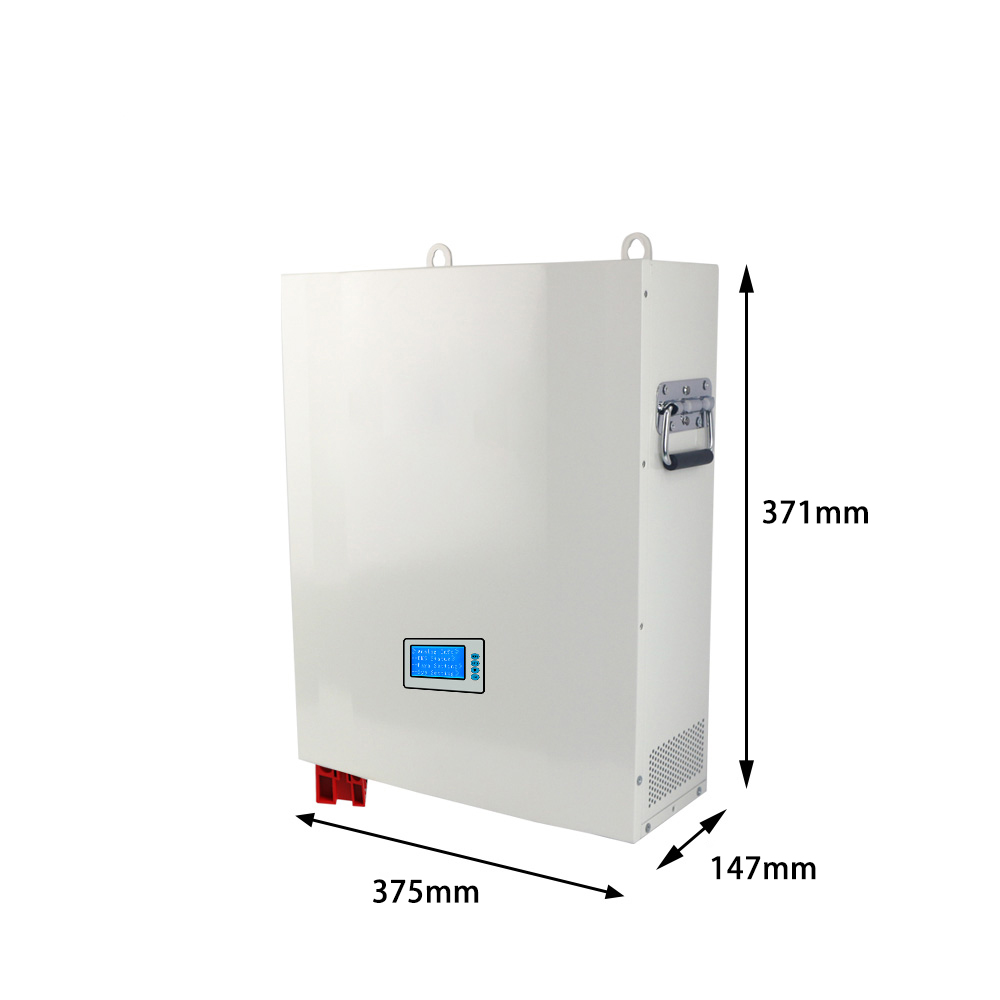

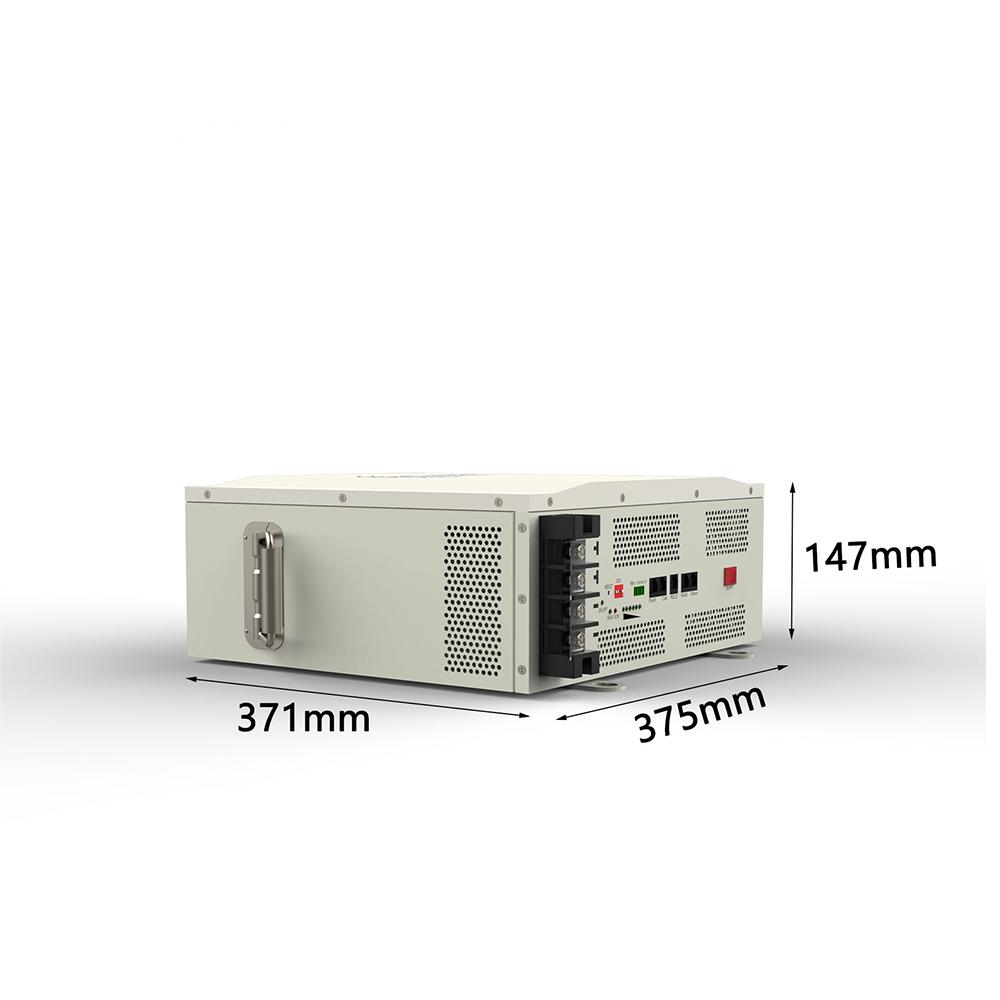

size and weight
high:375mm	width:150mm
length:371 mm	weight:25 kg

If you have any questions, please feel free to contact us

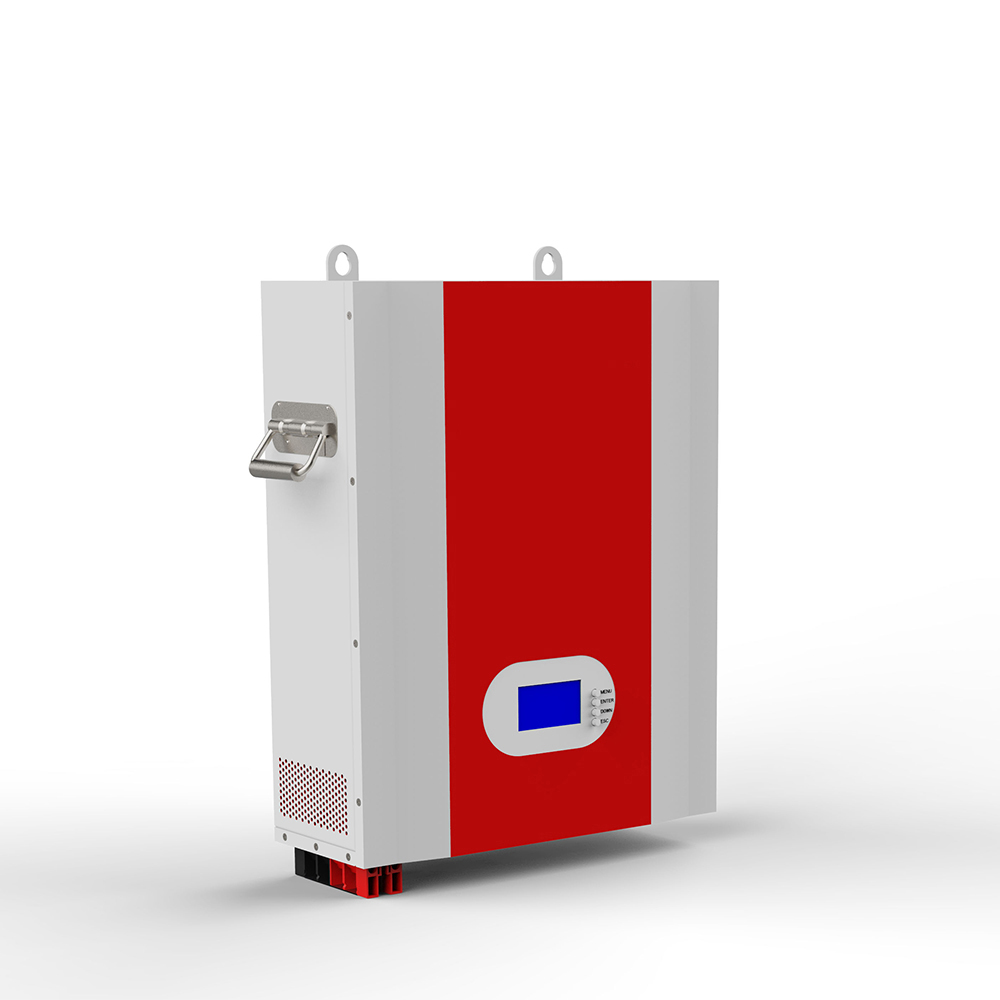

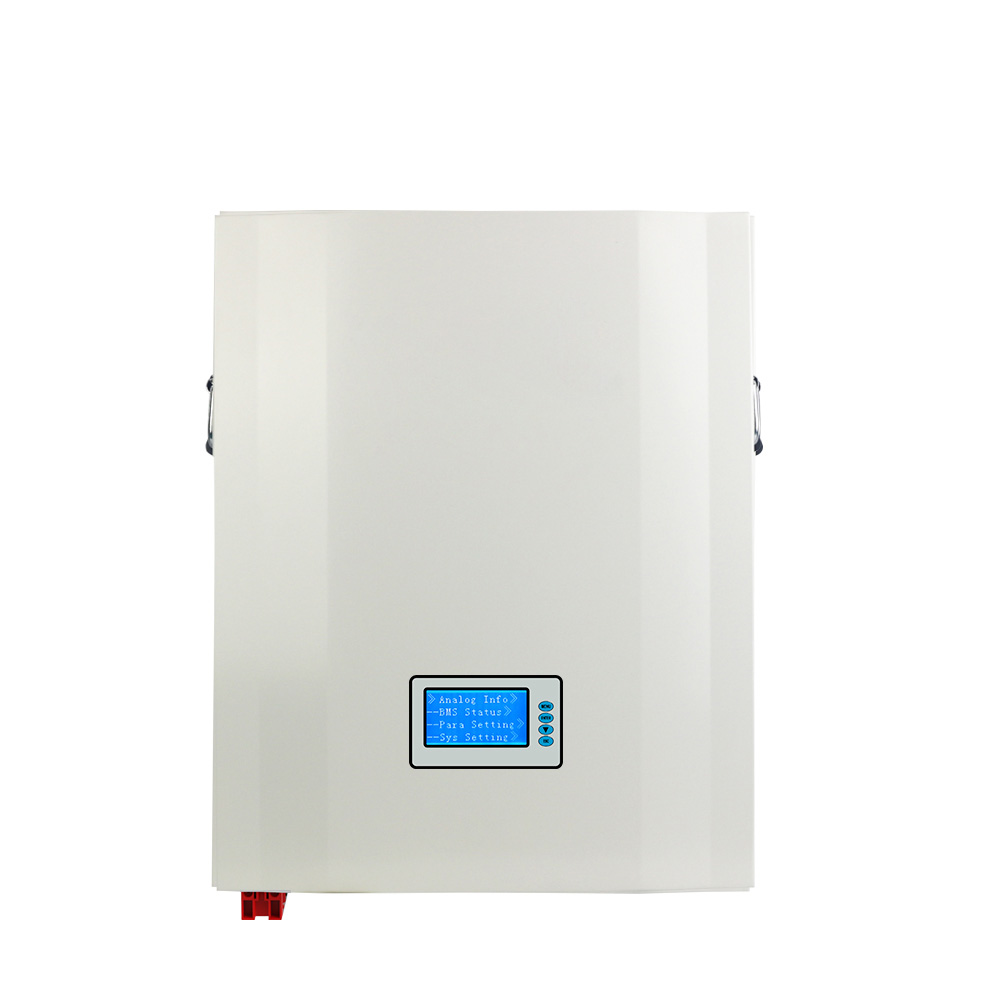

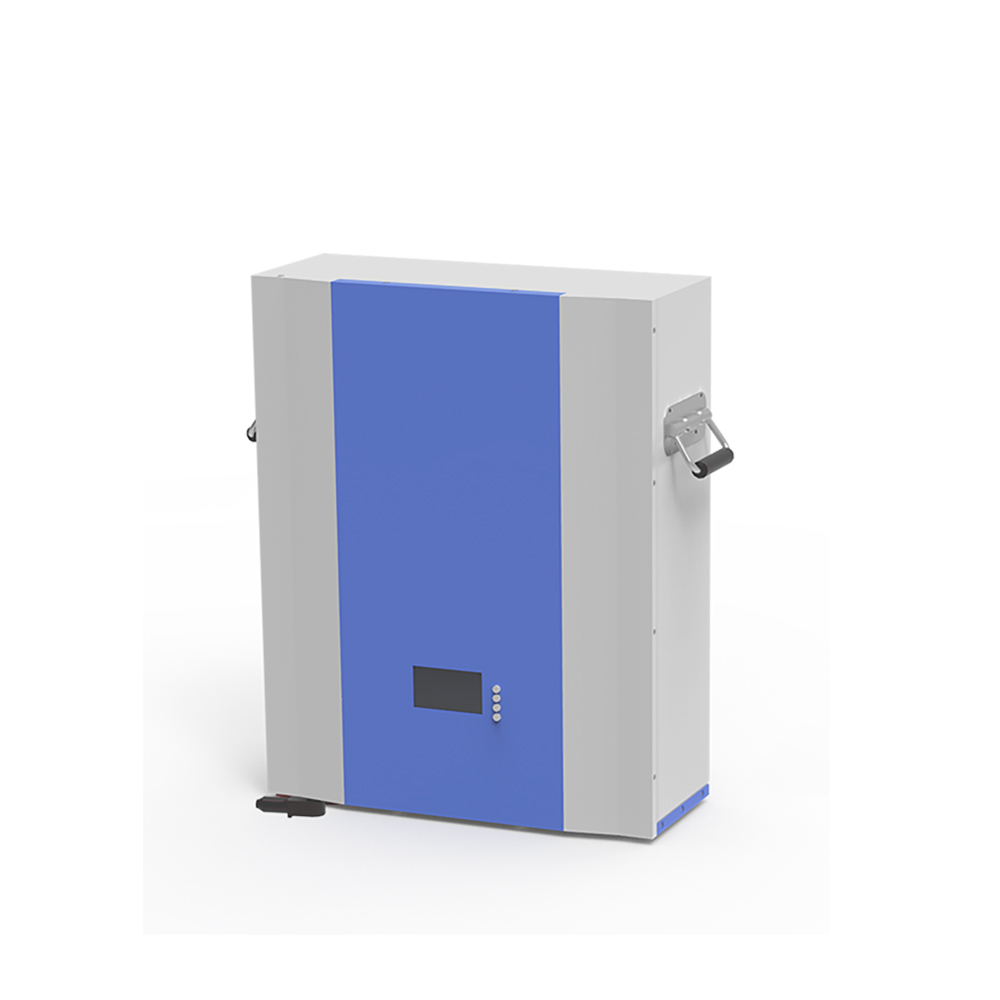

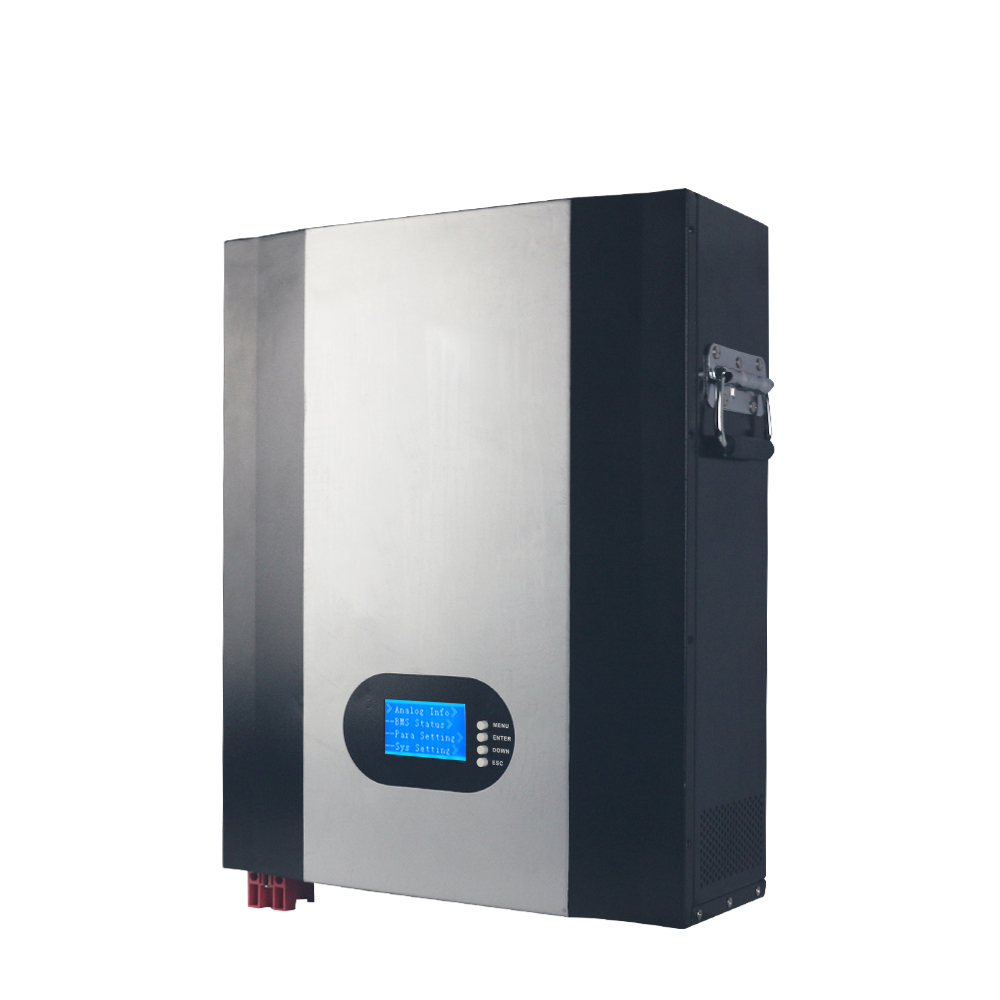

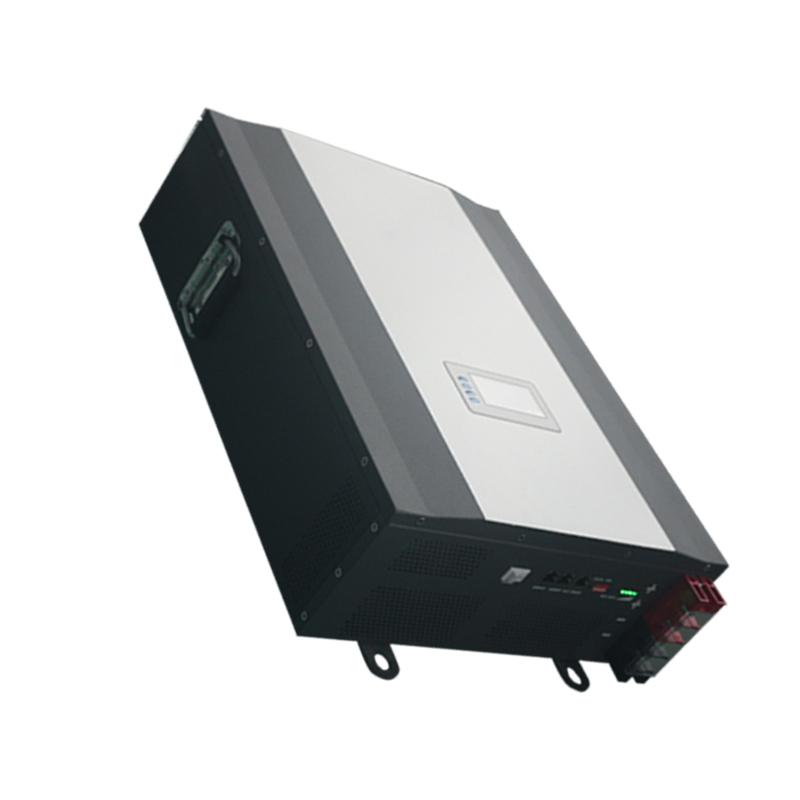

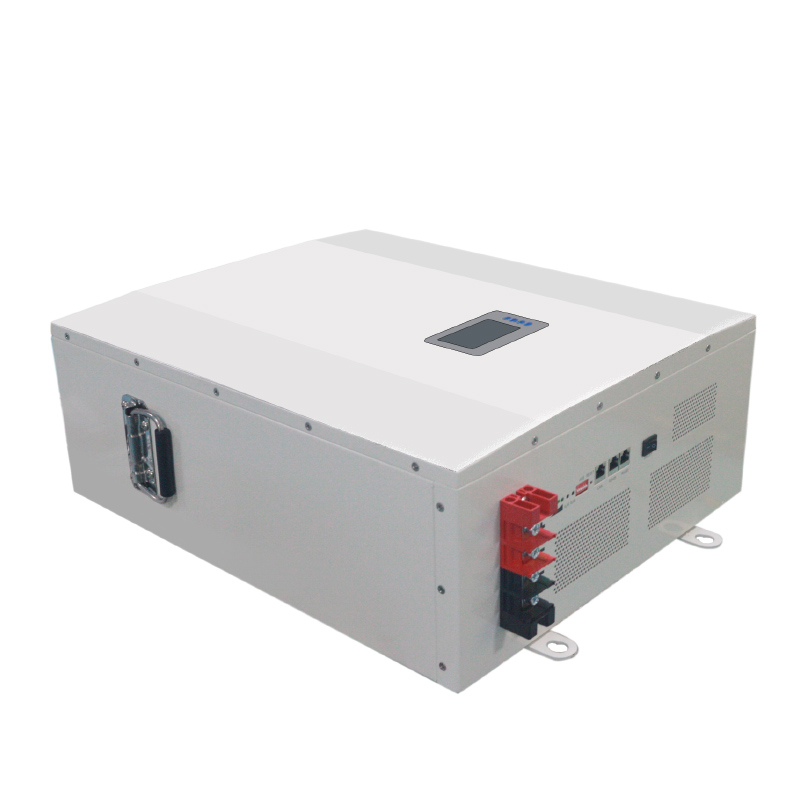

detailed picture

Electrical parameters

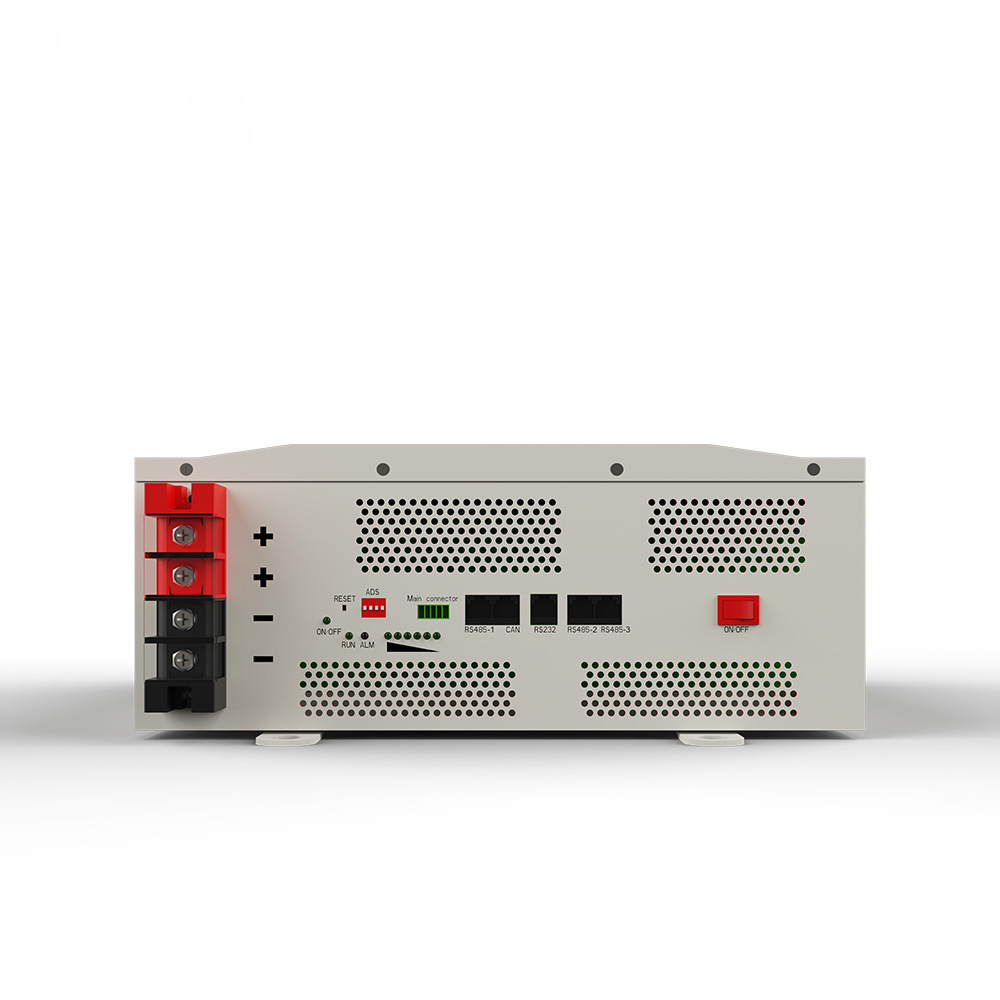

communication port	CAN/RS485/RS232	Compatible Inverter	Growatt/GoodWe/Deye/Srne/Voltronic etc.
charging method	CC/CV	recharging current	0.2C/20A (standard) 1C/100A (maximum constant current@25℃)
Overcharge protection voltage	28.8V	discharge method	CC/CV
Discharge current	0.2C/20A (standard) 1C/100A (maximum constant current@25℃)	Over-discharge protection voltage	20.8V

Working parameters	Operating temperature	Charging (small current): 0℃~+45℃
	Operating temperature			Discharge (small current) -20℃~+55℃
		Storage temperature	Routine storage temperature: -10~+45℃ (three months, SOC: 20%~60%)
		Storage temperature		Normal storage temperature: < 1 month: -5~+45℃ >6 months: 0~+35℃
		storage humidity	5%~95%
		traffic environment	Voltage: 22.5V~26V
		traffic environment		Power: 30%~60%
