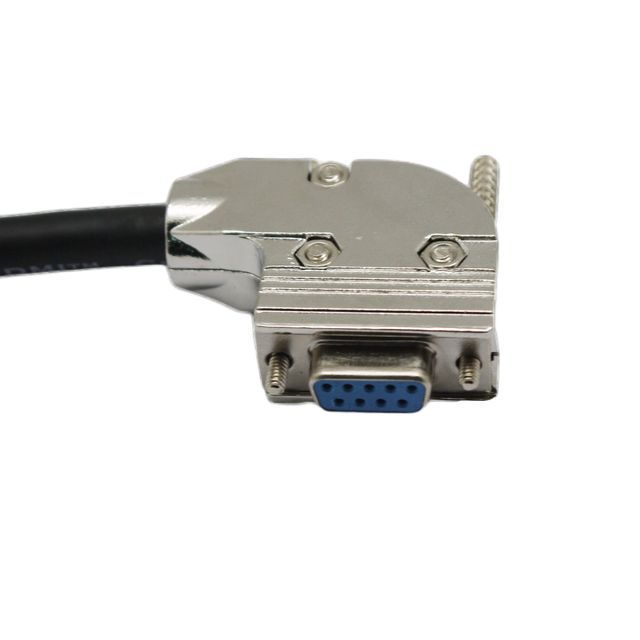

angle d sub connector housing 90 degree db9 d-sub to d-sub connector cover
- 1.45 100 - 999 pieces
- 1.35 1000 - 4999 pieces
- 1.05 >=5000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Packaging Details: | Plastic bag sleeve packaging and carton packaging. PE bags, according to customer requirements. | Material: | zinc, nickel plated |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | model: | d-sub to d-sub,d-sub 9p metal cover |
| Pack: | packing box | color: | silver |
| Supply capacity: | 1,000,000 pieces per month | Operating temperature: | -40°C to +120°C |
| plating: | nickel | Certification: | ROHS Directive |
| port: | Shenzhen Guangzhou | Processing: | can OEM |
| brand: | Zechao | Payment/Payment: | No |
| Jack screw (ME) Thumbscrew (MEL): | UNC 4-40 | Types of: | D-Sub Backshell |
| describe: | d-sub metal cover | Cable entry: | right angle |
| application: | strength | place of origin; place of origin: | Guangdong, China |
detailed image
Cable exit angle | Straight/right angle/45 degrees/side entry |
pin count | 9.15.25.26.37.44.50.62.78P |
material, back shell | Die-cast metal (zinc alloy) |
color | Nickel, Chrome, Black, Gold, Silver |
Cable entry (diameter) | 9.8,12.0mm |
Hood Parts: | Clamps, jack screws, kits, cable washers, |
certified product | ROHS,SGS |
9Pin male and female high quality d-sub connector cover
• EMV full metal shroud for D-Sub connector
• Two UNC 4-40 knurled thumbscrews
• Better than 40dB attenuation from 30 MHz to 1GHz
• Silver/nickel surface die-cast zinc
• Cable diameter 4,0...16,0mm
• Temperature range -40...+120°C
application
1. Available in 3 industry sizes/positions (9, 15, 25, 37, 50).
2. Die-cast parts available to provide shielding in excess of 70 dB.
3.Easy assembly reduces manufacturing cost.
4. Non-conductive grommets/strain reliefs are provided to enhance shielding and provide proper strain relief.
Automotive Diagnostics Telecom, Data, Consumer, Industrial and Instrumentation, Military and Medical or more...
Application field
