The SA6 is a simple portable spectrum analyzer and signal source designed to display the spectrum of signals from 35 to 6200 MHz.

The analyzer finds the magnitude and frequency of the spectral components of the process being analyzed. Spectrum analyzers can process signals from all widely used technologies: Wi-Fi, 2G, 3G, 4G, LTE, CDMA, DCS, GSM, GPRS, GLONASS, etc.

Another important feature is its tracking generator, which can measure the frequency response of passive or active devices such as filters or amplifiers. The software allows measurement of SWR and return loss modules. This requires an external directional coupler and a set of calibration measures.

SA6 is mainly used for field operations. The equipment is durable, light in weight and low in energy consumption. It enables service centers and maintenance teams to perform on-site HF analysis for commissioning and repair work. Additionally, a spectrum analyzer is the perfect solution for repair shops and radio amateurs.

For example, you can use the device to:
Put the external antenna on the base station
Quickly analyze the RF environment
Check the correct operation of the relay battery
Repair and adjustment of repeaters, generators, filters, etc.
Measuring SWR when using an external directional coupler

It can be controlled by buttons on the device or touch screen. Data transfer between analyzer and PC via USB cable. All measurement data are displayed in real time on the screen of the device or PC.

Performance parameters:
- 3.2" color resistive touch screen
- Wide frequency range: 35 to 6200MHz
- Fast scan of frequency range: 500 points per point
- High measurement accuracy: 2dB within 70-75dB dynamic range
- Compatibility with Windows-based computers
- Can use the device with the help of PC
- Very convenient to use
- Weight 380g/0.8lb; Size 150*75*23mm/5.9*3*0.9"
- Standalone power supply lasts up to 4 hours of non-stop operation and transmits data to PC via cable

Specification:
- Display frequency range: 35-6200 MHz
- Measurement frequency range: 35-4500 MHz
- Dynamic range from 35-3000 MHz: 75 dB
- Dynamic range from 3000-4500 MHz: 70 dB
- Maximum span: 6165 MHz
- Bandwidth: 200 kHz, fixed
- Scanning speed for frequency bands above 100MHz: 700MHz/sec
- Sweep 100 MHz: < 0.25 sec
- Noise floor up to 3000 MHz: < -90dBm
- Noise floor 3000-4500 MHz: < -85dBm
- Noise floor 4500-6200 MHz: < -80dBm
- Wave Impedance: 50 ohms
- VSWR over the operating frequency range: <1.5
- Internal attenuator: 0-30 dB
- Attenuation error up to 10 dB: 2 dB
- 10 to 20 dB attenuation error: 5 dB
- 20 to 30 dB attenuation error: 8 dB
- Tracking generator output power: -15 to -25 dBm
- Dynamic range accuracy: 2.0 dB
- Maximum input power of attenuator at 0 dB: 10 dBm
- Maximum input power when the attenuation is greater than 20dB: +20dBm
- Maximum input measurement signal: +10 dBm
- Maximum input DC voltage: 25V
- Maximum current draw when running on battery: 450 mA
- Maximum current draw when running from USB: 500 mA (while charging)
- Battery: 2500mAh
- Duration: 3 hours
- Battery charge time: ~ 5 hours

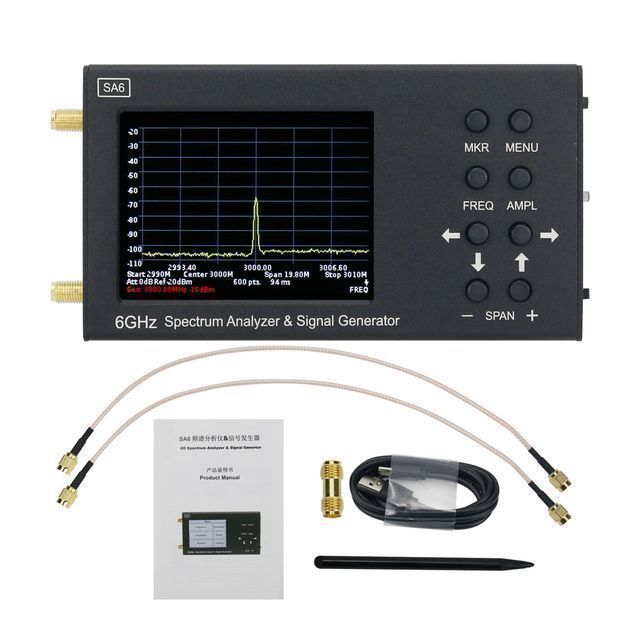

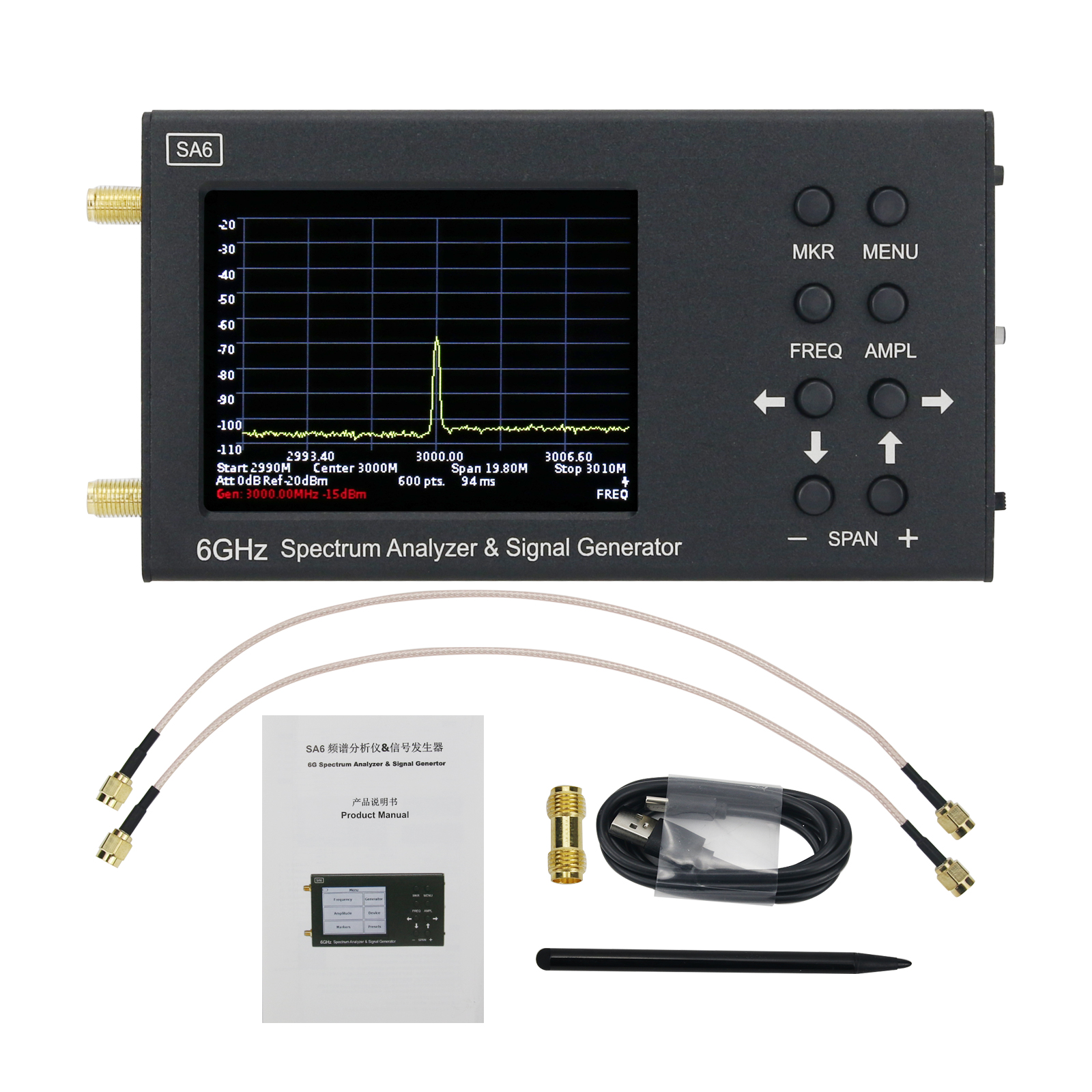

Package Included:
