hydraulic tube end double bubble flare forming machine for brake fuel pipe line

Click here to contact

Product details

Machine Type:	Pipe End Forming Machine;	Brand Name:	BOBO;
Dimension:	1300 x 650 x 1300 mm;	Name:	hydraulic tube end double flare forming machine brake fuel pipe line;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,hydraulic tube end double flare forming machine for brake fuel pipe line;	After-sales Service Provided:	Free spare parts,Online support,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;
Tube Diameter:	4-30mm;	Raw Material:	PIPE;
Control System:	HMI&PLC;	Port:	hydraulic tube end double flare forming machine for brake fuel pipe line delivered from Shanghai port;
Motor Power:	1.5KW;	Power:	Hydraulic;
Tube Material:	Copper / Aluminum / Bundy tube/stainless steel;	Work Speed:	3-5 second for one each;
Extra Services:	End Forming;	Automation:	Automatic;
Packaging Detail:	hydraulic tube end double flare forming machine for brake fuel pipe line is packaged within wooden case.;	Min Length:	>50mm;
Place of Origin:	Jiangsu China (Mainland);	Material / Metal Processed:	Brass / Copper,ALLOY,Stainless Steel,Aluminum,Aluminium Alloy,Carbon Steel,bundy;
Electric System:	380V, 50Hz, 3Phae (Customized);	Flaring Tolerance:	0.5mm/1m;
Supply Ability:	4 Set/Sets per Month hydraulic tube end double flare forming machine brake fuel pipe;	Certification:	ce,GS;
Warranty:	1 Year;	Condition:	New;

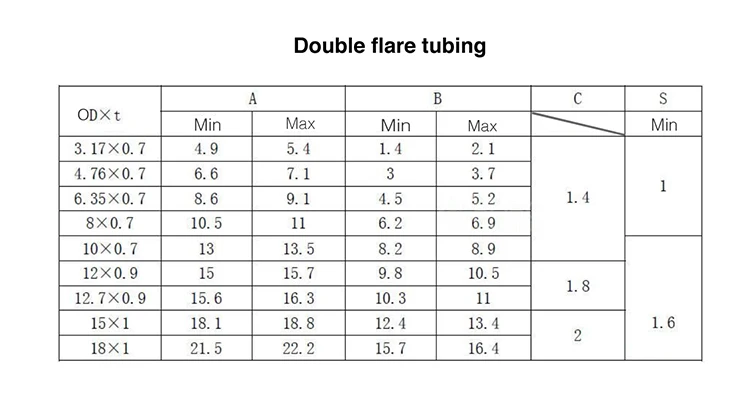

Final tube reference of end double flare machine

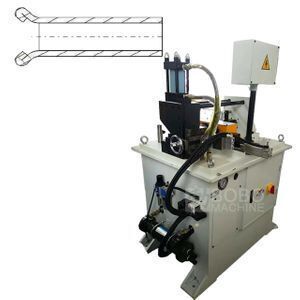

Hydraulic tube end double flare forming machine for brake fuel pipe line

The machine is used to produce flaring parts on tube end which apply for connection of fuel line,brake line,condenser,evaporator and so on.

You have free choice for single flare or double flares,bulging,expanding,shrinking on same machine,just change forming tools.

Parameter of tube end double flare machine


1	Suitable tube material	aluminum,stainless steel,copper,bundy,steel
2	Diameter range	4-30mm
3	Min length of work piece	50mm
4	Working station	1-4 stations arrcoading to work piece
5	Power	1.5kw
6	Dimension	1100x1200x1300mm
7	Weight	580kg
