Best price electric motor driven Eot crane end beam
- 99.00 piece
| Package preview: | maximum. Lifting load: | 50 tons | |
| Control Method: | remote control | Crane Features: | Single girder crane |
| type: | Single and double beam end cars | Energy source: | 3 phase 380V 50hz or customized |
| maximum. Lifting height: | 6m~30m | Cross speed: | 20, 30, 45, 60 m/min |
| Certification: | CE certification | Warranty: | 1 year |
| After warranty service: | online support | Packaging Details: | Export Booth Wooden Box |
| color: | customer request | product name: | Tail car |
| Applicable industries: | Hotels, clothing stores, building supplies stores, machinery repair shops, manufacturing plants, food and beverage factories, farms, restaurants, home use, retail, food stores, printing shops, construction, energy and mining, food and beverage stores, advertising agencies | Showroom location: | not any |
| Health status: | new | span: | 7.5-31.5m |
| feature: | Bridge crane | Rated lifting moment: | 100KN |
| port: | Chinese port | Motor Power: | 0.3, 0.4, 0.75, 1kw |
| brand: | VOHOBOO or customized | Supply capacity: | 5000 pieces per week |
| payment terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alibaba Trade Assurance | Wheel Size: | W125*60 |
| place of origin; place of origin: | Hubei, China | Lifting mechanism: | electric hoist |
| Local service location: | not any | After-sales service provided: | online support |
Best price electric motor driven Eot crane end beam

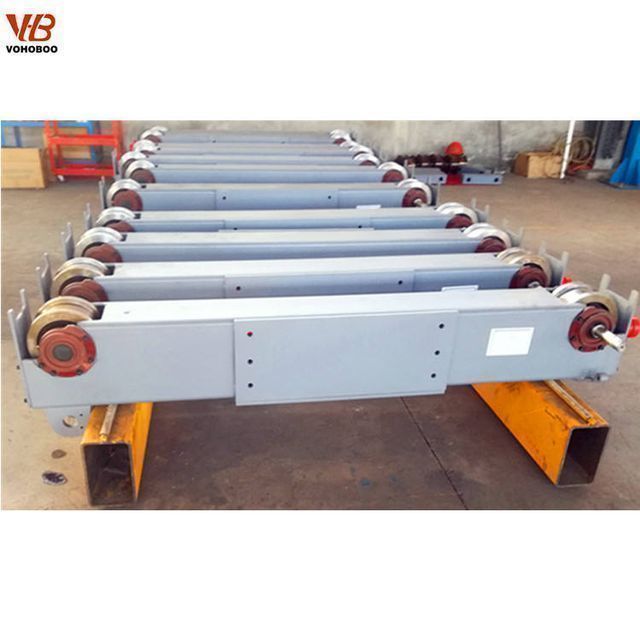

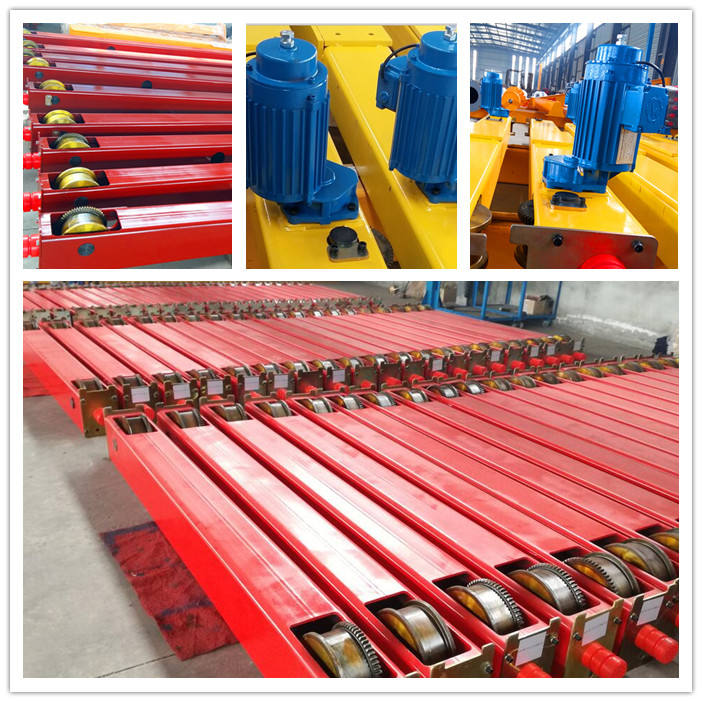

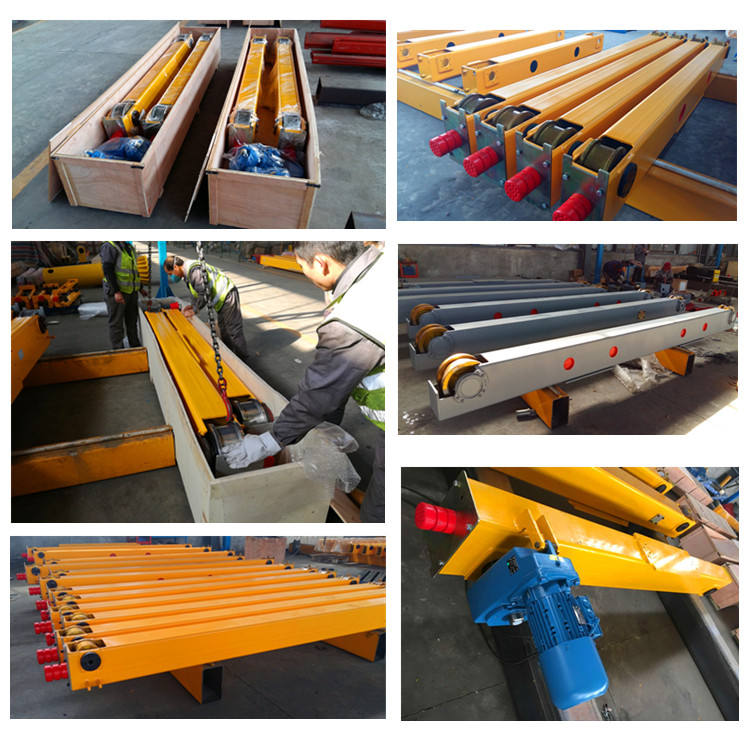

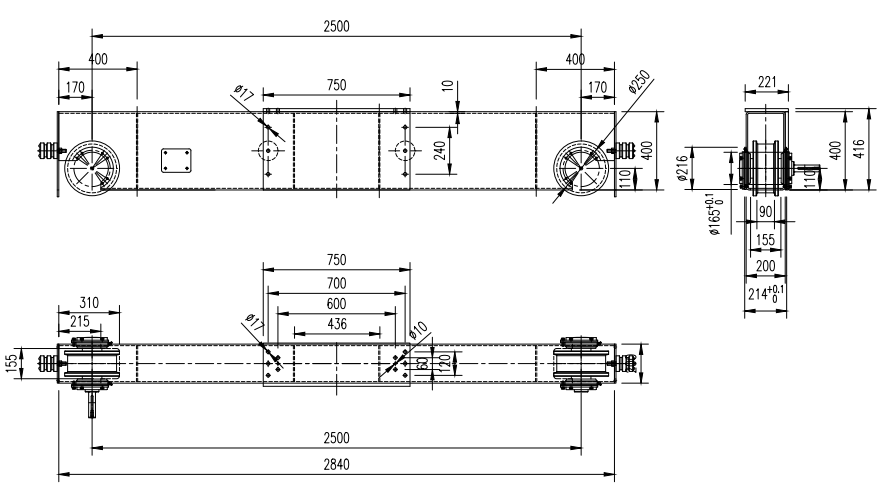

The end frame is made of a rectangular tube, and the transmission mechanism adopts a gear reduction motor with an open pinion or a hollow shaft wheel. Suitable for single or double girder overhead traveling cranes. Wheel tread surface heat treatment.
After correction, only the main girder and end girder need to be welded. It makes the manufacture, installation and maintenance of the crane very easy.

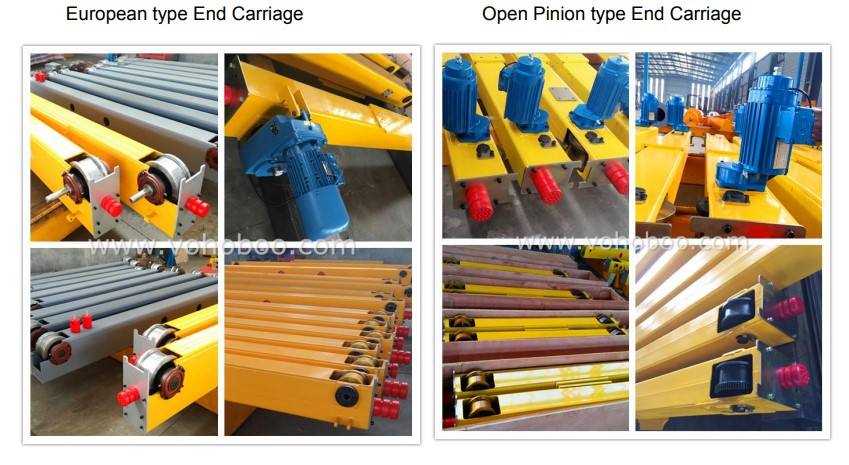

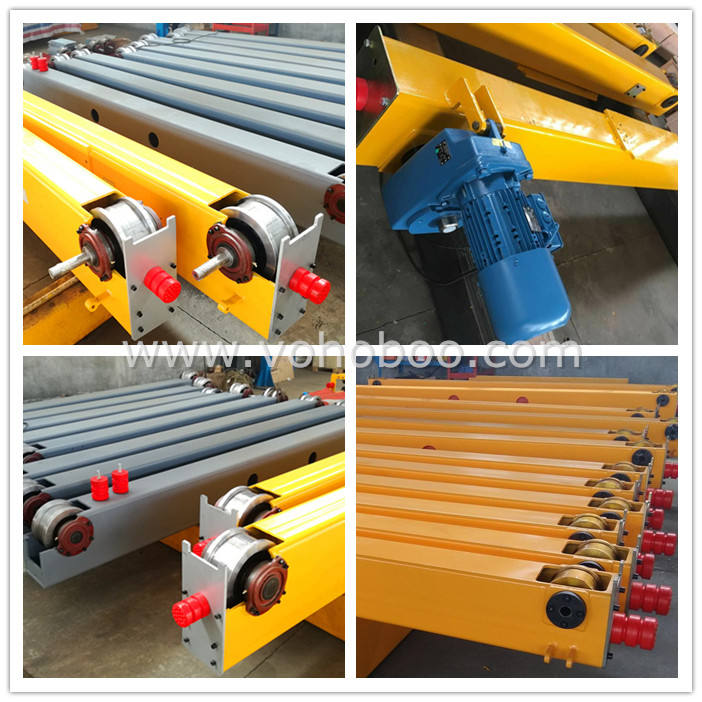

The European-style tail car adopts F series reducer, hollow shaft transmission, and the working load reaches M5.
| tail car model | Crane model application | rectangular steel pipe | wheel size | Motor Power |
| L125-15 | 1t-7.5m | 150*150*6 | W125*60 | 0.3KW*2 |
| L125-20 | 1t-11.5m | |||
| L125-25 | 1t-16.5m | |||
| L160-15 | 2t/3t-7.5m | 150*200*8 | W160*70 | 0.4KW*2 |
| L160-20 | 2t/3t-11.5m | |||
| L160-25 | 2t/3t-16.5m | |||
| L160-30 | 2t/3t-22.5m | |||
| L160-35 | 2t/3t-28.5m | |||
| L200-20 | 5t-11.5m | 150*250*8 | W200*70 | 0.4KW*2 0.75KW*2 |
| L200-25 | 5t-16.5m | |||
| L200-30 | 5t-22.5m | |||
| L200-35 | 5t-28.5m | |||
| L250-20 | 10t-11.5m | 200*250*8 200*300*8 | W250*80 | 0.75KW*2 1.1KW*2 1.5KW*2 |
| L250-25A | 10t-16.5m | |||
| L250-30A | 10t-22.5m | |||
| L250-35A | 10t-28.5m | |||
| L250-25B | 16t-16.5m | |||
| L250-30B | 16t-22.5m | |||
| L250-35B | 16t-28.5m | |||
| L315-30 | 20t-16.5m | 200*400*8 | W315*90 | 1.5KW*2 |
| L315-35 | 20t-28.5m |

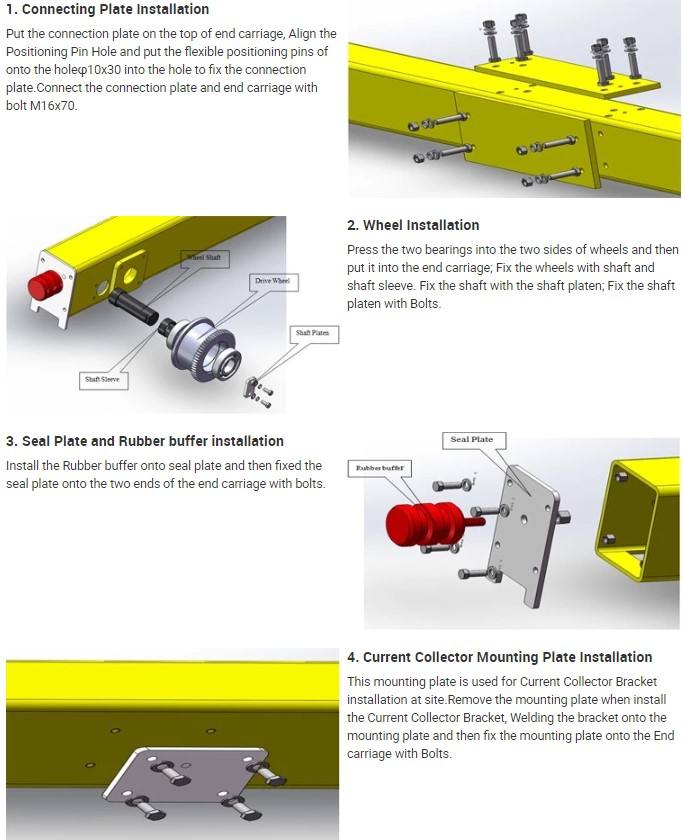

Comment:The whole set of end car includes the following parts:
Wheels, geared motors, terminal boards, connecting bolts, closing plates, bumpers, etc.
In order to recommend a suitable End Carriage/ End Truck to you, please provide the following information:
1.Where is End carriage used? Is a single girder crane better or a double girder crane?
2.The lifting capacity of the crane?
3.The span of the crane?
4.Running speed of the trolley at the end of the crane?
5.Do you still need an operating cabinet? Is the running motor of the rear car frequency-converted?
Any questions will be dealt with sincerely and professionally! Waiting for your inquiry!
