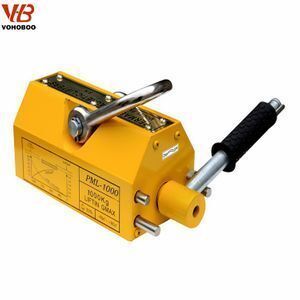

Portable crane magnetic lifter 500kg 1ton 2 ton Lifting permanent magnet from CE approved supplier

Supplier: Wuhan Vohoboo Import & Export Trade Co., Ltd.
Region: Hubei, China
Contact: Ms Anny Chen
Price: $29.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	VOHOBOO;	Brand:	VOHOBOO;
Product name:	Permanent Magnetic Lifter;	Supply Ability:	10000.0 Set/Sets per Month;
Condition:	New;	Place of Origin:	Hubei China;
Packaging Detail:	Portable crane magnetic lifter 500kg 1ton 2 ton Lifting permanent magnet from CE approved supplier Standard Composite Wooden Box with polyfoam;	Weight:	3kg - 300kg;
Warranty:	1 YEAR;	Safety factor:	2.5 , 3.5 times;
After Warranty Service:	Online support;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Dimension(LWH):	different sizes for model;	Package Preview:	;
Local Service Location:	None;	Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;
Warranty of core components:	1 YEAR;	Machinery Test Report:	Provided;
After-sales Service Provided:	Online support;	Shape:	Square;
Color:	yellow or customized;	Core Components:	Bearing,Gearbox,Motor,Gear;
Video outgoing-inspection:	Provided;	Material:	NDFEB magnet + steel body;
Port:	Shanghai, Tianjin, Qingdao, Shenzhen and other China Port;	Marketing Type:	Hot Product 2019;
Rated lifting capacity:	100kg -6000kg;	Application:	Lift Steel Plates;
Showroom Location:	None;	Certification:	CE;

Product Description

Permanent Magnetic lifter which can greatly improve the magnetic steel material clamping efficiency. The permanent magnet lifter is a high-performance rare earth material NdFeB as the core, through the hand pull the suction cup handle rotation, thus changing the inner chimney NdFeB magnetic system, to be processed workpiece suction or release. Permanent Magnetic lifter is the machinery factory, mold factory, and other machining field

widely used magnetic fixture.

1. Nd-Fe-B Magnet as core component,smaller size,stronger lifting force and lasting magnetic force.

2. High safety factor up to 3.5 times pulling-out force than rated lifting.
3. V style design at the bottom of lifter,can lift opposite round steel or steel board.
4. Easy to use and free to power.
5. Optimized magnetic circuit design makes residual magnetism almost zero.
6. Professional appearance design makes product more attractive.

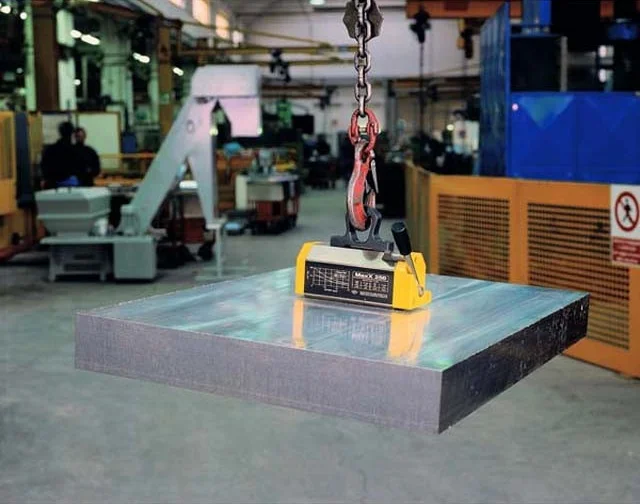

Product Overviews

More cases of permanent magnetic lifter deal...

Product Parameters

Model	Lifting capacity (kg)		Dimension				Net weight (kg)
Model	Steel plate	Cylindrical	Length	Width	Height	Handle	Net weight (kg)
PML-100	100	50	92	62	69	155	3.2
PML-200	200	100	130	65	69	155	5.4
PML-400	400	200	160	95	95	200	11
PML-600	600	300	210	120	120	230	20
PML-1000	1000	500	260	150	140	255	40
PML-1500	1500	750	340	150	140	255	48
PML-2000	2000	1000	400	170	170	320	74
PML-3000	3000	1500	440	170	170	380	105
PML-5000	5000	2500	600	230	215	600	248
