5 ton jib crane customized 360 degree rotation

Supplier: Wuhan Vohoboo Import & Export Trade Co., Ltd.
Region: Hubei, China
Contact: Ms Anny Chen
Price: $309.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Detail:	JIB crane 1 ton , The normal package for crane is waterproof cloth, wooden box for hoist and other accessories. (three layers fumigated wooden box.);	Power Source:	3 Phase 380V 50hz or customized;
Feature:	Jib Crane;	Delivery:	by sea;
Rated Loading Capacity:	0.25-20 Ton;	Color:	Yellow .Red . Orange or customized;
Brand Name:	VOHOBOO or customized;	Type:	Slewing Arm Crane;
After-sales Service Provided:	Engineers available to service machinery overseas;	Rated Lifting Moment:	50KN;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Alibaba trade assurance,JIB crane 1 ton;	Condition:	New;
After-sales Service Provided:	Field installation, commissioning and training,Field maintenance and repair service,Online support;	OEM/ODM:	available;
Warranty:	1 Year;	Port:	Any China port;
Max. Lifting Height:	1~20m;	Place of Origin:	Hubei China;
Crane feature:	Easy Operated JIB Crane;	Supply Ability:	2000 Set/Sets per Month JIB crane 1 ton;
Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;	Application:	Warehouse/workshop/factory etc;
Lifting speed:	20m/min 30m/min or can be customized;	Control method:	wireless Remote Controller or handle;
Certification:	CE ISO;	Span:	7.5-22.5;

Product Description

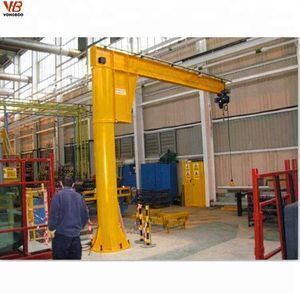

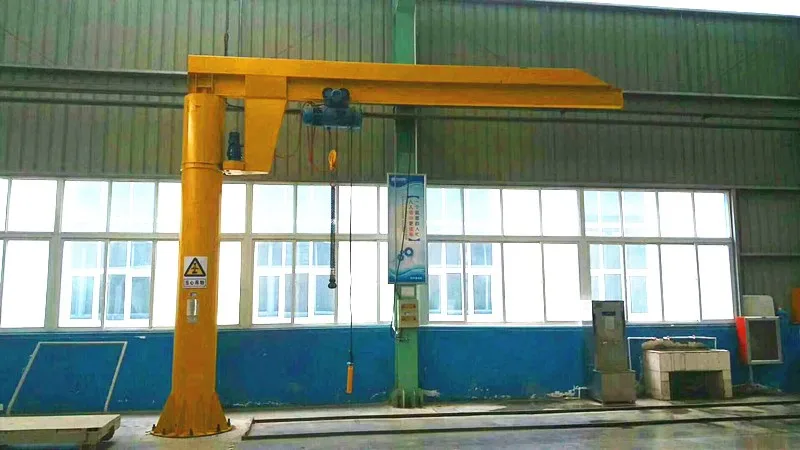

VOHOBOO brand 360 degree electric rotate 5000kg jib crane price

1.This machine suitable to work in the dock, warehouse, workshop etc Fixed working conditions, it can work within the 360 degrees to lift, move and materials handling.

2. This type machine is composed by the vertical shaft, revolivingarm, rotating shaft, hoist etc. The bottom of the vertical shaft is fixed on the concrete base. Horizontally Rotation of the revolivingarm: Manual, depend on the operator use the human force to push the impending working or self prepared rope etc device. The hoist travel with the right and left straight line on the H beam, use the hoist to lift the heavy materials. This type machine with advantages of the Simple structure, Operate convenience, Turning agile, wide working conditions.

3.Under the cantilever, it equipped with rack, hoist running dolly output gear and rack driven of occlusion, this could ensure the stability of the electric hoist. The hoist make shuttle running along the way of I-shaped beam, slewing of cantilever is finished by the motor to drive the reducer

device. The cantilever is made of hollow steel structure, it is has a light weight, wide span, large lifting capacity, it is also more economic and

durable. The jib crane which adopt special engineer plastic wheels with rotary bear could reduce the abrasion, running more smooth . It could

install in any position with ranges of rotation 180°, 270°, 345°, 360°.

Lift capacity(T)			1,2,3,5,10,16,20
Span(M)			7.5-22.5
Mechanism traveling	speed(m/min)		10,20,30	45,60
	motor	type	ZDY1 21-4	ZDR12-4
		power(kw)	2*0.8	2*1.5
		speed(r/min)	1380	1380

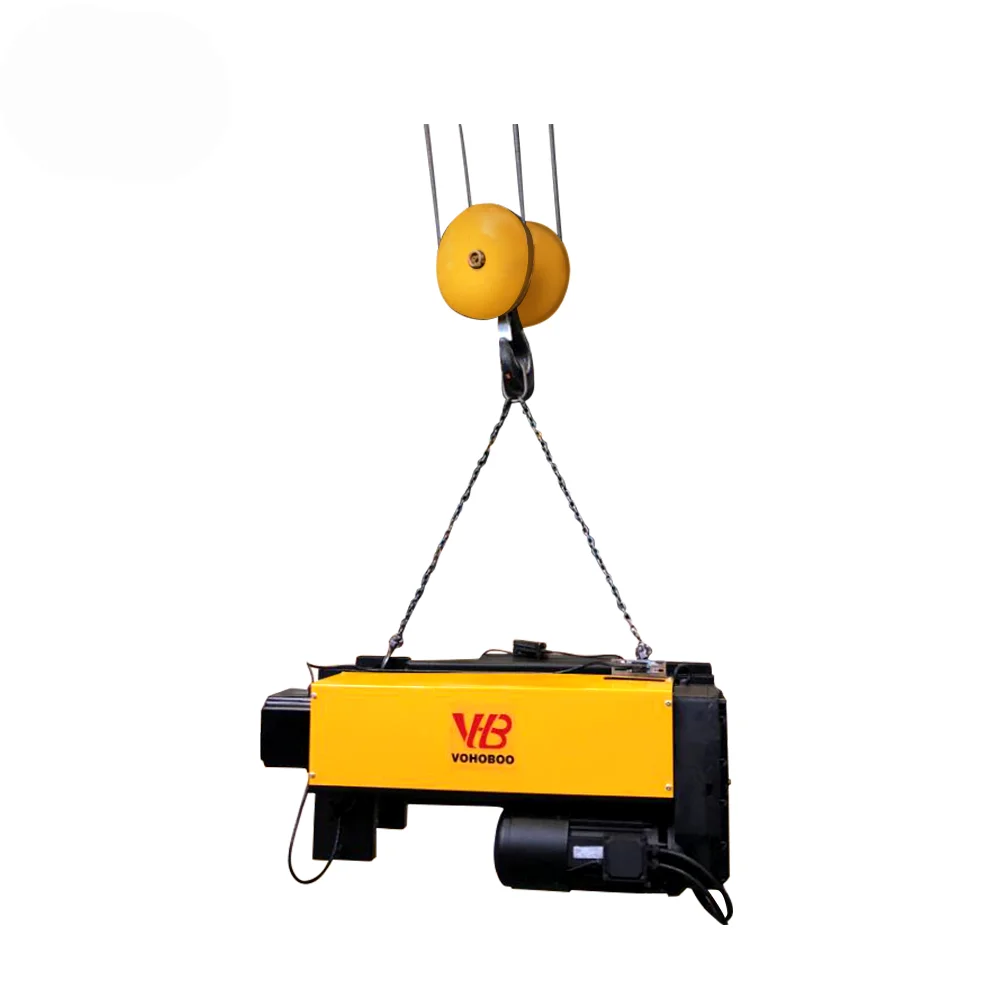

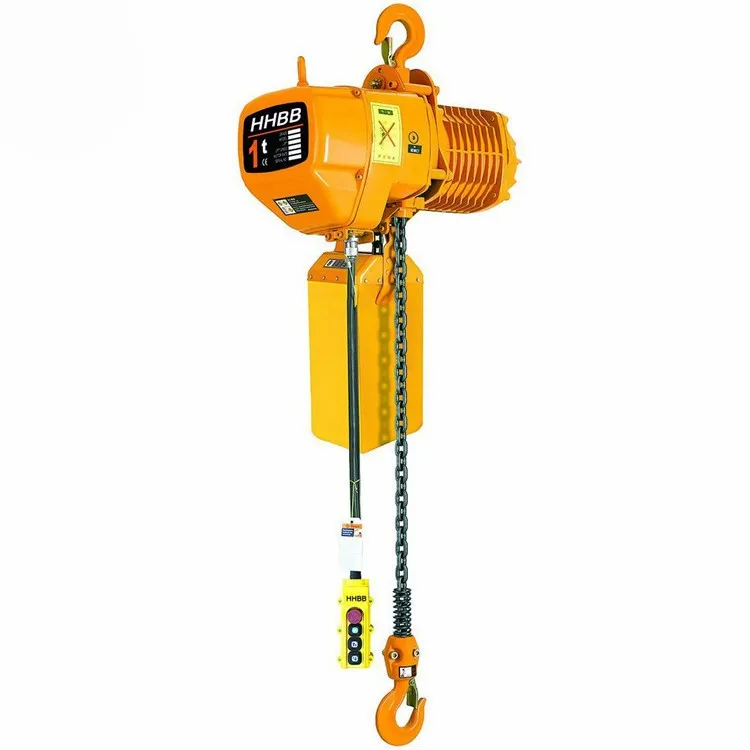

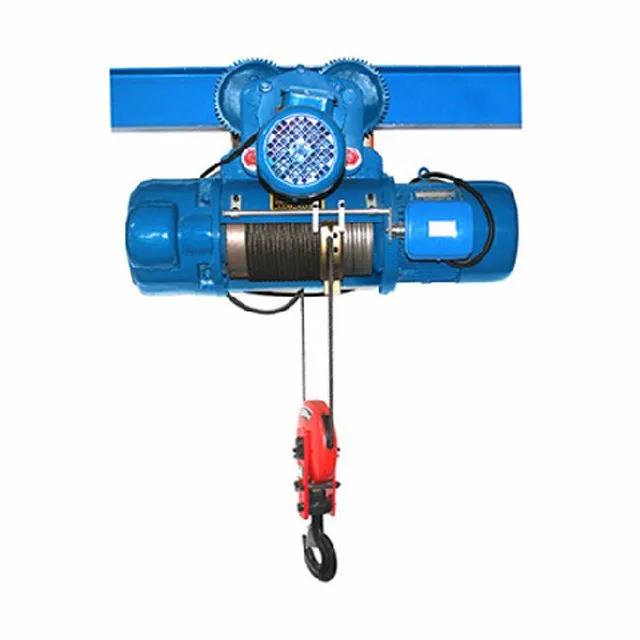

Electric chain hoist or wire rope hoist		model	CD1/MD1/HHBB
		lift height(m)	3-25
		traversing speed(m/min)	20,30 or can be customized
		lifting speed(m/min)	8(7); 8/0.8(7/0.7)
Workclassfication			A3-A5
Power supply			380V/50HZ
Dia. of wheel			Φ300mm
Rail			p18,p22,p24,p30

Main Features:

> Loading capacity: 0.5~20ton ;
> Lifting height:3~10m ;
> Jib length:2~10m ;
> Slewing degree:0~360° ;
> Power supply:220~440V,50/60HZ,three phase or customized design .

Detailed Images

Our Company

Company information:

Wuhan Vohoboo Import & Export Trade Co., Ltd is a modern high technology enterprise integrated R&D, manufacture and sales since the year of 2011.

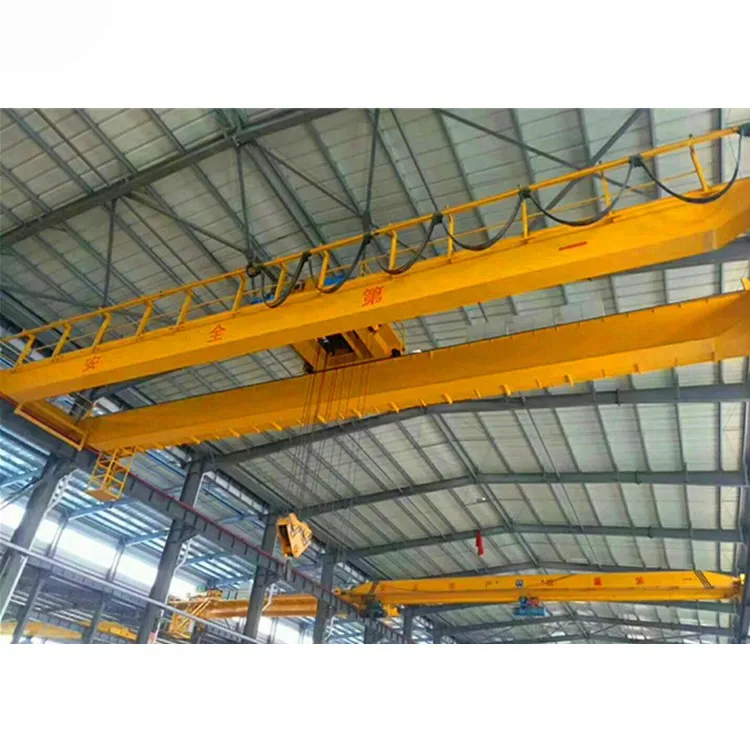

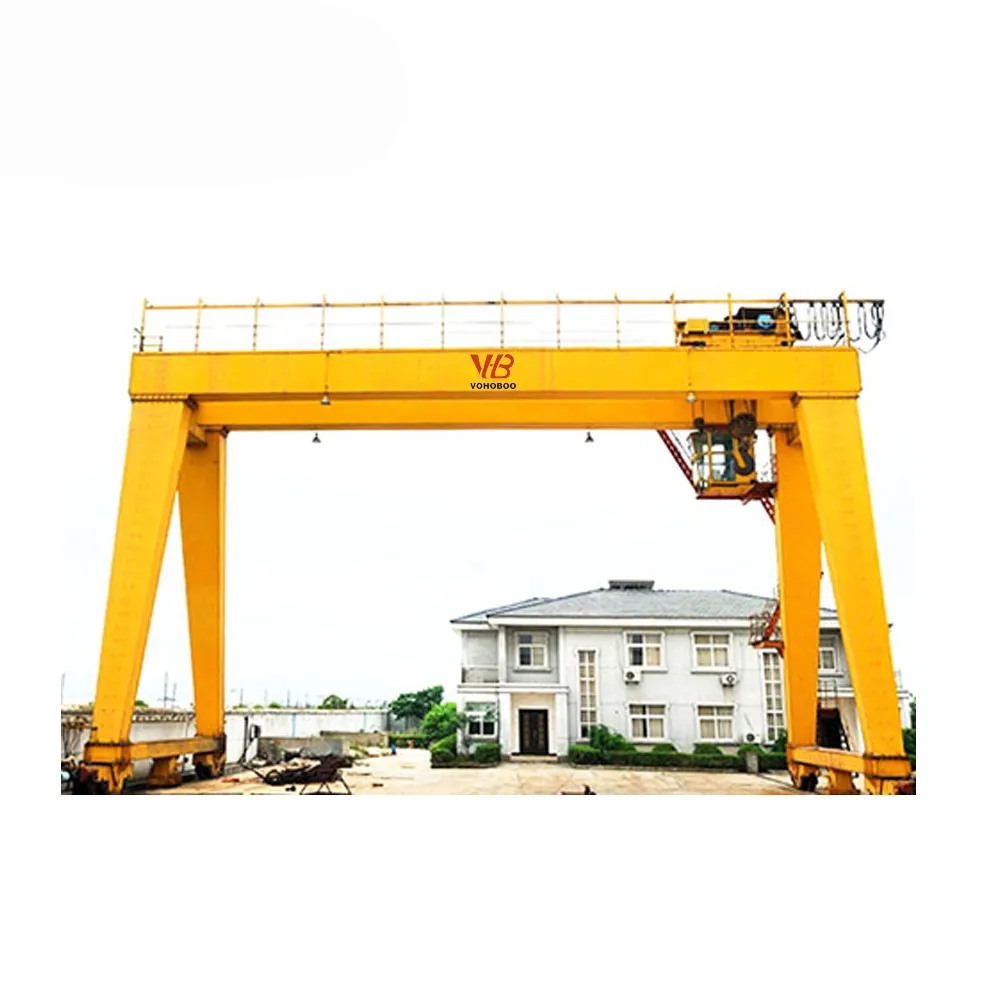

After years of development, we have introduced a batch of mechanical processing equipment both at home and abroad on the basis of the original sophisticated processing equipment. Lingying products are deeply loved by customers because of their excellent technology, reliable quality, light weight and durability. Our company's product areas include cranes, chain hoists, manual hoists, electric hoists, electric chain hoists, lifting belts, lifting chains, pulleys, hooks, etc.

We have a professional team of lifting machinery design, import and export trade, and online sales. The company was founded in 2015. After years of hard work, it has had excellent products for lifting industry and established its own brand, "Vohoboo". As a production supplier of excellent lifting products, we have always been adhering to the business philosophy of "quality first, credit standing", constantly refine design ideas, strive for excellence, continue to develop in the development of excellent lifting products, and rely on years of experience in equipment manufacturing. The lifting equipment that meets the needs of the market has been manufactured to meet the needs of customers and consumers.

Our company lifting tools are mainly used in wind power, manufacturing, machinery, equipment, ships, bridges, equipment installation, petroleum, metallurgy, petrochemical, chemical, rescue, aircraft manufacturing, mining and other industries.Our products are exported to Europe, America, Asia, Oceania, East Asia, Southeast Asia, South Asia, Central Asia and other international markets as well as China's northeast, north, south, northwest and other domestic markets.

Our Service

Pre-Sales Service

* Professional: Reliable and effective drive solutions for more than 110 countries and regions in the world.

* Reliable quality: Approved by IS09001, European CE certificate.

* Technical support: Lifespan.

* Powerful R&D experience:

We have an active R&D team with different patents and we have enegetic sales teams.

After-Sales Service

* Guarantee: 12 months

* Three layers wodden case for package .

* Engineers available to service machinery overseas if it has quality problem in one year .

* 24 hours online service .

Certifications

Packing & Delivery

FAQ

Q1: Trade Company or manufacturer?

We are both manufacturer & trading company.

Q2: What's the advantage of your company?

We're experienced manufacturer and overseas dealer. Our products have been exported to over 110 countries. An independent research team specially focusing on motors&hoists design and production. A professional service team for customers will provide feedback within 24 hours.

Q3: What's the sample & MOQ to your company?

Sample order MOQ can be 1 set and the product you ordered will be sent in a week as long as inventory is available.

Q4: Can I customize the product according to my own willing?

Yes,we are high quality OEM/ODM manufacturer,we can satisfy all the requests to the product.

Q5: How is the package during transportation?

3 layers package. Outside is wood craft case. In the middle covered by foam to protect the motor from shaking. Inside layer covered by thickening plastic bag for waterproof.

Q6: What should I provide when inquiry?

In order to make a very quick offer and saving your time, it's better to fill the information below. Copy and send us the information together with the inquiry.It's better to send us a drawing,sketch or show us data and then our engineer can work out a full suitable solution just for you.

Load capacity________ 0.5T,1T,2T,3T,5T,10T etc?

Arm length ________ 3m-7m etc?

Lift height ________ Distance from Hook center to ground

voltage________ 380V 50Hz AC 3-phase or others?

Duty class ________please note the average load

Control way ________ remote control, cabin control or pendent control?

Lift speed ________ single speed or double speed?

Your nearest destination port ________?
