Disc Kaolin Ceramic Slime Filter Press For Ceramic Clay

Product details
Health status:newFiltration pressure:1.0-2.0MPa
Dimensions (L*W*H):3300*1100*1060mmRoom volume:2550 liters
Core component warranty:1 yearport:Shanghai Qingdao
Board number:20Video shipment inspection:if
Applicable industries:Construction material stores, manufacturing plants, food and beverage plants, construction works, energy and mining, clay kaolin filter presses, ceramic clay filter pressesPackaging Details:Round Plate Kaolin Ceramic Slime Filter Press For Ceramic Clay In Wooden Box Or Standard Container
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGramSupply capacity:15 disc kaolin ceramic clay filter presses per month
After-sales service provided:On-site installation, commissioning and trainingAutomatic level:automatic
Plate size:800 mmFilter area:20 square meters
Mechanical test report:ifCore components:PLC, motor, water pump, disc filter press
Name:Disc Kaolin Ceramic Slime Filter Press For Ceramic ClayShowroom location:not any
Voltage:custom madeweight:3346 kg
Marketing Type:2019 Hot ProductsAfter warranty service:Video technical support, online support, on-site maintenance and repair services
Warranty:1 yearCertification:International Organization for Standardization
place of origin; place of origin:Henan, ChinaLocal service location:not any
Key words:Disc Kaolin Ceramic Slime Filter Press For Ceramic ClayCake Thickness:25 mm
brand:lead concrete

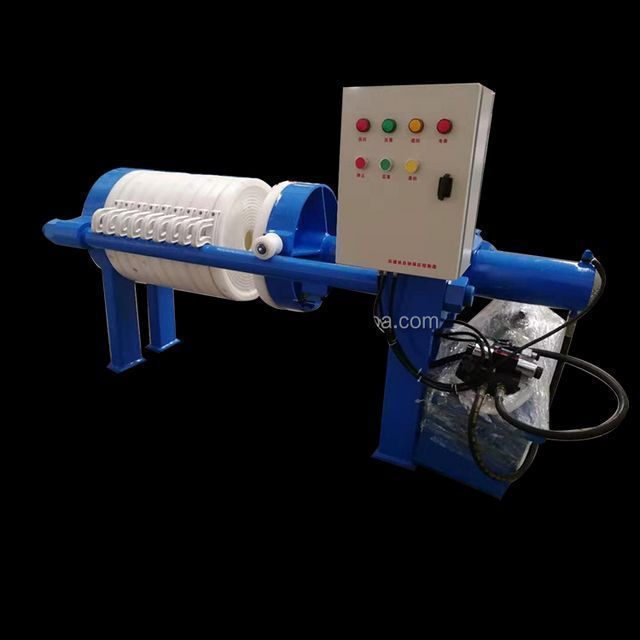

Disc Kaolin Ceramic Slime Filter Press For Ceramic Clay

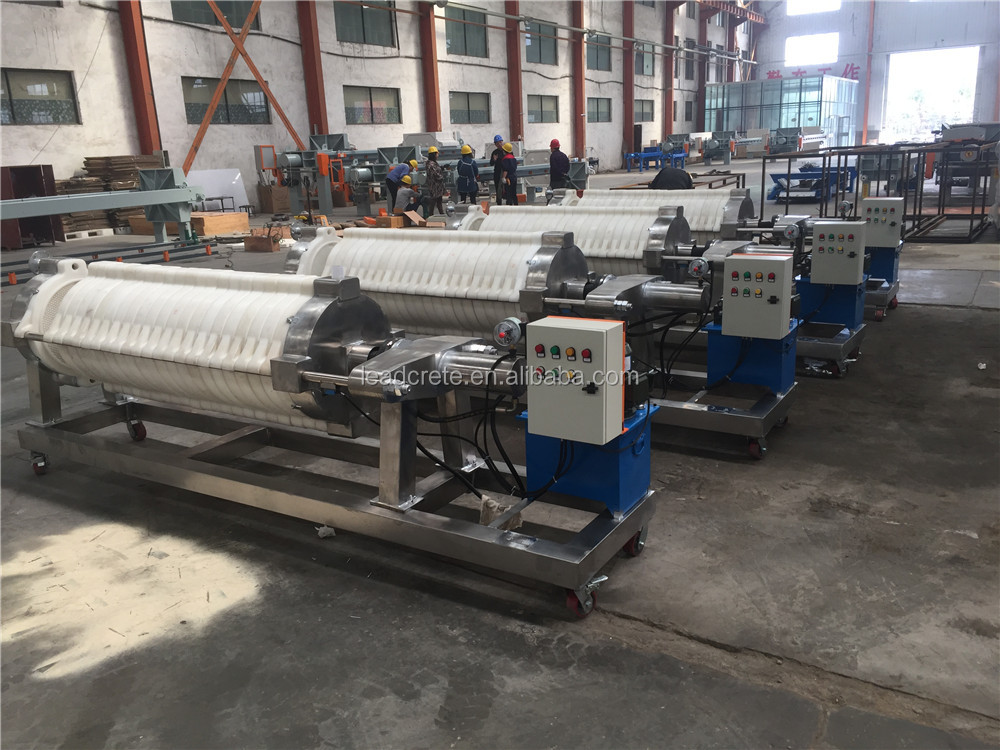

detailed image

The circular plate ceramic mud filter press is widely used in the solid-liquid separation of petrochemical wastewater, ceramics, kaolin, building materials and other industries. The filter press is high and the water content is low.

technical parameter:

Model XAM20/800
Filter area 20 square meters
plate size 800mm
cake thickness 25mm
license plate

20

Filter chamber volume 255L
pressure 1.0-2.0MPa
aspect 3300*1100*1060mm
weight 3346mm
The filter press can be customized, if this model does not fit your project, please let us know.

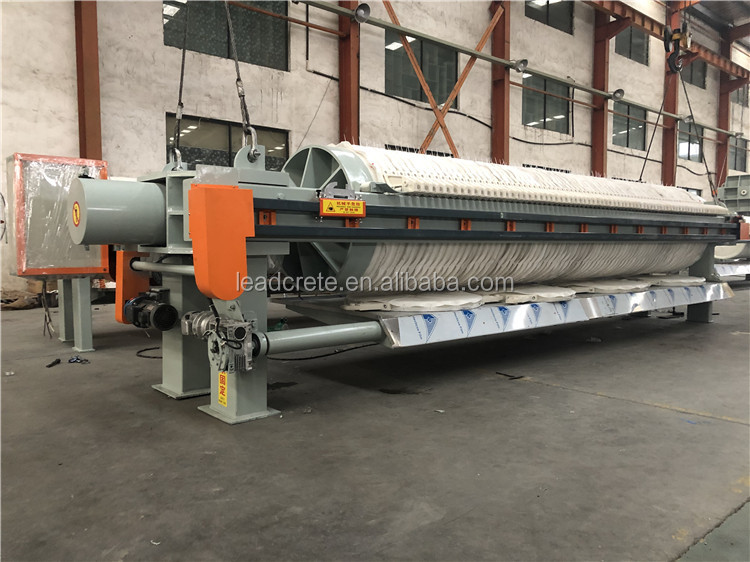

detail

feature:

  1. The filter plate is designed with a dot-shaped conical boss, which has a fast filtration speed, a high dehydration rate of the filter cake, uniform and thorough washing, and good sealing performance.
  2. The filter plate has stable chemical properties: strong corrosion resistance, acid, alkali, salt resistance, non-toxic and tasteless.
  3. The circular filter plate has excellent geometric characteristics, so that the filtration pressure can reach 2MPa.
  4. Using hydraulic compression, the maximum compression pressure is 25MPa, and can realize automatic pressure maintenance.

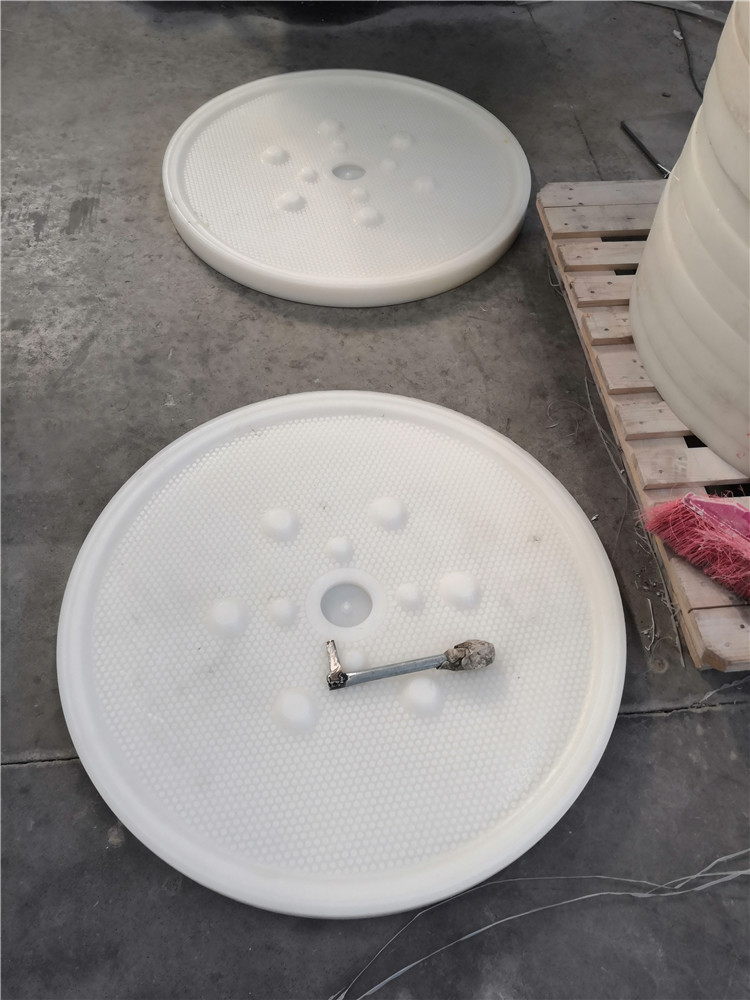

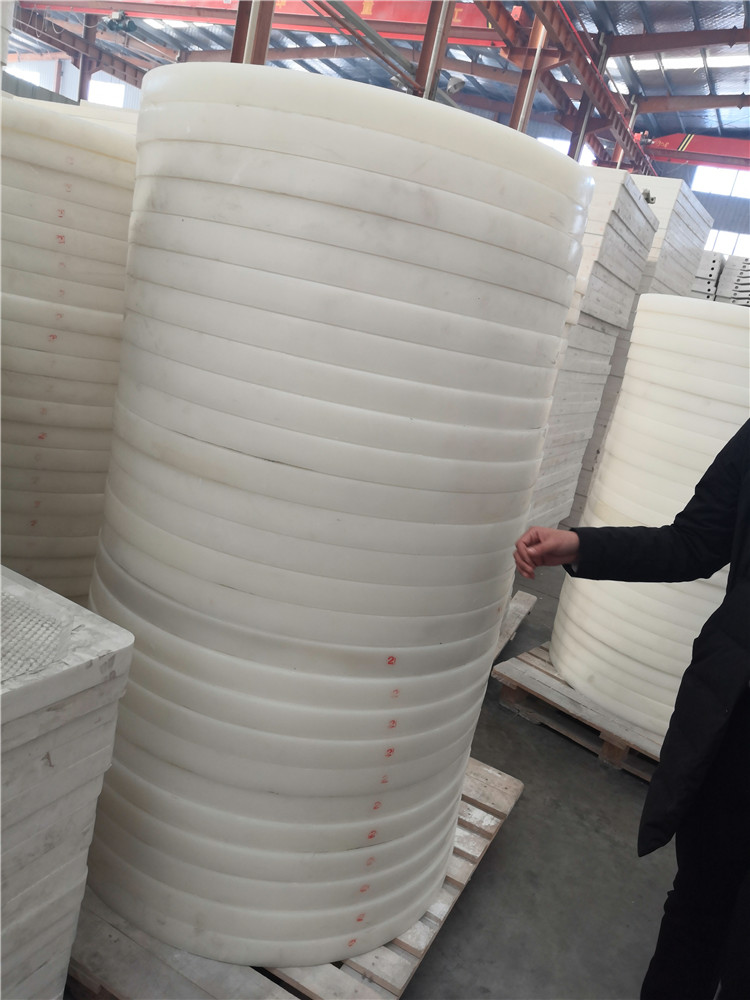

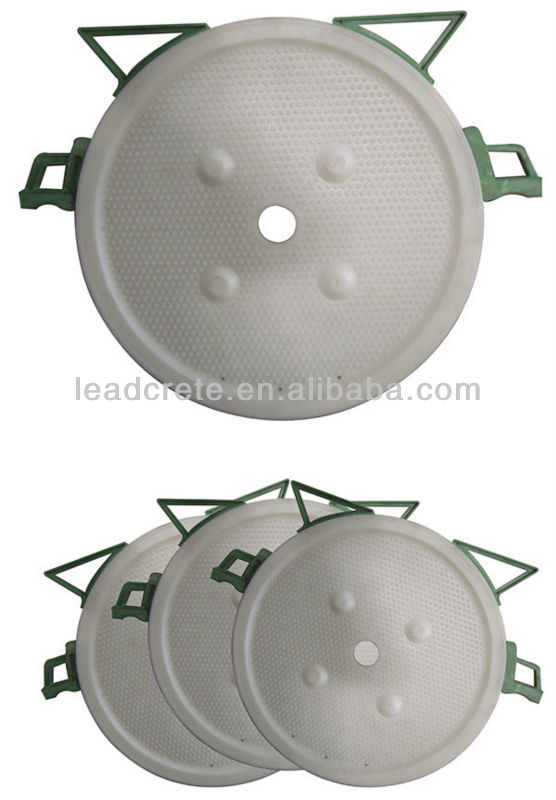

Filter plate:

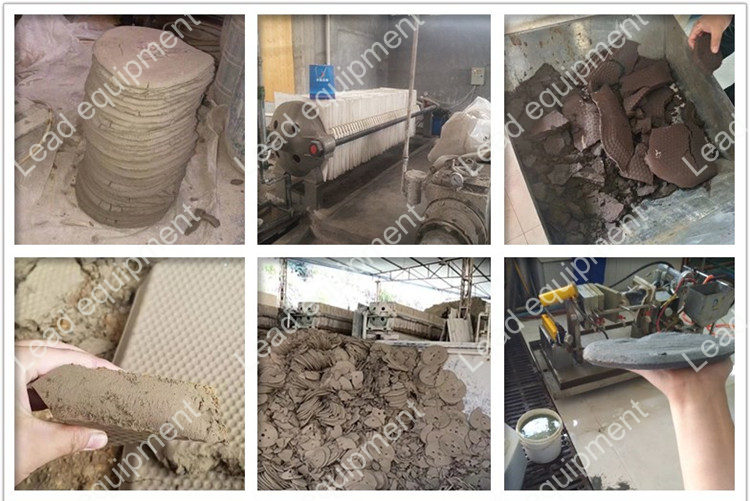

application

Disc filter presses are widely used in the following fields: kaolin, ultra-fine glass powder, refractory materials, silica sand, soil spray particles, mud, wear-resistant and rice brick materials, artificial black lead, slaked lime, mica, aluminum oxide, calcium carbonate Wait.

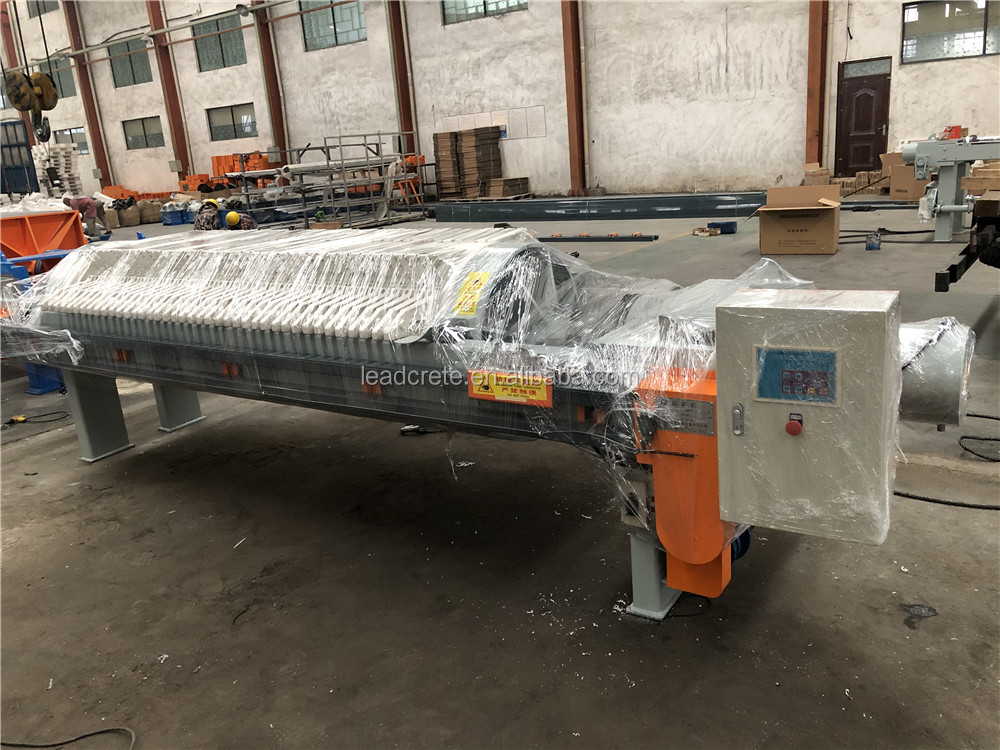

Packaging and Shipping
In order to protect our disc ceramic filter press and avoid damage during transportation, our manual jack filter press is first wrapped with air bubble film, then wrapped with plastic wrap, then fixed with steel bars, and finally transported in a plywood box. If your filter press is too large to pack, we will pack it in a container.
