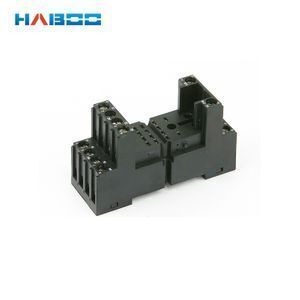

Multifunction Solid state 14 pin General Purpose Sealed relay socket

Supplier: Yueqing Haboo Technology Co., Ltd.
Region: Zhejiang, China
Contact: Ms THELMA WANG
Price: $2.00 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Color:	Customized;	Protect Feature:	Sealed;
Brand Name:	HABOO;	keyword:	relay;
Maximum sectional ares size:	21.5mm2,216AWG;	installation:	Guide or screws;
Size:	Miniature;	rated voltage:	250VAC;
Selling Units:	Single item;	Package Type:	10pcs/box;
Usage:	General Purpose;	Medium pressure MIN:	2000VAC;
Theory:	Electromagnetic Relay;	Place of Origin:	Zhejiang China (Mainland);
Product name:	Multifunction Solid state 14 pin General Purpose Sealed relay;	Single gross weight:	1 KG;
Single package size:	18X12X10 cm;	Rated current:	5A;
Model Number:	18F-4Z-C4;	Insulation voltage:	>=3KV;
Ambient temperature:	40 ℃ ~70 ℃;	Contact Load:	Low Power;
Delivery Detail:	0 days after payment;

Multifunction Solid state 14 pin General Purpose Sealed relay socket

Product Information

Yueqing Haboo Technology Co.,LTD

Detailed Description:

1. Rated voltage: 250VAC.
2. Rated current: 5A.
3. 4NO+4NC.
4. Screw style extracting terminal/din rail style or screw style asemble.
5. Insulation voltage:>=3KV.
6. Socket material: flame retardance-PA66+GF(V1/V0).
7. Contacts spring material: QSn6.5 -0.1.
8. Hold down spring (on request):plastic.
9. Module: No.
10.Installation: Guide or screws.
11.Ambient temperature:-40 ℃ ~70 ℃.
12.Medium pressure MIN:2000VAC.
13.Maximum sectional ares size:2*1.5mm2,2*16AWG.
14.The length of stripped wire:7mm.
15.The distance of each screw:0.6N.m.
