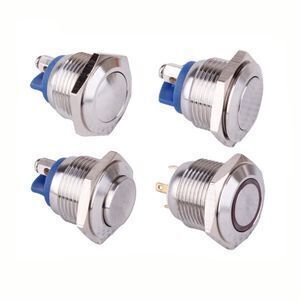

High quality screw type push button reset switch 16mm stainless steel metal push button switch

Click here to contact

Product details

Supply Ability:	10000 Piece/Pieces per Day switch;	Model:	HB;
Brand:	HABOO;	Port:	shanghai or ningbo;
Packaging Detail:	40pcs/box;	installation size:	16mm;
Protection Level:	IP67;	function:	momentary;
Packing:	40pcs/box;	material:	stainless steel or copper plated Ni;
Max. Voltage:	250VAC;	top head:	high;
Place of Origin:	Zhejiang China (Mainland);	Brand Name:	HABOO;
Max. Current:	3A;	MOQ:	10PCS;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal;	Model Number:	HB;
contact type:	1NO/1NC;	install style:	screw type;

Product name	HBEP16 Series Metal push button switch

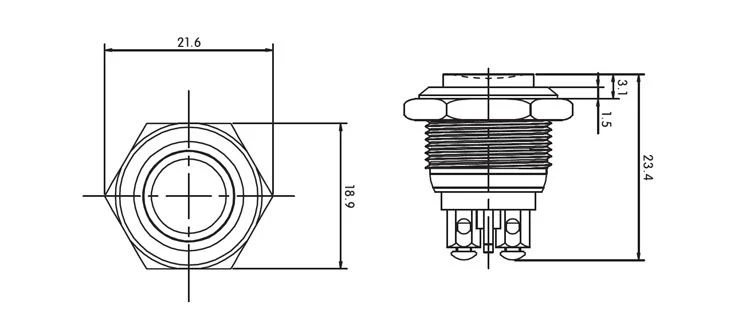

Installation size	16MM
Head type	Ball head,flat head,high head

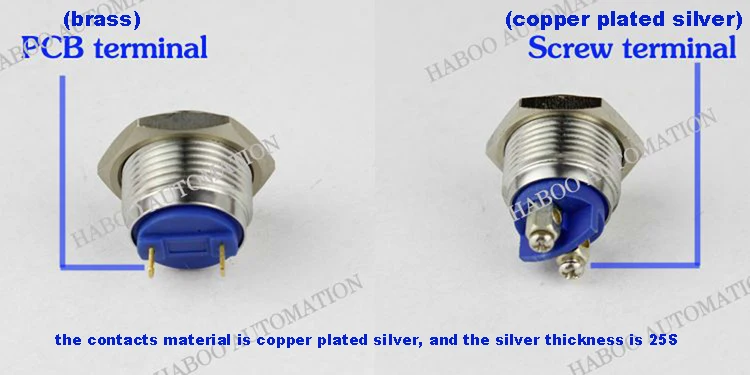

Terminal type	screw type or pcb type
Operation type	Momentary

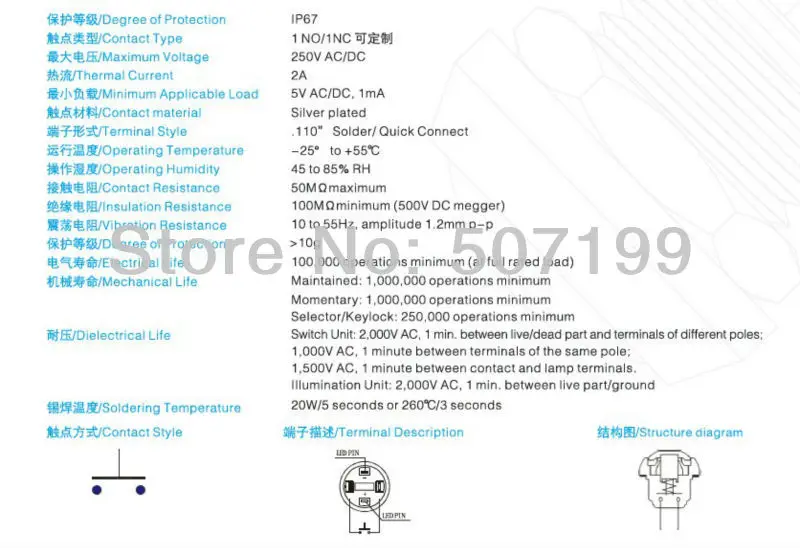

Protection degree	IP67,IK10
Contact type	1NO
Maximum voltage	250VAC
Thermal current	2A
Minimum applicable load	5V AC/DC,1mA
Contact Material	Silver Plated Gold
Terminal style	110"solder/quick connect
Operation Humidity	45 to 85% RH
Contact Resistance	50MΩ maximum
Insulation resistance	100MΩ minimum (500VDC megger)
Vibration Resistance	10 to 55 Hz,amplitude 1.2
