KN3C-101 ON/OFF-(ON) 1 Pole 2PIN Spring Return Switch Return
- 0.61 50 - 1999 pieces
- 0.55 >=2000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Electrical life: | 10,000 cycles | Origin: | Zhejiang, China |
| Operating temperature: | -25℃~+85℃ | brand: | Dragon |
| Protection class: | IP40 | product name: | Spring Return Toggle Switch |
| Packaging Details: | 20pcs/box, 500pcs/ctn 15A 250V SPST 2-pin ON-OFF 2-way KN3(C) single pole toggle switch | Function: | ON-OFF/OFF-(ON) |

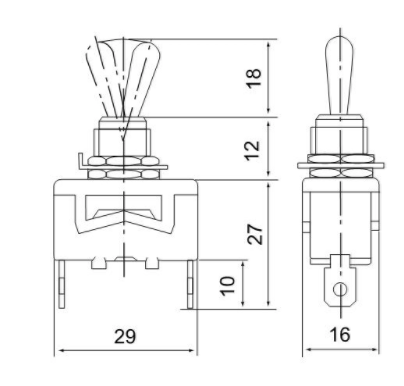

| Supply capacity: | 3,000,000 pieces per month | Installation size: | 12mm |
| maximum. current: | 20A,20A | port: | Shanghai, Ningbo |
| model: | KN3C, KN3C-101 | payment terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Package preview: | maximum. Voltage: | 250V, 250VAC | |
| Package: | carton |

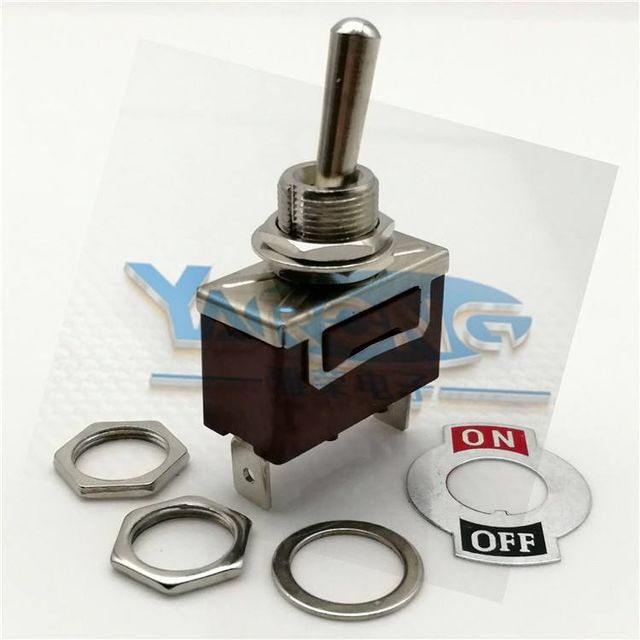

KN3C-101 ON-OFF/OFF-(ON) 1Pole 2PIN Spring Return Toggle Switch
MTS series toggle switches are widely used in household appliances, electric power, communications, machine tools, ships, textiles, printing, mining machinery, musical instruments and other industries.
Product Details
| score: | ()10A 125VAC, 6A 250VAC, (A) 15A 125VAC, 10A 250VAC, (AA) 20A 125VAC, 15A 250VAC |
| ambient temperature | -25℃~+85℃ |
| Contact resistance | <20MΩ |
| Insulation resistance | >500VDC 1000MΩ min |
| Dielectric strength | >1000VAC, 1 minute |
| Operating temperature | -25℃~+85℃ |
| Mechanical life | >50000 cycles |
| Electrical life | >10000 cycles |
