CE and German TUV approved evacuated tube solar collector with reflector (36 tubes)

Supplier: Haining Ousikai Industrial And Trading Co., Ltd.
Region: Zhejiang, China
Contact: Mr Jason Chen
Price: $100.00 / >=2 sets
Min. Order: 2 sets

Click here to contact

Product details

place of origin; place of origin:	Zhejiang, China	payment terms:	L/C, T/T, Western Union
Pipe material:	Glass	Shipping Details:	Sample 7 working days
application:	water heater	model:	OS-HPA-36 Solar Thermal Collector
brand:	Orsky/OEM/ODM/solar collector	port:	Shanghai or Ningbo
Packaging Details:	1. LCL wooden box packing 2. FCL carton packing, PE foam board	Supply capacity:	8000 sets per year
type:	manifold collector

Product Description

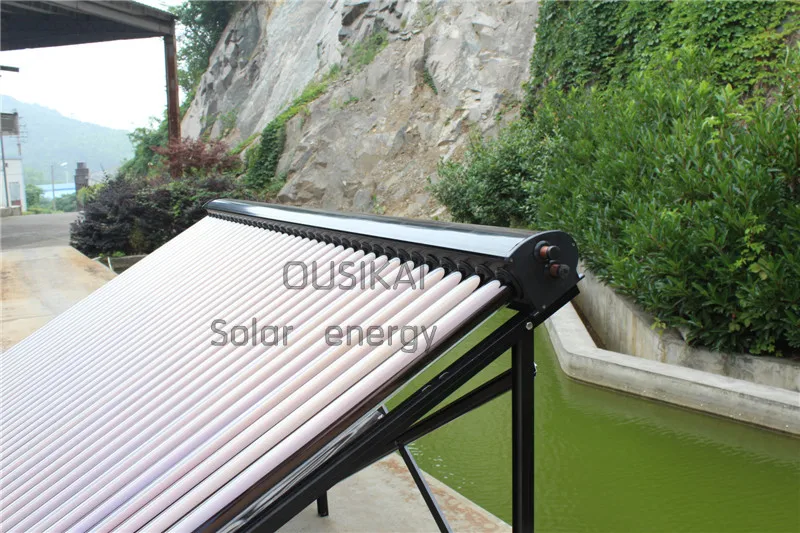

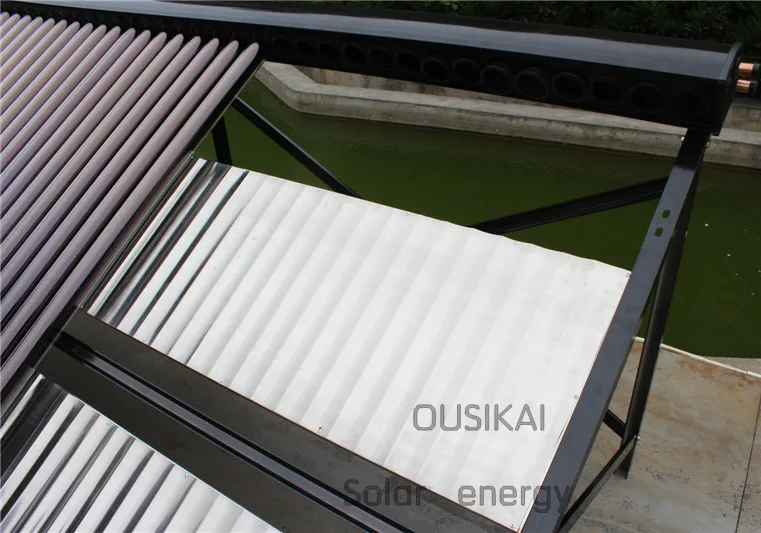

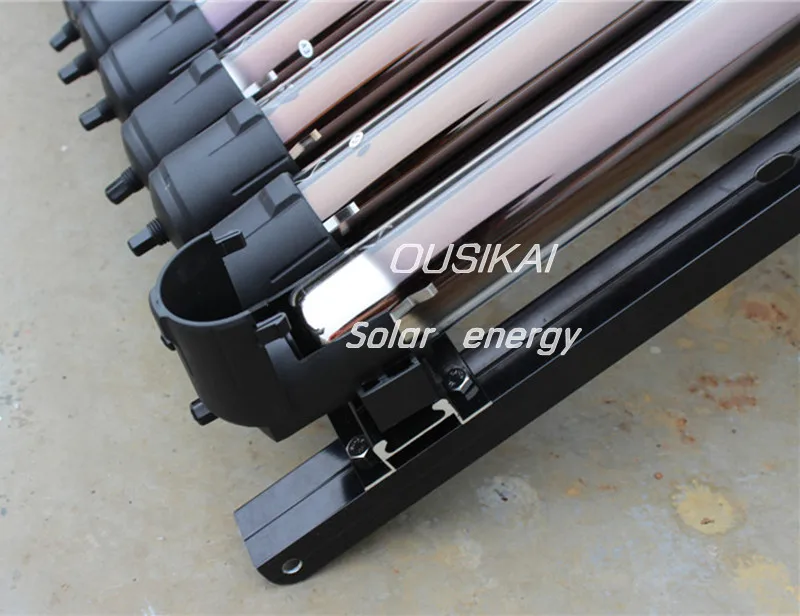

1. Export photos of 36tubes Solar Collector in Holland

main features ofOskeysolar collector.
1. 10 years warranty
2. The copper heat pipe has fast heat transfer and antifreeze.
3. Reliable, efficient, ternary vacuum tube
4. Simple plugin installation
5. Maintenance-free
6. Suitable for tap water pressure water (up to 6bars, max 10bars)
7. Corrosion-resistant materials (aluminum and copper)
8. Aluminum frame 2.0mm thick
9. Well insulated black or silver aluminum housing
10. Stable solar conversion throughout the day
11. Best Solar Collectors for Home Solar Water Heater Systems
12. Ideal for commercial solar water heater applications
13. Comprehensive 10-year limited warranty (will last more than 15 years)

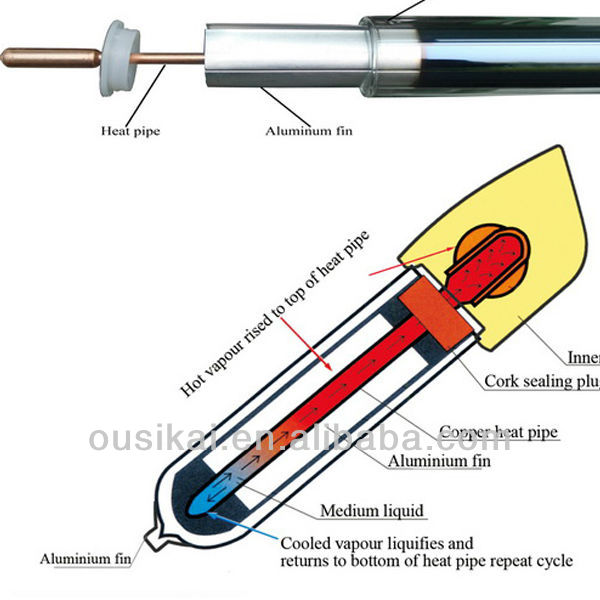

How Solar Collectors Work

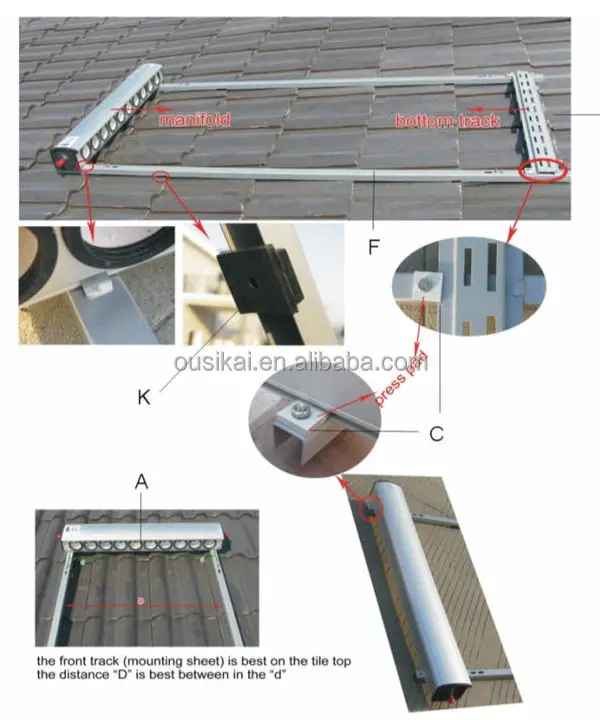

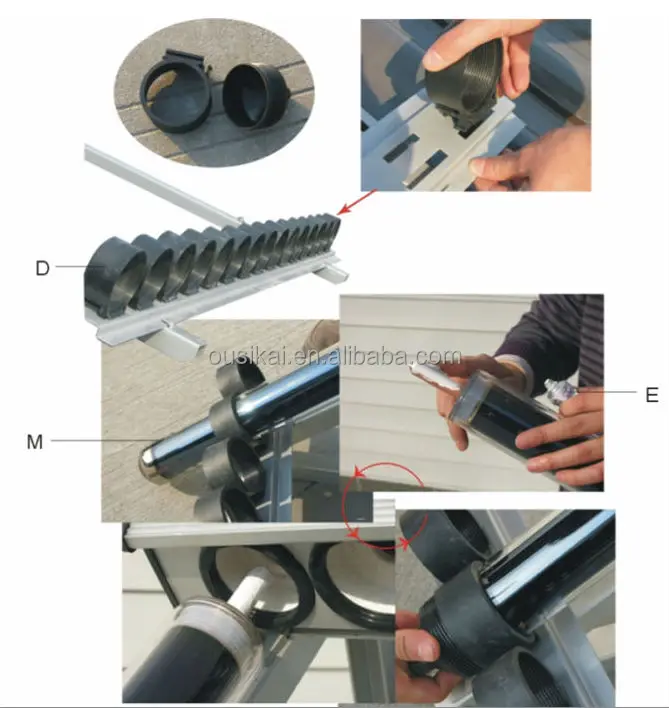

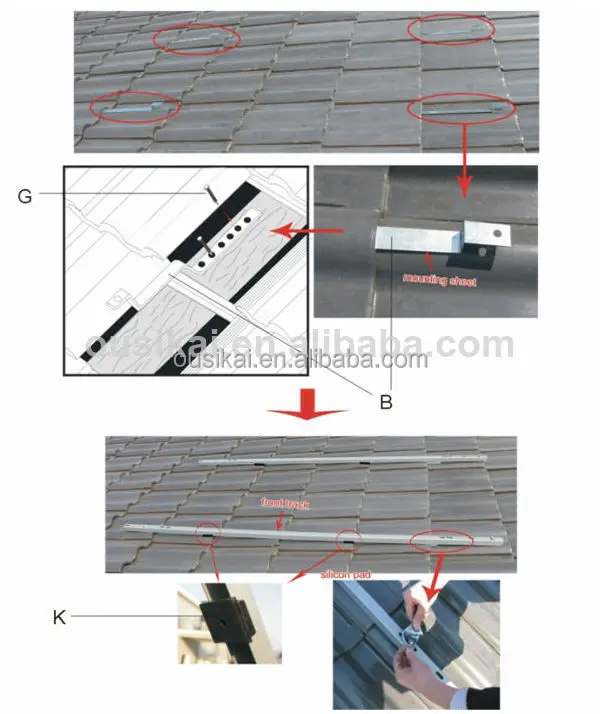

Solar collector installation

OSKAI OS-HPA Seriessolar collectorTable of contents

Model	Tube Specifications	Tube quantity	Package size (CBM)	Loading quantity (set)
Model	Tube Specifications	Tube quantity	Package size (CBM)	20'GP	40'GP	40' Headquarters
OS-HPA-10	Φ58mm*1800mm	10	0.170	171	347	406
OS-HPA-15	Φ58mm*1800mm	15	0.230	126	257	300
OS-HPA-18	Φ58mm*1800mm	18	0.260	111	227	265
OS-HPA-20	Φ58mm*1800mm	20	0.290	97	200	234
OS-HPA-25	Φ58mm*1800mm	25	0.340	82	171	200
OS-HPA-30	Φ58mm*1800mm	30	0.420	67	138	162
Material:
1. Heat pipe: red copper, antifreeze ≥ -35℃, 0.6mm thick heat pipe
2. Manifold: copper Dia22mm thickness 2mm
3. Glass tube size: 58*1800mm
4. Bracket: 2.0mm thick aluminum alloy
5. Vacuum tube coating: ALN/AIN-SS/CU
6. Maximum pressure: 1MPa
7. Working fluid pressure (MPa): 0.6
8. Maximum. Operating temperature (degrees): 95
9. Max. Stagnation temperature (degrees): 200
10. Tube distance (mm): 75
11. Recommended flow range (l/m2h): 50-150
12. Insulation thickness (mm): 40
13. Collector angle (degree): from 0, 25, 38, 45
