Putian Vibration Motor 110V220V380V100W Industrial Micro Vibrator Screening Motor

Supplier: Shenzhen Putian Vibration Motor Co., Ltd.
Region: Guangdong, China
Contact: Ms Fanny Zeng
Price: $29.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Single phase 50Hz:	220V/110V	Three-phase 60Hz:	220V~460V
Certification:	CE, CCC	Warranty:	3 months
type:	Asynchronous motor	Protective function:	fully enclosed
efficiency:	ie 3	brand:	Putian
Single phase 60Hz:	100~240V	Packaging Details:	Packed in strong carton
custom made:	Yes	Three-phase 50Hz:	380V/220V
model:	X0102	AC voltage:	110/220/380
stage:	Simplex	place of origin; place of origin:	Guangdong, China

Product Description

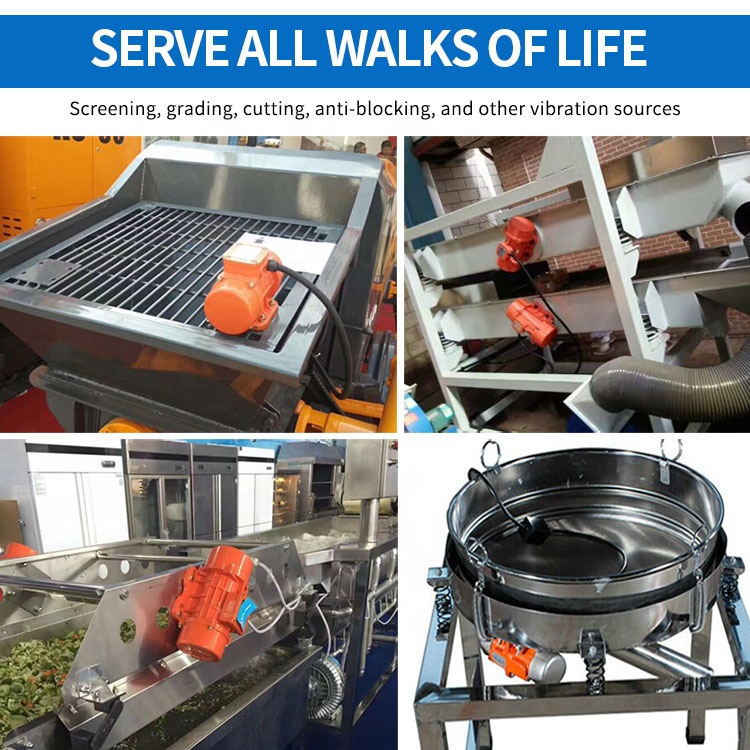

Vibration motor, suitable for cutting, screening, grading and other functions, small size, low noise

power level	30W, 40W, 50W, 60W, 70W, 80W, 90W, 100W
Exciting force level	0.3KN, 0.4KN, 0.5KN, 0.6KN, 0.7KN, 0.8KN, 0.9KN, 0.1KN
Insulation class	f
motor responsibility	S1
cooling method	IC410
shell material	aluminum alloy
Voltage	air conditioner
frequency	50Hz/60Hz

to / TBSeries parameter table
Single phase (50Hz-220V/110V) (60Hz-110V/120V/220V/240V) (2 poles)

model	Voltage (five)	current (One)	strength (kilowatt)	speed(rpm) 50Hz/60Hz		strength (kN)	frame number
TO30/2S-1	220V/110V	0.098/0.25	0.03	3000	3600	0.3	1
TO40/2S-1	220V/110V	0.12/0.28	0.04	3000	3600	0.4	1
TB50/2S-2	220V/110V	0.175/0.465	0.05	3000	3600	0.5	2
TB60/2S-2	220V/110V	0.184/0.495	0.06	3000	3600	0.6	2
TB70/2S-2	220V/110V	0.195/0.545	0.07	3000	3600	0.7	2
TB80/2S-2	220V/110V	0.218/0.615	0.08	3000	3600	0.8	2
TB90/2S-2	220V/110V	0.263/0.628	0.09	3000	3600	0.9	2
TB100/2S-2	220V/110V	0.315/0.821	0.10	3000	3600	1.0	2

Three-phase (50Hz-380V/220V) (60Hz-220V/240V/380V460V) (2 poles)

model	Voltage (five)	current (One)	strength (kilowatt)	speed(rpm) 50Hz/60Hz		strength (kN)	weight (Kilogram)	rack number
TO30/2-1	380V/220V	0.11/0.19	0.03	3000	3600	0.3	3	1
TO40/2-1	380V/220V	0.12/0.21	0.04	3000	3600	0.4	3	1
TO50/2-1	380V/220V	0.197/0.34	0.05	3000	3600	0.5	3	2
TO60/2-1	380V/220V	0.198/0.345	0.06	3000	3600	0.6	3	2
TO70/2-1	380V/220V	0.232/0.4	0.07	3000	3600	0.7	3	2
TO80/2-1	380V/220V	0.250/0.433	0.08	3000	3600	0.8	3	2
TO90/2-1	380V/220V	0.261/0.452	0.09	3000	3600	0.9	3	2
TO100/2-1	380V/220V	0.275/0.476	0.10	3000	3600	1.0	3	2

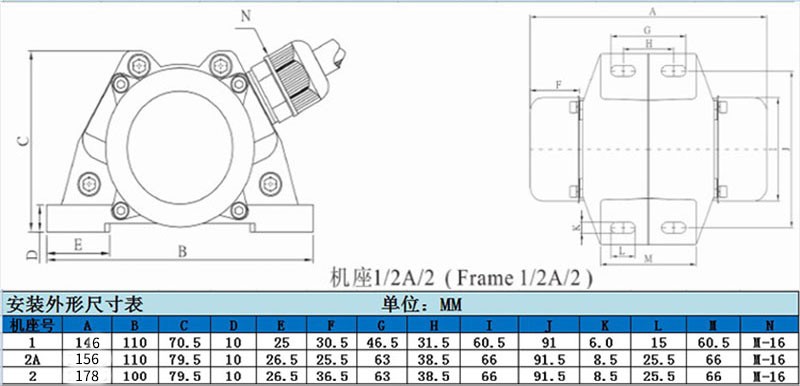

Installation dimensions unit: mm

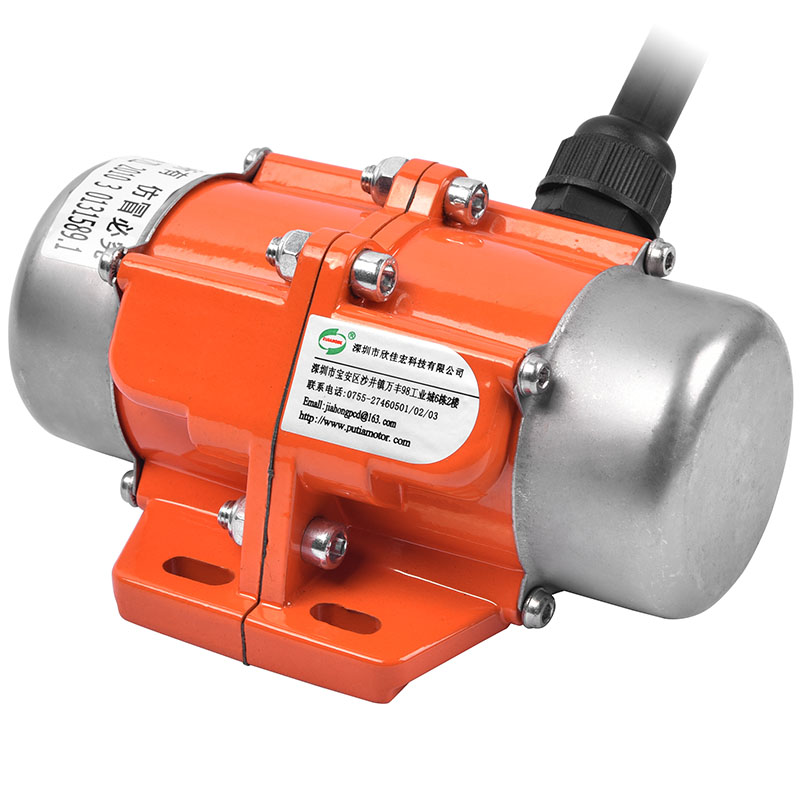

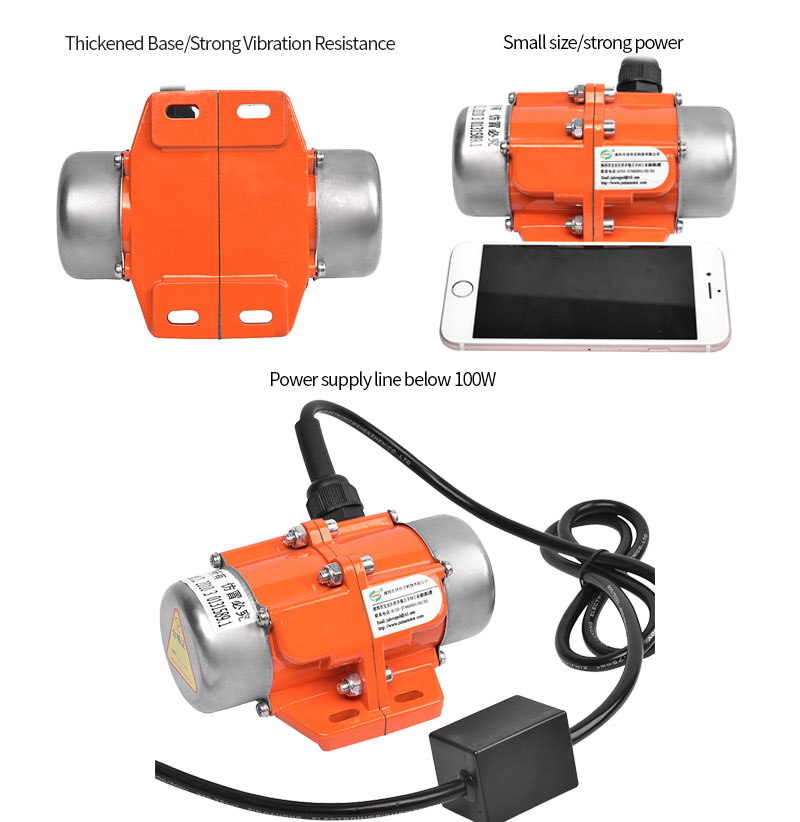

product display

our service

After-sales service

Professional pre-sales and after-sales team, answering customers' difficult questions in a timely manner, and completing a pleasant transaction

engineer team

A strong technical research and development team responds to customers' customization needs for special vibration motors in a timely manner

Audit

Each motor is strictly inspected before leaving the factory to ensure product quality and let you use it with confidence.

our company

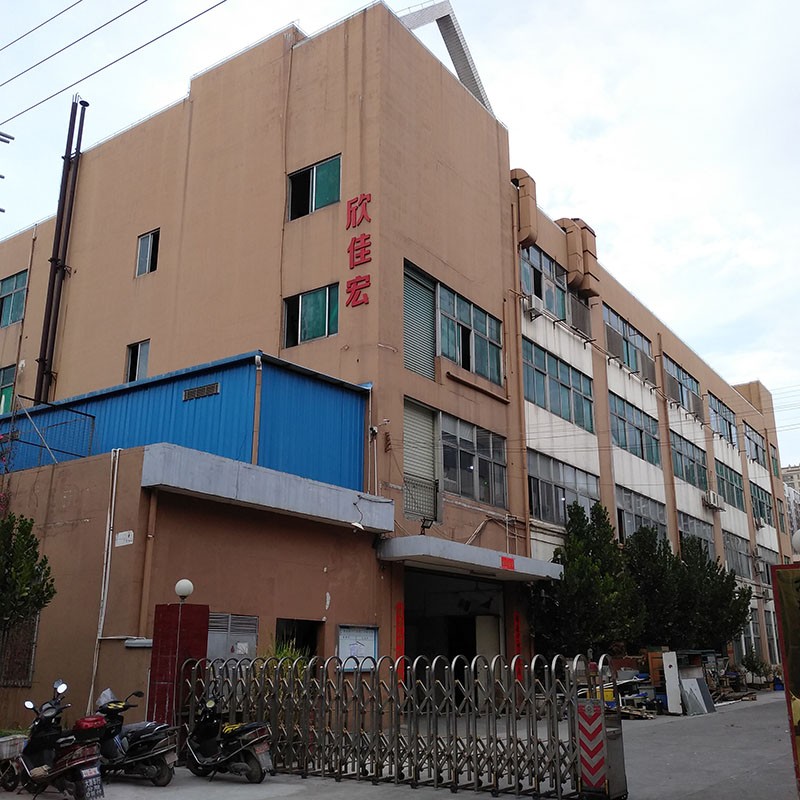

factory

4-story large factory building in the industrial zone

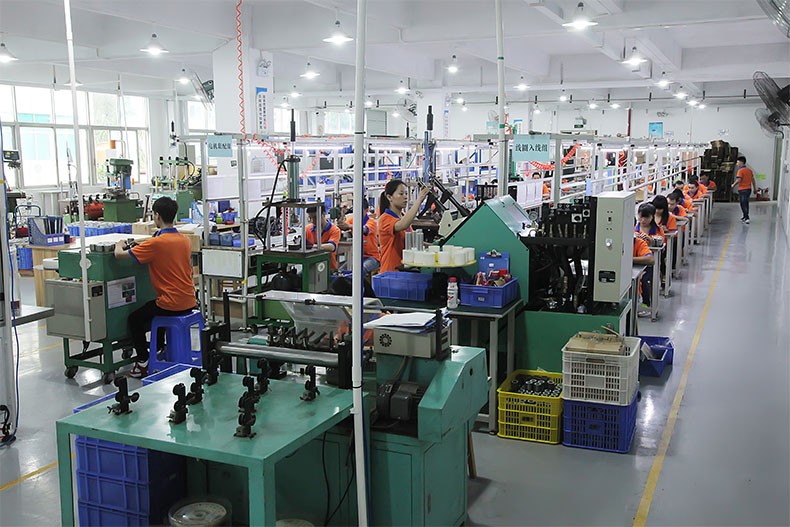

workshop

Part of the workshop assembly line runs at high speed

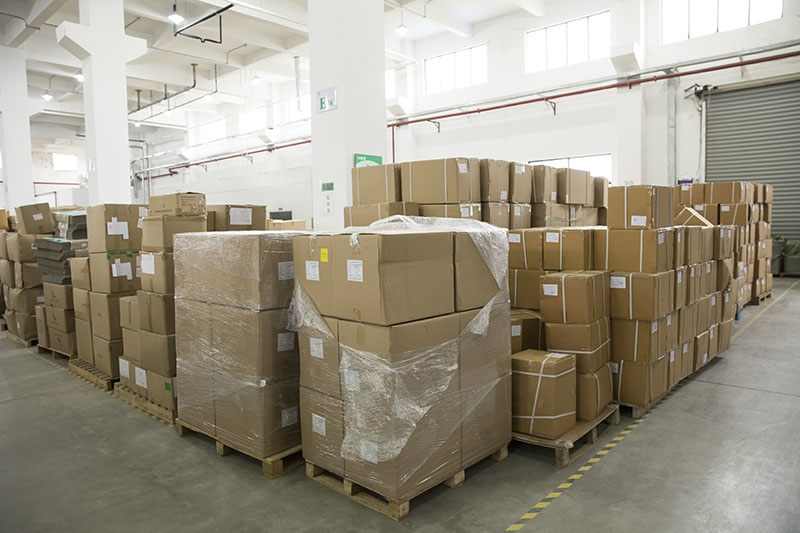

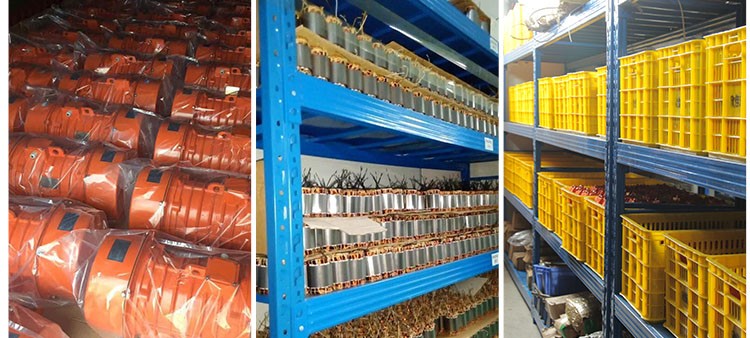

storehouse

Sufficient inventory, exported to many countries around the world

team

Gold medal service, professional sales team

Packaging and Shipping

Packing instructions: small vibration motor carton independent packaging
Delivery details: the specific quantity shall prevail

1. Suitable bubble film carton

2. Port logistics terminal

3. Safe and fast transportation

our certification

Multiple certifications

Shenzhen Xinjiahong Technology Co., Ltd. (Shenzhen Puta Vibration Motor Co., Ltd.) has 45 independent research and development property rights patents, and its products have passed the national 3C and EU CE certification.

customer photo

praise

The Putian vibration motor has been installed and used for a period of time, the power is sufficient, the production speed has increased, and the overall satisfaction.

praise

Putian vibration motor has complete specifications, suitable for American plug-in 110V, European plug-in 220V, the operation effect is good, it is worth recommending!

praise

Putian vibration motors have a wide range of applications. It solves the material classification problem of our company and is very useful.

FAQ

Q: Are you trading company or manufacturer?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 3-10 days if the goods are in stock. If the goods are not in stock, it is 15-20 days, it is based on quantity.

Q: Do you provide samples? Is it free or extra?

A: Yes, we can provide samples, but it will be charged.

Q: What's your payment terms?

A: Payment<=1000 USD, 100% in advance. Payment >= USD 1000, 30% T/T in advance, balance before shipment.
