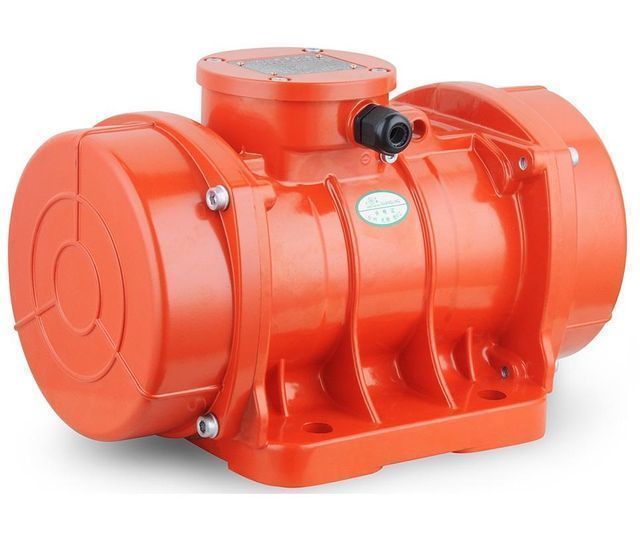

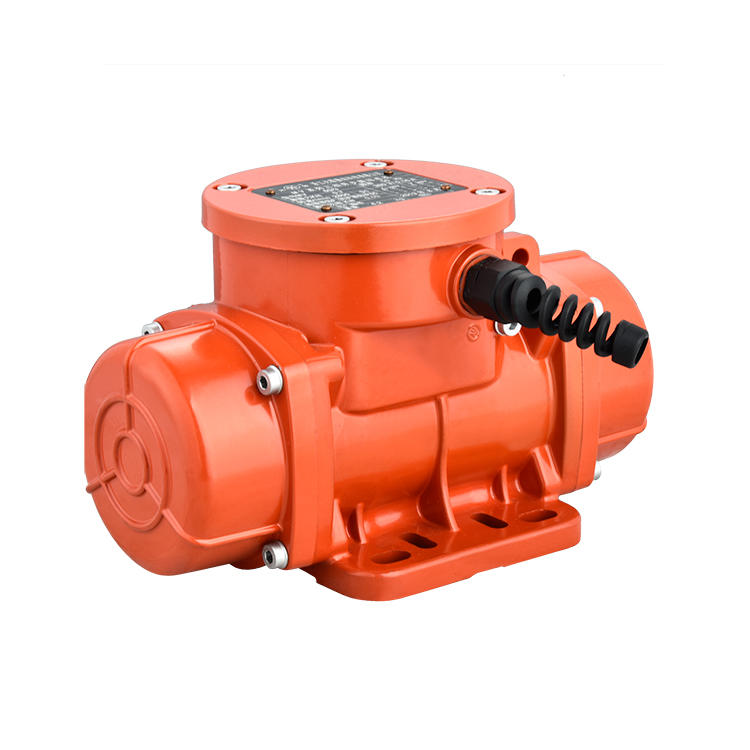

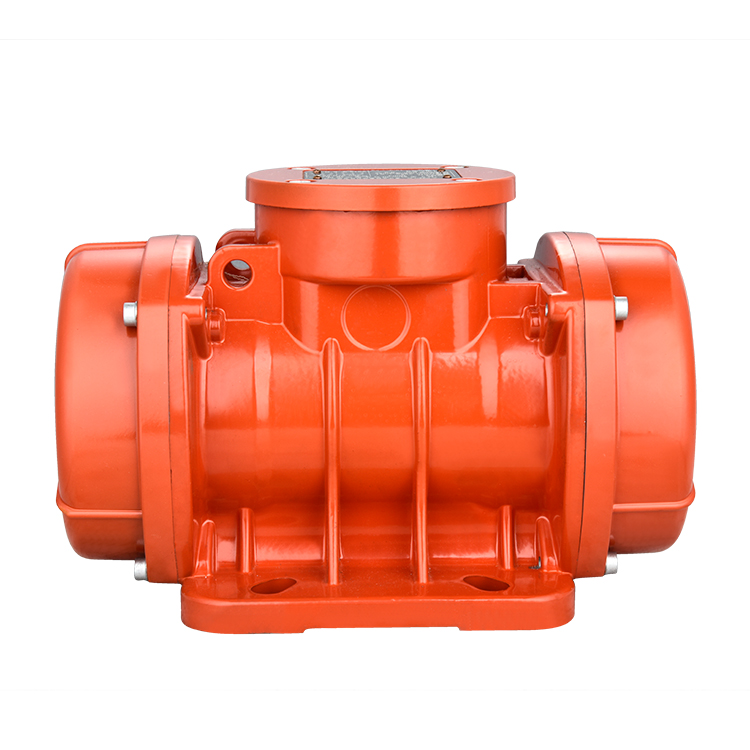

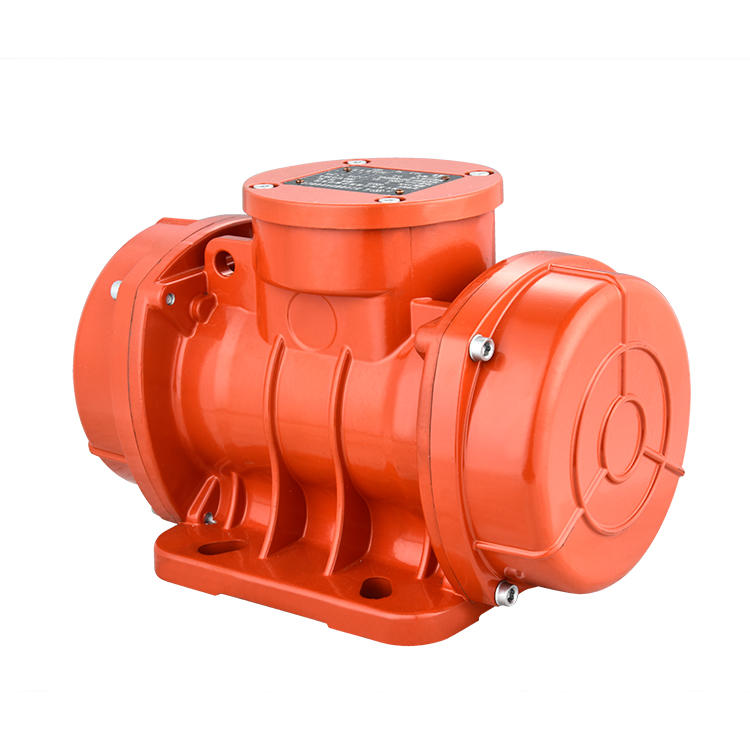

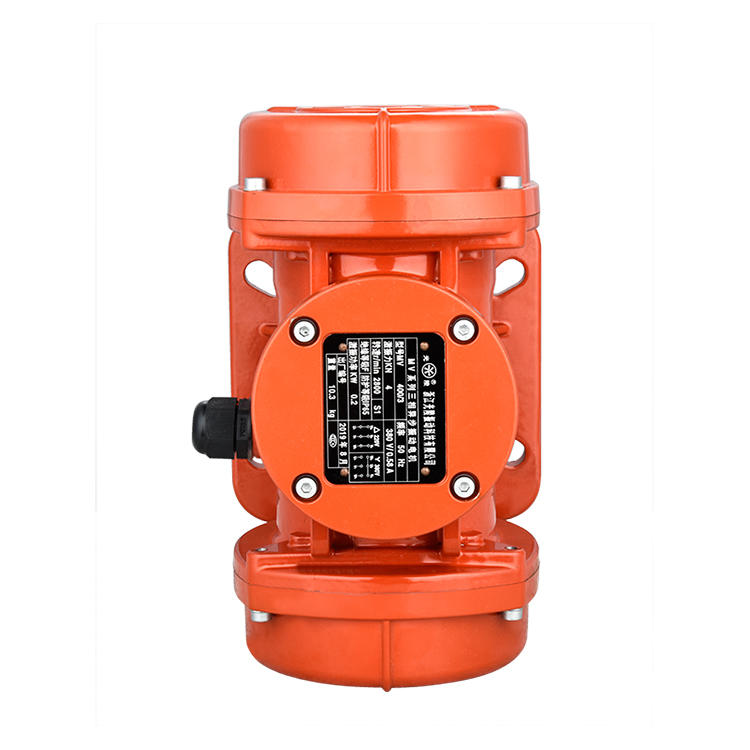

High Quality MV300/3M Series Waterproof Outdoor Vibrator Motor 110V/220V 2 Pole 3000/3600RPM 50/60HZ

Supplier: Zhejiang Guangling Vibrating Technology Co., Ltd.
Region: Zhejiang, China
Contact: Mr joe zhou
Price: $80.00 / 1 - 99 pieces
$78.00 / 100 - 199 pieces
$75.00 / >=200 pieces
Min. Order: 1 piece

Click here to contact

Product details

model:	MV300/3M	engine:	electric engine
Package preview:		Surface treatment:	painting
product name:	vibration motor	brand:	Guangling
place of origin; place of origin:	Zhejiang, China	speed:	3000-3600rpm
type:	vibration	frequency:	50hz-60hz
usage:	Shaker	Warranty:	1 year
Number of poles:	2	custom made:	Yes
Certification:	CE, CCC	rated power:	0.27
application:	construction industry	Package:	carton
Motivation:	3KN	Packaging Details:	Carton, wooden box
Rated speed (r/min):	3000	payment terms:	L/C, T/T
standard:	220-240V

Product Description

MV series vibrator motors have been developed for use in construction such as screens, feeders, extractors, separators and other applications such as hoppers, compactor conveyors etc.

MV 2 poles 110/220v 3000/3600rpm 50/60hz single phase model

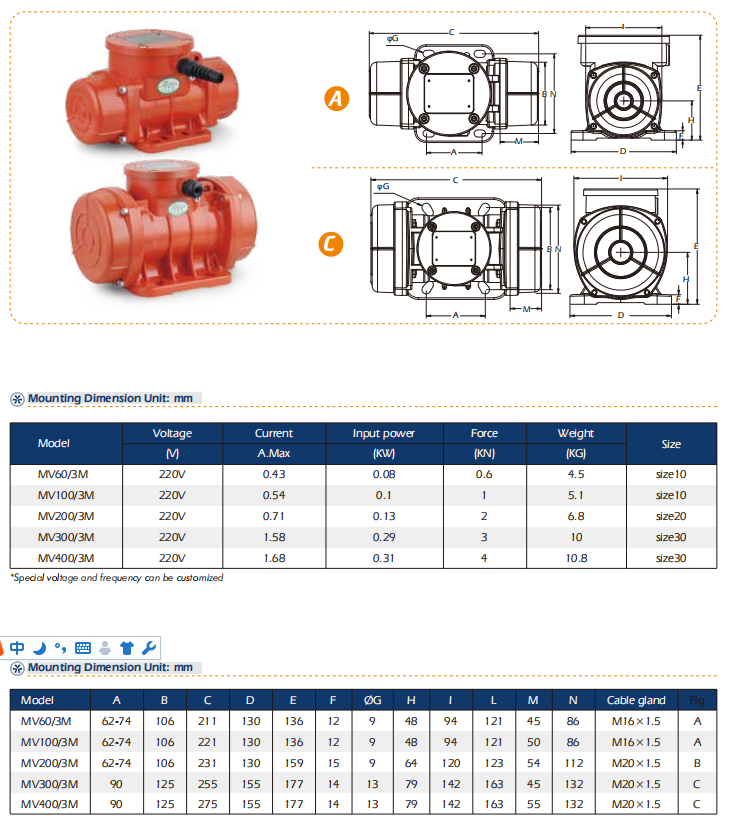

Model	Voltage	current	input power	strength	gross weight	Install		size	size
Model		V	A.MAX	kilowatt	KN	Kilogram	One	Second
MV60/3M	110/220	0.43	0.08	0.6	4.5	62-74	106	SIZE10
MV100/3M	110/220	0.54	0.1	1	5.1	62-74	106	SIZE10
MV200/3M	110/220	0.71	0.13	2	6.8	62-74	106	SIZE20
MV300/3M	110/220	1.58	0.29	3	10	Post-90s	125	size 30
MV400/3M	110/220	1.68	0.31	4	10.8	Post-90s	125	size 30

Stator and rotor	Cold rolled silicon steel 600
rotor	dynamic equilibrium
Winding	100% copper wire, class H, 180℃ PTC, IP66, waterproof design
bearing seat	Ductile Iron
axis	Heat treatment, the strength is greater than 45# steel
bearing	C&U, NSK and SKF available upon request.
Lots of	The force is adjustable and the quality scale is clear.
housing	Aluminum alloy, powder coated, painted.
tighten	Alloy Steel 10.9
Junction Box	Epoxy filled with brass terminals
strength	REAL POWER, REAL POWER, COMPETITIVE PRICE.
volt	AC-220/380V, 110V/220V, DC-12v, 24v
hertz	50/60 Hz
speed	3000/3600rpm
warranty period	1 year warranty, long lifespan.
Quality Control	Quality control of raw materials, quality control of spare parts, quality control of each process, quality control of packaging.

user's guidance

Noise <= 70 dB (A) Insulation class: F

Protection class: IP66

Permissible ambient temperature: from -30˚C to +40˚C.
s1 continuous work

Description of application effect

The vibration motor can be installed in any position. The surface on which the vibrator is placed must be flat and free of any imperfections that might prevent proper fastening of the vibrator motor to the structure, always use new high strength screws and nuts

detailed image

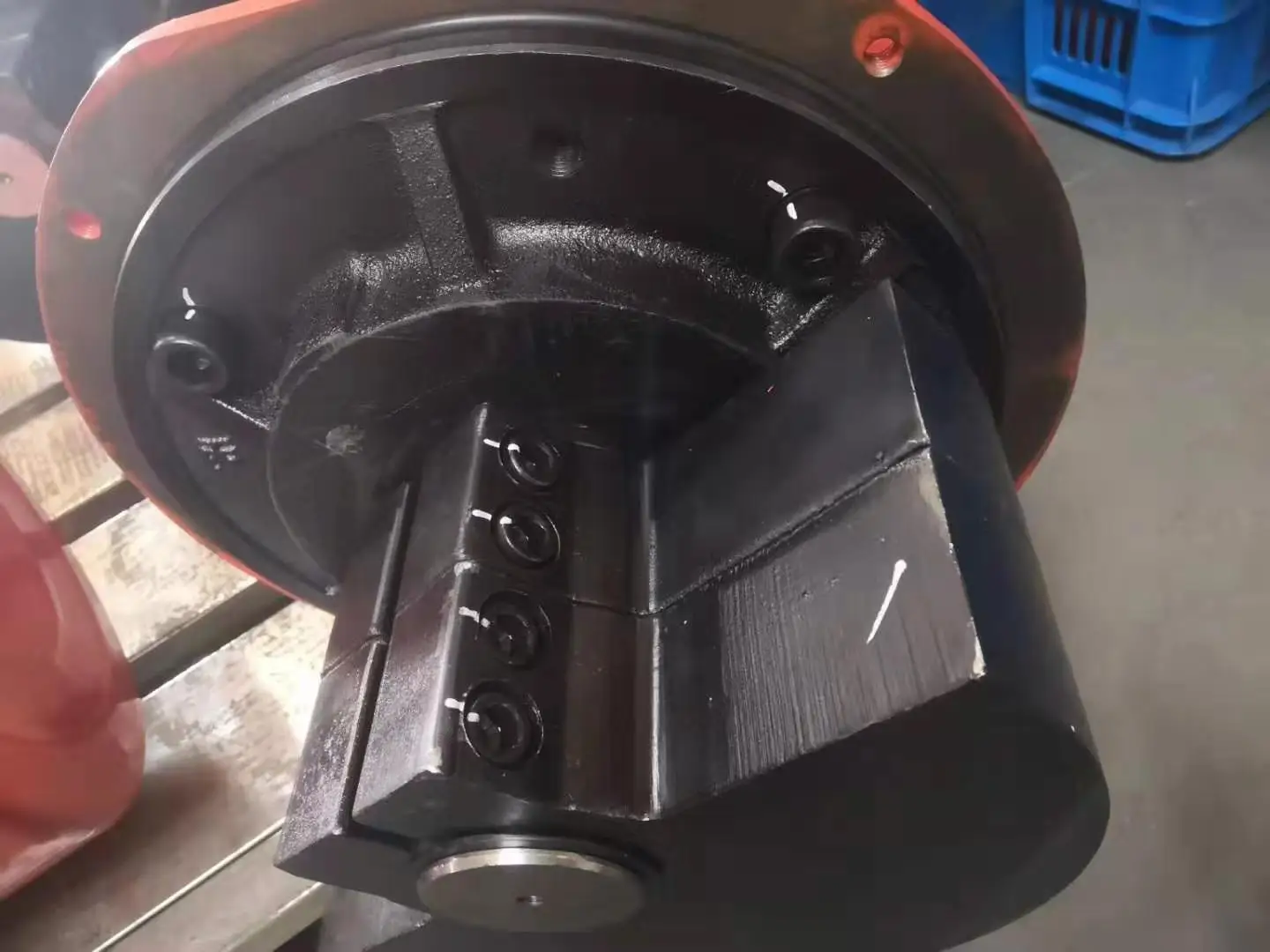

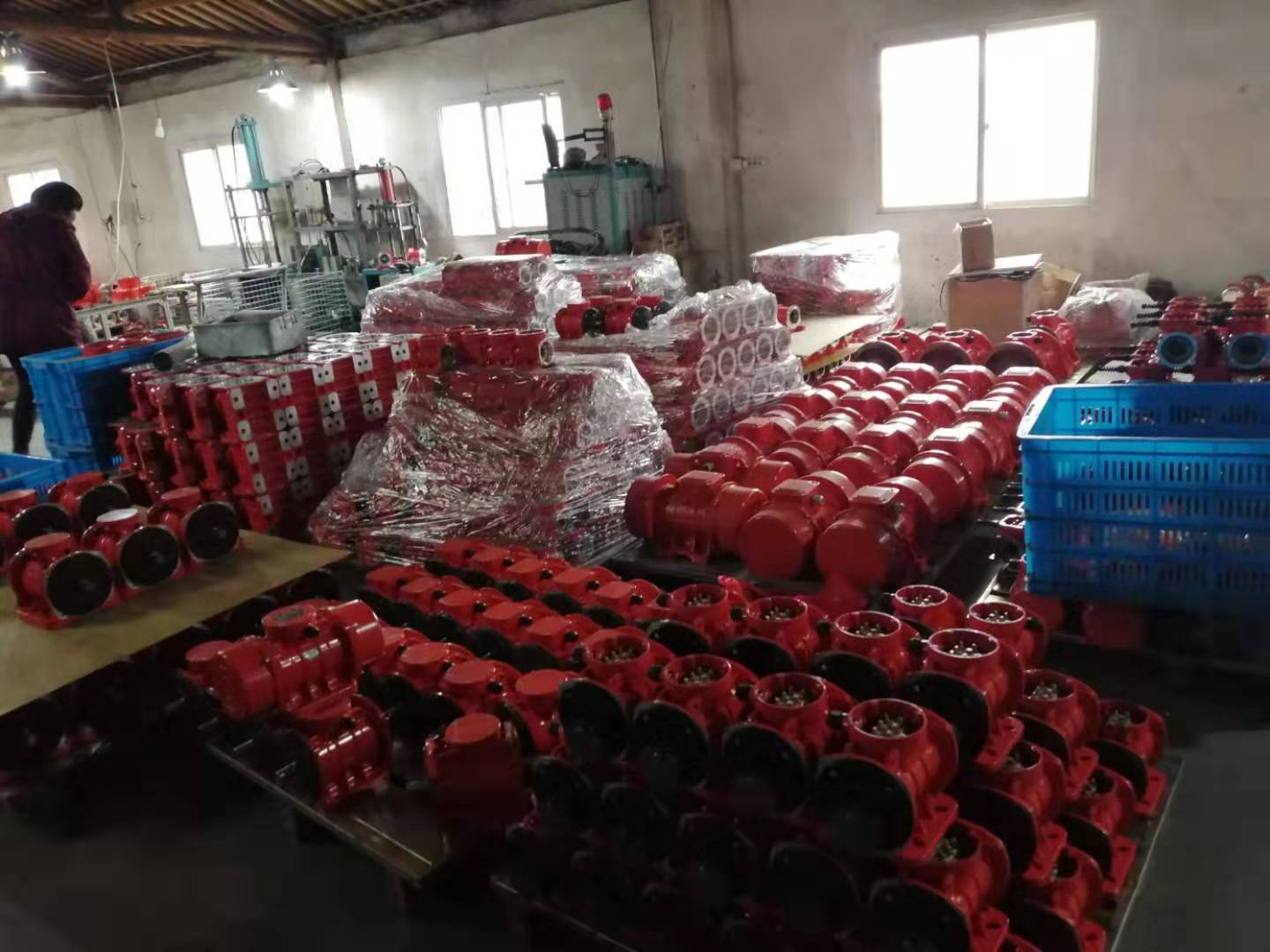

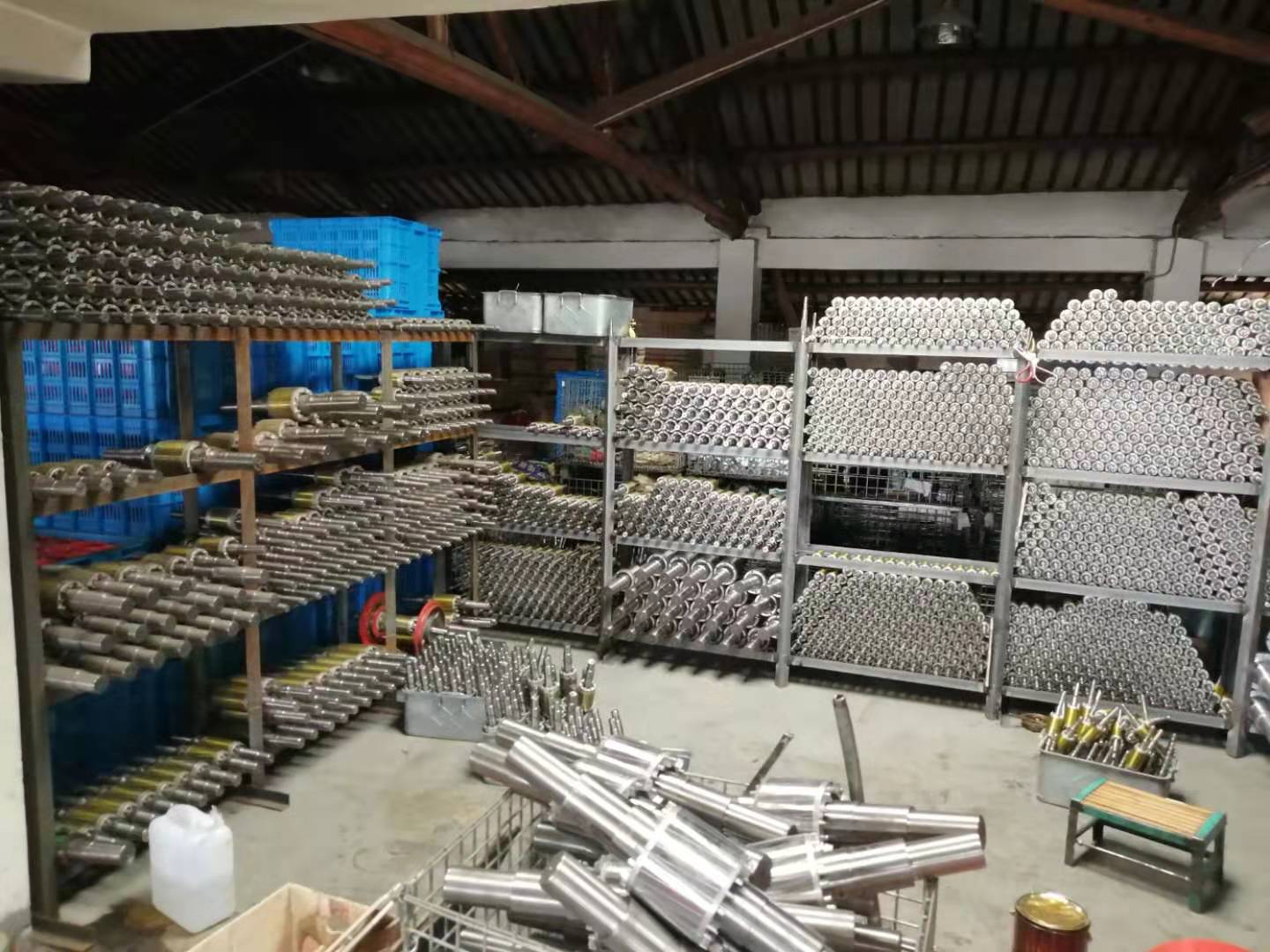

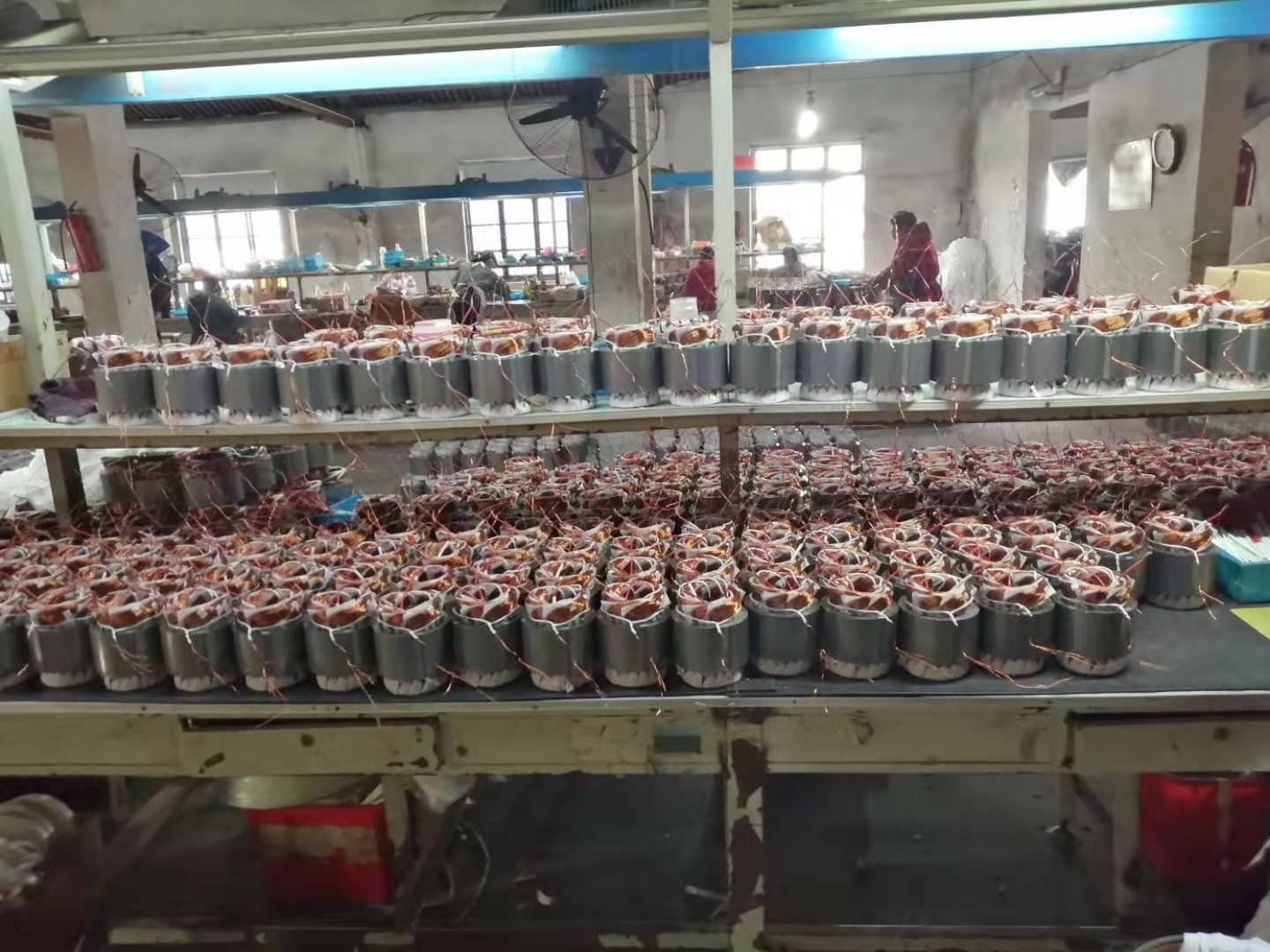

Winding warehouse, balance wheel rotor, installation workshop
