3m stainless steel sheet mirror polishing machine manufacturer

Supplier: Dongguan Guangfan Automation Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Laura Xu
Price: $13000.00 / 1 - 1 sets
$11000.00 / >=2 sets
Min. Order: 1 set

Click here to contact

Product details

Showroom location:	Egypt, Brazil, Russia, South Korea	motor:	11kw-4P
control:	PLC program	Video external inspection:	if
Mechanical test report:	if	Weight (kg):	1650
working desk size:	600*3000mm	Warranty:	1 year
Supply capacity:	10 sets per month	type:	dry
Advantage:	Simple operation	Health status:	new
Main selling point:	flexible manufacturing	Polishing effect:	mirror effect
Name:	3m stainless steel sheet mirror polishing machine manufacturer	place of origin; place of origin:	Guangdong, China
Applicable industries:	Energy and Mining, Construction Engineering, Building Materials Stores, Machinery Repair Shops, Manufacturing Plants, Others	Marketing Type:	New Products 2020
Core Components Warranty:	1 year	Certification:	CE certification
application:	Polishing and Grinding	payment terms:	L/C,Western Union,T/T,MoneyGram
Power (kW):	11	Packaging Preview:
Voltage:	380V/415V/440V	port:	Port of Shenzhen, China
Core components:	PLC, engine, motor	Packaging Details:	Standard export packaging or according to the size and weight of the machine you ordered

product description

describe

3m stainless steel plate mirror polishing machine is specially designed for polishing stainless steel plate or some flat objects, all flat objects can be polished with this machine, such as aluminum plate, brass plate, copper plate, etc.
The characteristics of the automatic flat polishing machine are as follows:
* Bench size can be customized (according to your project and requirements)
* Continuous working time for nearly 10 years, safe operation
* Maintenance rate is lower than ordinary machines
* Small deformation rate after polishing (almost less than 2%)
* The most noteworthy point is that there is no vibration when working

Function list

1. 1 person 4 machines

2. Save labor and less polishing cost

3. PLC program control, less maintenance

4. Simple operation

5. Best quality and best service

6. On time delivery

7. Mirror finish after polishing

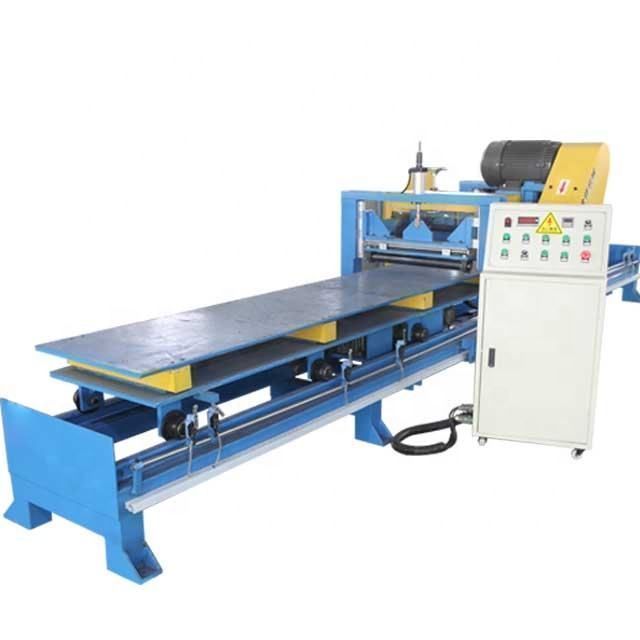

machine front

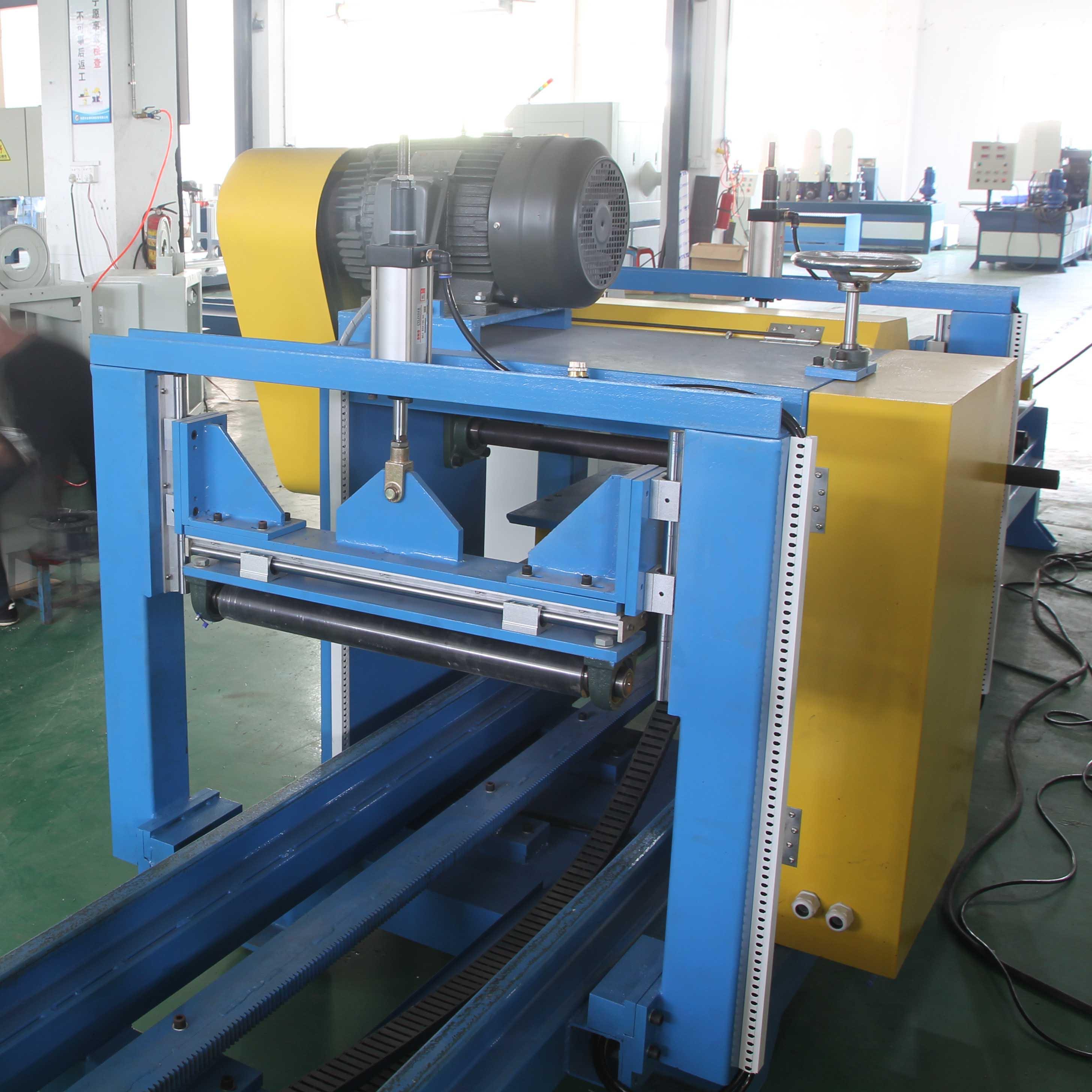

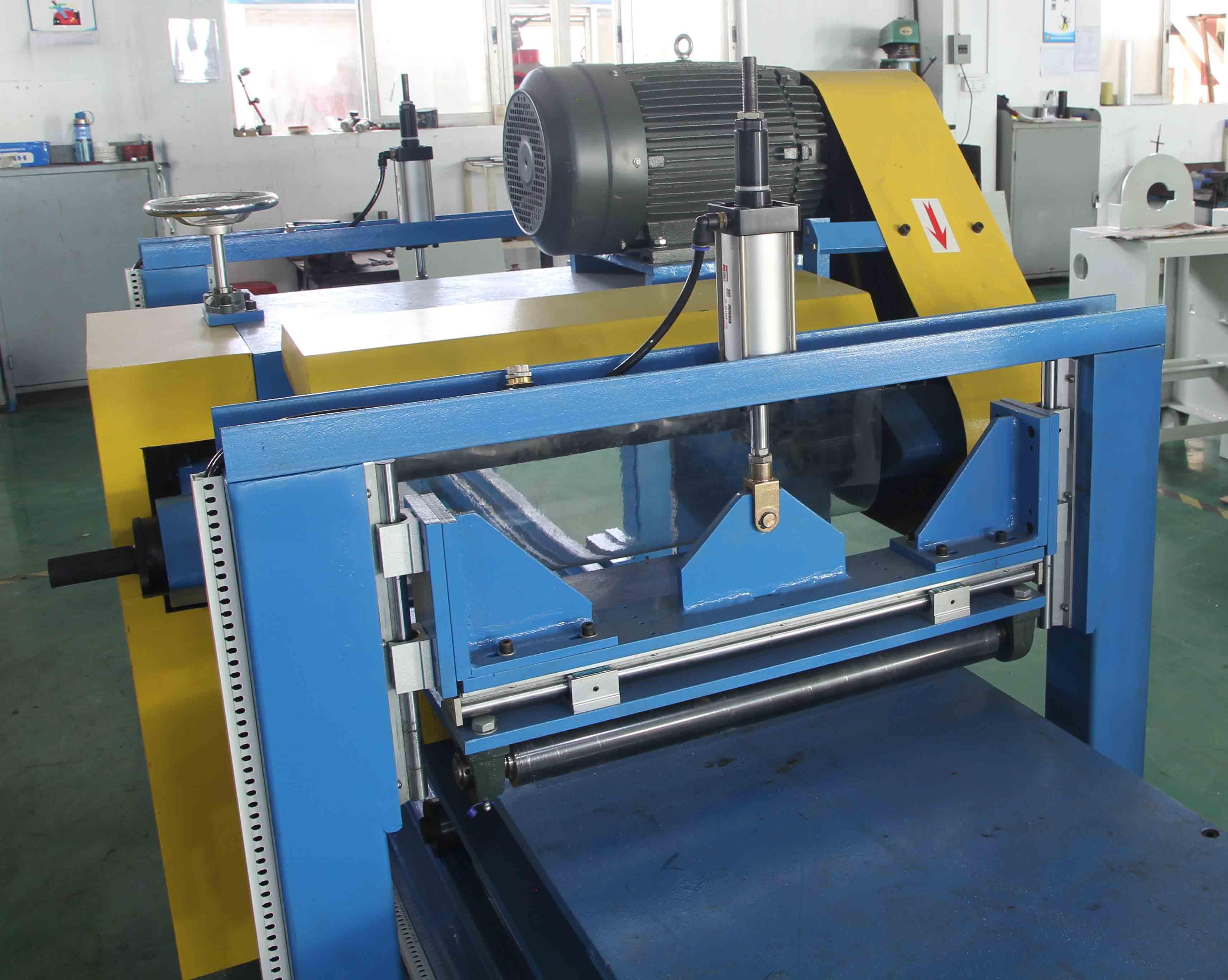

Back of the machine

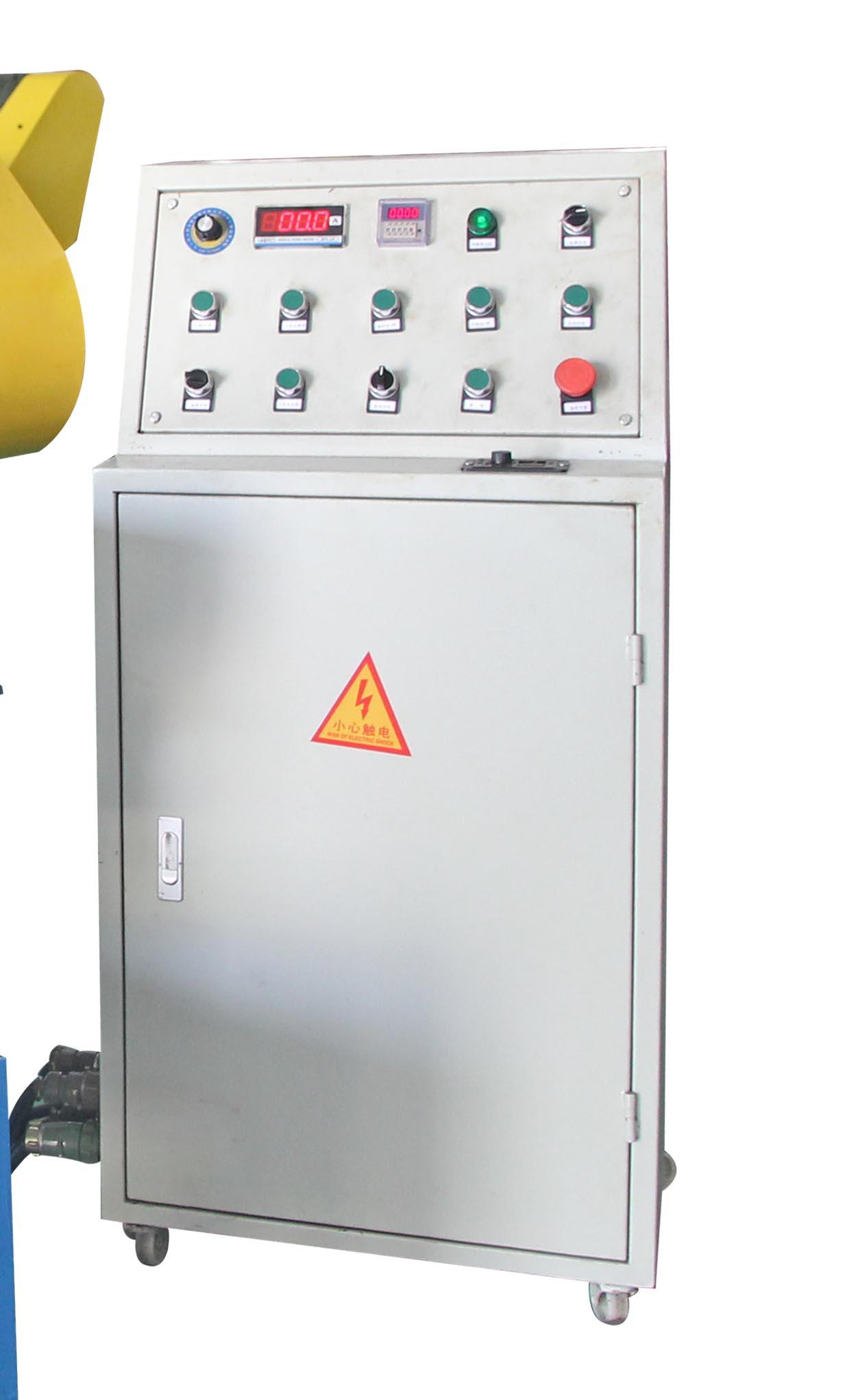

control box

Product Specifications

Name	3m stainless steel sheet mirror polishing machine
strength	11KW
Forward/Backward and Swing	2.2KW. and 1.5 kW
polishing wheel size	Outer diameter 250*Inner diameter 32mm
working desk size	6003000MM, we can also do 6006000mm
Polishing shaft width	600 mm
Polishing shaft speed	2300 rpm
operator	1
Wax System	Automatic (solid) (please discuss this item with us)
