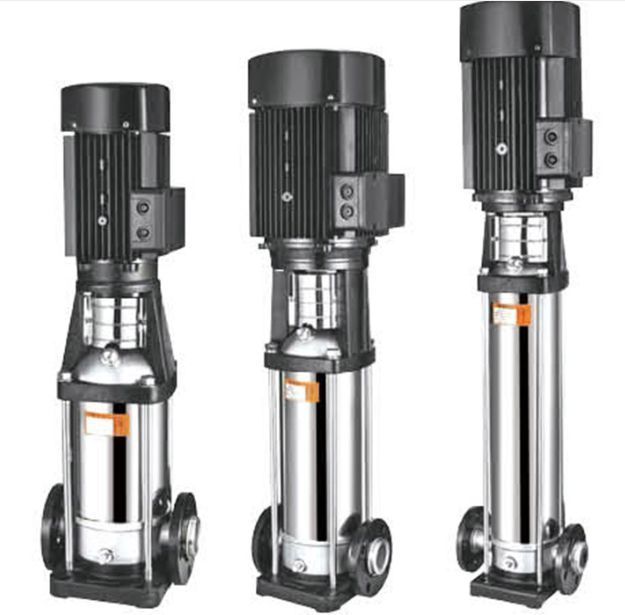

Stainless steel vertical multistage centrifugal water feed pump

 Water Treatment Pump/Water Purification Pump

The pump is vertical non-self- priming multistage centrifugal pump.  It consists of a pump base and a pump head. The pressure-resistant cylinder and flow passage components are fixed between pump head and inlet and-outlet section with tie-bar bolts. the inlet and outlet are located at the pump bottom at the same plane (Inline type). The pump is used to convey various medium from tap water to industrial liquid at different temperature and with different flow rate and pressure.

Convey non-corrosive liquid or slightly corrosive liquid up 120 degree Celsius, thin,clean,non-flammable and non-explosive liquid without solid granules ,without fibers.

Application

Water supply: Water filter and transport in Waterworks, boosting of main pipeline, boosting in high-rise buildings.

Industrial boosting: Process flow water system, cleaning system. high-pressure washing system. fire fighting system.

Industrial liquid conveying: cooling and air-conditioning system. boiler water supply and condensing system. machine-associated purpose. acids and alkali

Water treatment: Ultrafiltration system. separator. Swimming pool

Irrigation: Farmland irrigation, irrigation, dripping irrigation.

Boiler feed water pump /multistage centrifugal vertical pump

CDL/CDLF is a non-self-priming multistage centrifugal vertical pump driven by a standard electric motor. The motor shaft is directly connected with the pump shaft through the shaft coupling. The pull rod bolt is fixed between the pressure-resistant cylinder and the flow parts in the pump head and the inlet and outlet water section, and the inlet and outlet water section is in the same straight line at the bottom of the pump.  Intelligent protector can be configured according to the need to effectively protect the pump dry rotation, lack of phase, overload, etc.

Application

Water supply: filtration and transmission in water plant, water supply in water plant area, boosting of main pipeline, booster in high-rise building.

Industrial pressurization: process water system, cleaning system, high pressure flushing system, fire protection system.

Industrial liquid delivery: cooling and air conditioning systems, boiler water supply and condensation systems, machine tools, acid and alkali.

Water treatment: ultrafiltration system, reverse osmosis system, distillation system, separator, swimming pool.

Irrigation: irrigation, sprinkler irrigation, drip irrigation in farmland

The pump is used to handle the thin, clean, non-flammable and non-explosive liquid without solid particles or fibers.

Normal temperature: -15 to 70 degrees Celsius.  Hot water: 70 to 120 degrees Celsius

Motor: IP55/F /1*220V/50HZ, 3*220V/380V/415V/50HZ

      IP55/F/3*220V/440V

Pump material: Stainless steel
