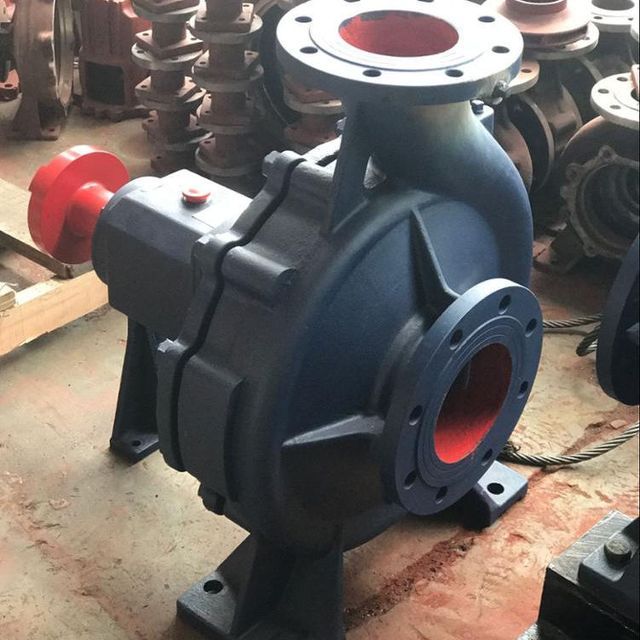

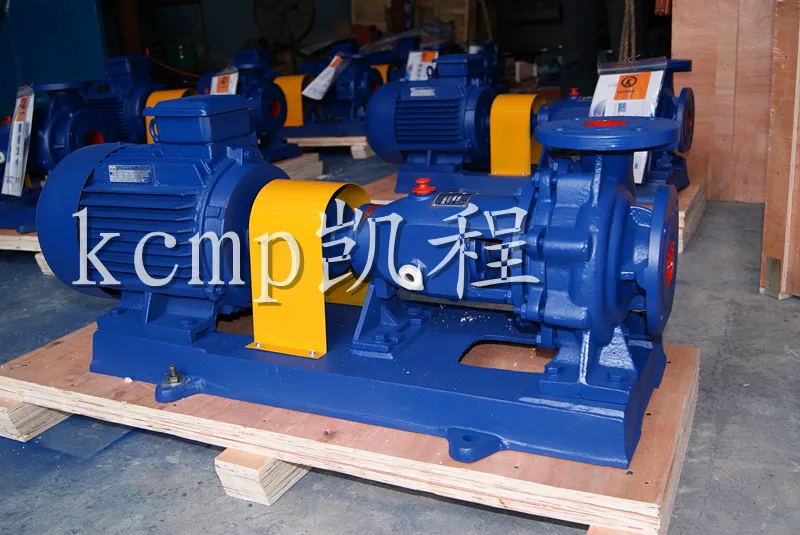

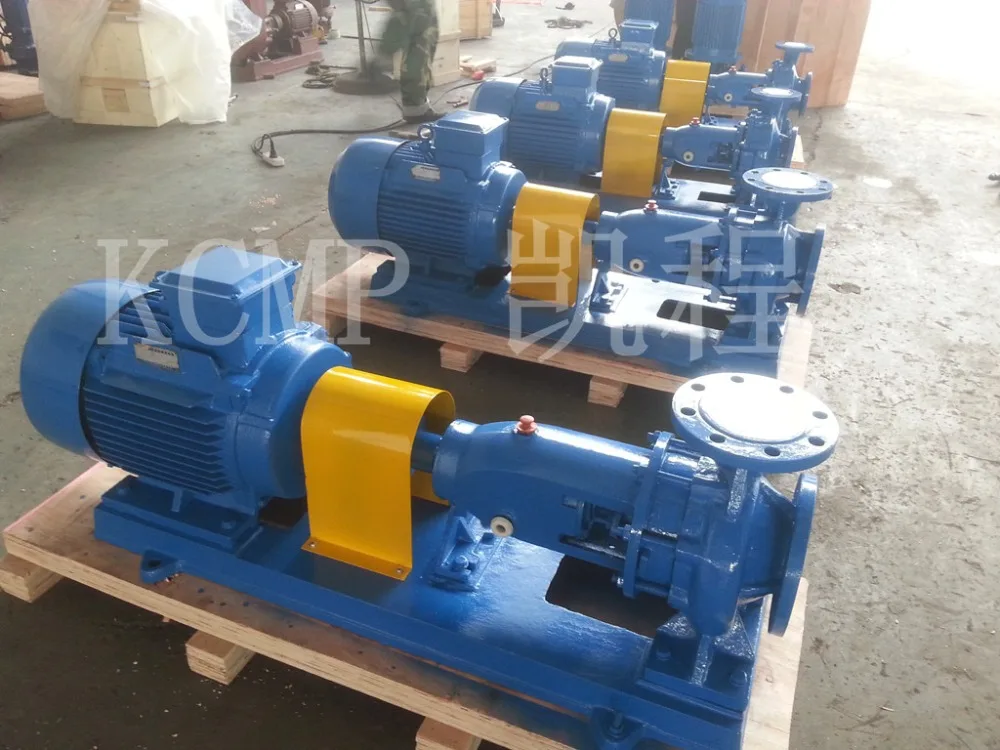

Farmland irrigation water purification centrifugal pump

Product details
payment terms:L/C, Western Union, T/T, MoneyGramSupply capacity:500 farmland irrigation water centrifugal pumps per month
Material:cast ironCustomization support:OEM production
Origin:Zhejiang, ChinaExport size:DN25mm~DN300mm
strength:0.55kw~125kwimpeller:closed impeller
model:yesapplication:Drinking water treatment, irrigation and agriculture, raw water abstraction, washing and cleaning
Voltage:220V~660Vbrand:KCMP
pressure:low pressurePackaging Details:Farm Irrigation Water Purification Centrifugal Pump is packed in export plywood case.
Energy source:electricalCertificate:ISO9001
engine:100% copper wireusage:water
Warranty:1 yearstructure:single stage pump
port:Ningbo/Shanghai portcolor:blue or other
fuel:gasoline

Farmland irrigation water purification centrifugal pump



Product Description





construct

1. According to the capacity and size stipulated by the international standard ISO2858, it is composed of pump body, pump cover, impeller, shaft, sealing ring, sleeve and suspension bearing unit.

2. The pump body and cover of IS series are separated from the back of the impeller, that is, it is generally a back-opening structure.

3. The pump casing (that is, the pump body and the pump cover) constitutes the working chamber of the pump. The impeller, shaft and rolling bearings are the rotors of the pump.

4. The impellers of most pumps are designed with sealing rings at the front and back, and there are balance holes on the rear impeller cover plate.

5. The shaft seal of the pump is a soft packing seal, and the pump is a single row radial ball bearing lubricated with thin oil.



feature

The distribution of its hydraulic performance is reasonable, the user has a large choice, the maintenance is convenient, and the efficiency and stroke have reached the international advanced level.
