Transformer Oil Breakdown Voltage BDV Tester Insulating Oil 100Kv Dielectric Strength Tester

Supplier: Chongqing Top Oil Purifier Co., Ltd.
Region: Chongqing, China
Contact: Ms Abby Xiao
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

strength:	Electronics	power supply:	AC220V plus or minus 10%, 50 HZ
place of origin; place of origin:	Chongqing, China	Voltage detection accuracy:	3%
Packaging Preview:		color:	as required
Sales unit:	single product	model:	Bdv-Iij-II
Dielectric Strength Sensitivity:	Less than 2KV	Packaging Details:	wooden box
Gross weight per piece:	50.000 kg	Single package size:	60X60X70 cm
brand:	optimal

Product Description

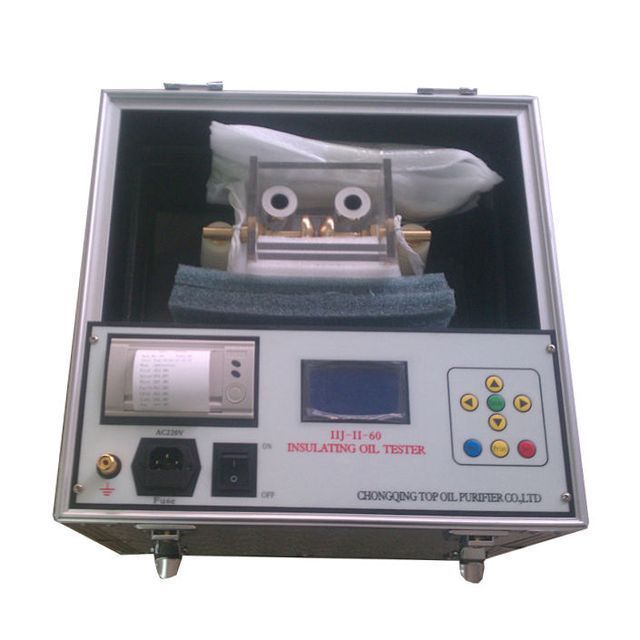

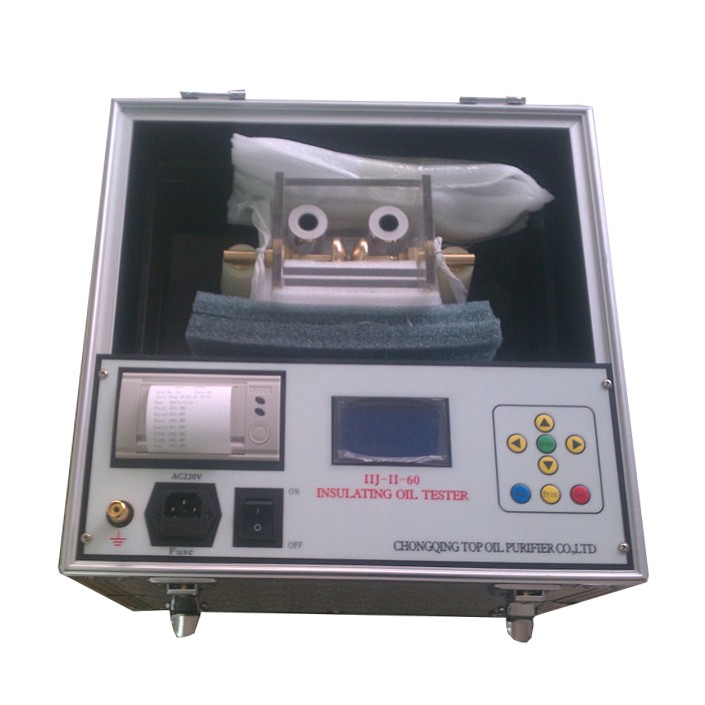

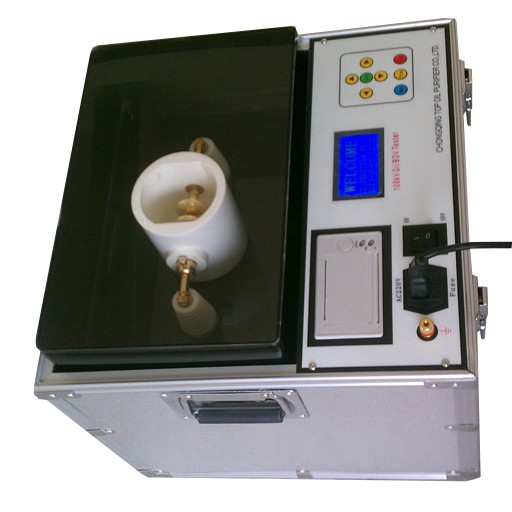

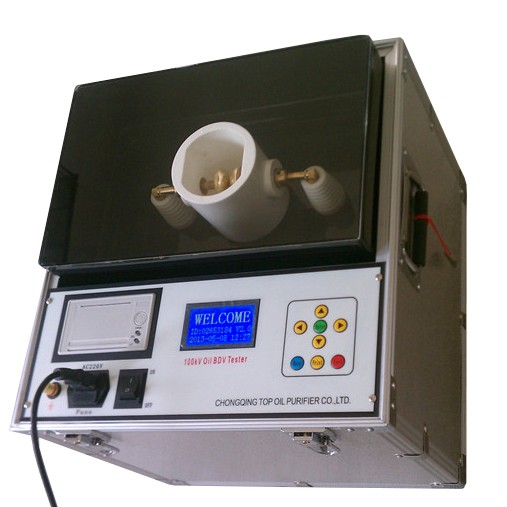

Transformer Oil Breakdown Voltage BDV Tester

power supply	AC220V ± 10%, 50 Hz
The output voltage	60 kV, 80 kV, 100 kV (100 kV needs special design)
capacity	1.2 kVA (60 kV), 1.6 kVA (80 kV), 2.0 kVA (100 kV)
boost speed	About 2kV/S
Voltage detection accuracy	3%
Dielectric Strength Sensitivity	<2KV
Distortion wave	< 3%
failure response time	<10ms
Pole distance	2.5mm
Working temperature	0 to 40ºC, humidity: <85% (relative humidity)
Storage environment: temperature	-20 to 60 º C, humidity: <75% (relative humidity)
working altitude	< 1500 meters. (If it exceeds 1500m, it can be customized)
Dimensions and Weight	38 x 37 x 38 cm. Net weight: 40 kg (approximately)

1. Simple operation: automatic (press a button to complete)

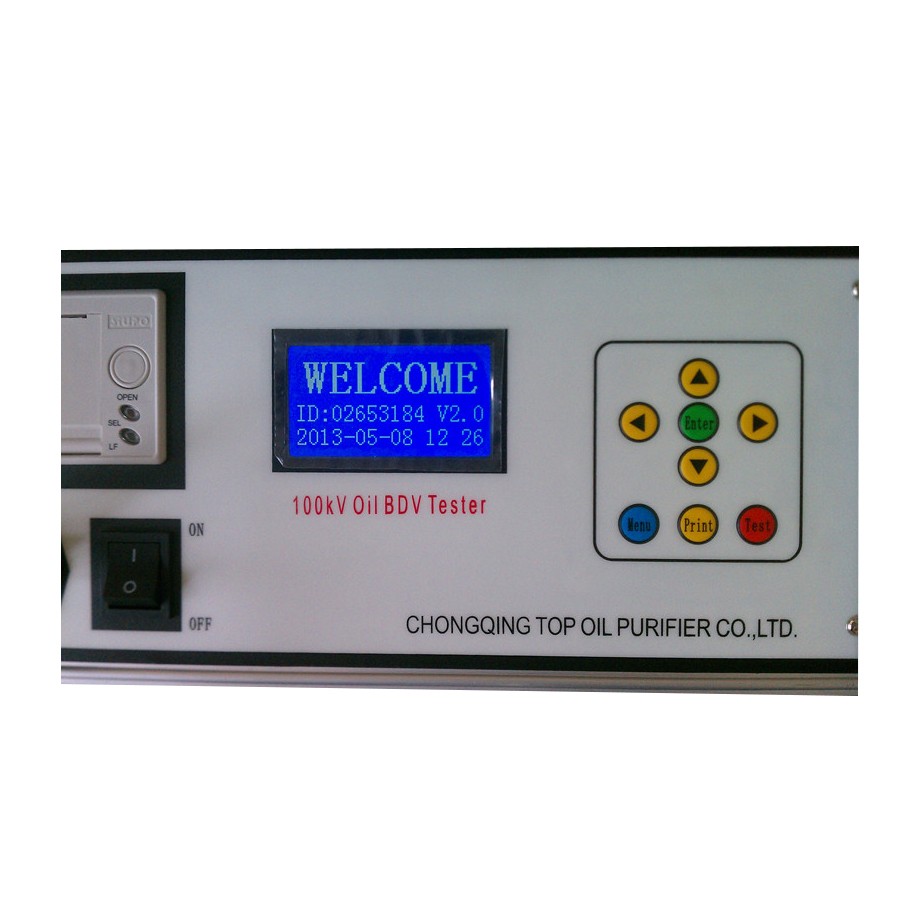

2. Menu control. Input data can be cleared
3. It can store 99 sets of oil detection data, which is convenient for reading and printing. Test data can be stored for 100 years in the event of a power failure.
4. The system time can continue to run in the event of a power failure; (the system time is for reference only and cannot be used as a timing standard)
5. Software can be upgraded through RS232
6. Strong anti-interference ability and high test accuracy.
7. Small size, light weight, easy to operate in the open air.

application

IIJ-II series automatic oil tester is suitable for testing the dielectric strength of insulating oil. It is designed in accordance with the requirements of IEC156 dielectric strength test method for insulating oil. After proper programming, it has automatic voltage increase, decrease, stirring, display and printing. After the breakdown of the oil medium, the high voltage disconnection will act within 10 seconds, so that the control system part is automatically isolated; this effectively guarantees the safety of personnel and equipment.

* The warranty period is 24 months from the date of commissioning and acceptance. After the warranty period expires, we provide lifetime maintenance and technical services.
* We guarantee that the maintenance time does not exceed 3 working days and the response time is within 1 hour.
* We establish instrument service files for customers to record product service and maintenance.
* After the instrument starts service, we will follow up to collect service conditions.
