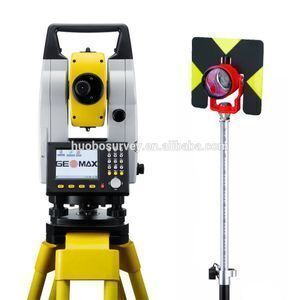

GeoMax Zipp20 WinCE Series Total Station
-
Supplier: Chongqing Huibo Lab Instrument Co., Ltd. -
Region: Chongqing, China -
Contact: Ms Michelle Li -
Price: $4000.00 /set -
Min. Order: 1 set
| Place of Origin: | Chongqing China (Mainland); | Distance measurements Prism: | 3,000 m / 2 mm + 2 ppm; |
| Method: | Absolute, continuous, diametrical; | Port: | Shanghai; |
| Keyboard: | Full alphanumeric, user definable; | Operating system: | Windows CE; |
| Packaging Detail: | Carton box; | Model Number: | Zipp20; |
| Reflectorless: | 3 mm + 2 ppm; | Weight: | 5.3 kg; |
| Brand Name: | Zipp20; | Supply Ability: | 100 Set/Sets per Day; |
| Compensation: | Quadruple axis; | Payment Terms: | L/C,T/T,Western Union; |
| Display resolution: | 1", 5", 10"; | Delivery Detail: | 10 days; |
| Footprint: | 12 x 24 mm; | Angle measurements Accuracy: | 2", 5"; |
Zipp20 – Open WinCE® Series
... operate it your way, store it your way, process it your way!
Running fully open Windows® CE allows you to operate the field software of your choice onboard the Zipp20 – Open WinCE® Series.
Featuring Microsurvey Field Genius, X-Pad, Carlson SurvCE or any localized field software, the Zipp20 allows you to work the way that best fits your needs. With integrated Bluetooth® and the capability to connect to any tablet or data logger, the Zipp20 provides you highest flexibility. All this combined in a system offering a colour & touch display, long range non-prism measurement and all your favourite Windows® CE applications make the Zipp20 the total station that “works when you do.”

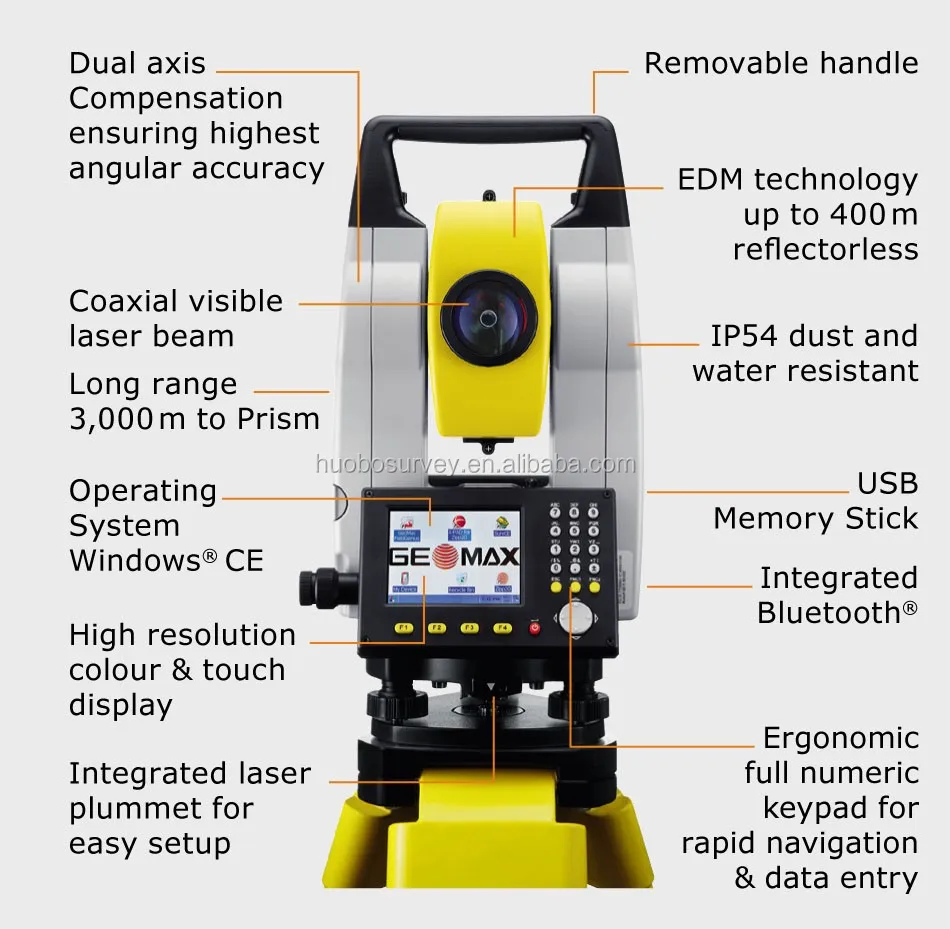

Totally open Windows® CE
- Supports any field software
- Open for own development
- Personalise your system
Totally connected
- Integrated Bluetooth®
- USB memory stick
- Plug ’n Play Technology
Totally featured
- 3.5''colour & touch display
- 400 m non-prism range
- Coaxial visible laser beam
Techinical Specification
Angle measurements
Accuracy 2”,5”
Display resolution 1”, 5”, 10”
Method Absolute, continuous, diametrical Compensation Quadruple axis
Distancemeasurements
Prism 3,000 m / 2 mm + 2 ppm
Reflectorless 3 mm + 2 ppm
Footprint 12 x 24 mm
Physical specifications
Weight 5.3 kg
Operating temp. – 20 to 50
Protection class IP54 dust and waterproof
Interface
Keyboard Full alphanumeric, user definable
Display 3.5” Quarter-VGA colour touch screen (320 x 240 pixel),
10 lines x 30 characters,illuminated
Bluetooth Device Class II
Memory size 2 GB, internal
Interface USB
Removable memory USB memory stick
Power supply
Internal battery Removable Li-Ion 4.4 Ah Operating time 8 hours
Plummet
Type Visible laser point
Accuracy 1.5 mm at 1.5 m instrument height
Operatingsystem
Windows® Windows® CE
Humidity 95 %, non-condensing
Optimal conditions to Koday Grey Card (90 % reflectivity)
At 50 m distance
w/o battery andtribrach
All trademarks and trade names are those of their respective owners.
-
