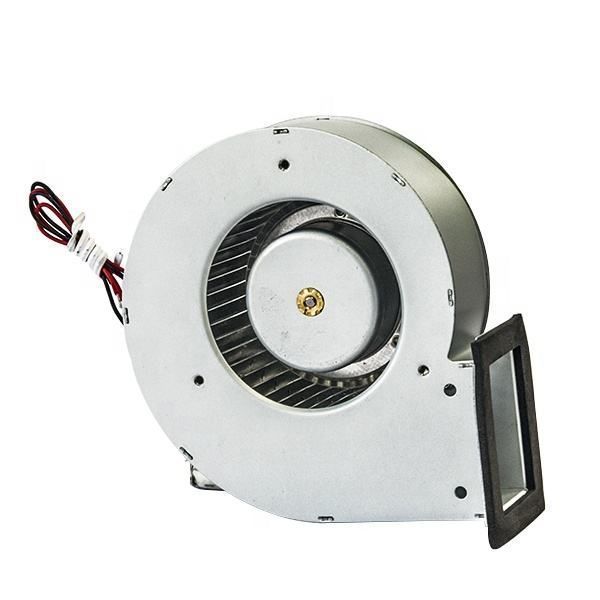

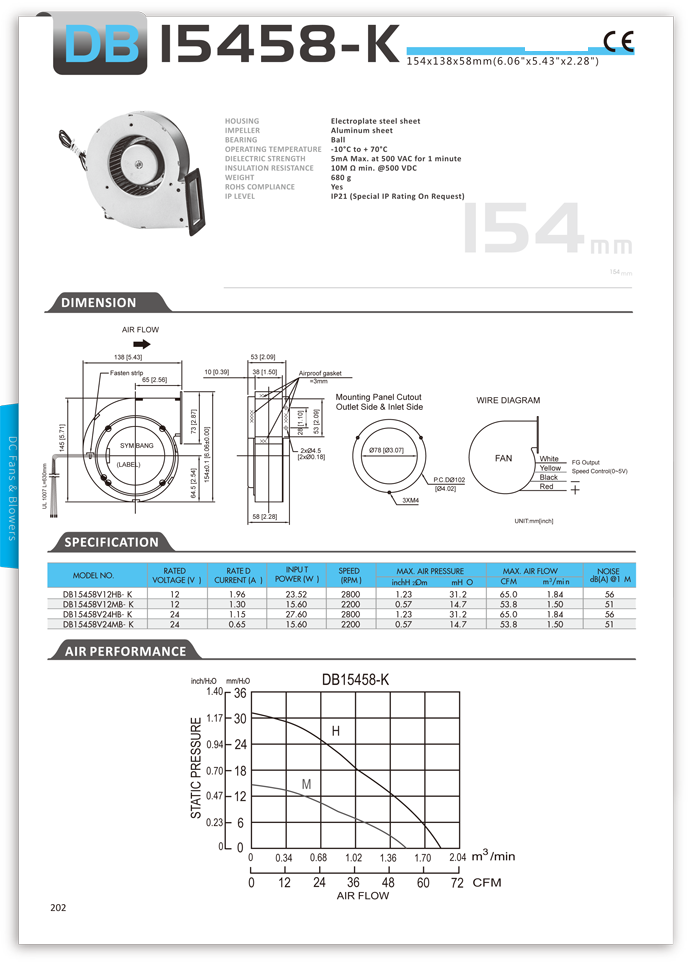

Fan screw 154X138X58mm 12V 24V (DB15458-K)
- 1.00 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Blade material: | aluminum | brand: | symbol |
| model: | DB15458-K | Packaging Details: | standard packaging |
| size: | 138x154x58mm | Install: | Industrial equipment |
| Supply capacity: | 10000 pieces per month | Applicable industries: | Manufacturing plants, machinery repair shops, other |
| Current type: | DC | Warranty: | 1 year |
| series: | blower | Voltage: | 12/24V |
| payment terms: | Letter of Credit, Wire Transfer, Credit Card, Paypal | place of origin; place of origin: | Taiwan, China |
| After-sales service provided: | No overseas service, online support | Certification: | ce;RoHS |
| type: | Centrifugal fan | port: | Kaohsiung |
Product Description
product name:
154X138X58mm 12V 24V blower snail (DB15458-K)
Centrifugal fan; 12v 24vcentrifugal fan;blower;hair dryer;DC Blower; Fan Blower; Inflatable Blower
| housing | Electroplated steel plate |
| impeller | aluminum plate |
| bearing | ball |
| Operating temperature | -10°C to +70°C |
| Insulation resistance | 5mA max at 500 VAC for 1 minute |
| Dielectric strength | 10M Ω min @ 500 VDC |
| weight | 680 g |
| ROHS compliance | Yes |
| IP level | IP21 (special IP rating on request) |
Similar products:
application:
- power supply unit
- measuring instrument
- Electronic switch system
- vending machine
- Heating and cooling equipment
- Computer (CPU, peripherals and terminal equipment)
- medical equipment
- acoustic equipment
- flight instruments
- Numerically Controlled (NC) Units
- data communication terminal equipment
- Office machinery and copiers
