RS485 output intelligent precise positioning and positioning water pipe cable type water leakage detector

Supplier: Honde Technology Co., Ltd.
Region: Beijing, China
Contact: Mr Marvin Li
Price: $238.00 / 1 - 9 pieces
$233.00 / 10 - 99 pieces
$228.00 / 100 - 999 pieces
$220.00 / >=1000 pieces
Min. Order: 1 piece

Click here to contact

Product details

Minimum order quantity:	1 item	type:	water leak detector
Key words:	precise positioning	port:	Tianjin Xingang
application:	Water leak detection	Keyword-3:	Alkali leak sensor
Supply capacity:	1000 pieces per month	place of origin; place of origin:	Beijing China
output:	RS485	model:	RD-WLDP-01
Keyword-2:	Acid leak sensor	usage:	water leak detector
Wiring length:	500m	describe:	water leak sensor
theory:	resist	Keyword-1:	oil leak sensor
Key words:	water leak sensor	Packaging Preview:
payment terms:	Western Union, T/T, MoneyGram, PAYPAL	Signal output:	RS485
brand:	Hondet	product name:	water leak detector
Packaging Details:	1/box

Product Description

product name	Water and oil acid-base leak detection sensor with precise positioning
Detection cable:	Compatible with various position detection cables
Detect cable length	Maximum cable length is 1500 meters
sensor housing	Black fireproof ANS material, DIN35mm rail mounting

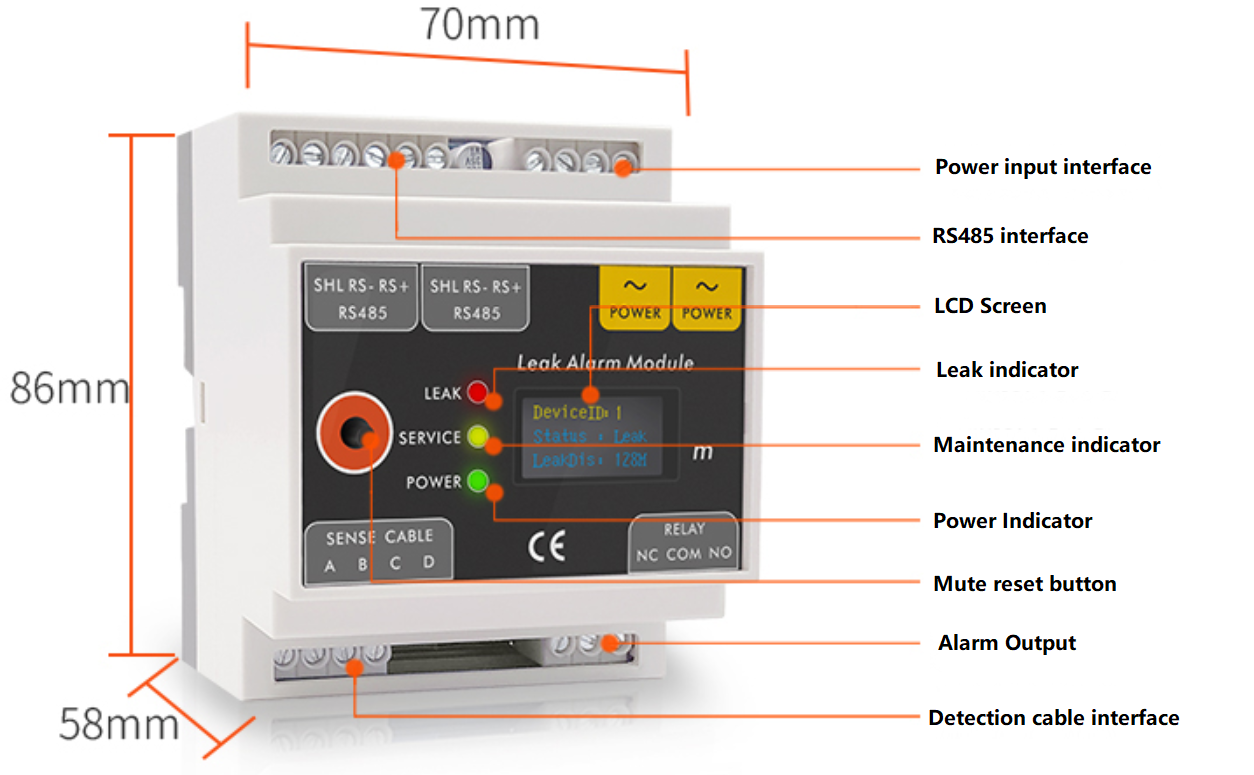

Dimensions and Weight	L70W86H58mm, weight: 200g
Detection sensitivity	0-50K stepless adjustment response time is less than 1 second (when the sensitivity is the highest)
accuracy	Detect 2% of cable length
voltage	12VDC, 24VAC or 220VAC, working current less than 1A
voltage	12VDC, 24VAC or 220VAC, working current less than 1A
relay output	1SPDT normally open normally closed output, rated power 220VAC/2A
RS485 output	RS485+, RS485-, two-wire communication interface, device address: 1-255

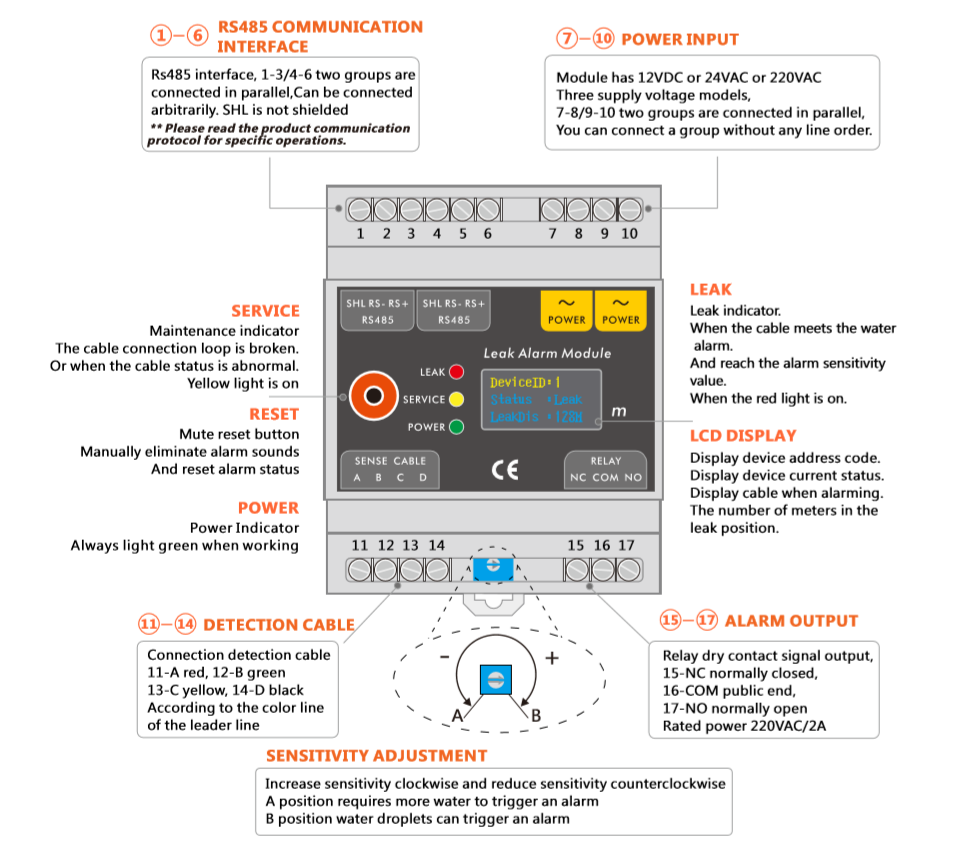

detailed picture

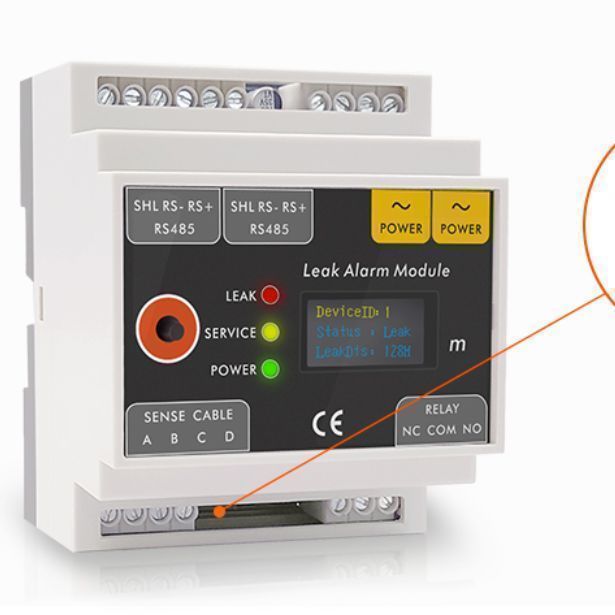

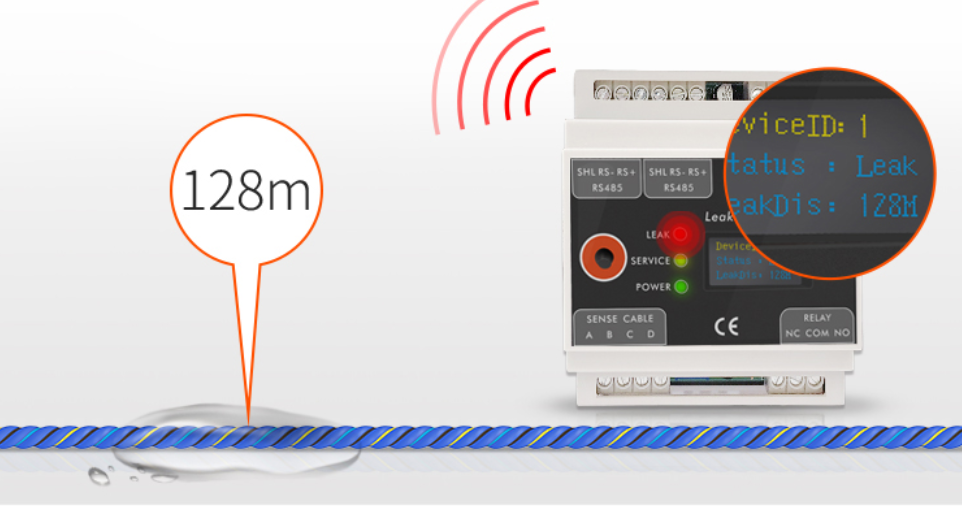

Location leak detection

The LCD indicator in the positioning detection module shows the power supply, leakage, cable fault, communication status and leakage position

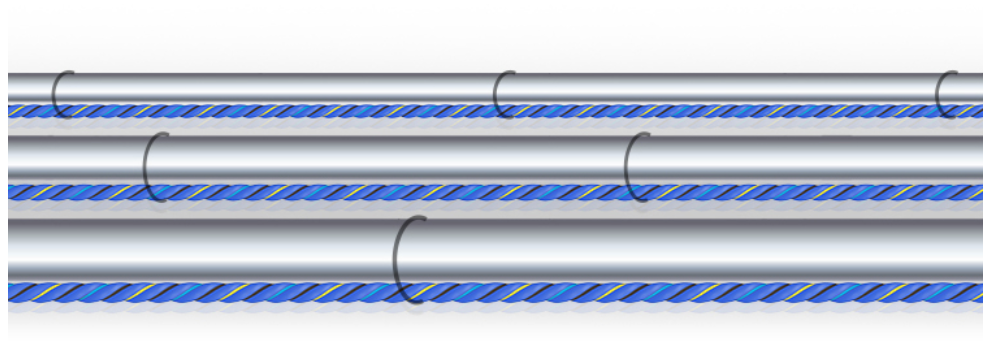

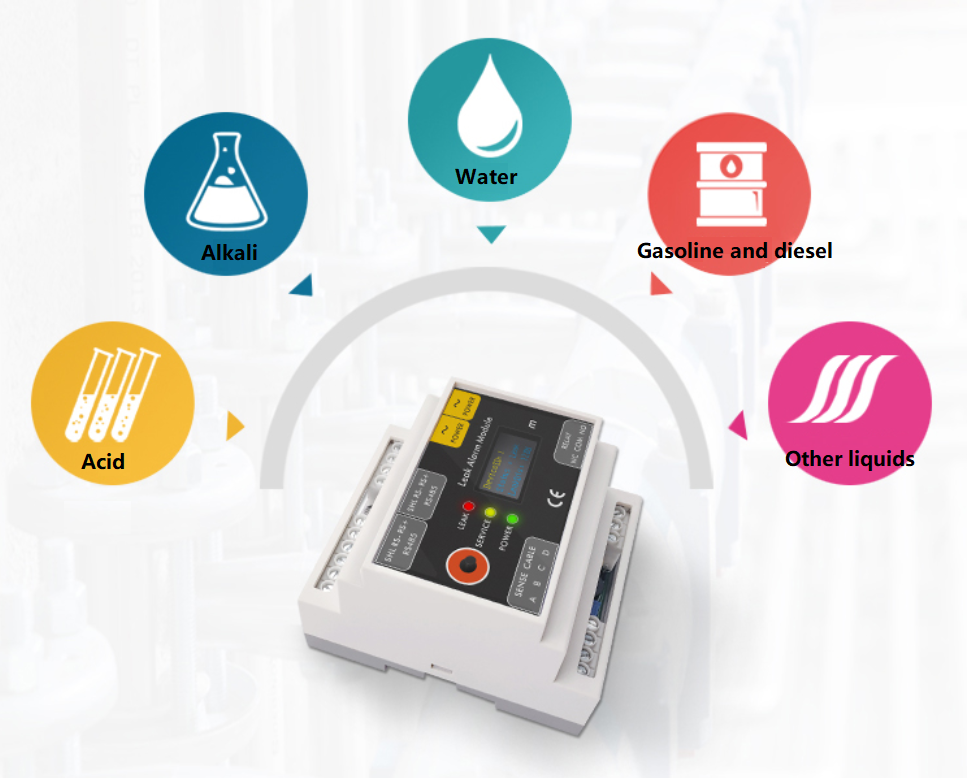

Various liquid leaks can be measured

It can detect the leakage of water, weak acid, weak base, gasoline, diesel and other liquids, and achieve precise positioning.

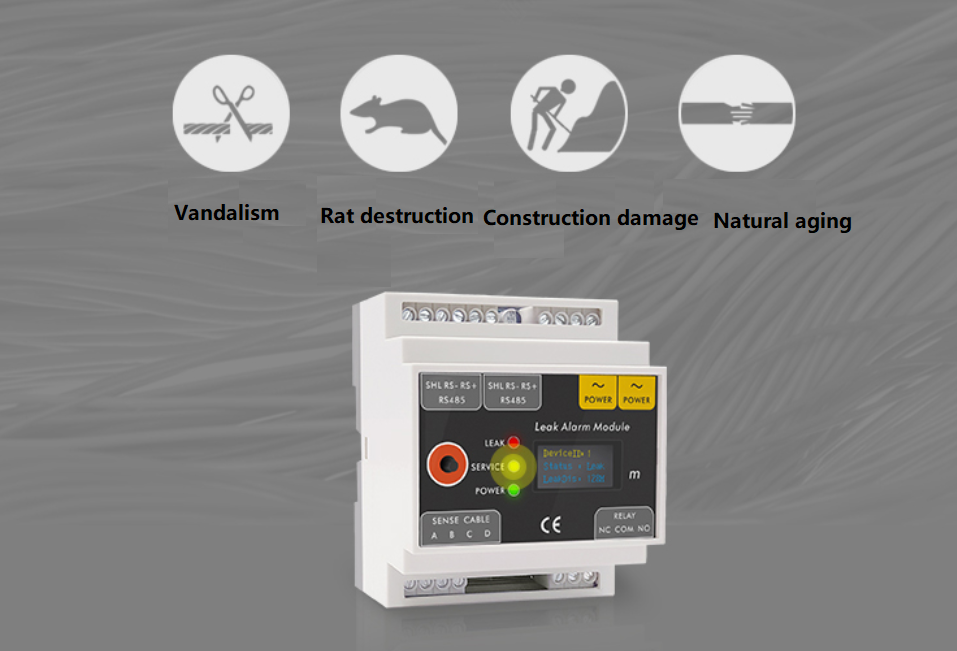

disconnection reminder

The module can also detect disconnection alarm, which can be installed in the dangerous detection area where the cable is easily damaged and broken, and timely reminds to find the damage and replace the cable.

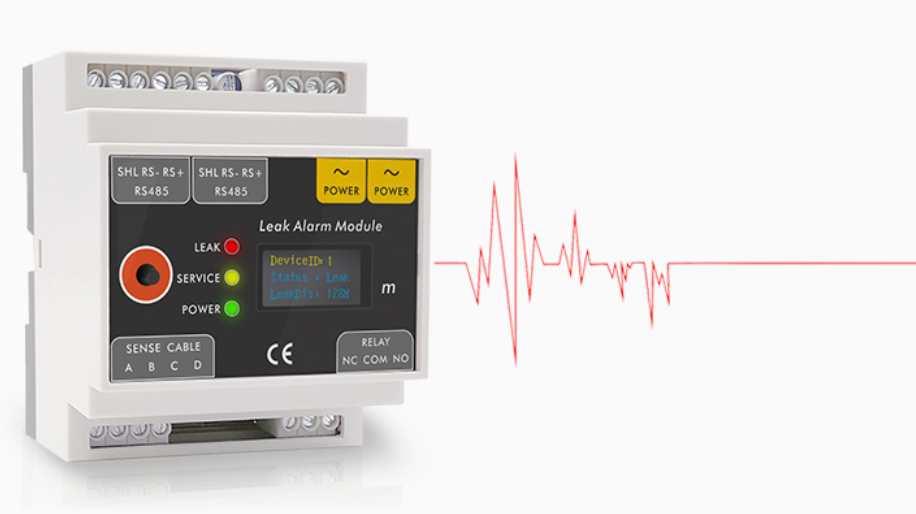

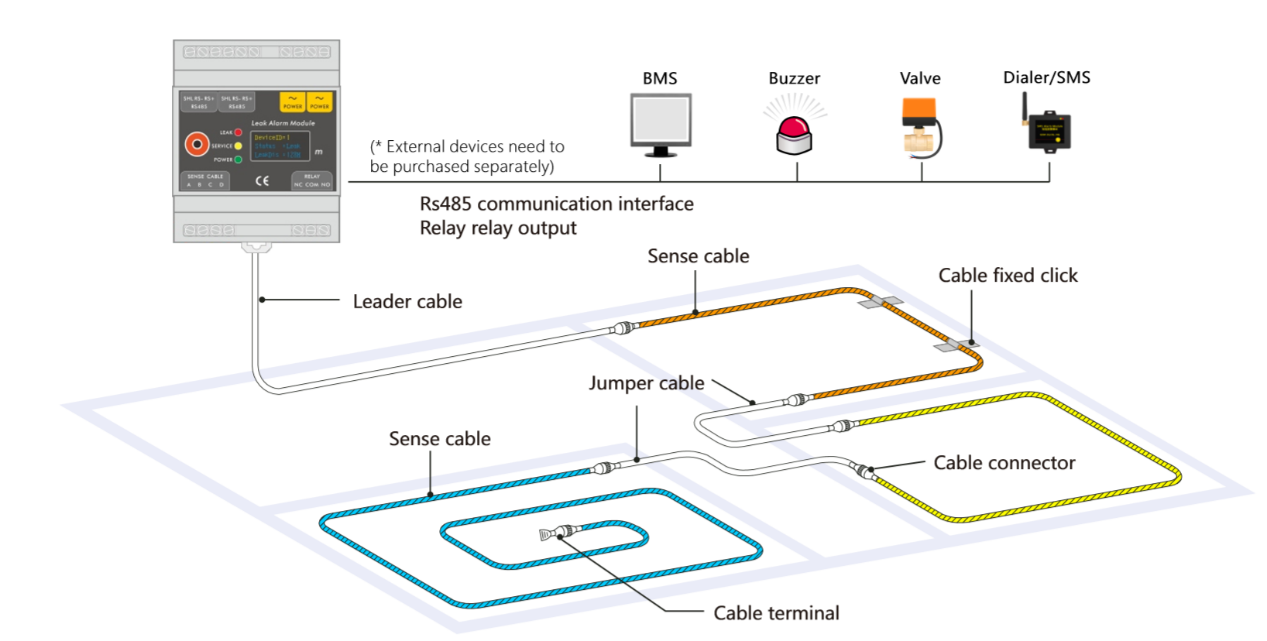

RS485 computer communication

Anti-interference, realize remote alarm, remote control equipment, can be connected to various monitoring systems, realize remote alarm, remote equipment control

Wide power supply range

A variety of supply voltages can be selected: 12VDC, 24VAC, 220VAC.

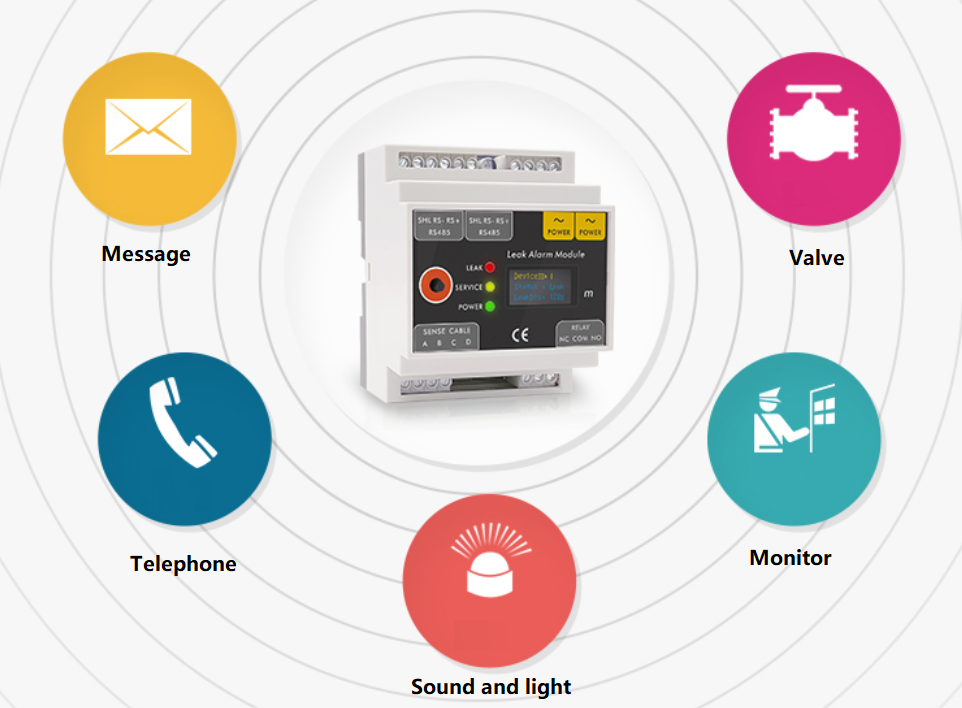

Switch signal output

External switch signals such as sound and light alarms, automatic valves, and intelligent alarms can be connected. It can be combined with various monitoring systems to realize remote alarm and remote equipment control.

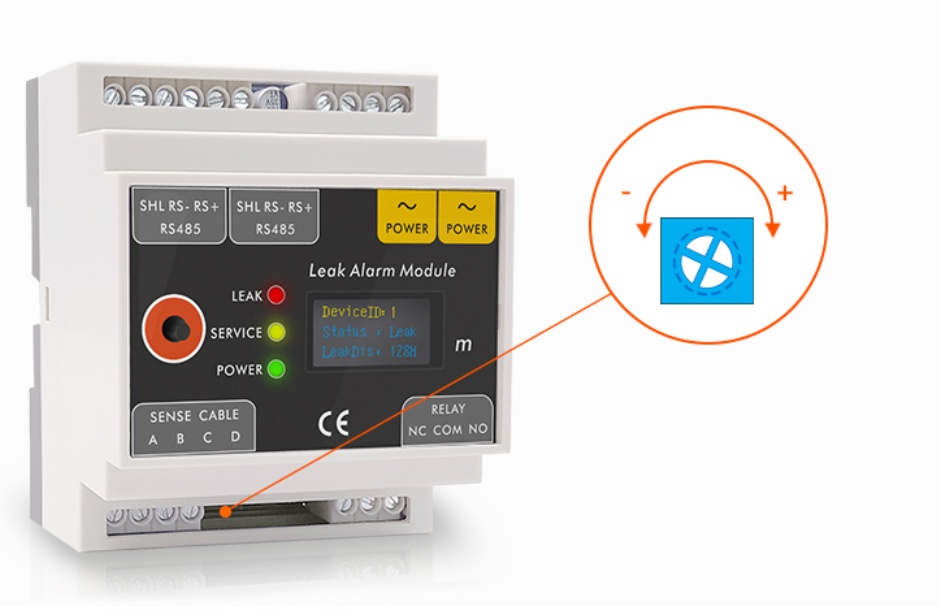

Stepless sensitivity adjustment

It can be adjusted according to the detection needs, 0-10K gear adjustment, the smallest detectable water droplets, no need to install software, the host directly adjusts the sensitivity, easy to use.

Wiring lengths up to 1500 meters

The length of the cable connecting the host can reach 1500 meters, with high sensitivity, fewer false alarms, and long wiring, which reduces the difficulty of work.

One key mute and automatic reset

When a leak occurs, the high-decibel buzzer sounds, and the one-key mute button eliminates the alarm sound. The detection module can be reset automatically after the leakage is eliminated without manual operation.

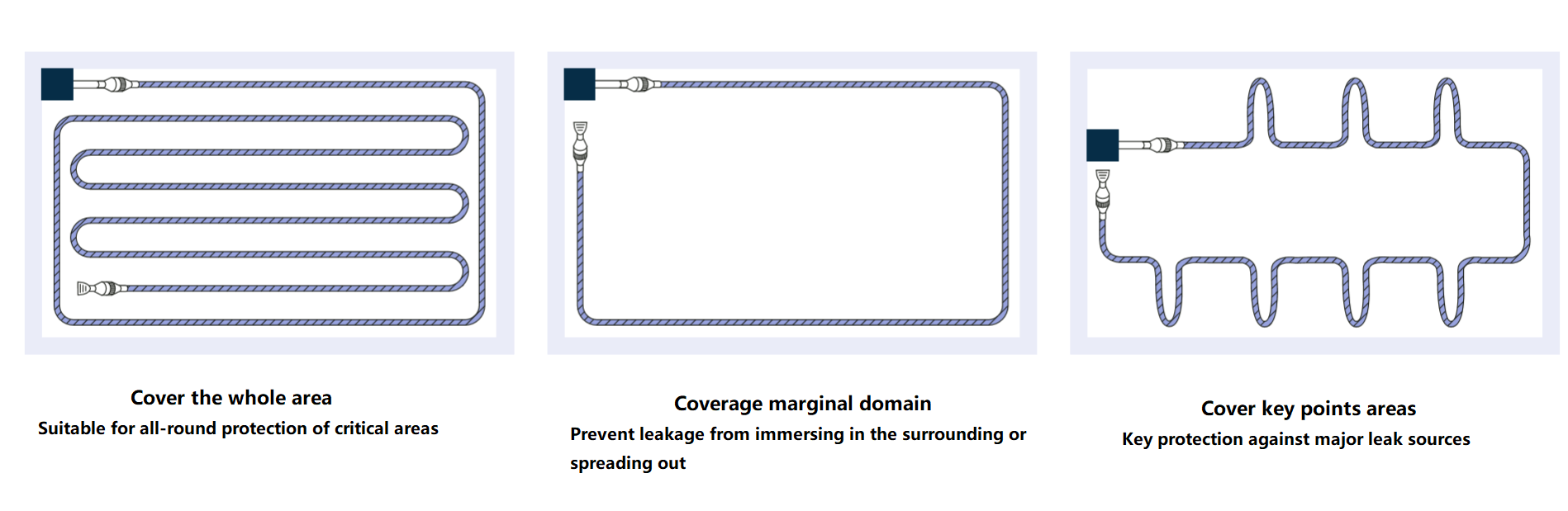

Product use
