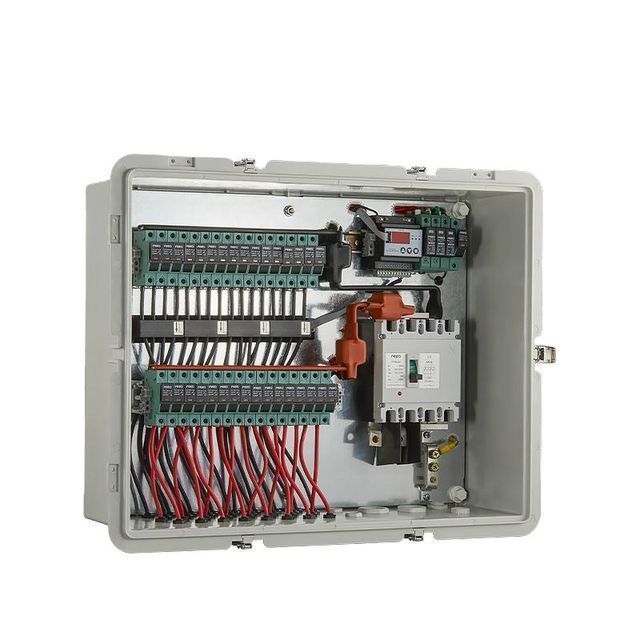

DC junction box pv waterproof solar junction box for solar panels IP65

Click here to contact

Product details

Maximum DC voltage input:	DC1500V	Packaging Details:	Standard export carton packaging: carton size 36.532.527
payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram,PayPal	application:	Solar systems, electrical equipment
Specification:	custom made	Warranty:	2 years
Protection class:	ip66	Certificate:	TUV CE
model:	combiner box	port:	Ningbo/Shanghai
Supply capacity:	100000 pieces/month	Certification:	TUV
place of origin; place of origin:	Zhejiang, China	brand:	Feo

♦High reliability

with DC fuse

With DC surge protection

With DC circuit breaker or DC load disconnector.

♦ Strong adaptability

IP65 design, waterproof, dustproof and UV resistant.

Strict high and low temperature test, widely used

The installation is simple, the system wiring is simple, and the wiring is convenient.

The box body is made of metal materials such as cold-rolled steel plates.

♦ Flexible configuration

For monocrystalline silicon solar modules, polycrystalline silicon solar modules

Thin film solar modules. Modified the rated current of photovoltaic fuses, circuit breakers, and load disconnectors.

Name	FSCB-PV24/1
	Electrical parameters
System maximum DC voltage	1000
Maximum input current per string	15A
Maximum input string	twenty four
Maximum output switch current	200A
Number of inverters	n
number of output strings	1
	Lightning protection
test category	Class II protection
Nominal discharge current	20KA
Maximum discharge current	40KA
Voltage protection level	3.8KV
Maximum continuous working voltage Uc	1050V
Polish	3P
Structural features	Plug and Play Module
	system
Protection class	IP65
output switch	DC disconnect switch (standard) / DC circuit breaker (optional)
SMC4 Waterproof Connector	standard
Photovoltaic DC fuse	standard
Photovoltaic surge protector	standard
Monitoring module	optional
front diode	optional
Box material	Metal
Installation method	Wall-mounted
Operating temperature	-25℃~+55℃
temperature rise	2 km
allowable relative humidity	0-95%, no condensation
