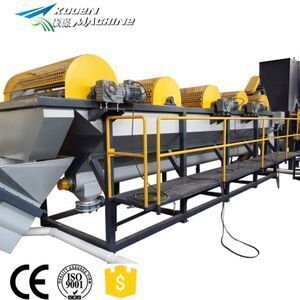

Top quality plastic film pet hdpe bottle barrel crate container washing line recycling machine

Supplier: Zhangjiagang Kooen Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Mr Yaping Lu
Price: $30000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Detail:	wooden package (hdpe bottle washing machine) Top quality plastic film pet hdpe bottle barrel crate container washing line recycling machine;	plasic recycling reprocess:	waste plasic recycling reprocessing;
This plastic recycling machine:	has CE, ISO9001 certification;	Certification:	CE, ISO9001;
plastic recycling line:	waste plastic recycling line;	Dimension(LWH):	20- 60 meters long;
used plastic washing line:	plastic washing machine;	After-sales Service Provided:	Field installation, commissioning and training;
machine:	hdpe bottle washing machine;	waste plastic recycling machinery:	plastic recycling machinery;
Condition:	New;	After-sales Service Provided:	Engineers available to service machinery overseas;
Supply Ability:	5 Set/Sets per Month;	this plastic washing line:	use SUS304 stainless steel;
Place of Origin:	Jiangsu China (Mainland);	Weight:	15- 40 tons;
Voltage:	according to customer;	Power(W):	100-350kw;
Automatic Grade:	Automatic;	this plastic recycling machinery:	has good quality, working stable, long service life time;
Production Capacity:	150-3000kg/h;	waste plastic washing machine:	plastic washing machinery;
Port:	Shanghai;	Payment Terms:	L/C,T/T,Western Union;
Brand Name:	waste plastic recycling;	Application:	recycle waste plastic;
Warranty:	3 years;

Top quality plastic hdpe bottle barrel crate container washing line recycling machine

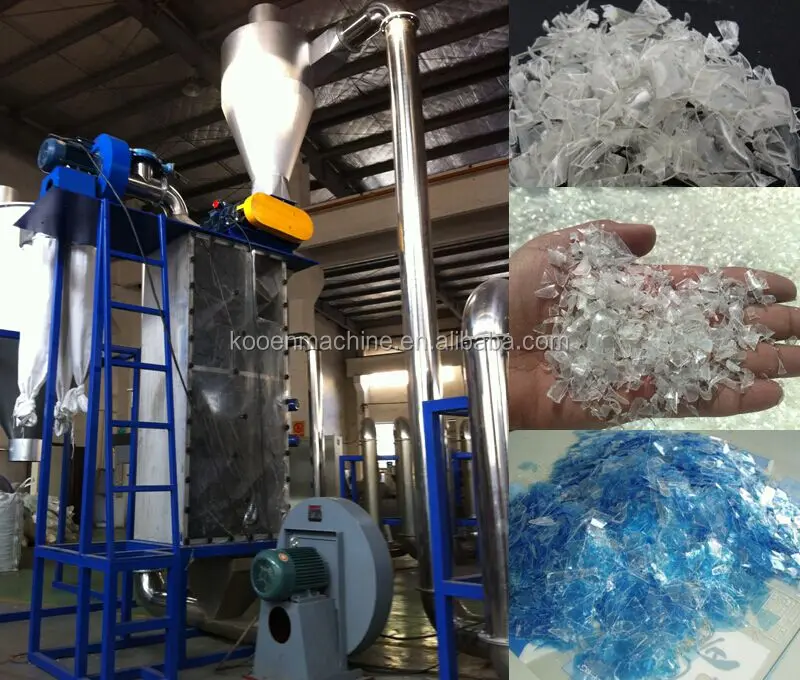

Waste PET plastic bottle recycling (crushing, washing, and drying) machine line:
Raw material & formulation	Post-consumer bottles
Capacity range	300kg/hour
	500kg/hour
	1000kg/hour
	2000kg/hour
Description of final product	Moisture: below 1%
	Particle size: 17mm
	Impurities: 100 ppm
	PVC label content: 100 ppm
Production standard	CE, ISO9001
Main components (1000kg/h)
(Name)	(power)
Belt conveyor	2.2kw
Mechenical label remover	22kw
Manual separating table	1.5kw
Metal detector	0.4kw
Belt conveyor	2.2kw
Crusher	55kw
Screw conveyor	2.2kw
Floating washer	2.2kw+2.2kw+2.2kw
Screw conveyor	2.2kw
Hot washer	36kw
Screw conveyor	2.2kw
High speed frication machine	22kw
Screw conveyor	2.2kw
Floating washer	2.2kw+2.2kw+2.2kw
Screw conveyor	2.2kw
Vertical dewatering machine	11kw
Drying system	36kw+7kw
Zig Zag air classification system	11kw
Storage hopper
Control cabinet	Siemens contact Japan Fuji invertor Japan Omron temperature controller

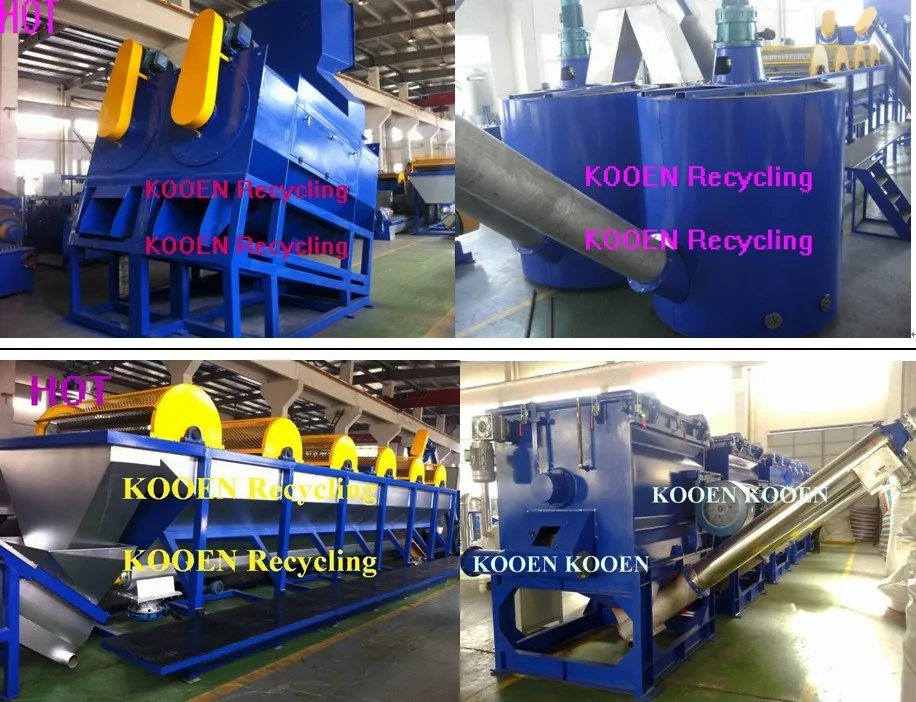

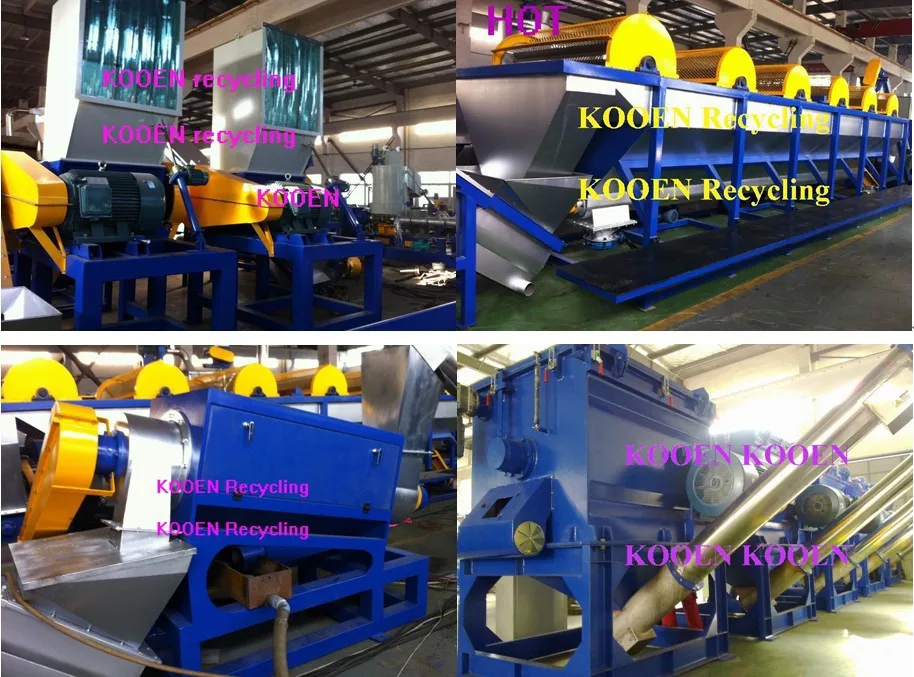

Main components of the PET bottle washing line

**************************************

Waste pe pp film bags recycling (crushing, washing, and drying) machine line:
Raw material & formulation	PE/PP rural film, twist bag, shopping bag, packing bag etc
Capacity range	300kg/hour
	500kg/hour
	1000kg/hour
	2000kg/hour
Description of final product	Moisture: below 5%
Description of final product	Particle size: 30-110mm
Production standard	CE, ISO9001
Main components (1000kg/h)
(Name)	(power)
Belt conveyor	2.2kw
Crusher	55kw
Screw conveyor	2.2kw
Belt conveyor	2.2kw
Crusher	55kw
Screw conveyor	2.2kw
Floating washer	2.2kw+2.2kw+2.2kw
Screw conveyor	2.2kw
High speed frication machine	37kw
Screw conveyor	2.2kw
Vertical dewatering machine	110kw +1.5kw
Drying system-1	45kw+7kw
Transition storage hopper
Drying system-2	38kw+7kw
Storage hopper	2.2kw
Control cabinet	Siemens contact Japan Fuji invertor Japan Omron temperature controller

Main components of the PE PP film bags washing line

************************************

SJ series single stage pe pp film granulator machine
Model	SJ-65		SJ-80		SJ-100	SJ-120		SJ-150		SJ-200
Screw Dia.	65		80		100	120		150		200
L/D	28-30		28-30		28-30	28-30		28-30		28-30
Capacity	60-80kg/h		80-100kg/h		150kg/h	300kg/h		400kg/h		500kg/h
SJ series double-stage pe pp film granulator machine
Model		SJ-100/100		SJ-120/120			SJ-150/150		SJ-200/200
Screw Dia.		100		120			150		200
L/D		28-30 10-15		28-30 10-15			28-30 10-15		28-30 10-15
Capacity		120-180kg/h		220-300kg/h			300-400kg/h		500-600kg/h

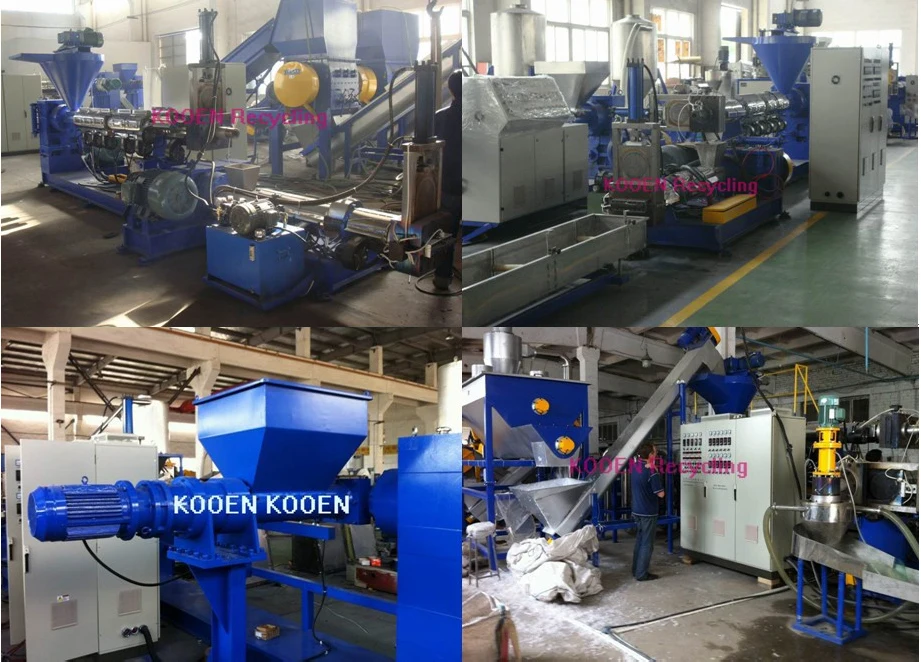

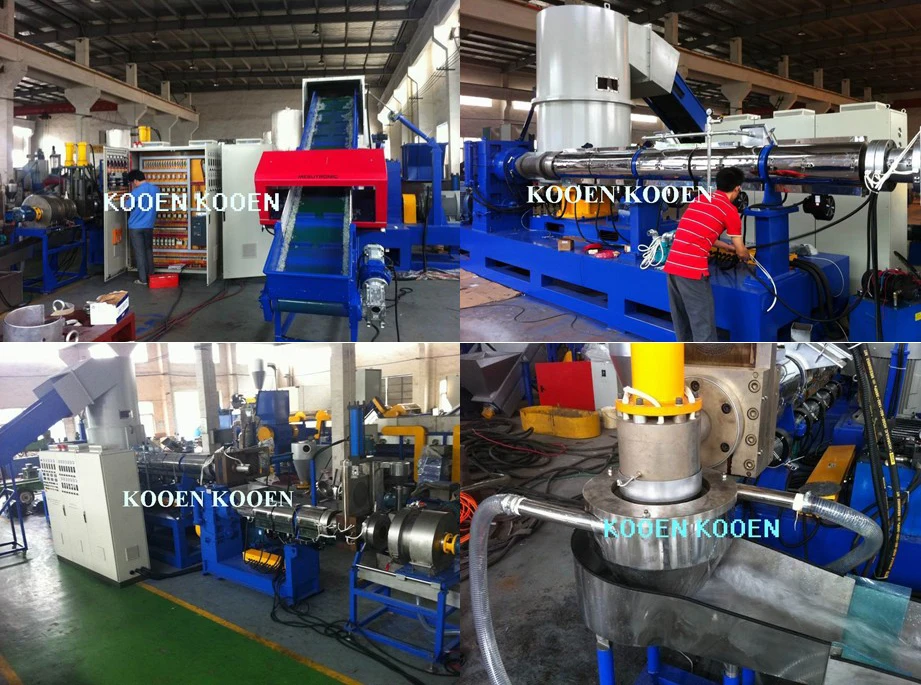

Main components of the SJ granulating machine

**************************************

ZL series single stage pe pp film compactor-granulator machine(with agglomerator)
Model	ZL-85	ZL-100	ZL-130	ZL-160	ZL-180
Screw Dia. (mm)	85	100	130	160	180
L/D Ratio	25-42	25-42	25-33	25-33	25-33
Output (kg/hr)	120-180	250-350	400-500	550-700	800-1000
ZL series double-stage pe pp film compactor-granulator machine(with agglomerator)
Model	ZL-85/85	ZL-100/100	ZL-130/130	ZL-160/160	ZL-180/180
Screw Dia. (mm)	85	100	130	160	180
L/D Ratio	25-42	25-42	25-33	25-33	25-33
Output (kg/hr)	120-180	250-350	400-500	550-700	800-1000

Main components of the ZL series pelletizing machine

**************************************

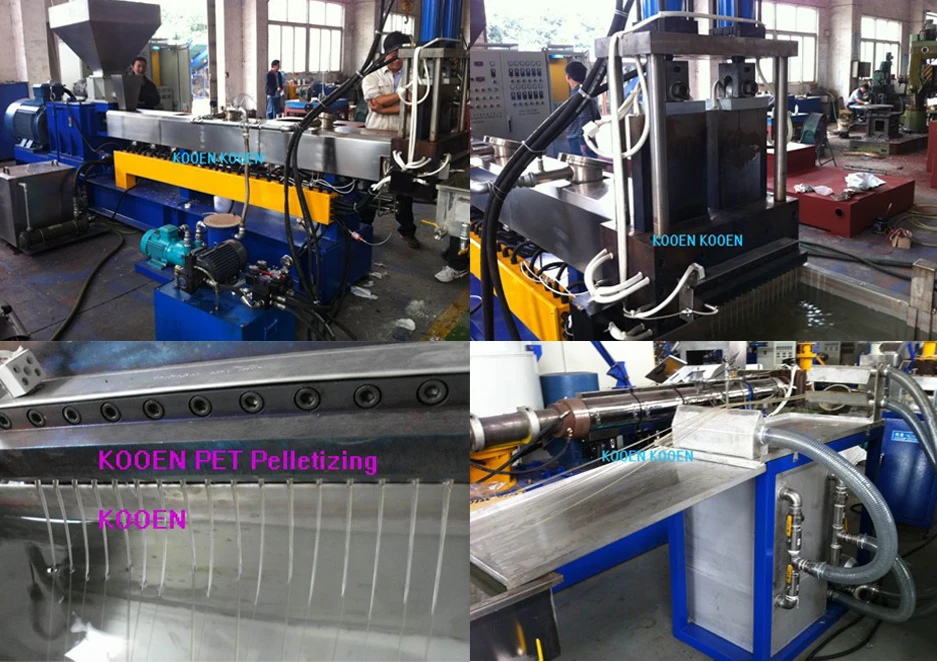

TSSK series Parallel twin screw PET granulation line/pelletizing machine
Model	TSSK-50	TSSK-65	TSSK-75	TSSK-92
Screw Dia.	50.5	62.4	71.2	91
L/D	32-48	32-48	32-48	32-40
Output (kg/hr)	80	150	300	500

Main components of the TSSK series PET flake recycling extruder

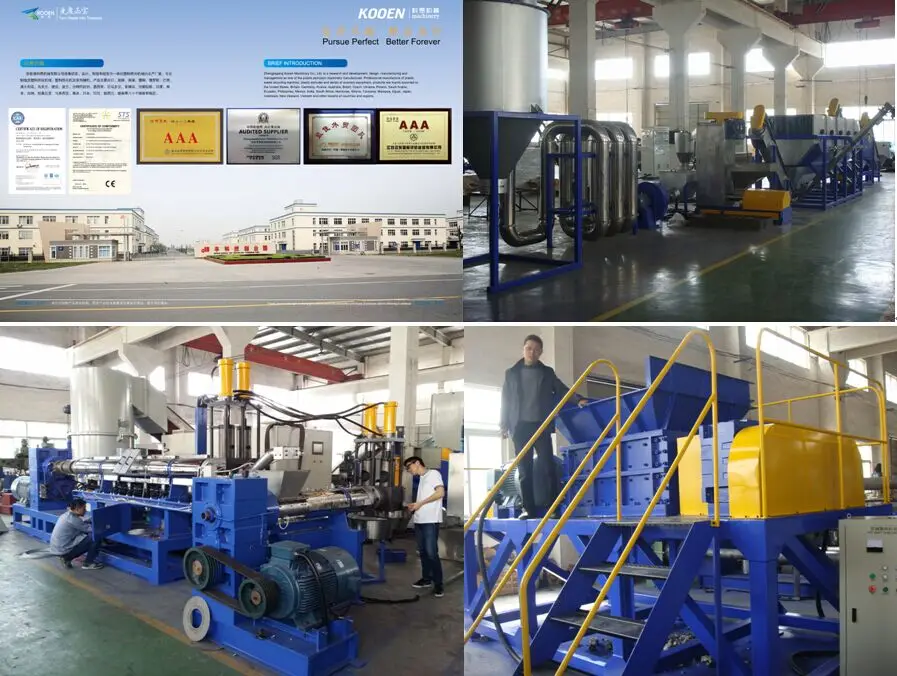

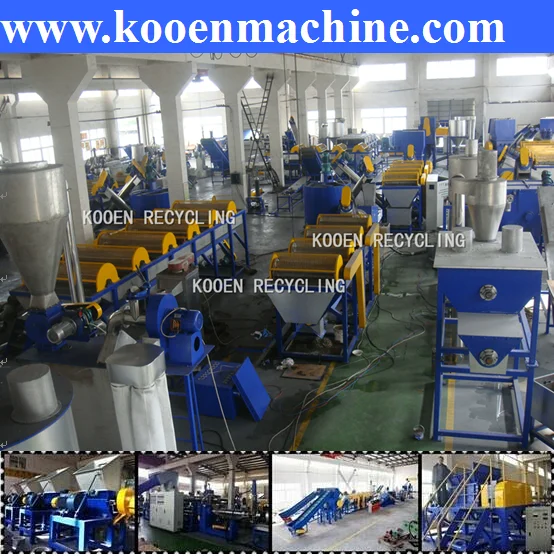

KOOEN factory layout

More related plastic recycling machine photos:

For choosing proper machine and saving your time, please read these bellow guides carefully:

1. What material do you want to process/recycling? PE/PP film? PE/PP rigid plastic flake? PET flake? or other plastic?

2. What capacity (kg/h) do you want?

3. What is the electric device you need ? Siemens, Omron or domestic ? and your power standard?

4. When (Times for delivery) do you want the machine?

5. Other requirements about the machine you want.

Turnkey project service:

1. we will provide all the machines for the complete production according to customer's requirements.

2. we will provide complete service for factory layout and other information to help customer to build the factory.

3. we will provide good service for machine installation and training, until the customers can run the machines and make stably production.

4. Except one year quality guarantee, we will provide after-sell service for all the life.

5. for long-term cooperation, we always provide good quality, good price and good service to customer.

KOOEN is a leading waste plastic recycling machinery manufacturer in China, dedicated to Series waste plastic recycling machine with more than 10 years export experience. If you have related requirement about pet bottle crushing washing recycling production line, please do not hesitate to let me know...

Note, If you want to see (video) of this production line, please log on our website!
