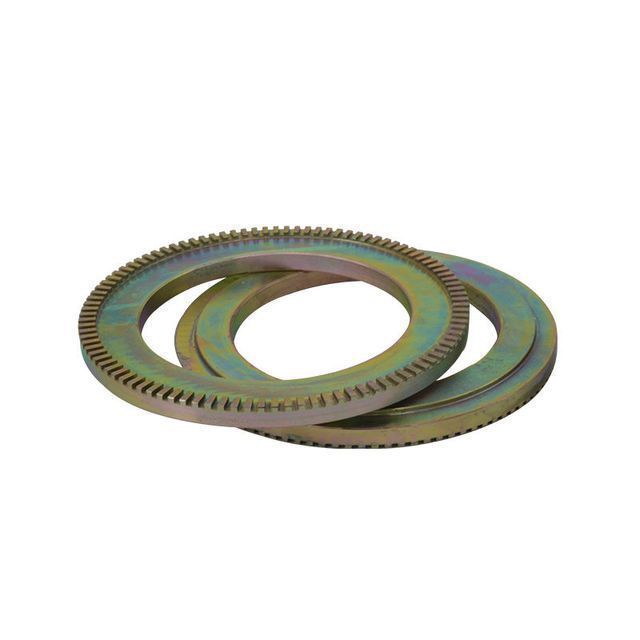

General-purpose customers can customize ABS ring gear with outer diameter of 207mm and inner diameter of 145mm
-
Supplier: Liangshan Hengxiang Automobile Technology Co., Ltd. -
Region: Shandong, China -
Contact: Mr hengxiang zhang -
Price: $4.40 / >=50 pieces -
Min. Order: 50 pieces
Product details
| Core components: | gear | Showroom location: | not any |
| Standard or non-standard: | standard | size: | custom made |
| Core Components Warranty: | Not available | delivery time: | 7-15 days |
| Original Equipment Manufacturer: | OEM service | Sample order: | acceptable |
| payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram | Processing: | Precision casting |
| Minimum order quantity: | 50 | Applicable industries: | Mechanical Repair Shop |
| place of origin; place of origin: | China, Shandong, China | Material: | customizable, customizable |
| Health status: | new | color: | As required |
| Warranty: | unavailable | brand: | Hengxing |
| Video external inspection: | if | Marketing Type: | normal product |
| Weight (kg): | 0.5 | shape: | ring gear |
| Tooth profile: | helical gear | Mechanical test report: | if |
| product name: | ABS ring gear |
Product Description
As the tires of the vehicle rotate, the ABS ring gear generates a wheel speed signal, which is transmitted to the ECU through the AC power generated by the sensor. Finally, the ABS system analyzes the data to determine the tire speed and prevent the tire from locking. The wheel speed sensor has an electromagnetic coil that generates magnetic lines of force. It is installed in the fixed part close to the wheel. The ring gear is mounted on the hub. The rotation of the wheel drives the ABS ring gear to rotate. The ABS ring gear cuts off the magnetic field lines to sense the solenoid in the sensor. , its pulse rate is proportional to the wheel speed and transmitted to the ECU (Electronic Controller).
product name | ABS ring gear |
color | As required |
size | custom made |
sample order | acceptable |
OEM | OEM service |
place of origin; place of origin | China |
delivery time | 7-15 days |
Product display
Product advantages
application
ABS ring gear is used in various vehicles to prevent the vehicle from locking and increase the safety of the vehicle. The ABS system adopts electronic or mechanical control to precisely control the withdrawal and release of the brake fluid pressure at extremely fast speed, preventing the wheels from locking, ensuring the maximum braking force of the tires and the steering ability during braking, so that the vehicle can also be used in emergency situations. The ability to avoid obstacles during braking.
