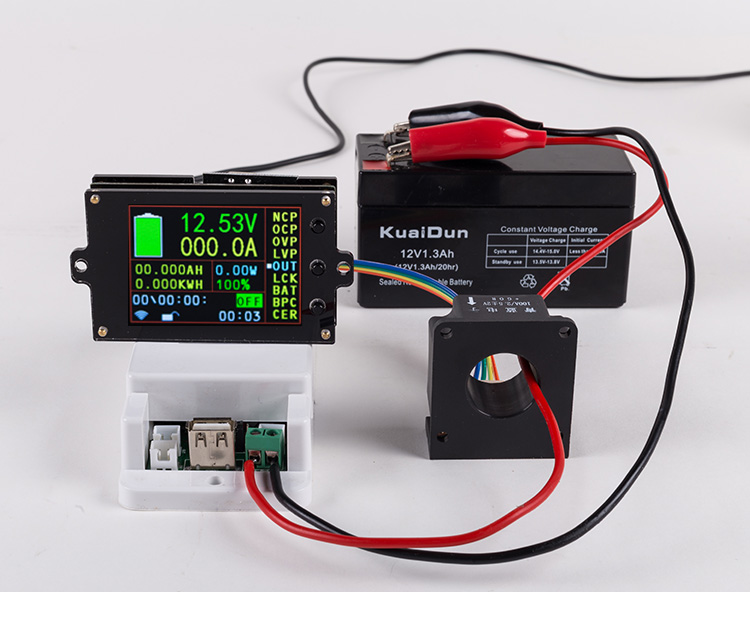

DC 500V 100A 200A 500A Wireless Voltmeter Ammeter Solar Battery Charging Fuel Gauge Capacity Power Detector Tester

Supplier: Shenzhen Qinda Electronics Co., Ltd.
Region: Guangdong, China
Contact: Ms Nana Chan
Price: $30.00 / >=5 pieces
Min. Order: 5 pieces

Click here to contact

Product details

type of packaging:	Static bag	Measuring voltage range:	..
Shipping Terms:	DHL	Warranty:	3 months
Health status:	100% original	Packaging Details:	standard packaging
Measuring current range:	..	Operating temperature:	..
delivery time:	1-3 days	brand:	The original
model:	DC 500V 100A 200A 500A Wireless Voltmeter	aspect:	..
quality:	high quality	Card:	The original
Pay:	Accept trade assurance	decoding:	up to date
Minimum order quantity:	sample	Accuracy class:	..
place of origin; place of origin:	China	payment terms:	Western Union, wire transfer

Product Description

Part Number	fuel gauge
WeChat/Phone	+8613534149774
Email/Skype	qindamodule@163.com
QQ	1823232721

main feature

1. Wirelessly transmit data to avoid interference caused by complex wiring between display and detection modules, and at the same time, wiring is simpler.

2. The Hall sensor is used to realize non-contact detection of current without disconnecting the wire, which is safe, reliable, convenient and fast.

3. Voltage, current, power, temperature, capacity, percentage of remaining capacity, and running time are displayed at the same time.

4. Dual relay interface, which can manage charge and discharge separately.

5. With charge overvoltage, discharge undervoltage, charge overcurrent, discharge overcurrent protection.

6. Breakpoint memory function, power on and power off, the number of AH and WH can be memorized before power off.

Project parameters

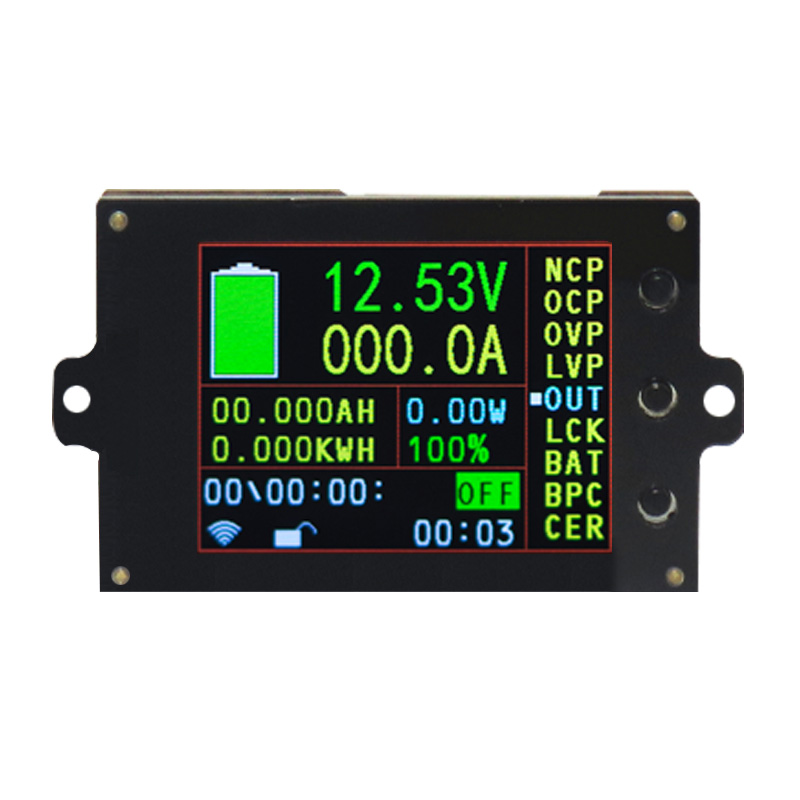

Display: 2.4 inch TFT LCD screen
Self-powered measuring range 6V～80V

Measuring range 0~500V when external power supply

Input current measurement range 0~100A
External power supply voltage 6-60V
Display mode 2.4 inch color LCD screen
Voltage 0.01V~500V
Current 50A 100A 200A 300A 500A optional

NOTE: If you want to measure currents less than 1A, choose the 50A meter

Capacity 0.001AH~65000.00AH
Energy 0.000KWH~9999KWH
Time 0 ~ 100 hours
Power value 999KW
Temperature 1~100°C
Voltage ± 1% + 2 words
Current ± 2% + 5 words
Temperature±1.5℃
Measurement rate 5 times/sec
Relay delay time (0-60) S
The communication distance is 10 meters from the billing group
OVP (Over Voltage Protection) 0.01V~500V
LVP (under voltage protection) 0.01~500V
OCP (Over-Charging Protection) 0-500A
NCP (discharge overcurrent protection) 0-500A

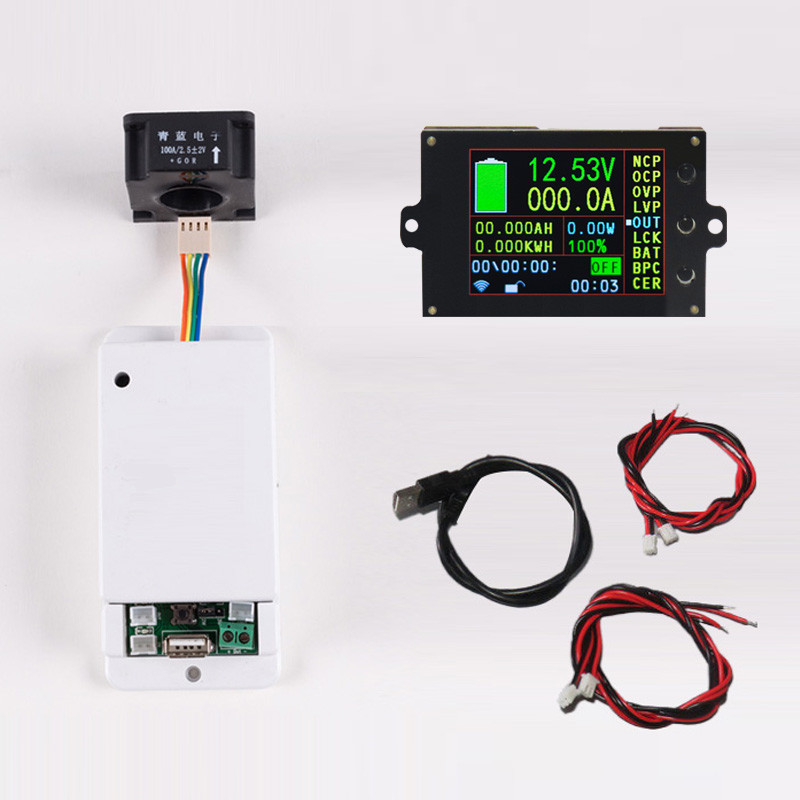

Display board size 87*49*14 (mm)
Measuring plate size 114*54*28 (mm)
