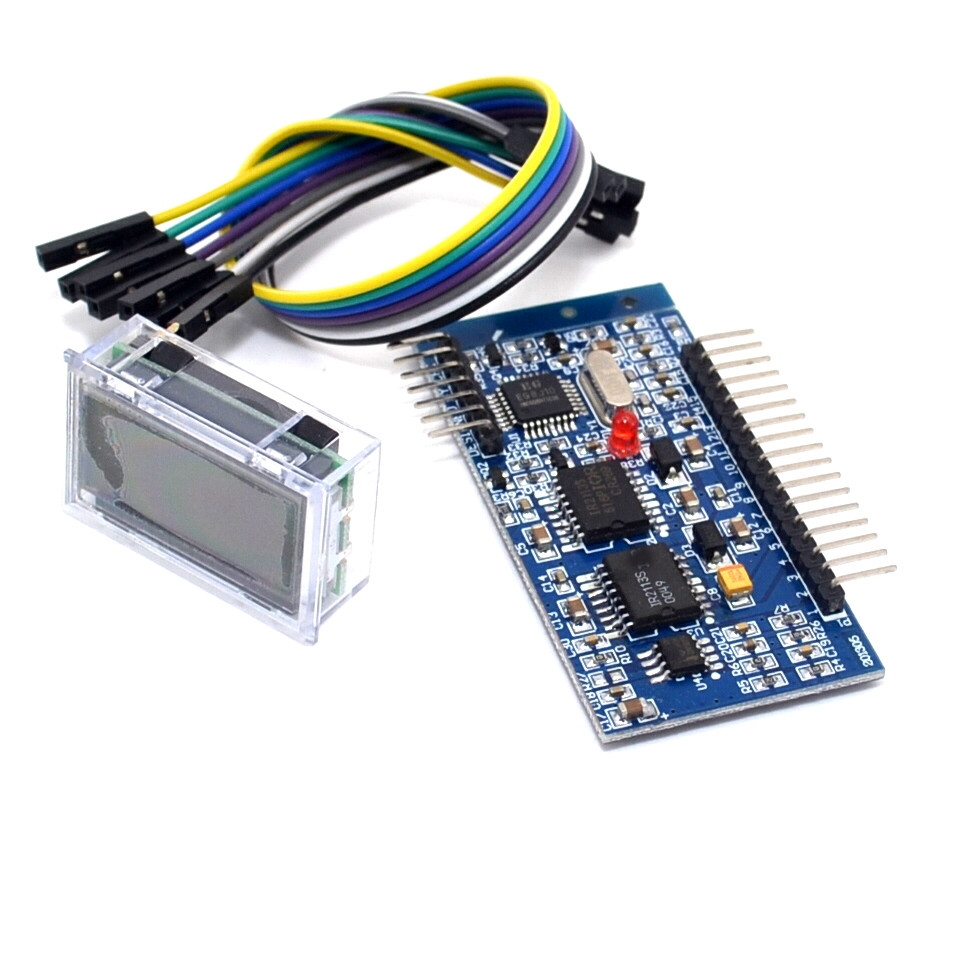

High Quality Pure Sine Wave Inverter Driver Board EGS002 "EG8010+IR2110" Driver Module+LCD

Supplier: Shenzhen Qinda Electronics Co., Ltd.
Region: Guangdong, China
Contact: Ms Nana Chan
Price: $2.00 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

Warranty:	3 months, 3 months	delivery time:	1-3 days
Health status:	100% original	type of packaging:	Static bag
model:	Pure Sine Wave Inverter	Certification:	not any
payment terms:	Western Union, T/T	Date code:	up to date
MOQ:	sample	Packaging Details:	standard packaging
port:	Hong Kong/Shenzhen	brand:	The original
custom made:	No	brand:	The original
Shipping terms:	DHL Express	type:	Pure Sine Wave Inverter
Supply capacity:	8999 pieces per month	quality:	high quality
pay:	Accept Trade Assurance	Origin:	China

Product Description

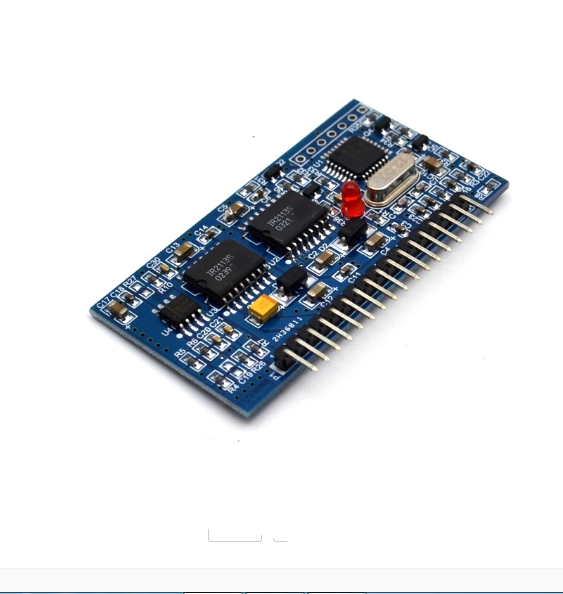

Part Number	EG8010+IR2110
WeChat/Phone	+8613534149774
Email/Skype	qindamodule@163.com
QQ	1823232721

EG8010 is a digital, fully functional pure sine wave inverter generator chip with dead-time control, which is applied to two-stage DC-DC-AC power conversion structure or single-stage DC-AC power frequency transformer Boost architecture. External 12MHz crystal oscillator to achieve high precision and low harmonic distortion, 50Hz or 60Hz pure sine wave inverter ASIC. The chip adopts CMOS technology and integrates functions such as SPWM sine generator, dead time control circuit, multiplication factor range, soft start circuit, protection circuit, RS232 serial communication interface and serial LCD driver module 1602.

feature:
- 5V single power supply
- The pin sets four pure sine wave output frequencies: fixed frequency 50Hz pure sine wave; 60Hz fixed frequency pure sine wave; 0-100Hz pure sine wave frequency adjustable; 0-400Hz pure sine wave frequency adjustable.
- Unipolar and bipolar modulation
- Comes with dead zone control, pin setting 4 dead zone times: 300nS dead zone time; 500nS dead zone time; 1.0uS dead zone time; 1.5uS dead zone time
- External 12MHz crystal oscillator
- PWM carrier frequency 23.4KHz
- Real-time feedback of voltage, current and temperature
- Overvoltage, undervoltage, overcurrent and overtemperature protection
- Soft start mode pin setting response time is 1S
- External serial communication to set parameters such as output voltage and frequency
- The external serial port 128*32 liquid crystal module 1602 displays the voltage, frequency, temperature, current and other information of the inverter;

application:
- Single phase pure sine wave inverter
- Photovoltaic inverter
- Wind power inverter
- Uninterruptible power supply UPS system
- Digital generator system
- IF power
- Single phase motor speed controller
- Single phase inverter
- Sine wave dimmer
- Sine wave regulator
- Sine wave generator

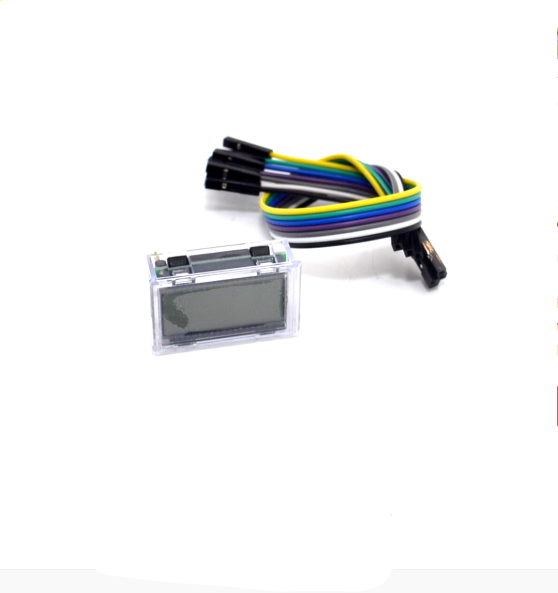

LCD screen description:
Notice: LCD cable not included
In the use of the LCD screen, the cable connecting the EGS002 driver board and the LCD screen must use a shielded wire, otherwise the inverter, high voltage and high current environment will seriously interfere with the operation of the driver board
