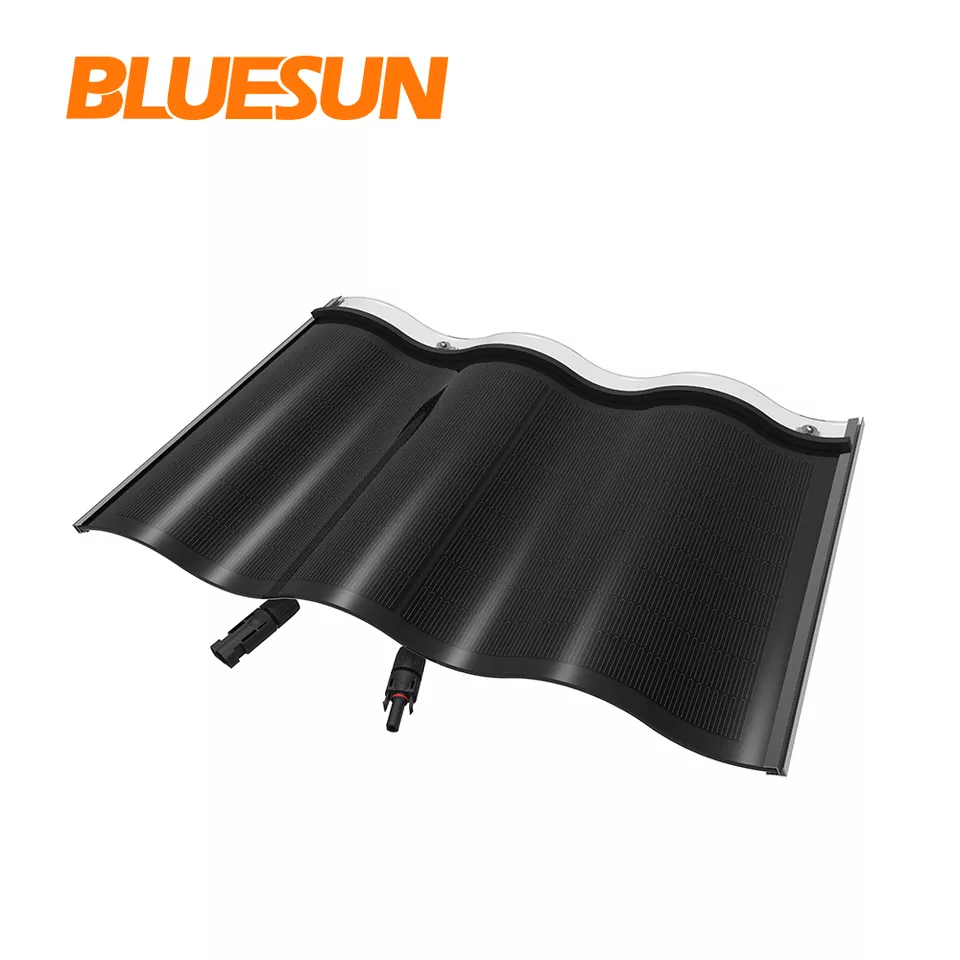

Bluesun Single Glass Solar Roof Tile Photovoltaic Solar Roof Tile Black
-
Supplier: SOLAR WORLD CO.,LTD -
Region: Anhui, China -
Contact: Ms Hazel He -
Price: $1.80 / 100000 - 999999 pieces
$1.70 / 1000000 - 9999999 pieces
$1.60 / >=10000000 pieces -
Min. Order: 100000 pieces
Product details
| Short circuit current: | 4A | Packaging Preview: | |
| model: | BSM-30S | Cable Type: | 2.5mm Solar Cable 450 (+10/-0) mm |
| place of origin; place of origin: | Anhui, China | brand: | blue sun |
| Packaging Details: | 30 pieces per pallet, standard export packaging, composite box | Open circuit voltage: | 10.6V |
| payment terms: | L/C,Western Union,T/T,MoneyGram | size: | 500*718*41mm |
| weight: | 10KG | strength: | 30W |
| port: | Shanghai or Ningbo | waterproof level: | IP67 |
| product name: | solar roof tiles | Buttocks: | CIGS |
| Supply capacity: | 10000000 watts per month | Junction Box: | 39*46*16.6 (mm) IP67 |
Product Description

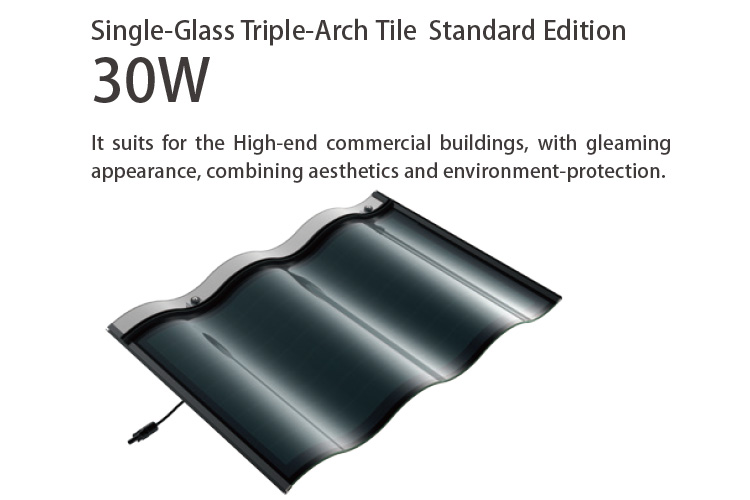

30W single glass solar tile
Solar tiles not only have the functions of waterproofing and heat insulation, but also change the building's dependence on external energy, making it possible for the building to have zero energy consumption.
Single glass roof solar tile series
Innovative single glass structure, light and beautiful, can be widely used for load bearing; made of toughened
Glass, strong and tough, shows a dynamic architectural aesthetic and is very fashionable.
Glass, strong and tough, shows a dynamic architectural aesthetic and is very fashionable.
Environmentally friendly building materials
The combination of traditional building materials and thin-film solar technology can not only replace traditional tiles as
The building material also replaces traditional photovoltaic panels.
The building material also replaces traditional photovoltaic panels.
technical details
Product number: | BSM-30S | |
length: | 700mm | |
width: | 500mm | |
Arch height: | 35mm | |
weight: | 5.2KG | |
color: | Black | |
Junction Box: | 68*68*19.7 (mm) IP67 | |
Cable Type: | 2.5mm Solar Cable 450 (+10/-0) mm | |
Cable Connector: | Photovoltaic connector | |
physical parameters | ||
Chip type: | CIGS | |
strength: | 30W | |
Short circuit current: | 4.45A | |
Open circuit voltage: | 10.16V | |
Current of PMPP: | 3.87A | |
PMPP voltage: | 7.79V | |
Electrical parameters | ||
Loading class: | 2400Pa | |
waterproof level: | IP67 | |
Fire-proof level: | One | |
Hail protection grade: | Class 4 (ANSI FM 4473) | |
Operating temperature: | -40°C to +85°C | |
application
maritime | Ship from Shanghai or Ningbo seaport | ||||
air transport | Departure from Shanghai Pudong Airport | ||||
express delivery | via TNT/DHL | ||||
