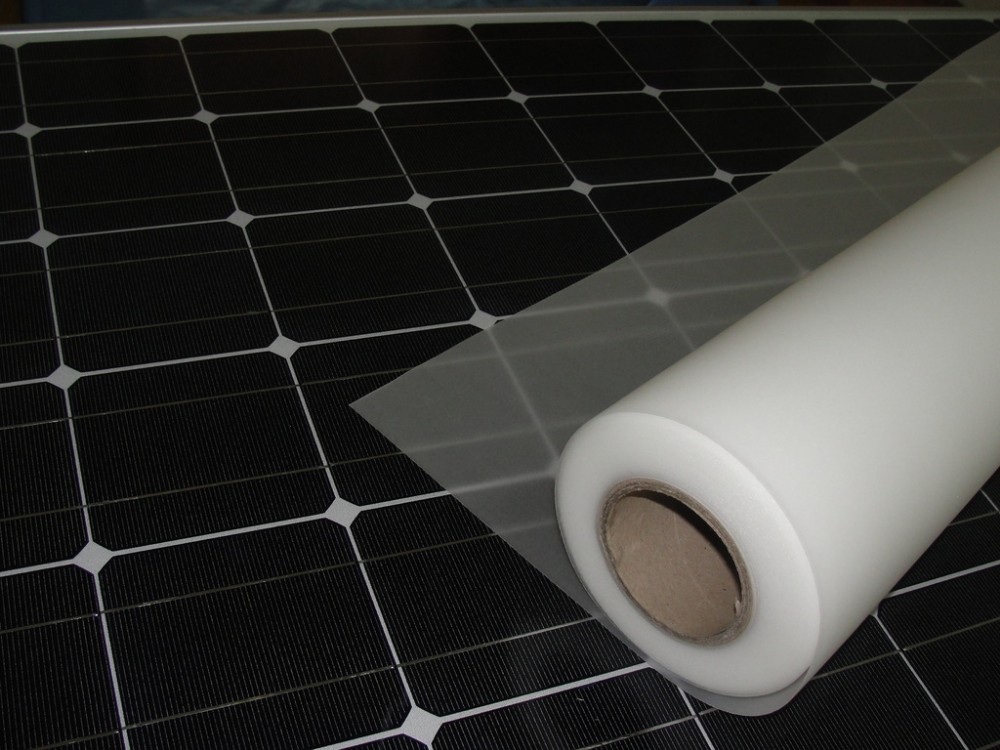

Highly transparent solar EVA film for thin film photovoltaic module solar panel production

Supplier: Tianjin Caida New Materials Technology Co., Ltd.
Region: Tianjin, China
Contact: Ms caida eva
Price: $1.50 / 1 - 9 square meters
$1.30 / >=10 square meters
Min. Order: 1 square meter

Click here to contact

Product details

place of origin; place of origin:	Tianjing, China	Crosslinking (gel content):	Below 80.8%
Supply capacity:	500,000 volumes per month	Packaging Details:	EPE cotton, PE waterproof paper, PE woven cloth plus kraft paper for solar eva film solar cell encapsulation 4 rolls per plywood box
shrink:	1.0% 1.1%	brand:	Only up to
payment terms:	L/C, Western Union, D/P, D/A, T/T, other payment can be negotiated	Certification:	Caida
tensile strength:	18.6mpa	port:	Newport China
Elongation at break:	555%	Peel Strength:	Glass 74N/cn Backplate 62N/cm
Packaging Preview:		Warranty:	other
model:	SUN-6 Solar Cell Encapsulation Film	Volume resistivity:	1.3x10^15
product name:	solar eva film	transparency:	91.3%
1000 hours of UV exposure:	1.8	VA Content:	33%

product description

20 years of producing EVA film, our advantages are:
Caida solar EVA film has excellent weather resistance, high temperature resistance, moisture resistance and UV resistance.
Caida solar EVA film is easy to operate and store, with a wide range of lamination temperature and high efficiency.
Caida solar EVA film has the following advantages: high light transmission type, anti-UV type, anti-PID type, high refractive index type, anti-snail type, fast curing type.
Caida Solar EVA Film is committed to producing high-quality EVA film and providing additional solutions for photovoltaic modules.

stock size

category	Thickness(mm)	Width (mm)Maximum width 2600mm	Length of each roll (M)
SUN-6	0.30/ 0.35/ 0.40/0.45/0.50	680/820/1000/1100/1300	150/200
SUN-8	0.30/ 0.35/ 0.40/0.45/0.50	680/820/1000/1100/1300	150/200
Sun-T	0.15	680/820/1000/1100/1300	150/200

Product details

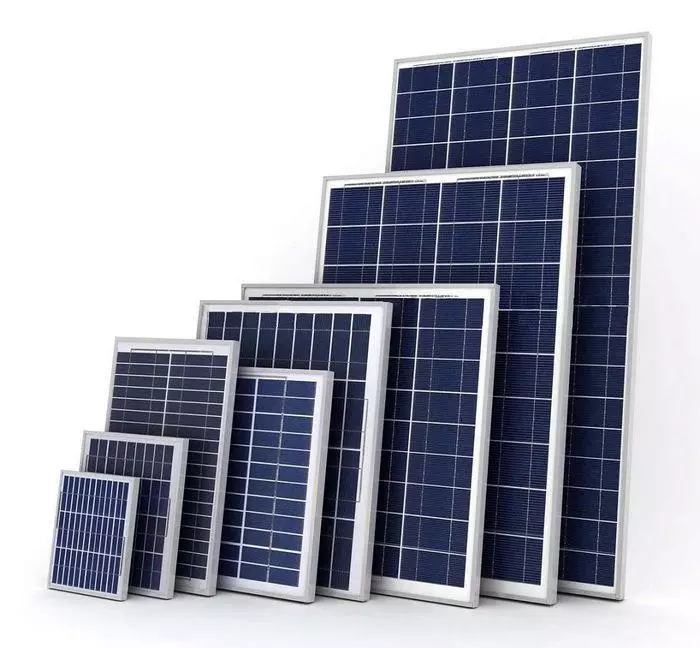

Polycrystalline silicon/monocrystalline silicon photovoltaic modules

EVA film for encapsulating polycrystalline and monocrystalline photovoltaic modules.

Thin Film Photovoltaic Modules

EVA film for encapsulating flexible solar modules.

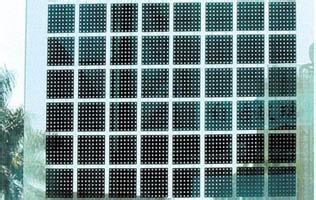

BIPV module

EVA film for encapsulating double-glazed solar modules.

feature	data
transparency	>91.23%
UV exposure	y<=1.8
Shrinkage	L<=1.0% H<=1.1%
peel strength	Glass>74/Back>62
tensile strength	18.6 MPa
Elongation at break	555%
water absorption	<0.1%
Volume resistivity	1.3x10^15
specific heat	2.3

Highly transparent solar EVA film for thin film photovoltaic module solar panel production

Polycrystalline silicon/monocrystalline silicon photovoltaic modules

Thin Film Photovoltaic Modules

BIPV module
