Fully Automatic 20L Plastic Bucket Double Layer 3 Layer Extrusion HDPE Molding Plastic 20L 25L Plastic Bucket Blow Molding Machine
-
Supplier: Zhangjiagang Dawson Machine Co., Ltd. -
Region: Jiangsu, China -
Contact: Mr Dawson Ken -
Price: $56800.00 / 1 - 4 sets
$49800.00 / 5 - 9 sets
$32800.00 / >=10 sets -
Min. Order: 1 set
Product details
| Clamping force (kN): | 270 | Core Components Warranty: | 1 year |
| Video external inspection: | if | Packaging Details: | The blow molding machine is packed in plastic film; the auxiliary machine and spare parts are packed in wooden case. Loading into the container is done according to weight balance, the position of each package is fixed inside the container to avoid movement. Photos of the entire delivery will be sent to our customers for reference. |
| Language setting: | Chinese, English and other languages required by customers | Mold platen size (width) (mm): | 660 mm |
| Warranty: | 1 year | Extruder motor power (kW): | 30kW |
| Power (kW): | 67 | Health status: | new |
| place of origin; place of origin: | Jiangsu, China | Number of screw heating zones: | 4 |
| Plastic Processing: | PP,HDPE,ABS,PVC,PE,EVA,PE/PP,HDPE/PP | Output (kg/hour): | 130 kg/h |
| Voltage: | 440V/415V/380V/220V | After-sales service provided: | Send engineers to customer factories |
| Die head heating power (kW): | 8kW | Weight (tons): | 11.3 |
| Packaging Preview: | Cooling water pressure: | 0.6 MPa | |
| Screw diameter (mm): | 90 mm | Air consumption (m³/min): | 2.2 m3/min |
| Mold platen size (height) (mm): | 680 mm | Blow molding type: | Extrusion blow molding machine |
| Applicable industries: | Manufacturing Plants, Food and Beverage Plants, Farms, Food and Beverage Stores | payment terms: | L/C,Western Union,T/T |
| automation: | automatic | Mechanical test report: | if |
| Maximum application size: | 30L | Screw heating power (kW): | 10kW |
| Mold material: | P20, 2316, S136H, aluminum and beryllium copper. | Showroom location: | the Philippines |
| application: | bottle, jerry can, jar, gallon | Labour needs: | 1~2 operators |
| brand: | Dawson | Mold life: | > 1,000,000 cycles |
| Dimensions (L*W*H): | 4.4*3.4*3.6 | Core components: | PLC, engine, bearing, gearbox, gear |
| Volume of hollow part: | 30L | year: | new |
| Accumulator capacity (L): | 0 liter | port: | Shanghai |
| Air pressure (MPa): | 0.8 MPa | Main selling point: | easy to operate |
| Water consumption: | 100L/min | Marketing Type: | normal product |
Product Description
Daosheng Machinery Mould Group

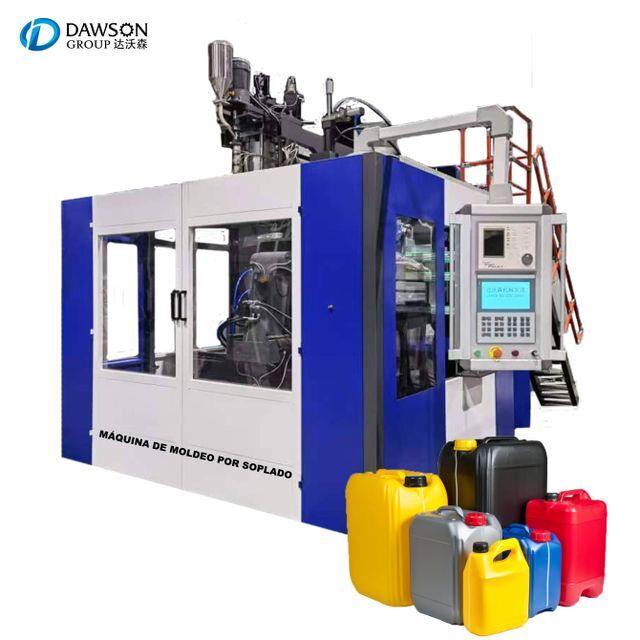

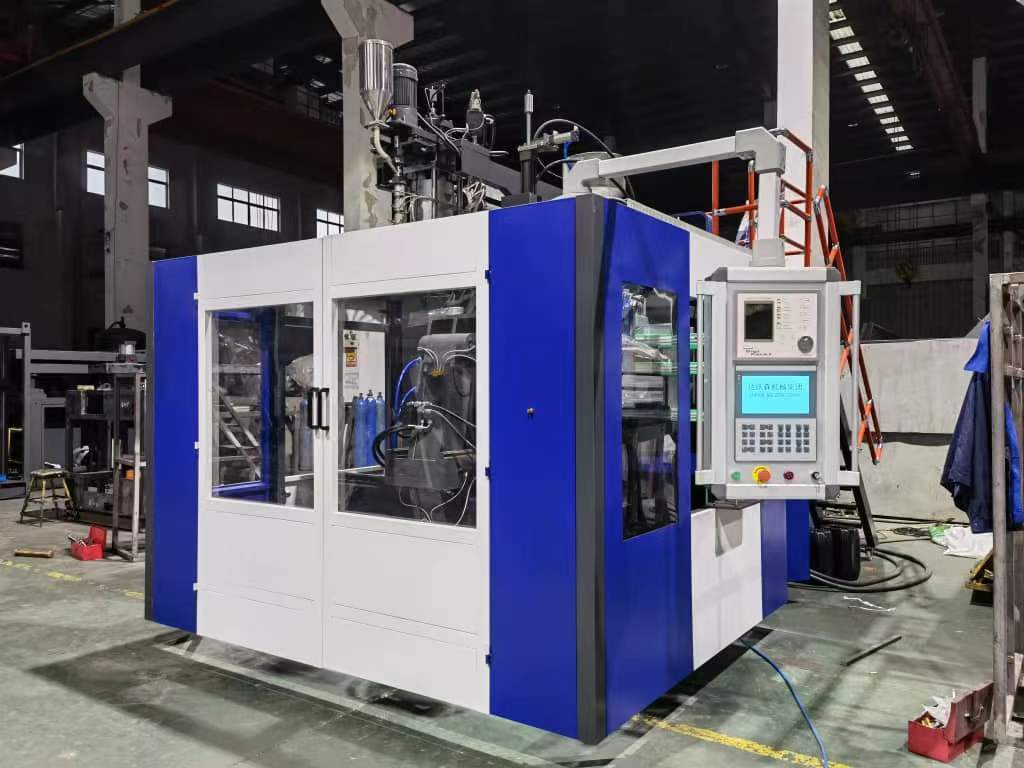

Extrusion blow molding machine ABLB90-30
20L Jerry cam blow molding machine is suitable for making plastic bottles, jars, containers, plastic cans below 30L,
The whole blow molding machine is equipped with a world-renowned brand bilingual operation panel and automatic configuration, which realizes the advantages of simple operation and high degree of automation.
machine type | maximum. bottle size | Production forecast | ||
ABLB90-30 | single stationsinglehead | 30L | 48~50 times/hour | |
technical parameter
Name | unit | ABLB90-30L |
Maximum product volume | large | 30L |
Screw diameter | mm | 90 |
Screw drive power | kilowatt | 10 |
Output of HDPE | kg/hour | 130 |
Oil pump drive power | kilowatt | 11 |
clamping force | KN | 270 |
Maximum mold size | mm | 680×660 |
Template size | mm | 290×320 |
Die stroke | mm | 450-950 |
Machine size | length x width x height | 4.4×3.4×3.6 |
machine weight | Ton | 11.3 |

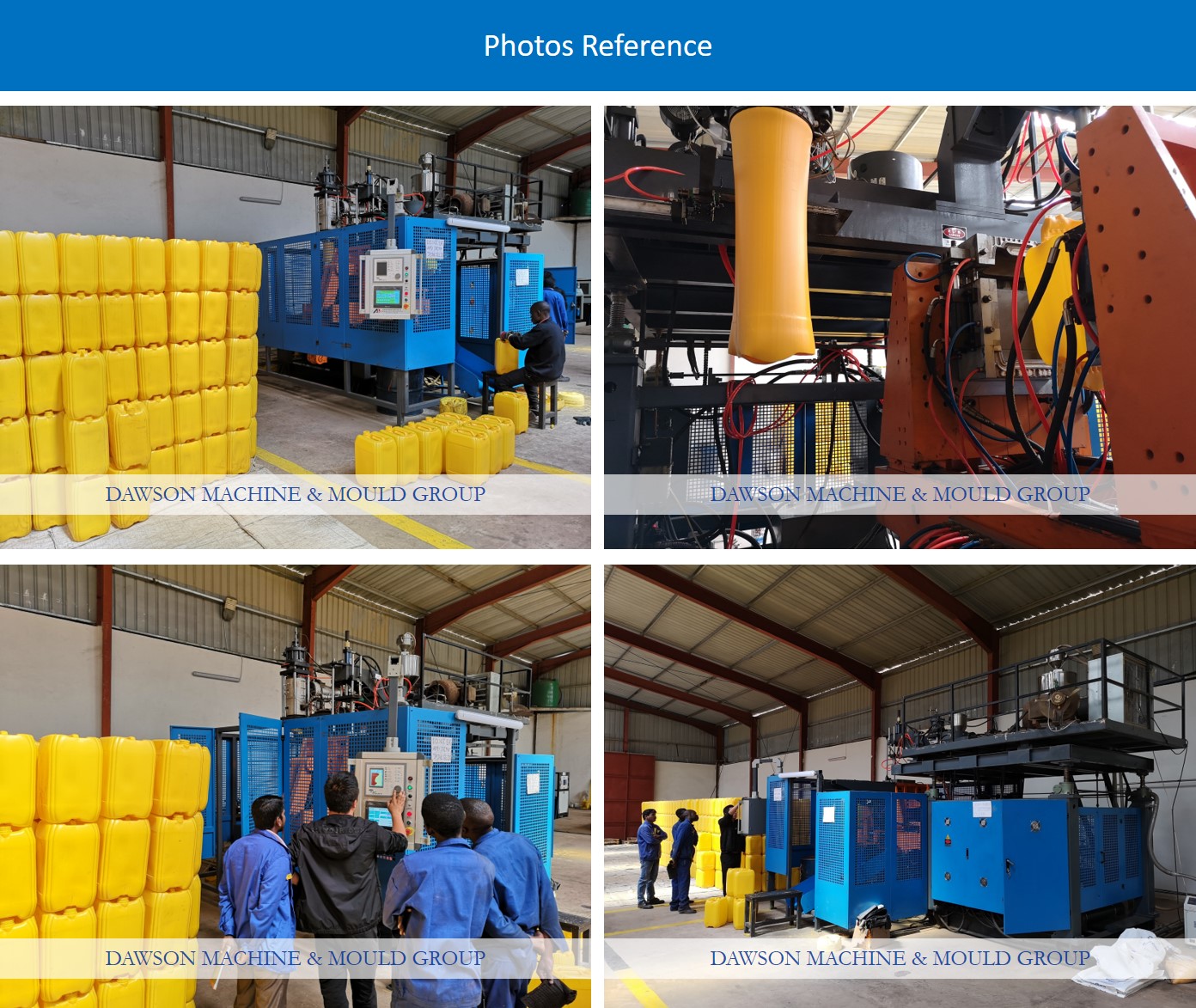

photo reference
Click here to send us a message >> Send an inquiry...
clamping system
workshop
Our professional blow molding machine workshop...
High quality blow mould
In the process of plastic blow molding, the mold is a very important part. A good blow mold can make product production smoother, and a good blow mold can also make the finished product more flexible and beautiful.
We have our own mold production workshop, using high configuration equipment and mold engineers with 16 years of technical experience to customize blow molds for you.
- We use the best stainless steel S136H or aluminum alloy 7075# as the main material of the mold - The neck plate is heat treated with JAPAN DC53 to HRC62
- Double neck design can be changed to spare necking in the future
- All molds can be automatically deburred or manually deburred according to customer requirements
- Perfect mold cooling design to ensure optimal molding preform
- 2D and 3D product drawings available to customers
- Samples can be sent to customers to confirm product quality
- We have worked for Total, Shell, Gulf, BMW, Yamaha, Mobil, Toyota, Mengniu,
Hyundai, Mentholatum, Unilever, Lee Kum Kee...
